Sanus VLF728-B2 User manual
VLF728-B2
VLF728-S2
INSTRUCTION MANUAL
GET IT
RIGHT
THE FIRST TIME
Follow this step-by-step
instruction manual to
speed up your installation.
2
WE’RE HERE TO HELP
Our install experts are
standing by to help.
Call us at:
US: 800-359-5520
EMEA: +31 (0) 495 580 852
UK: 0800 056 2853
AUS: +61 (0) 7 3299 7000
Get it right the first time.
HeightFinder™ shows you
where to drill.
Check it out at:
SANUS.com/2567
Want to watch a video that
shows how easy this DIY
project will be?
Watch it now at:
SANUS.com/2793
Texto en español, página 30 Deutscher Text Seiten 38 Svensk text sida 46
中文文字说明请参见第 54 页
Texte français page 34 Nederlandse tekst op pagina 42
Русский текст: стр. 50 日本語は 58 ページ
3
Before you begin
Soft clean surface
Remove the stand from your TV
—if attached. Install any accessories
you may have purchased —if they
require the TV to be removed from the
wall for assembly. The TV is removable
for future accessory purchases.
Protect the face of your TV
when laying it down for installation.
4
125 lbs.
(56.6 kg)
IMPORTANT SAFETY INSTRUCTIONS – PLEASE READ MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS
Please read through these instructions completely to be sure you’re comfortable with this easy install process.
Check your TV owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product,
contact Customer Service: [US]: 800-359-5520 [EMEA]: +31 (0) 495 580 852 [UK]: 0800 056 2853 [AUS]: +61 (0) 7 3299 7000.
CAUTION: Avoid potential personal injuries and property damage!
●This product is designed ONLY to be installed into wood studs, solid concrete or concrete block.
—DO NOT INSTALL INTO DRYWALL ALONE — DRYWALL ALONE WILL NOT HOLD THE WEIGHT OF YOUR TV.
●This product is designed for INDOOR USE ONLY.
●The wall must be capable of supporting five times the weight of the TV and mount combined.
●Do not use this product for any purpose not explicitly specified by manufacturer.
●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
TV Weight Limit
(including accessories)
DO NOT EXCEED
If your TV (including accessories) exceeds
this weight, this mount is NOT compatible.
Visit SANUS.com or call customer service to
find a compatible mount.
5
Tools Needed
Wall
Construction
ONLY install on
these acceptable
wall types. Drywall alone
will NOT hold
the weight of
your TV.
wood studs Solid concrete or
concrete block
ACCEPTABLE ACCEPTABLE
Wood Stud Install
Concrete Install
Awl
Pencil Level Tape
Stud
Finder
ScrewdriverTape
Measure
7/32 in.
(5.5 mm)
Wood
Drill Bit
Electric
Drill
Hammer
1/2 in.
(13 mm)
Socket
Wrench
Drill Bit
3/8 in.
(10 mm)
Concrete
CAUTION:
DO NOT install
in drywall alone
[US]: 800-359-5520
[EMEA]: +31 (0) 495 580 852
[UK]: 0800 056 2853
[AUS]: +61 (0) 7 3299 7000
Unsure Call
Customer
Service
6
M8 x 35mm
M8 x 16mm
22mm
M6 x 12mm M6 x 35mm
M8 x 50mm
2.5mm
5mm
M8 x 25mm
M5 x 10mm
STEP 1 Parts and Hardware
TV Screws
(qty. 4 each) [Only one size fits your TV] Washers
(qty. 4 each)
Spacers
[If necessary]
(qty. 4 each)
0302
01
M6/M8 M6/M8
M6
M8
(qty. 1)
04
(qty. 4)
05
(qty. 2)
06
TV Bracket Vertical
Interface Screw
TV Bracket
Horizontal
MOUNTING TABS
(ATTACHED)
M
Attach TV Bracket to TV
STEP 1
WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included
and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!
NOTE: Not all hardware included will be used.
RELEASE CORD
(ATTACHED)
R
7
03
06
06
02
02 01
01
Too Short Too Long Correct
Inset Holes Cables Rounded Back
Only one screw size fits your TV.
M6 M8 • Flat Back TV
[TV brackets
lay flat on your TV]
NO SPACER SPACER NEEDED
• Flat Back TV with
Extra Space Needed
[for deep inset holes
or cable interference]
• Rounded or
Irregular Back TV
[TV brackets NOT
resting flat on your TV]
A B
Use short TV screws 01 .
Spacers 03 not needed. Use long TV screws 01 and spacers 03 to
create extra space between the TV and TV bracket.
01
1.2 Select TV Screw Length and Spacers1.1 Select TV Screw Diameter
If your TV included
inset spacers or wall
mount adapters, see
Troubleshooting on PAGE 29.
CAUTION: Verify adequate thread
engagement with your screw 01 , washer 02 ,
spacer 03 combination AND TV bracket 06 .
—Too short will not hold your TV.
—Too long will damage your TV.
8

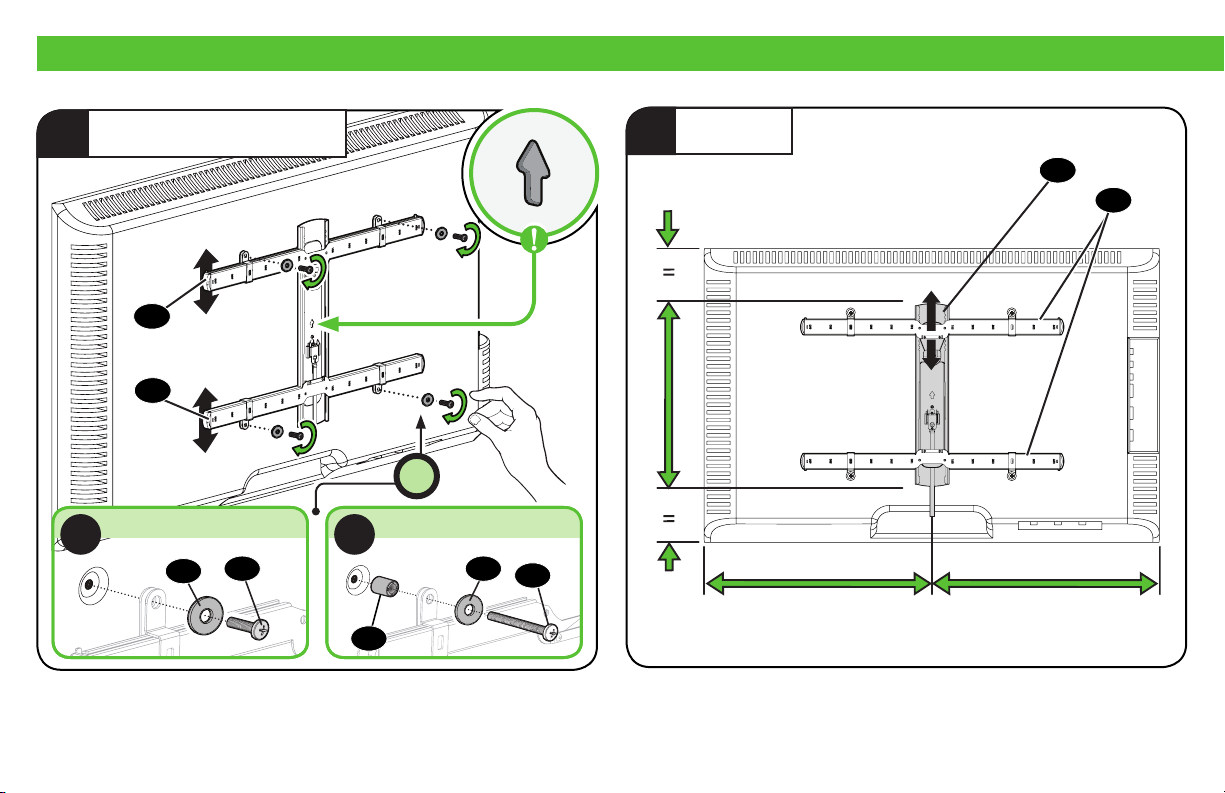

1.3 Attach TV Brackets to Your TV
W
400 mm position illustrated
2ADJUST TO WIDTH W
1MEASURE
inch dimensions are approximate
W
H
06
M
M
inches cm mm
410 100
7⅞20 200
11 ¾ 30 300
15 ¾ 40 400
19 ¾ 50 500
23 ¾ 60 600
W
H
mm
mm
9
1.3 Attach TV Brackets to Your TV
For height 300 mm or less For height greater than 300 mm
3a ASSEMBLE FOR HEIGHT H3b ASSEMBLE FOR HEIGHT H
≤300 mm >300 mm
04 04
06
06
06 06
MM
10
1.3 (continued)
5CENTER
04
06
4LOOSELY ASSEMBLE
4X
01
02 02
03
01
NO SPACER SPACER NEEDED
A B
06
06
