Sanus WSS2 User manual

WSS

SPEAKER STAND

INSTRUCTION MANUAL

We’ll Make It Stress-Free

If you have any questions along the way, just give us a call.

1-800-359-5520. We’re ready to help!

Sonos®One™Sonos®PLAY:1™Sonos®PLAY:3™Sonos®PLAY:3™

This stand is designed to support only Sonos®One™, PLAY:1™and PLAY:3™ speakers.

IMPORTANT SAFETY INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS

CAUTION: Avoid potential personal injuries and property damage!

•Check your speaker owner’s manual to see if there are any special requirements for mounting your speaker.

•Please read through these instructions completely to be sure you’re comfortable with this easy install process.

• Do not use this product for any purpose not explicitly speciﬁed by manufacturer.

• Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

• If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product,

contact Customer Service at 1-800-359-5520.

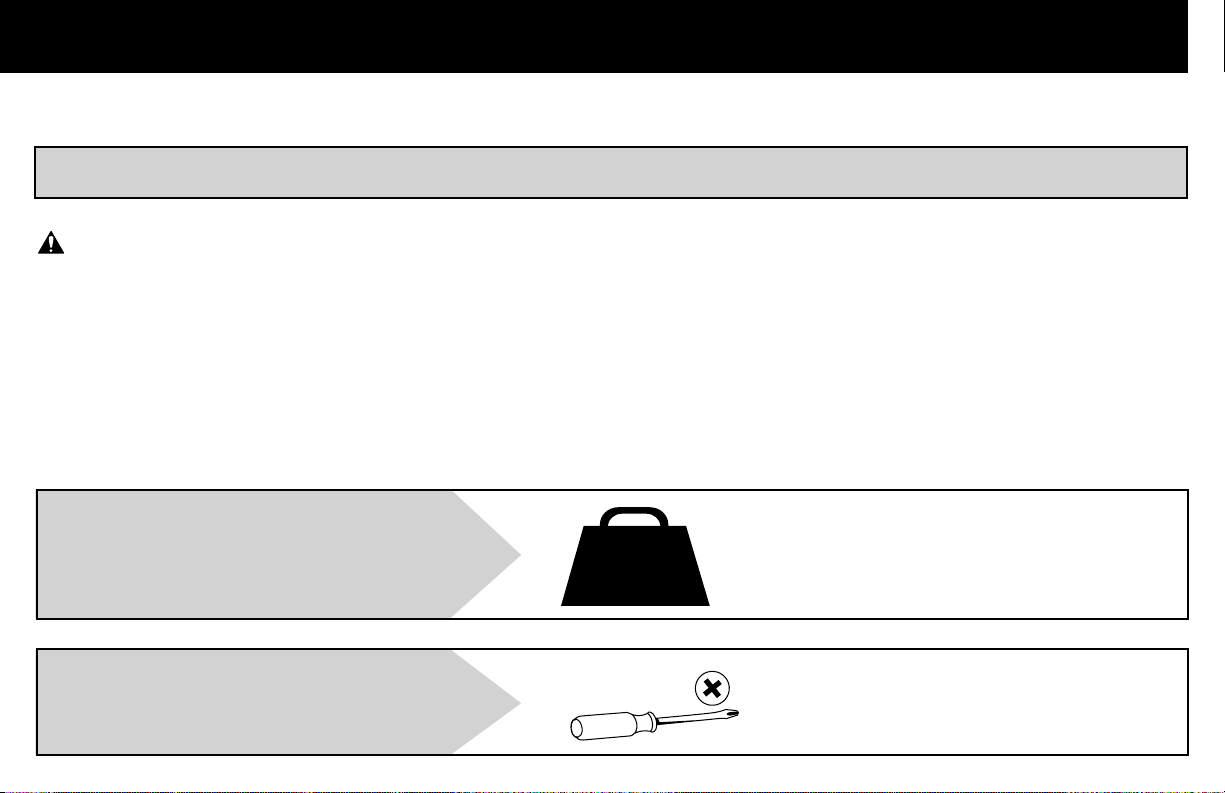

Before getting started, let’s make sure this product is perfect for you!

5.8 lbs.

(2.6 kg)

Speaker Weight Limit

DO NOT EXCEED

Tool Needed Screwdriver

866

254

322

866

254

322

Dimensions

34 in.

(866 mm)

10 in.

(254 mm)

13 in.

(322 mm)

Top View

Front View

M6 x 20 mm M6

1/4-20 x3/4 in.

1/4-20x5/8 in.

1/4-20x3/8 in.

STEP 4STEP 2

M6 x 20 mm M6

1/4-20 x3/4 in.

1/4-20x5/8 in.

1/4-20x3/8 in.

M6 x 20 mm M6

1/4-20 x3/4 in.

1/4-20x5/8 in.

1/4-20x3/8 in.

M6 x 20 mm M6

1/4-20 x3/4 in.

1/4-20x5/8 in.

1/4-20x3/8 in.

STEP 1

M6 x 20 mm M6

1/4-20 x3/4 in.

1/4-20x5/8 in.

1/4-20x3/8 in.

OPTIONAL

Base

Base Screw

Lock Washer

Carpet Spikes

Spike Nuts

Rubber Pads

Tube

Top Collar

Bottom Collar

02 x1

03 x1

07 x4

08 x4 09 x4

01 x1

05 x1

06 x1

04 x1

Quantities shown are for one speaker stand.

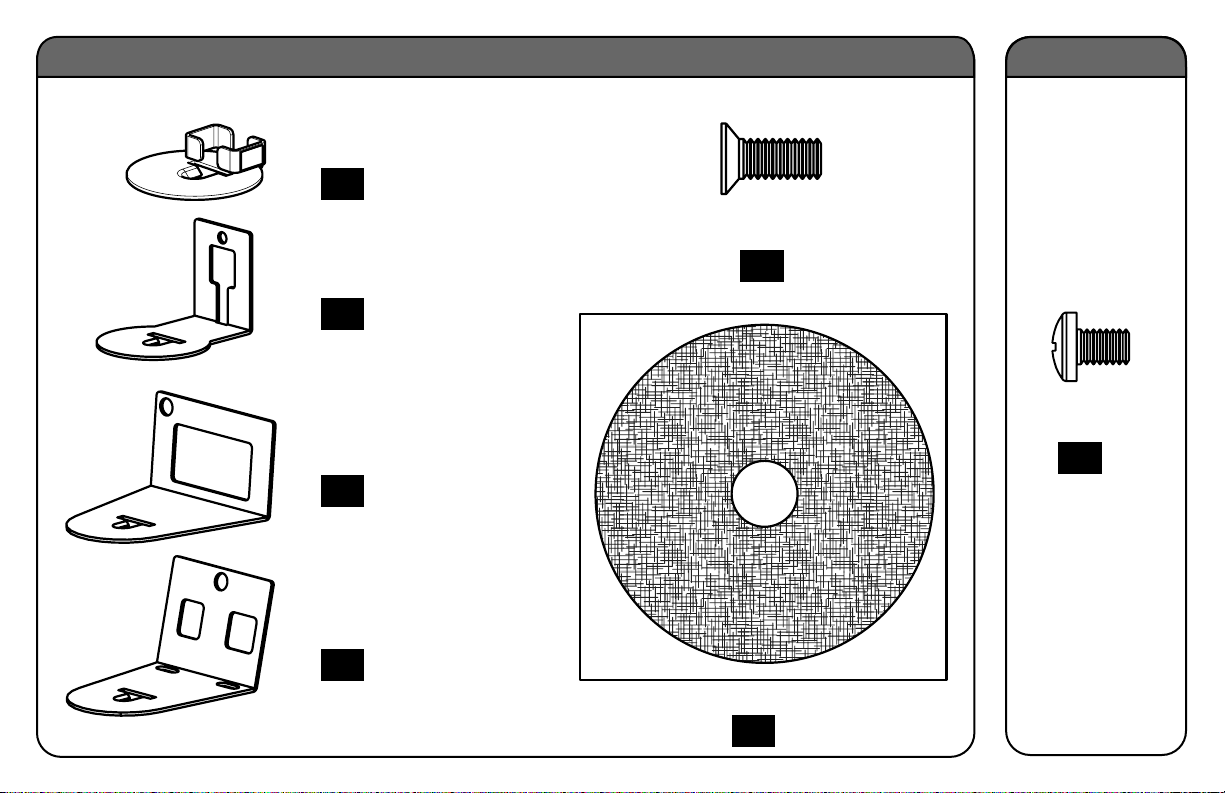

Parts and Hardware

NOTE: Not all hardware included will be used.

WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to

your dealer; contact Customer Service. Never use damaged parts!

M6 x 20 mm M6

1/4-20 x3/4 in.

1/4-20x5/8 in.

1/4-20x3/8 in.

STEP 5 STEP 6

M6 x 20 mm M6

1/4-20 x3/4 in.

1/4-20x5/8 in.

1/4-20x3/8 in.

12 x1

10 x1

11 x1

13 x1

14 x1

15 x1

16 x1

Sonos®One™

Bracket

Sonos®PLAY:1™

Bracket

Bracket Screw

Sonos®PLAY:3™

Horizontal Bracket

Sonos®PLAY:3™

Vertical Bracket

2.7 in. Felt Pad

Speaker Screw

Slide Collars onto Tube

STEP 1

M6 x 20 mm M6

1/4-20 x3/4 in.

1/4-20x5/8 in.

1/4-20x3/8 in.

M6 x 20 mm M6

1/4-20 x3/4 in.

1/4-20x5/8 in.

1/4-20x3/8 in.

Attach Base to Tube

STEP 2

M6 x 20 mm M6

1/4-20 x

3/4 in.

1/4-20x5/8 in.

1/4-20x3/8 in.

M6 x 20 mm M6

1/4-20 x3/4 in.

1/4-20x5/8 in.

1/4-20x3/8 in.

Route Speaker Power Cable

STEP 3

One™

PLAY:1™PLAY:3™

Ethernet [OPTIONAL]

NOTE: Ethernet cable, if

required (see your speaker

manual), installs easier

AFTER the power cable.

Optional Carpet Spikes

Rubber Pads

Install Rubber Pads -or- Carpet Spikes

STEP 4

Twist rubber pads 07 into the base 04 .WARNING: The ends of carpet spikes 08 are sharp and

may scratch flooring, damage wiring, or be hazardous to children.

07 04 04

09 08

HEIGHT

ADJUST

Follow the next steps based on your speaker style.

STEP 5A

STEP 6A STEP 5B

STEP 6B STEP 5C

STEP 6C

PLAY:1™

One™PLAY:3™

Horizontal Installation Vertical Installation
