Sanus SAN18B User manual
Sanus Systems
2221 Hwy 36 West
Saint Paul, MN 55113 USA
Customer Service
Asia Pacific: 86 755 8996 9226 • sanus.ap@milestone.com
accents.sanus.com
©2010 Milestone AV Technologies,a Duchossois Group Company.
All rights reserved. Accents is a Milestone brand.
All other brand names or marks are used for identification purposes and are trademarks of their respective owners.
SAN18B
(6904-002017 <00>)
Wood
3mm
(1/8 in.)
12 mm
(7/16 in.)
6904-002017 <00>
2
OPT
Wood stud walls Tools required Choose an Option
WARNING: This product
contains small items that could
be a choking hazard.
Caution / Warning
Heavy! Assistance Required. Troubleshooting and
Maintenance
6904-002017 <00> 3
35.0 mm
1.38 in.
54.1 mm
2.13 in.
12°
12°
200 mm
7.87 in.
200 mm
7.87 in.
100 mm
3.94 in.
100 mm
3.94 in.
61.6 mm
2.43 in.
8.69 mm
220.7 in.
225.4 mm
8.87 in.
177.8 mm
7.0 in.
120.7 mm
4.75 in.
If mounting to a TV with a 200 x 200 mm (7.87
x 7.87 in.) hole pattern, add the extension
plates [03] to the TV bracket [01] using the
extension plate screws [15] and nuts [16].
6904-002017 <00>
4
IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL BEFORE USING THIS PRODUCT
Specications
Weight capacity-DO NOT EXCEED: 22.67 kg (50 lbs) includes TV and any accessories
CAUTION: Avoid potential personal injuries and property damage!
Do not use this product for any purpose not explicitly specied by manufacturer.
The wall must be capable of supporting ve times the weight of the monitor and mount combined.
This product is not designed for use in metal stud walls!
If you do not understand these instructions, or have doubts about the safety of the installation, assembly or use of this product, contact manufacturer
Customer Service or call a qualied contractor.
Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
CAUTION:
Supplied Parts and Hardware.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer
Service. Never use damaged parts!
NOTE:
Not all hardware included will be used. Wall plate [02] is shipped attached to
the TV bracket [01]. Remove wall plate
[02] before starting installation.
[15]
[16][03]
6904-002017 <00> 5
M4 x 12mm
M6 x 12mm M6 x 20mm M6 x 35mm
M8 x 16mm M8 x 35mm
1/4 x 2 ½ in.
M4 x 30mm
[01] x 1 [02] x 1
[03] x 4
[04] x 4
[06] x 4
[09] x 4 [10] x 4
[11] x 4 [12] x 4
[13] x 8 [14] x 4
[15] x 4 [16] x 4 [17] x 2
[07] x 4 [08] x 4
[05] x 4
6904-002017 <00>
6
1
Install TV Brackets
Before you begin, hand thread screws into the threaded inserts on the back of your TV to determine the correct screw diameter (M4, M6, or M8). Verify that
there are adequate threads to secure the brackets to the monitor. If you encounter resistance, stop immediately and contact customer service.
CAUTION: Avoid potential personal injuries and property damage! Use the shortest screw and spacer combination to accomodate your needs. Using
hardware that is too long may damage your monitor’s internal components.
CAUTION:

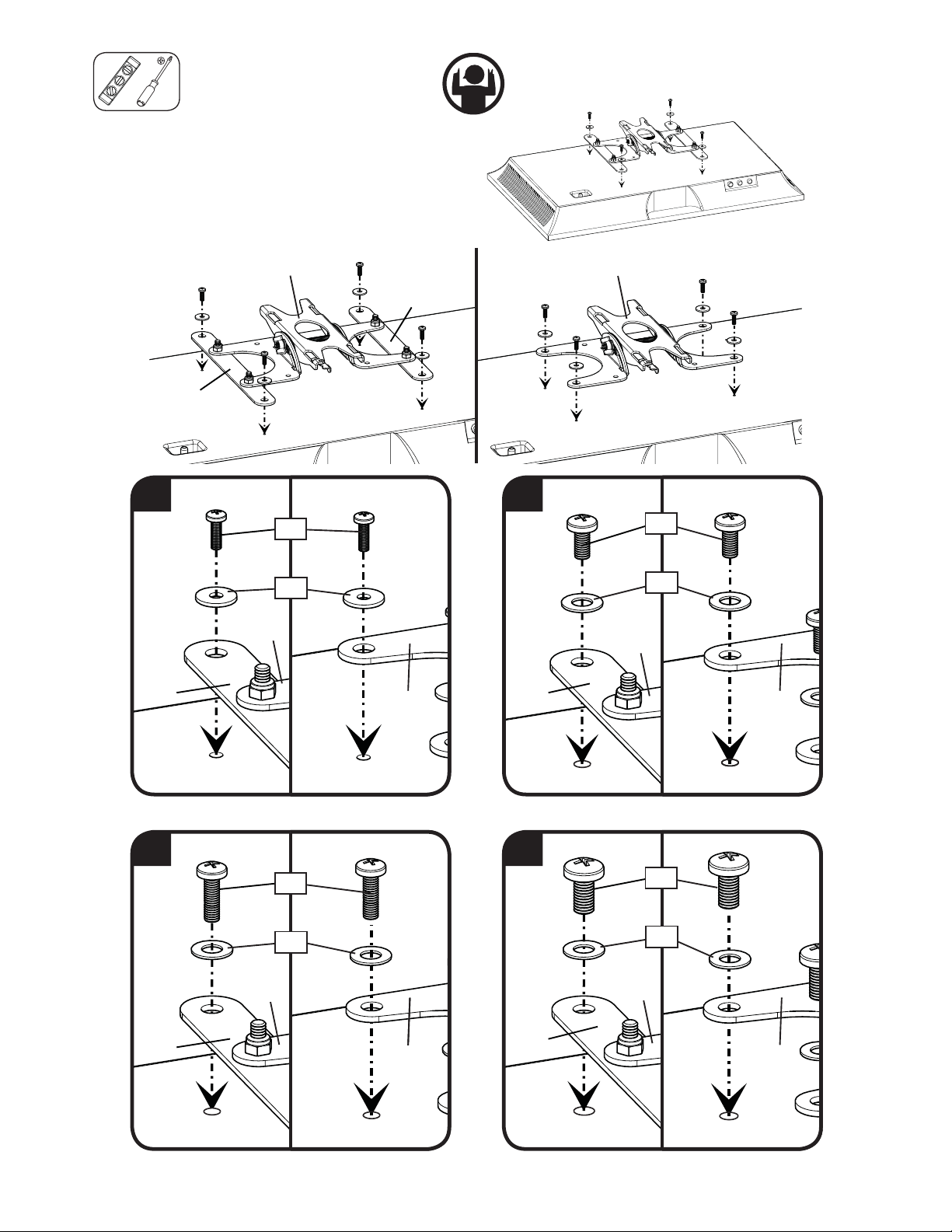

1-1
?
For TVs with a at back. Ensure that the bracket is level on the back of
the TV. Standard congurations are shown. If you need extra space to
accommodate cables, recesses, or protrusions, see the installation option
(1-2) that uses spacers. For special applications, or if you are uncertain about
your hardware selection, contact Customer Service.
100 x 100 Mount
100 x 100 Mount
[04]
[13]
[01]
M4
6904-002017 <00> 7
1-1
?
For TVs with a at back. Ensure that the bracket is level on the back of
the TV. Standard congurations are shown. If you need extra space to
accommodate cables, recesses, or protrusions, see the installation option
(1-2) that uses spacers. For special applications, or if you are uncertain about
your hardware selection, contact Customer Service.
M4 M6
M6 M8
[03]
[03]
[03]
[01]
[01] [01]
[01]
[01]
200 x 200 Mount
200 x 200 Mount
100 x 200 Mount
100 x 200 Mount
200 x 200 Mount
200 x 200 Mount 200 x 200 Mount
100 x 200 Mount
100 x 200 Mount 100 x 200 Mount
[03]
[03] [03]
[01]
[01] [01]
[01]
[01]
[01]
[13]
[14]
[14]
[14]
[04]
[07]
[06]
[09]
6904-002017 <00>
8
1-2
?
For TVs with a at back. Ensure that the bracket is level on the back of the
TV. Standard congurations are shown. For special applications, or if you are
uncertain about your hardware selection, contact Customer Service.
M4
M4
M6
M8
[03]
[05]
[13]
[13]
[11]
[01]
[03]
[03]
[03]
[01]
[01]
[01] [01]
200 x 200 Mount
200 x 200 Mount
100 x 200 Mount
100 x 200 Mount
200 x 200 Mount
200 x 200 Mount
100 x 200 Mount
100 x 200 Mount
100 x 100 Mount
[03]
[01]
[01]
[01]
[01]
[13]
[13]
[11]
[14]
[12]
[14]
[12]
[05] [08]
[10]
6904-002017 <00> 9
CAUTION:
2
2
[02]
34
[17]
1< 16 mm
(5/8 in.)
Wood Stud Mounting
1. Locate stud. Verify the center of the stud with an awl or thin nail or use an edge to edge stud nder.
2. Level the wall plate [02] and mark the hole locations.
3. Drill pilot holes as illustrated.
4. Tighten lag bolts [17] only until they are pulled rmly against the wall plate [02].
CAUTION:
Improper use could reduce the holding power of the lag bolt. To avoid potential injuries or property damage:
Pilot holes MUST be drilled to a depth of 63.5 mm (2.5 in.), using a 3 mm (1/8 in.) diameter drill bit.
DO NOT over-tighten the lag bolts [17].
Any material covering the wall must not exceed 16 mm (5/8 in.).
Minimum wood stud size: common 2 x 4 in. (nominal 1.5 x 3.5 in.)
3mm
(1/8 in.)
12mm
(7/16 in.)
63.5mm
2.5 in.
6904-002017 <00>
10
3
3-1 Hang the TV onto the wall plate.
For tilting option see 3-1
For low prole option see 3-2
HEAVY! You will need assistance with this step.
± 12°
Adjust Up / Down Tilt Tension
OPT
[02]
[01]
