Santec SQUARE E Series User manual

E-SERIES SERIES

SQUARE COLLECTIONS

PAPER HOLDER

MODEL: 2465SQ10

2465SQ75

KEEP THIS INSTRUCTION BOOKLET FOR FUTURE REFERENCE

Important : Please register your product online at www.santecfaucet.com within

30 days of purchase. Santec reserves the right to request additional documents

before servicing warranty requests.

01 02

Installation Instructions

Place the post against the assigned wall location. Make sure that the holder is leveled. Mark the holder

post position.

1.

Using the Allen key provided, remove the holder post from the mounting post. Press the mounting post

against marked post position on the wall and mark the screw hole positions.

NOTE: MAKE SURE THE ALLEN SCREW HOLE ON THE MOUNTING POST IS FACING DOWN

WHEN SECURING TO WALL.

INSTALLING ON WOODEN SURFACE

For wooden surface, the mounting post can be

secured by screwing the screws directly into the wall.

INSTALLING ONTO DRYWALL SURFACE

Using a drill, pre-drill holes for the anchors. Insert the

anchors into the wall. The mounting post can be

secured by screwing the screws into the anchors.

INSTALLING ONTO A SOLID SURFACE

Measure the dimensions carefully. Using a drill,

pre-drill the holes. Secure the mounting post by

screwing the screws into the wall.

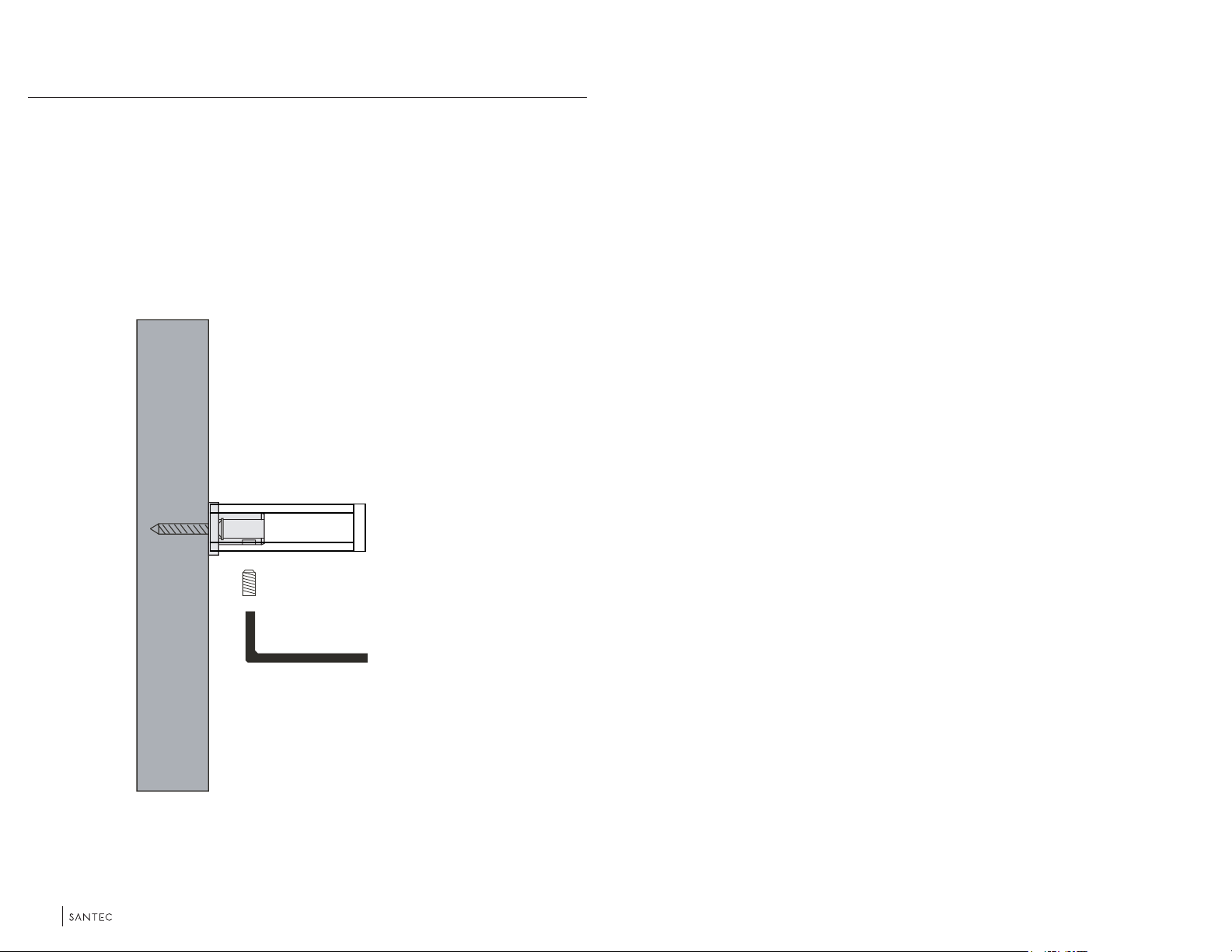

2.

holder post

holder post mark

mounting post

WALL

7

8

"

61

2

"

415

16

"

17

16

"

23

4

"

03

Installation Instructions

Press the holder post over the mounting post. Align the holder and secure it by tightening the set

screw.

3.

Check the holder post to make sure it is rmly secured. If not, tighten the set screw with the Allen key.4.

This manual suits for next models

2
