PART 1. ENHANCED DISPLAY PROGRAMMING

1.1 OVERVIEW

•iDCS KEYSETS

This diagram illustrates the keys on a

iDCS 28 BUTTON and a iDCS 18

BUTTON keyset that have special

functions during programming. When

required, these keys will be referred to

by the names described in the

diagram.

Home Page

Table of Contents

OfficeServ 7100 USER INSTRUCTIONS

TECHNICAL MANUAL PART 1 APRIL 2007

1.2

This diagram illustrates the keys on a iDCS 8

BUTTON keyset that have special functions

during programming. When required, these keys

will be referred to by the names described in the

diagram.

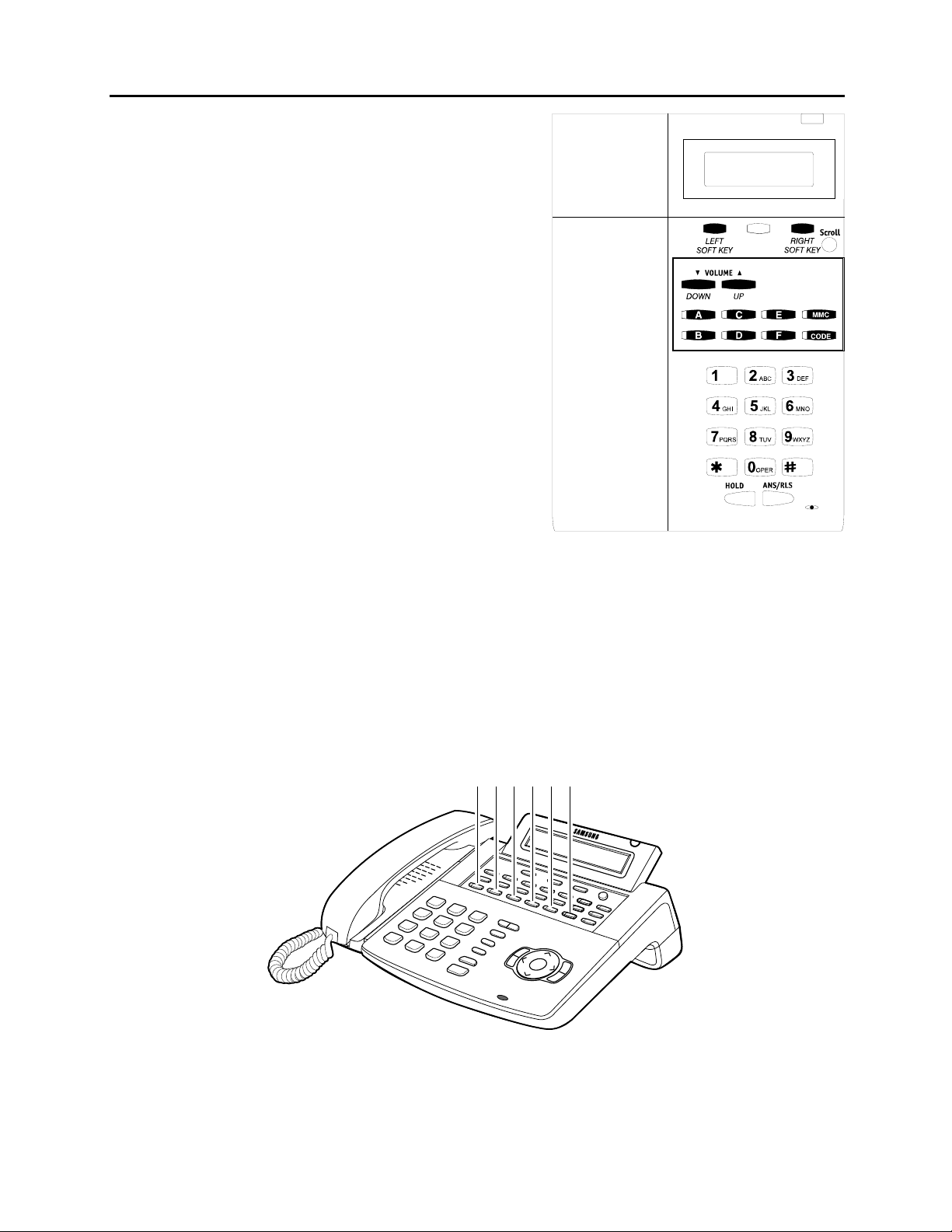

•ITP and DS 5000 Series Keysets

This diagram illustrates the keys on an ITP 5021-D keyset. The ITP and DS 5000

keysets have keys that have special functions during programming. When required,

these keys will be referred to by the names described in the diagram.

A BCDEF

Home Page

Table of Contents

OfficeServ 7100 USER INSTRUCTIONS

TECHNICAL MANUAL PART 1 APRIL 2007

1.3

1.2 LOCKING YOUR KEYSET

You can lock your keyset to prevent other people from making or receiving calls while

you are away. You can unlock it when you return.

ACTION DISPLAY

1. Press the transfer key followed by 100

Display shows

[201] STN LOCK

PASSCODE:_

2. Enter your passocde

Default is 1234

[201] STN LOCK

UNLOCKED

3. Enter 1for locking outgoing calls (Internal

calls will still be allowed).

[201] STN LOCK

LOCKED OUTGOING

4. Enter 2for locking all calls (Internal and

external calls will not be allowed).

[201] STN LOCK

LOCKED ALL CALLS

5. Enter 0to unlock your phone. [201] STN LOCK

UNLOCKED

6. Press the transfer key to save and exit

Home Page

Table of Contents

OfficeServ 7100 USER INSTRUCTIONS

TECHNICAL MANUAL PART 1 APRIL 2007

1.4

1.3 CHANGING YOUR PASSCODE

Each keyset user can set or change his/her individual passcode. This passcode is used

to lock or unlock keysets, for toll restriction override and to access the DISA feature.

NOTE: Default passcodes cannot be used for toll restriction override or for DISA

access.

ACTION DISPLAY

1. Press the transfer key followed by 101

Display shows

[201] PASSCODE

OLD CODE:_

2. Enter the existing passcode (default = 1234) [201] PASSCODE

OLD CODE:****

3. Enter the new passcode [201] PASSCODE

NEW CODE:_

4. Reenter the new passcode to verify the number

If reentered correctly, display shows

[201] PASSCODE

VERIFY :SUCCESS

5. Press the transfer key to save and exit

Home Page

Table of Contents

OfficeServ 7100 USER INSTRUCTIONS

TECHNICAL MANUAL PART 1 APRIL 2007

1.5

1.4 CALL FORWARDING

The OfficeServ 7100 allows the system administrator to program the call forward

destinations for other station users. This MMC also allows call forward to be set after

the destination has been entered.

The OfficeServ 7100 system allows four types of call forwarding: FORWARD ALL,

FORWARD NO ANSWER, FORWARD BUSY, and FORWARD DND. There is an

additional option, FORWARD BUSY/NO ANSWER, that allows both of these options to

be activated at the same time, provided that destinations have been entered for both.

The destinations for all these forwards can be either an internal number or an external

number.

0 = FORWARD CANCEL 3 = NO ANSWER

1 = ALL CALL 4 = BUSY/NO ANSWER

2 = BUSY 5 = FORWARD DND

0 = FORWARD CANCEL This option will cancel any call forwarding set in MMC

102. It will not remove the programmed destination and

will not override any preset forward settings in MMC 316.

1 = ALL CALL This option, when set, will forward all calls to the

programmed destination. If the programmed destination

is a station then that station can call the forwarded

station to put calls through.

2 = BUSY This option, when set, will forward calls to the

programmed destination when the forwarded keyset is

busy.

3 = NO ANSWER This option, when set, will forward calls to the

programmed destination if the forwarded station

does not answer a call before the forward no answer

timer in MMC 502 expires.

4 = BUSY/NO ANSWER This option will activate both the BUSY option and the

NO ANSWER option at the same time.

5 = FWD DND This option will forward all calls to the programmed

destination whenever the forwarded station goes into

DND.

ACTION DISPLAY

1. Press the transfer key followed by 102

Display shows

[201] FORWARD

0:FORWARD CANCEL

Home Page

Table of Contents

OfficeServ 7100 USER INSTRUCTIONS

TECHNICAL MANUAL PART 1 APRIL 2007

1.6

2. Dial 0 – 4to select forward type

[201] FORWARD

1:ALL CALL:NONE

Press UP or DOWN to select forward type

and press RIGHT soft key to move cursor

3. Dial destination number (e.g., 201)

[201] FORWARD

1:ALL CALL:205

Press UP or DOWN to select destination

and press RIGHT soft key to move cursor

4. Dial 1 for YES, 0 for NO

[201] FORWARD

CURENTLY SET :YES

Press UP or DOWN to select YES or NO

and press RIGHT soft key to return to step

5. Press the transfer key to store and exit

Home Page

Table of Contents

OfficeServ 7100 USER INSTRUCTIONS

TECHNICAL MANUAL PART 1 APRIL 2007

1.7

1.5 SETTING YOUR ANSWER MODE

Each keyset can have its answer mode for intercom calls set to one of the following

options:

RING—The station will ring in one of eight custom ring patterns. Calls are answered by

pressing the ANS/RLS key or lifting the handset.

AUTO—After giving a short attention tone, the station will automatically answer calls on

the speakerphone. When a C.O. line is transferred to a station in Auto Answer, the

screened portion of the call will be Auto Answer, but the keyset will ring when the

transfer is complete if the user has not pressed the ANS/RLS key or lifted the handset.

VOICE—The station will not ring. After a short attention tone, callers can make an

announcement. The called party must press the ANS/RLS key or lift the handset to

reply.

ACTION DISPLAY

1. Press the transfer key followed by 103

Display shows

[201] ANS MODE

RING MODE

2. Dial 0, 1or 2to change the ring mode, e.g., 2

[201] ANS MODE

VOICE ANNOUNCE

Press UP or DOWN to select the ring mode

3. Press the transfer key to store and exit

Home Page

Table of Contents

OfficeServ 7100 USER INSTRUCTIONS

TECHNICAL MANUAL PART 1 APRIL 2007

1.8

1.6 PROGRAMMING YOUR STATION’S NAME

Names are written using the keypad. Each key press selects a character. Pressing the

dial pad key moves the cursor to the next position. For example, if the directory name

is “SAM SMITH,” press the number “7” four times to get the letter “S.” Press the

number “2” once to get the letter “A.” Continue selecting characters from the table

below to complete your message. Pressing the bottom left programmable key will

change the letter from upper case to lower case. There are up to 11 characters that can

be used. NOTE: When the character you want appears on the same dial pad key as the

previous character, press the VOLUME UP or DOWN keys to move the cursor to the

right or to the left.

•iDCS KEYSETS and ITP KEYSETS

COUNT 1 2 3 4 5

DIAL 0 < > . ) 0

DIAL 1 space ? , ! 1

DIAL 2 A B C @ 2

DIAL 3 D E F # 3

DIAL 4 G H I $ 4

DIAL 5 J K L % 5

DIAL 6 M N O ^ 6

DIAL 7 P Q R S 7

DIAL 8 T U V 48

DIAL 9 W X Y Z 9

DIAL 4: = [ ] 4

The # key can be used for the following special characters: #, space, &, !, :, ?, ., %,

$, -, <, >, /, =, [, ], @, ^, (, ), _, +, {, }, |, ;, \, " and ~.

1. When the character you want appears on the same dial pad key as the previous

character, press UP to move the cursor one space to the right.

2. Other symbols are available for DIAL #.

ACTION DISPLAY

1. Press the transfer key followed by 104

Display shows

[201] STN NAME

2. Enter the station name using the procedure

described above

[201] STN NAME

SAMSUNG

3. Press the transfer key to store and exit

Home Page

Table of Contents

OfficeServ 7100 USER INSTRUCTIONS

TECHNICAL MANUAL PART 1 APRIL 2007

1.9

1.7 PROGRAMMING PERSONAL SPEED DIAL

LOCATIONS

You can program frequently dialed telephone numbers in a personal speed dial list.

Each station user begins with ten numbers 00–09 and may be assigned up to fifty

numbers. See your system administrator to determine the amount assigned to your

station.

NOTE: Press button Bfor flash and button Cfor pause.

Display keyset users may want to hide some speed dial numbers so they will not show

in the display. Before entering a telephone number, press button E. All digits after this

will be hidden. Press button Eagain to begin displaying digits.

If your system uses rotary (or pulse) dialing C.O. lines, pressing button Dbefore

entering a speed dial will cause all subsequent digits to be sent as DTMF tones until

the Dbutton is pressed again.

ACTION DISPLAY

1. Press the transfer key followed by 105

Display shows

[201] SPEED DIAL

00:

If you have no speed dial bins,

the display will be as shown

[201] SPEED DIAL

SPDBLK NOT EXIST

2. Dial the location number (e.g., 05)

[201] SPEED DIAL

05:_

Press UP or DOWN to select the location

Press the right soft key to move cursor

3. Enter the trunk access code (e.g., 9) followed

by the number to be dialed (e.g., 4264100)

[201] SPEED DIAL

05:9-4264100_

Press the left soft key to return to step 2

4. Press the Fbutton to access the next program

Press the transfer key to save and exit

Home Page

Table of Contents

Other manuals for OfficeServ ITP-5121D

This manual suits for next models

Table of contents

Other Samsung Telephone System manuals

Samsung

Samsung OFFICESERV 100 Series User manual

Samsung

Samsung DCS User manual

Samsung

Samsung OfficeServ 7400 User manual

Samsung

Samsung OfficeServ 7200 User manual

Samsung

Samsung iDCS 100 User manual

Samsung

Samsung OFFICESERV 500 Series Installation instructions

Samsung

Samsung iDCS 500 Operating and maintenance instructions

Samsung

Samsung OfficeServ 7200 Operating and maintenance instructions

Samsung

Samsung OfficeServ 12 Operating and maintenance instructions

Samsung

Samsung OFFICESERV 100 Series Operating and maintenance instructions

Samsung

Samsung DCS Owner's manual

Samsung

Samsung CNF24 User manual

Samsung

Samsung DCS KEYSET User manual

Samsung

Samsung DCS User manual

Samsung

Samsung DCS-408 User manual

Samsung

Samsung iDCS 500 Instruction Manual

Samsung

Samsung OfficeServ 7200 Operating and maintenance instructions

Samsung

Samsung Office Serv 500 Operating and maintenance instructions

Samsung

Samsung DCS User manual

Samsung

Samsung DCS-408 User manual

Samsung

Samsung iDCS 500 User manual

Samsung

Samsung Office DECT 8000 Assembly instructions

Samsung

Samsung OfficeServ 7200 User manual

Samsung

Samsung iDCS500 User manual

Popular Telephone System manuals by other brands

Teleco

Teleco Perfect Voice Tis 16 installation manual

AT&T

AT&T Network Adapter 25 user guide

AVE

AVE AF902R-CE manual

Tynetec

Tynetec Advent xt user guide

Ericsson

Ericsson DCT1800-S user guide

NEC

NEC Electra Elite 192 Hardware manual

Alcatel

Alcatel EASY REFLEXES 4200 Admin & user guide

Panasonic

Panasonic KX-TDA50 operating manual

Bticino

Bticino PABX 28D User instructions

NEC

NEC SL 2100 user guide

Sonifex

Sonifex Phone In 6 User handbook

TransTel Communications

TransTel Communications TD-824i Installation and programming manual

Nortel

Nortel BCM50 Installation and maintenance guide

Panasonic

Panasonic KX-TS25B user guide

ASCOM

ASCOM TD 92375GB Information

Karel

Karel MS26S Easy to use owner's guide

EnGenius

EnGenius DuraFon PRO user manual

Teledat

Teledat X130 DSL Quick reference guide
