Samsung CL-29Z43MQ User manual
COLOR TELEVISION RECEIVER
Chassis : KS7C(N)_Timecop
Model : CL29Z43MQVXXAZ
COLOR TELEVISION RECEIVER FEATURES
■GREEN CRT
■
■Turbo Voice
SERVICE Manual
CL-29Z43MQ
4. Exploded View & Part List
Exploded View & Part List
Samsung Electronics 4-1
T0074 T0066
T0003
M0112
T0607
CIS3
CIS7
T0023
T0238
T0022
T0569
M0014
T0063
M0006
4-1 CL29Z43MQVXXAZ
Loc.No. Code No. Description Specification Q'ty SA/SNA Remark
CIS3 AA64-04333A DECORATION-POWER Z40,ABS,HB,GR515,AL 1 S.N.A
CIS7 AA61-60003J SPRING ETC-CS -,SUS304,-,-,OD6,N7,OD6,-, 1 S.N.A
M0006 AA63-01426D COVER-REAR 29Z43(SEDA),HIPS,HB,BK500 1 S.N.A
M0014 AA94-16462A ASSY PCB MAIN CL29Z43MQVXXAZ 1 S.A
M0112 AA63-01428J COVER-FRONT 29Z43(SEDA),HIPS,HB,BKN1576, 1 S.N.A
T0003 AA96-04151N ASSY COVER P-FRONT 29Z43,HIPS,HB,BKN1576 1 S.A
T0022 AA64-04327A KNOB CONTROL 29Z40,SEH,ABS,-,-,-,HB,GR51 1 S.N.A
T0023 AA64-04328A KNOB POWER Z40,ABS,HB,GR515,SVM3012 1 S.N.A
T0063 AA03-00559A CRT COLOR A68QGX793X601(M),0mG,0.985,1.3 1 S.A
T0066 AA96-02795A ASSY POWER CORD CP2/NO(4.0),H/S 300mm,CH 1 S.A
T0074 AA59-00410B REMOCON
SAMSUNG,TM85,S3C1860XP0,35,NTSC,
1 S.A
T0238 AA64-04340A WINDOW REMOCON-LED Z40(SEH,TSE),PC,CLEAR 1 S.N.A
T0569 AA61-00813D SUPPORT-CRT 29Z30(SLIM),HIPS V0,T2.0,-,- 2 S.N.A
T0607 AA61-40113A STOPPER-PCB 501H,HIPS,-,-,HB,NTR,- 1 S.N.A
Disassembly & Reassembly
Samsung Electronics 12-1
12. Disassembly & Reassembly
12-1 Overall Disassembly & Reassembly
12-1-1 Disassembling the Cabinet
Part Name Description Description Photo
Back
Cover
①Remove the 9 screws fixing the Back Cover.
: RH, +, B, M4, L15, ZPC(BLK), SWRCH18A
②Tap the upper part of the Back Cover 2 or 3 times and pull
the Back Cover to separate it from the unit.
: Disassemble the product after disconnecting the power cord
and discharge the unit to prevent an electric shock and damage
to the product due to static electricity.
Disassembly & Reassembly
12-2 Samsung Electronics
Part Name Description Description Photo
Chassis
Holder
①Remove the screw,and Separate the Terminal Board.
②Separate the cables connecting the FBT and the CRT.
: Since there may be a remaining high-voltage current within
the CRT, take care not to touch the CRT hole with metal or a
part of yourself when separating the cables.
①Separate the CRT Ass'y from the CRT.
②Separate the TBC wire, cables from the CRT Ass'y
sequentially.
①Separate the Side AV Wire from the
Front Cabinet and the Main Board.
②Pull Holder Chassis like the picture arrowdirection.
①Separate the Control 4P Wire,6P Wire,Speaker Wire
from the Front Cabinet and the Main Board.
12-1-2 Disassembling the CRT and Chassis
Disassembly & Reassembly
Samsung Electronics 12-3
Part Name Description Description Photo
Chassis
Holder
①Separate the Power cord,D-COIL,TILT,DY connector from
Main Board
①Remove the screw.
Disassembly & Reassembly
12-4 Samsung Electronics
Part Name Description Description Photo
CRT
Ass'y
①Separate the cables from the Main Board and CRT Ass'y
①Separate the wires from the FBT of the Main Board and
the CRT Ass'y.
②To separate the thick red wires, pull the wires while pressing
the push-type clip at the connector.
③To separate the thin red wire, insert a pin in the small hold
next to the hole and pull the wire.
: Take care when separating the wires because pulling the
wires by force may damage the socket. In addition, separate the
wires on a flat and clean surface so as to prevent scratching of
the material and the PCB.
Pull the wires while
pressing on the fixing clip.
12-1-3 Disassembling the CRT Ass'y
Disassembly & Reassembly
Samsung Electronics 12-5
Part Name Description Description Photo
Main Board ①Separate the cable from the Main Board.
①Separate the cable from the Main Board.
12-1-4 Disassembling the Main Board
PCB Diagram
Samsung Electronics 9-1
9. PCB Diagram
9-1 Main Board
CN502 CN702A CN701
CN503A
FN01
PD801S LC801S CNV901A CN902 CN601

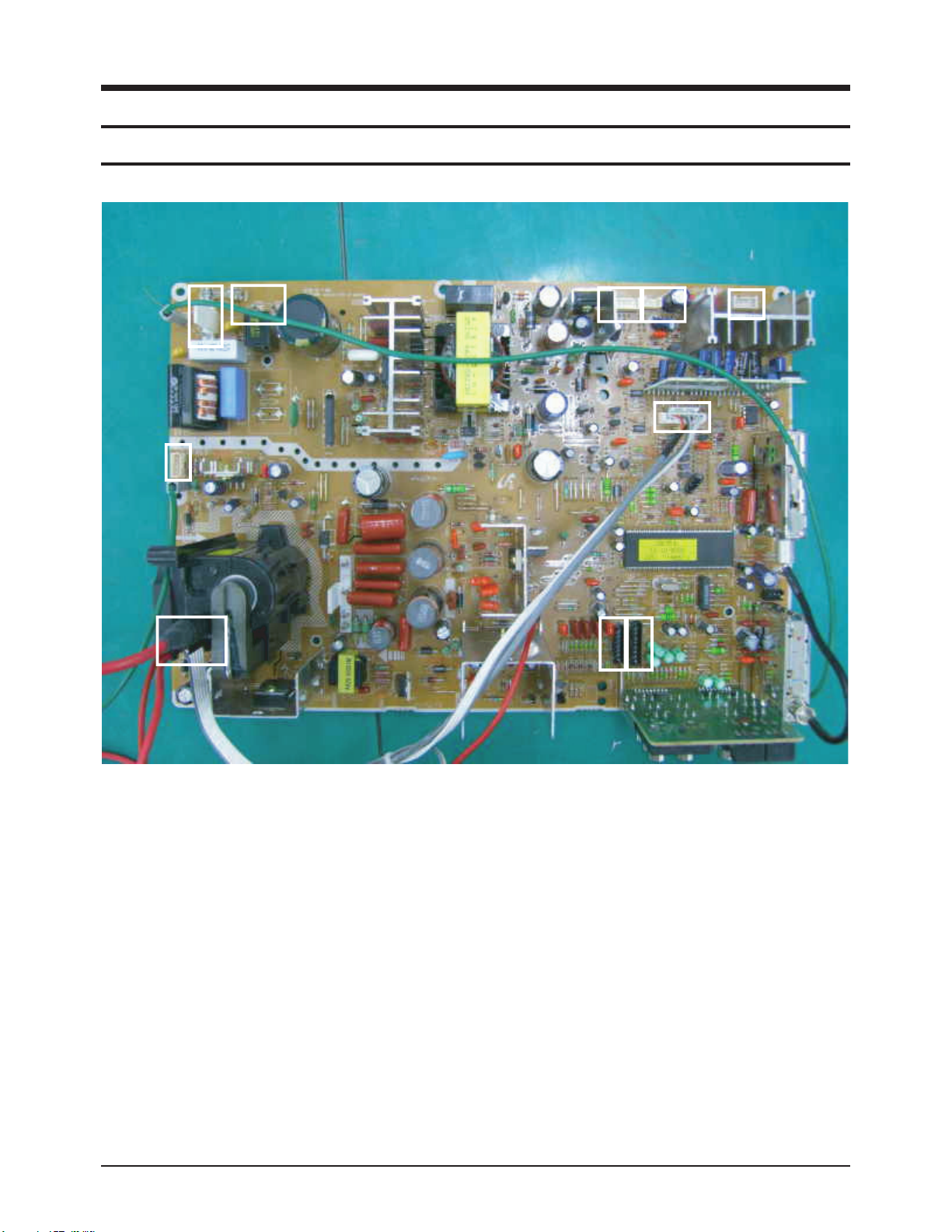

9-1-1 Assy Main Board
9-1-2 Names & Roles of Key Parts
* PD801S : This is a 3P connected to Power-cord.
* FN01 : This is a 4P connected to Tilt-Coil.
* CN502 : This is a 6P connected to Video amp B+,Heater Voltage in CRT PCB.
* CN702A : This is a 7P connected to S-VHS signal in Side AV PCB.
* CN701: This is a 8P connected to AV2 signal in Side AV PCB.
* CN503A : This is a 8P connected from MAIN PCB to CRT PCB for R,G,B,AKB signal.
* CNV901A : This is a 6P connected from Tact,S/W pcb for IR,LED,5V.
* CN902 : This is a 4P connected from Control PCB for Key1,Key2 input signal.
* CN601 : This is a 4P connected to Speaker for Sound output signal.
PCB Diagram
9-2 Samsung Electronics
9-1-3 Main Board Connector Pin
CN601
Connected to the Side Sound Port
PIN No. Pin Name
1 R -
2 R+
3 L+
4 L-
PIN No. Pin Name
1 B
2 G
3 R
4 GND
5 SE
6 GND
7 F/B
8 TILT
CN503A
Connected to the CRT Ass'y
CN503B
Connecte to the CRT Ass'y
PIN No. Pin Name
1 -16.5V
2 +16.5V
3 GND
4 HEATER
5 NC
6 200V
PIN No. Pin Name
1 VO
2 GND
3 VI
4 GND
5 LO
6 RO
7 LI
8 RI
CN701
Connected to the Side AV Port
PCB Diagram
Samsung Electronics 9-3
9-2 CRT Board
9-2-1 Assy CRT Board
CN503
GT501,GT502
■CRT Drive
This supplies the final R/G/B signal from the Main Board and the CRT deflection signal to the CRT.
9-2-2 Names & Roles of Key Parts
* CN503 : This is a 14P connected from MAIN PCB for R/G/B/AKB/HEATER/B+200V.
* GT501,GT502 : This is a 2P connected to TBC-WIRE.
