Samsung CLP-550 User manual

COLOR LASER PRINTER

Setup Guide

COLOR LASER PRINTER

Setup Guide

CLP-550

CLP-550N

ETUP

UIDE

ONTENTS

Step 1.

Unpacking ............................................. 3

Step 2.

Understanding Your Printer ................... 5

Step 3.

Installing the Imaging Unit, Transfer Belt

and Toner Cartridges ............................. 7

Step 4.

Loading Paper ..................................... 16

Step 5.

Connecting a Printer Cable .................. 19

Using a Parallel Cable .................................19

Using a USB Cable .....................................20

For Networking Printing ..............................21

Step 6.

Turning the Printer On ........................ 22

Step 7.

Printing a Demo Page .......................... 23

Step 8.

Changing the Display Language .......... 23

Step 9.

Installing the Printer Software ............ 24

Installing Printer Software in Windows ..........24

Reinstalling Printer software ........................26

Removing Printer software ..........................26

Changing the Display Language ...................26

Step 10.

Viewing the User’s Guide ................... 27

In Windows ..............................................27

In Macintosh .............................................27

In Linux ...................................................28

ETUP

UIDE

English

Step 1.

Unpacking

Remove the printer and all of the accessories from the

packing carton. Make sure that the printer has been packed

with the following items:

OTES

• If any items are missing or damaged, notify your dealer

immediately.

• Components may differ from one country to another.

• The CD-ROM contains the printer driver, the User’s Guide, and

the Adobe Acrobat Reader program.

• The power cord may be different depending on your country.

AUTION

This printer weighs 35kg including developer cartridge

and cassette. Use safe lifting and handling techniques. If you need

to move the printer it must be moved by two people. Use the

lifting handles located as shown in the diagram (see page 5). Back

injury could be caused if a single person attempts to lift the

printer.

Toner Cartridges Power Cord Transfer Belt

Imaging Unit CD-ROM Setup Guide

SyncThru CD-ROM

(CLP-550N only)

SyncThru Quick Guide

(CLP-550N only)

ETUP

UIDE

Carefully remove all of the packing tapes from the printer.

Pull the paper tray out of the printer and remove the

packing tapes from the tray.

Select a location for the printer:

•Leave enough room to open the printer trays, covers, and

allow for proper ventilation.

•Provide the proper environment:

– A firm, level surface

– Away from direct airflow of air conditioners, heaters, or

ventilators

– Free of temperature, sunlight, or humidity extremes or

fluctuations

– Clean, dry, and free of dust

AUTION

You must place your printer in the level surface. If you

do not, the print quality problems can occur.

ETUP

UIDE

English

Step 2.

Understanding Your Printer

These are the main components of your printer:

Output Support

Control Panel

(refer to Chapter

5 in the User’s

Guide which is

on the CD-

ROM.)

Paper Output Tray

Top Cover

(Open to install the imaging unit,

and transfer belt.)

Front Cover

(Open to replace

the waste toner

bin.)

Left Cover

(To install the toner cartridges

press the top cover release

button and open fully.)

Tray 1

(250-sheet paper feeder)

Top Cover

Release Button

Optional Tray 2

(500-sheet paper feeder)

Handle

(Lifting handles are

located at the lower

edge of both sides

of the printer.)

ETUP

UIDE

Optional Tray 2 Jam Cover

(Open to remove jams in the optional tray 2.)

Muti-purpose Tray

(Open to load special print materials.)

Right Cover

(Open to remove paper jams.)

Power Switch

USB Port

Power Receptacle

Control Board

Cover

(Open to install optional

accessories.)

Wireless Network

Antenna

Network Port

Parallel Port

***

* This wireless network port is not supplied with the printer. It is an option that must be purchased and

installed separately.

** The network port is fitted as standard on the CLP-550N. CLP-550 users can purchase and install

separately an optional Network Card. For details, see the User's Guide of the printer in the CD-ROM.

*** The parallel port may not be available depending on your country.

Handle

(Use it to lift the printer.)

ETUP

UIDE

English

Step 3.

Installing the Imaging Unit, Transfer

Belt and Toner Cartridges

Using the handle, completely open the left cover until it is at

right angles to the main frame.

AUTION

If the left cover is not completely open, the top cover

release button does not press.

Press the top cover release button to unlatch the top cover

and open it all the way.

Top cover release

button

ETUP

UIDE

Take the imaging unit out of the package using the handle.

Remove the paper covering the imaging unit by removing

the tape under the handle of the imaging unit.

CAUTIONS

• Do not use sharp objects, such as a knife or scissors, to open the

imaging unit package and tape on the protective paper liner. You

could damage the surface of the imaging unit.

• To prevent damage, do not expose the imaging unit to light for

more than a few minutes. Cover it with black paper, if necessary.

• Do not touch the surface of the green roller on the imaging unit

or print quality problems can occur.

Locate the imaging unit slots inside the printer, one on each

side.

ETUP

UIDE

English

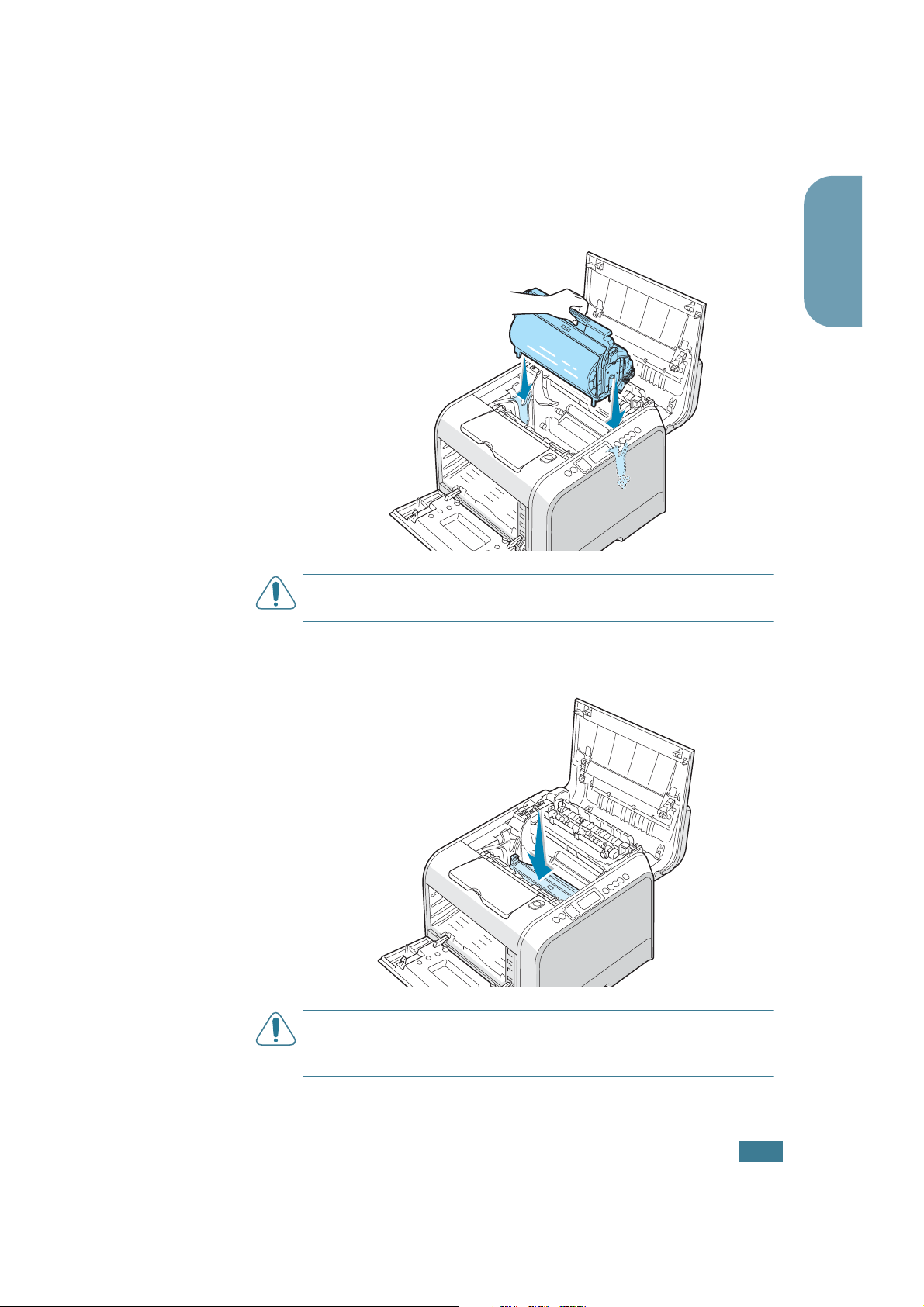

Hold the handle on the imaging unit with the green roller

facing you. Align the imaging unit with the slots in your

printer so that the colors on both sides of the imaging unit

slide into the corresponding colors of the slots.

CAUTION

Insert the imaging unit carefully so as not to scratch

and damage the surface of the green roller.

Slide the imaging unit down into the printer until it cannot

be pushed in any further and fold the handle down.

CAUTION

To prevent damage, do not expose the imaging unit

to light for more than a few minutes. Close the top and left

cover should the setup need to be halted for any reason.
