Samsung DV665J Series User manual
Electric Dryer
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service,
please register your product at
www.samsung.com/global/register
DV665J*
DV665J-02658A_EN.indd 1 2009-01-12 ø¿¿¸ 9:37:07
2_ Features
features
1. Delay Start
You can delay the dryer’s start-up time for up to 24 hours. The Delay Start feature will allow
you to dry your clothes at a time that is convenient for you.
2. Freshen-up Program
Samsung’s Freshen-up program tumble-dries garments in cool air set at a time of your
choice, for up to 50 minutes. This program makes it easy to freshen-up clothes that only
require a little airing out.
3. Sensor Dry & Fuzzy Logic Control
Both technologies bring you outstanding economic benefits as well as excellent drying
performance. The Fuzzy Logic Control determines the dryness and gentleness needed
for your laundry and sets the appropriate drying time/cycle. The Sensor dry function
continuously measures the temperature in the inner section of the dryer to provide excellent
drying performance.
4. Various Drying Cycles & Fuzzy Logic Algorithm
Simply turn the Jog Dial to select one of the 11 automatic drying cycles, including normal,
heavy duty and towels. You can also choose to use the Fuzzy Logic Algorithm to measure
the degree of dampness and automatically set the drying time. Precision drying has never
been easier than with Samsung.
5. Wrinkle-Release
Our Wrinkle-Release program tumble dries garments in warm air for 10 minutes, then cool
air for an additional 10 minutes. You can use the Wrinkle-Release program to smooth the
wrinkles of garments that have been stored away.
6. Stacking
Samsung Washers and Dryers can be stacked to maximize usable space, using an optional
Stacking Kit.
DV665J-02658A_EN.indd 2 2009-01-12 ø¿¿¸ 9:37:07
Safety instructions _3
safety instructions
Congratulations on the purchase of your new Samsung Dryer. This manual
contains valuable information on the installation, use, and care of your appliance.
Please take the time to read this manual to take full advantage of your dryer’s
many benefits and features.
WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS
Warnings and Important Safety Instructions in this manual do not cover all possible conditions and
situations that may occur. It is your responsibility to use common sense, caution, and care when installing,
maintaining, or operating your dryer.
Always contact your manufacturer about problems or conditions you do not understand.
IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS
WARNING
Hazards or unsafe practices that may result in severe personal injury or
death.
CAUTION
Hazards or unsafe practices that may result in minor personal injury or
property damage.
CAUTION:
Risk of Fire
Follow the information in this manual to minimize the risk of fire or explosion or
to prevent property damage, personal injury, or death.
Do not store or use gasoline or other flammable vapors and liquids near this or
any other appliance.
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions explicity.
Unplug the power plug from the wall socket.
Make sure the machine is grounded to prevent electric shock.
Call the service center for help.
DV665J-02658A_EN.indd 3 2009-01-12 ø¿¿¸ 9:37:08
4_ Safety instructions
Read all instructions before using the appliance.
To reduce the risk of fire or explosion:
• Do not dry items that have been previously cleaned, washed, soaked, or spotted with
gasoline, dry cleaning solvents, or other flammable or explosive substances. They
emit vapors that could ignite or explode. Any material that has been in contact with a
cleaning solvent or flammable liquids or solids should not be placed in the dryer until all
traces of these flammable liquids or solids and their fumes have been removed.
There are many highly flammable items used in homes, such as acetone, denatured
alcohol, gasoline, kerosene, some liquid household cleaners, some spot removers,
turpentine, waxes, and wax removers
• Items containing foam rubber (may be labeled latex foam) or similarly textured rubber-
like materials must not be dried on a heat setting. Heated foam rubber materials can,
under certain circumstances, produce fire by spontaneous combustion.
Children should be supervised to ensure that they do not play with the appliance.
Before discarding or removing your dryer from service, remove the door to the drying
compartment to prevent children or animals from becoming trapped inside.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
Do not reach into the appliance when the drum is moving.
Do not install or store this appliance where it will be exposed to the weather.
Do not tamper with controls.
Do not repair, replace, or attempt to service any part of the appliance unless specifically
recommended in the user-repair instructions. You must also have the skills necessary to
service this appliance.
Do not use fabric softeners or products to eliminate static unless recommended for dryer
use by the manufacturer of the fabric softener or product.
Clean the lint screen before or after each load.
Keep the area around the exhaust opening and surrounding areas free from lint, dust, and
dirt.
The interior of the dryer and exhaust duct should be cleaned periodically by qualified service
personnel.
This appliance must be properly grounded. Never plug the power cord into a receptacle
that is not grounded adequately and in accordance with local and national codes. See
installation instructions for grounding this appliance.
safety instructions
CAUTION:
Risk of Fire
DV665J-02658A_EN.indd 4 2009-01-12 ø¿¿¸ 9:37:08
Safety instructions _5
Do not sit on top of the dryer.
Because of continuing product improvements, Samsung reserves the right to change
specifications without notice. For complete details, see the Installation Instructions
packed with your product before selecting cabinetry, making cutouts, or beginning
installation.
Ensure pockets are free from small irregularly shaped hard objects, foreign material, etc. ie.
coins, knives, pins, etc. These objects could damage your dryer.
Do not dry clothing with large buckles, buttons, or other heavy metal or solid things.
Install and use in accordance with the manufacturer’s instructions.
If it is unavoidable that fabrics that contain vegetable or cooking oil or have been
contaminated by hair care products be placed in a tumble dryer they should first be washed
in hot water with extra detergent – this will reduce, but not eliminate, the hazard.
Oil-affected items can ignite spontaneously, especially when exposed to heat sources such
as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil.
Oxidation creates heat. If the heat cannot escape, the items can become hot enough to
catch fire. Piling, stacking or storing oil-affected items can prevent heat from escaping and
so create a fire hazard.
All washed and unwashed fabrics that contain vegetable oil or cooking oil can be
dangerous. Washing these items in hot water with extra detergent will reduce, but not
eliminate, the hazard. Always use the Cool Down cycle for these items to reduce their
temperature. Never remove these items from the dryer hot or interrupt the drying cycle until
the items have run through the Cool Down cycle. Never pile or stack these items when they
are hot.
WARNING
DV665J-02658A_EN.indd 5 2009-01-12 ø¿¿¸ 9:37:08
6_ Contents
contents
INSTALLING YOUR DRYER
7
7 Tools needed for installation
7 See Exhaust Requirements
8 Ducting requirements
10 Exhaust directions
10 Exhaust duct locating dimensions
10 Important to installer
11 Location considerations
11 Alcove or closet installation
11 Exhausting
12 Electrical requirements
12 Grounding
12 Electrical connections
12 Replacement parts and accessories
13 Installation
13 Final installation checklist
13 ENVIRONMENT
14 Dryer Exhaust Tips
15 Door Reversal
OPERATING INSTRUCTIONS, TIPS
16
16 Overview of the control panel
18 Polyester Knits & Permanent Press Drying
Tips
18 Loading Clothes
18 Drying Times
19 Cycle selecting guide
20 Cycle Chart
21 Clean the lint filter
21 Load the dryer properly
21 Getting started
CARE AND CLEANING
22
22 Clean Filter
22 Control Panel
22 Stainless Steel Tumbler
22 Dryer Exterior
23 Dryer Exterior
23 Dryer Exhaust
23 Inside the dryer cabinet
TROUBLESHOOTING
24
24 Questions? Use this problem solver
25 Information Codes
APPENDIX
26
26 Fabric Care Chart
27 Protecting The Environment
27 Specifications
DV665J-02658A_EN.indd 6 2009-01-12 ø¿¿¸ 9:37:08
Installing your dryer _7
installing your dryer

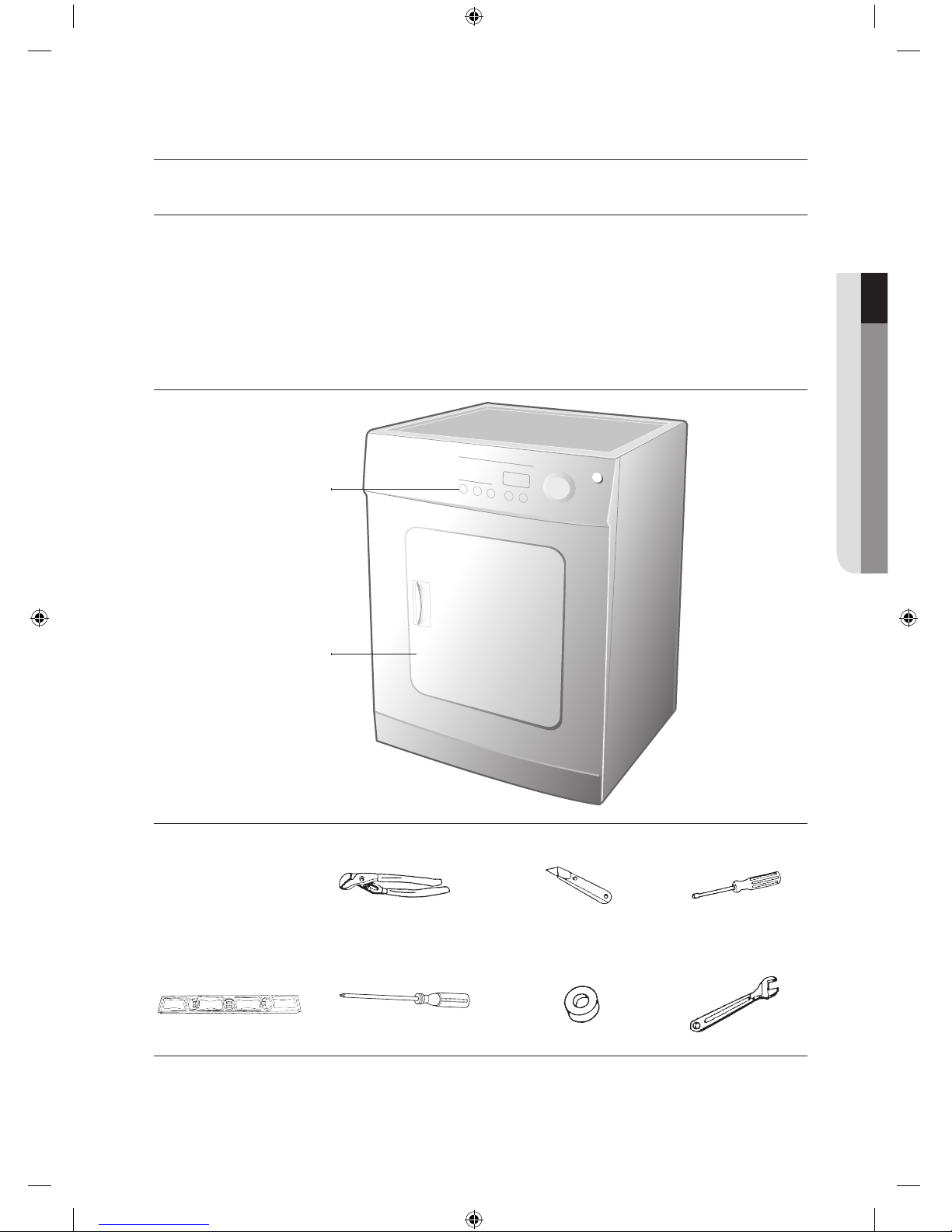

TOOLS NEEDED FOR INSTALLATION
Hire a professional to install this dryer properly. If there is a service call performed as a result of poor setup,
adjustment, and connection, it is considered the responsibility of the installer. If you install the dryer you are
responsible.
Make sure you have everything necessary for proper installation.
1. A GROUNDED ELECTRICAL OUTLET is required. See Electrical Requirements on page 12.
2. EXHAUST SYSTEM – must be rigid metal or flexible stiff-walled metal exhaust ducting. See exhaust
requirements on page 8.
SEE EXHAUST REQUIREMENTS
Pliers Cutting knife Nut drivers
Level Phillips Screwdriver Duct tape Crescent spanner
01 Installing your dryer
Control panel
Door
DV665J-02658A_EN.indd 7 2009-01-12 ø¿¿¸ 9:37:09
8_ Installing your dryer
DUCTING REQUIREMENTS
• Use a 4-inch (10.2 cm) diameter rigid aluminum or rigid galvanized steel duct.
• Do not use a smaller duct.
• Ducts larger than 4 inches (10.2 cm) in diameter can result in increased lint accumulation.
Lint accumulation should be cleaned regularly.
• If a flexible metal duct must be used, use the type with a stiff sheet metal wall. Do not use a flexible duct
with a thin foil wall. Serious blockage can result if the flexible metal duct is bent too sharply.
• Never install any type of flexible duct in walls, ceilings, or other concealed spaces.
• Keep the exhaust duct as straight and short as possible.
• Secure joints with duct tape. Do not use screws.
• DO NOT EXHAUST DRYER INTO ANY WALL, CEILING, CRAWL SPACE, OR CONCEALED SPACE OF
A BUILDING, GAS VENT, OR ANY OTHER COMMON DUCT OR CHIMNEY.
THIS COULD CREATE A FIRE HAZARD FROM LINT EXPELLED BY THE DRYER.
•
Plastic flexible duct can kink, sag, be punctured, reduce airflow, extend drying times, and affect dryer operation.
• Exhaust systems longer than recommended can extend drying times, affect machine operation, and
may collect lint.
• The exhaust duct should end with an exhaust hood with a swing-out damper to prevent back drafts and
entry of wildlife. Never use an exhaust hood with a magnetic damper.
• The hood should have at least 12 inches (30.5 cm) of clearance between the bottom of the hood and
the ground or other obstruction. The hood opening should point down.
• Never install a screen over the exhaust outlet.
•
To avoid lint buildup, do not exhaust the dryer directly into a window well. Do not exhaust under a house or porch.
• If exhaust ductwork must run through an unheated area, the duct should be insulated and slope slightly
down towards the exhaust hood to reduce condensation and lint buildup.
•
Inspect and clean the interior of the exhaust system at least once a year. Unplug the power cord before cleaning.
• Check frequently to be sure the exhaust hood damper opens and closes freely.
• Check once per month, and clean at least one time per year. Note: If clothes are not getting dry, then
check ducting for obstructions.
installing your dryer
DV665J-02658A_EN.indd 8 2009-01-12 ø¿¿¸ 9:37:10
Installing your dryer _9

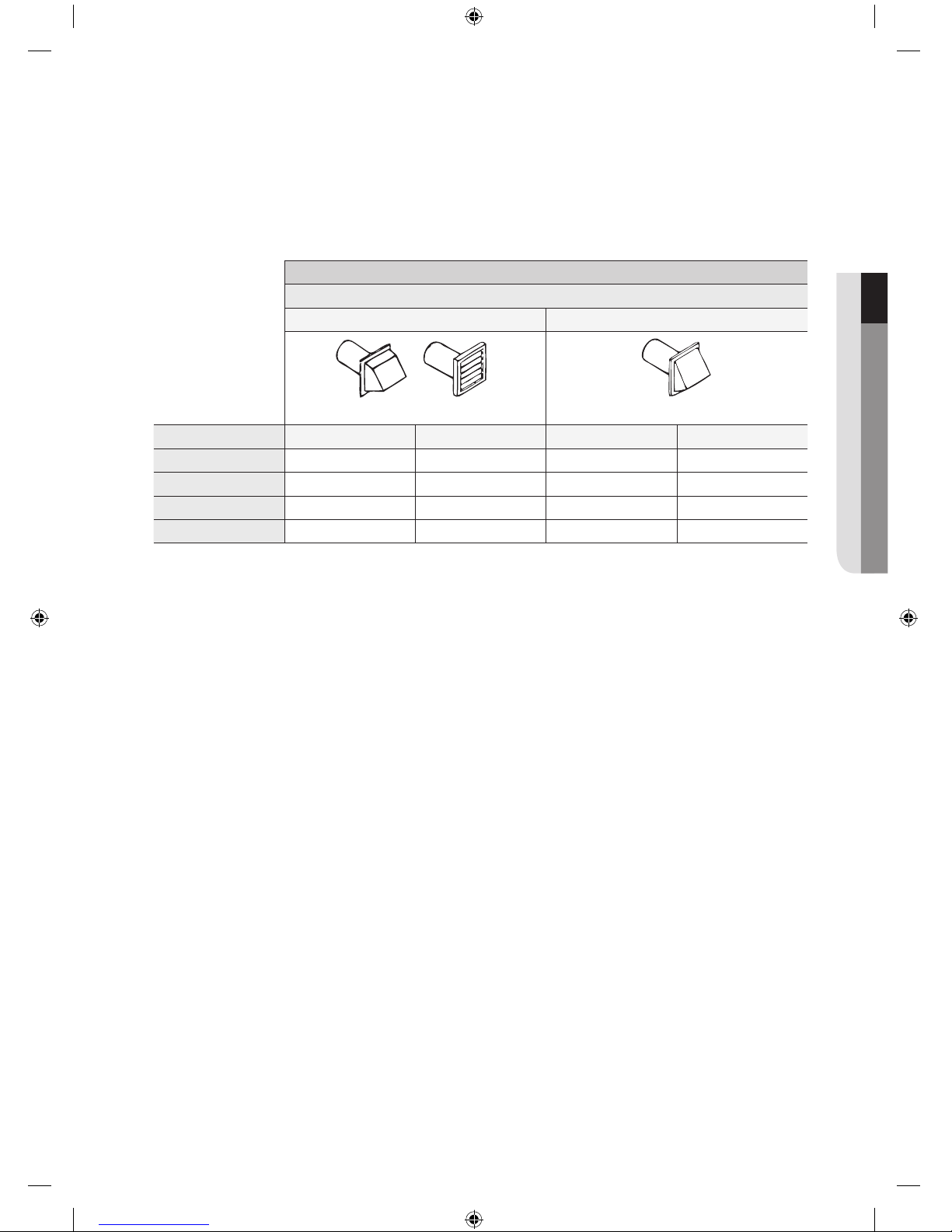

EXHAUST LENGTH CALCULATION
Table 1: RECOMMENDED MAXIMUM LENGTH
ELECTRIC DRYERS
Weather Hood Type
Recommended Use only for short run installations
4” (10 .16 cm) 2.5” (6.35 cm)
No. of 90° elbows Rigid Metallic Flexible* Rigid Metallic Flexible*
0 14 m (46 ft.) 9 m (30 ft.) 11 m (37 ft.) 7 m (24 ft.)
1 11 m (38 ft.) 7.5 m (25 ft.) 9 m (30 ft.) 6 m (20 ft.)
2 9 m (31 ft.) 6 m (20 ft.) 6.5 m (22 ft.) 4 m (14 ft.)
3 7 m (24 ft.) 5 m (16 ft.) 4.5 m (15 ft.) 3 m (10 ft.)
* Do not use non-metallic flexible duct.
If the new dryer is installed into an existing exhaust system you must make sure:
• The exhaust system meets all local, state, and national codes.
• That a flexible plastic duct is not used.
• To Inspect and clean all lint buildup from inside the existing duct.
• The duct is not kinked or crushed.
• The exhaust hood damper opens and closes freely.
The static pressure in any exhaust system must not exceed 0.83 inches of water column, or
be less than 0. This can be measured with the dryer running with a manometer at the point
where the exhaust duct connects to the dryer. A no-heat setting should be used. The dryer
tumbler should be empty and the lint filter clean.
01 Installing your dryer
DV665J-02658A_EN.indd 9 2009-01-12 ø¿¿¸ 9:37:10

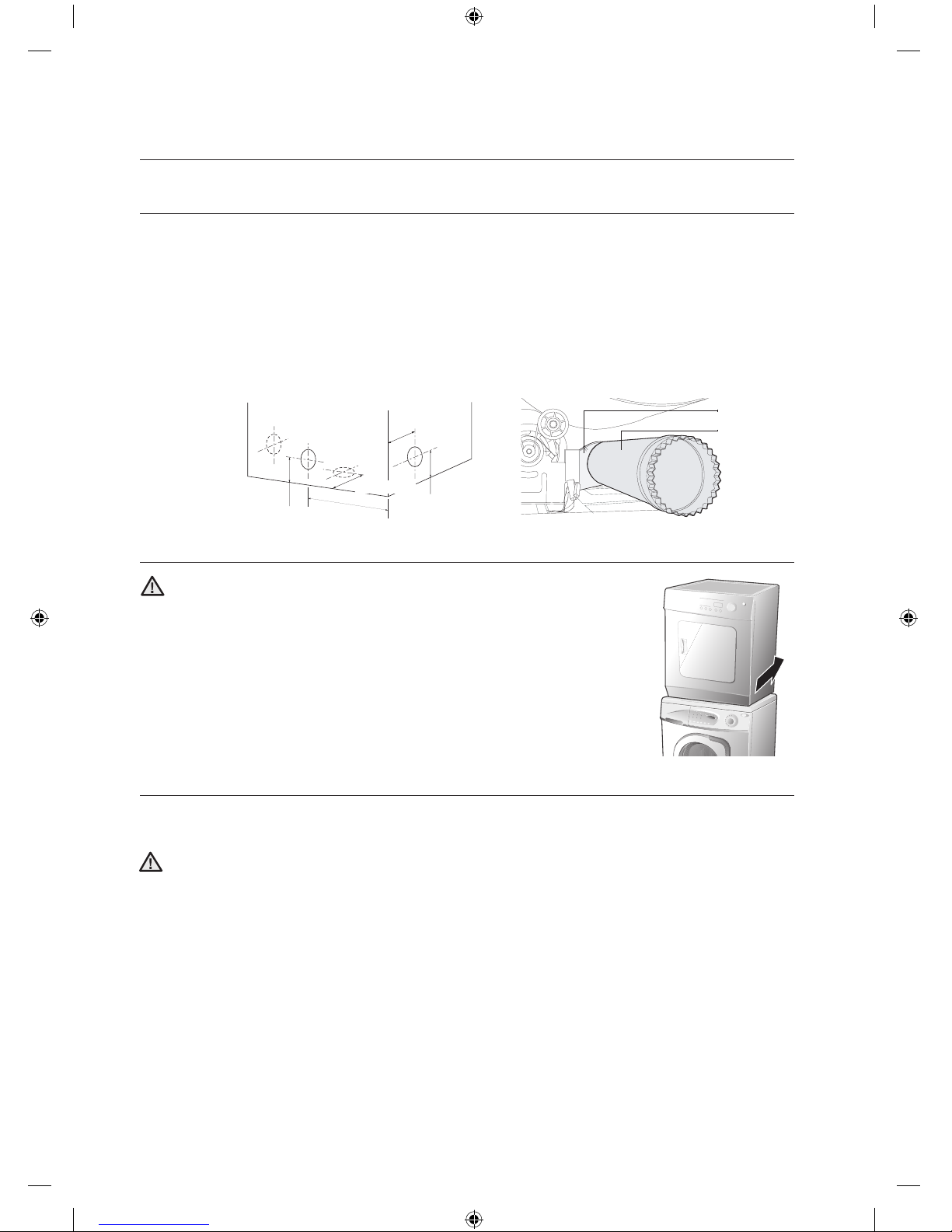

10_ Installing your dryer
installing your dryer
EXHAUST DIRECTIONS
All dryers shipped from the factory are set up for rear exhausting. However
exhausting can be on the right, left or bottom of the dryer.
• Remove the access panel at back of dryer to gain access to the internal ducts.
• Disconnect the duct exhaust from the blower housing.
• Remove the desired knockout plate (either right or left side).
• Attach a 90° elbow duct to the blower housing and facing desired opening.
• Reinstall the rear access panel.
EXHAUST DUCT LOCATING DIMENSIONS
Non-metallic ducts must never be used inside the dryer cabinet.
SPECIAL ACCESSORY
Stacking kit (Model no:SK-2A)
You can obtain the stacking kit from your retailer. With this kit
you can combine your Samsung dryer with a Samsung washing
machine in a washing and drying column. The appliances are
stacked in a space-economizing manner in this arrangement, the
washing machine on the bottom and the dryer on the top!
IMPORTANT TO INSTALLER
Please read the following instructions carefully before installing the dryer. These instructions should be kept
for future reference.
REMOVE THE DOOR FROM ALL DISCARDED APPLIANCES TO AVOID THE DANGER OF A CHILD
SUFFOCATING.
WARNING
WARNING
Front of dryer
Same as
other side
3-3/4”(9.5cm)
13-1/2”(34cm)
3-3/4”(9.5cm)
4-3/8”(11cm)
5-7/8”(15cm)
Duct Exhaust
Blower Housing
DV665J-02658A_EN.indd 10 2009-01-12 ø¿¿¸ 9:37:11
Other manuals for DV665J Series
2
Table of contents
Other Samsung Dryer manuals
Samsung
Samsung SDC18809 User manual
Samsung
Samsung DV438AE series User manual
Samsung
Samsung DVG45T6200 Series User manual
Samsung
Samsung DV203 SERIES User manual
Samsung
Samsung DV209 SERIES User manual
Samsung
Samsung DV520 User manual
Samsung
Samsung DV365ETBGWR/AC User manual
Samsung
Samsung DV431AEP/XAA User manual
Samsung
Samsung DV42H5400 User manual
Samsung
Samsung DVG45T6200W/A3 User manual
Samsung
Samsung DVE47CG3500 Series User manual
Samsung
Samsung DV25B6800E Series User manual
Samsung
Samsung DVE50R8500 Series User manual
Samsung
Samsung DV210AGW User manual
Samsung
Samsung DVE54CG7550 Series User manual
Samsung
Samsung DV53BB8900 Series User manual
Samsung
Samsung DV456EWHDSU/AA User manual
Samsung
Samsung DV8 TA4 Series User manual
Samsung
Samsung DV419AG series User manual
Samsung
Samsung DV331AGR/XAA-0000 User manual
Popular Dryer manuals by other brands
Bosch
Bosch WTA79200GB Installation and operating instructions
Amana
Amana W10233410A Use and care guide
Miele
Miele TWH 780 WP operating instructions
Asko
Asko T760 user guide
Alliance Laundry Systems
Alliance Laundry Systems 25 Series Original instructions
Bosch
Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions
Indesit
Indesit IDV 75 instruction manual
Infiniton
Infiniton SD-DG85C manual
BOMANN
BOMANN WT 5019 instruction manual
Alliance Laundry Systems
Alliance Laundry Systems TMB795C Installation
Asko
Asko T793C operating instructions
Kenmore
Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions
