Samsung DV520AEP/XAA User manual

100% i

; Recycled Paper ,

the possibilities

Thank you for purchasing this Samsulag product.

To receive more complete service,

please register your product at

www.samsung.com/register

Extra Large Capacity

Ultra drying capabilities are at your fingertips! Now you can dry extra-large loads. Our

ultralarge 7.5 cu.ft, capacity dryer circulates more air through your clothes, drying them

faster, for a wrinkle-free result.

Steam Cycle

This cycle sprays a small amount of water into the dryer drum after several minutes of

tumbling with heat. Itreduces bad odors from clothing that are difficult to remove when

washing with water, and also reduces wrinkles.

Sanitize Course

This course allows you to sanitize garments by permeating high temperature heat deep into

the fabric during the drying cycle. Use this course to keep your bedding and curtains clean.

When selecting this cycle, 99.9% of certain bacteria is eliminated through high temperature

heat. Use this cycle for clothing, bedding, towels, or other items needing sanitized. This

certification is conducted by NSF International, an independent third-party testing and

certification organization.

_i_ [ NSF Protocol P154

Sanitization Performance of

Residential Clothes Dryers

4. Various Drying Cycles & Fuzzy Logic Algorithm

Simply turn the Jog Dial to select one of the 13 automatic drying cycles, including normal,

heavy duty and bedding, or let the Fuzzy Logic Control measure the degree of dampness

and automatically set the drying time. Precision drying has never been easier than with

Samsung.

5. Time Saving

Our cycles are designed with you in mind. All our dryers are designed to dry your clothes in

less time.., just 50 minutes] Giving you time for more important things in life.

6. Energy Saving

Samsung dryers are super energy efficient. You can dry up to 3.31 pounds of laundry with

1kWh. Also, both the large capacity and Fuzzy Logic Control save energy by automatically

drying your clothes the most efficient way.

7. Easy Reversible Door

Our dryers will fitjust about anywhere and without a door conflict. The direction of our easy

reversible door can be changed with just four screws.

2 Features

8. Pedestal with Storage Drawers

An optional 15" pedestal is available to raise the dryer for easier loading and unloading. It

also offers a built-in storage drawer that can hold a 100 oz. bottle of detergent

9. Stacking (MODEL NO: SK-5A/XAA)

Samsung's Washer and Dryer can be stacked to maximize usable space.

The dryer legs need to be removed to stack the Washer and Dryer. You can purchase an

optional stacking kit from you Samsung retailer.

10.4-way Vent (electric model only" DV520AE*)

You can install the exhaust vent in the following four (4) positions: back, either side, bottom.

Features 3

Congratulations on your new Samsung Dryer. This manual contains valuable

information on the installation, use, and care of your appliance. Please take the

time to read this manual to take full advantage of your dryer's many benefits and

features.

WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS

Warnings and Important Safety Instructions in this manual do not cover all possible conditions and

situations that may occur. Itis your responsibility to use common sense, caution, and care when installing,

maintaining, or operating your dryer.

Always contact your manufacturer about problems or conditions you do not understand.

IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS

What the icons and signs in this user manual mean:

Z_ Hazards or unsafe practices that may result in severe personal injury

WARNING or death.

Hazards or unsafe practices that may result in minor personal injury or

CAUTION property damage.

Z_ To reduce the risk of fire, explosion, electric shock, or personal injury

CAUTION when using your washer, follow these basic safety precautions:

Do NOT attempt.

Do NOT disassemble.

Do NOT touch.

Follow directions explicitly.

Unplug the power plug from the wall socket.

Make sure the machine is grounded to prevent electric shock.

Call the service center for help.

Note

These warning signs are here to prevent injury to you and others.

Please follow them explicitly.

After reading this section, keep it in a safe place for future reference.

_Read all instructions before the

using appliance.

SAVE THESE INSTRUCTIONS

4 safety instructons

Z_ WARNING: To reduce the risk of fire, electric shock, or injury to persons when using your

....... appliance, follow basic precautions, including the following:

1. Read all instructions before using this appliance.

2. Do not dry articles that have been previously cleaned in, washed in, soaked in,

or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive

substances, as they give off vapors that could ignite or explode.

3. Do not allow children to play on or in the appliance. Close supervision of children is

necessary when the appliance is used near children.

4. Before the appliance is removed from service or discarded, remove the door to the

drying compartment.

5. Do not reach into the appliance if the drum is moving.

6. Do not install or store this appliance where it will be exposed to the weather.

7. Do not tamper with controls.

8. Do not repair or replace any part of the appliance or attempt any servicing unless

specifically recommended in the user-maintenance instructions or in published user-

repair instructions that you understand and have the skills to carry out.

9. Do not use fabric softeners or products to eliminate static unless recommended by the

manufacturer of the fabric softener or product.

10.Clean lint screen before or after each load.

11.Do not use heat to dry articles containing foam rubber or similarly textured rubber-like

materials.

12.Keep area around the exhaust opening and adjacent surrounding areas free from the

accumulation of lint, dust, and dirt.

13.The interior of the appliance and exhaust duct should be cleaned periodically by

qualified service personnel.

14.Do not place items exposed to cooking oils in your dryer. Items contaminated with

cooking oils may contribute to a chemical reaction that could cause a load to catch fire.

SAVE THESE INSTRUCTIONS

safety instructions 5

WARNING -Risk of Fire

• Clothes dryer installation must be performed by a qualified installer.

Install the clothes dryer according to the manufacturer's instructions and local codes.

Do not install a clothes dryer with flexible plastic venting materials. If flexible metal

(foil type) duct is installed, it must be of a specific type identified by the appliance

manufacturer as suitable for use with clothes dryers. Flexible venting materials are

known to collapse, be easily crushed, and trap lint. These conditions will obstruct

clothes dryer airflow and increase the risk of fire.

To reduce the risk of severe injury or death, follow all installation instructions.

'_To

WARNING

reduce the risk of fire or explosion:

Do not dry items that have been previously cleaned, washed, soaked, or spotted with

gasoline, dry cleaning solvents, or other flammable or explosive substances. They

emit vapors that could ignite or explode. Any material that has been in contact with a

cleaning solvent or flammable liquids or solids should not be placed in the dryer until all

traces of these flammable liquids or solids and their fumes have been removed.

There are many highly flammable items used in homes, such as acetone, denatured

alcohol, gasoline, kerosene, some liquid household cleaners, some spot removers,

turpentine, waxes, and wax removers

Items containing foam rubber (may be labeled latex foam) or similarly textured rubber-

like materials must not be dried on a heat setting. Heated foam rubber materials can,

under certain circumstances, produce fire by spontaneous combustion.

_What to do if you smell gas:

WARNING

Do not try to light any appliance.

Do not turn on the appliance.

Do not touch any electrical switch.

Do not use any phone in your building.

Clear the room, building or area of all occupants.

Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's

instructions.

Ifyou cannot reach your gas supplier, call the fire department.

Installation and service must be performed by a qualified installer, service agency, or the

gas supplier.

SAVE THESE INSTRUCTIONS

6 safety instructons

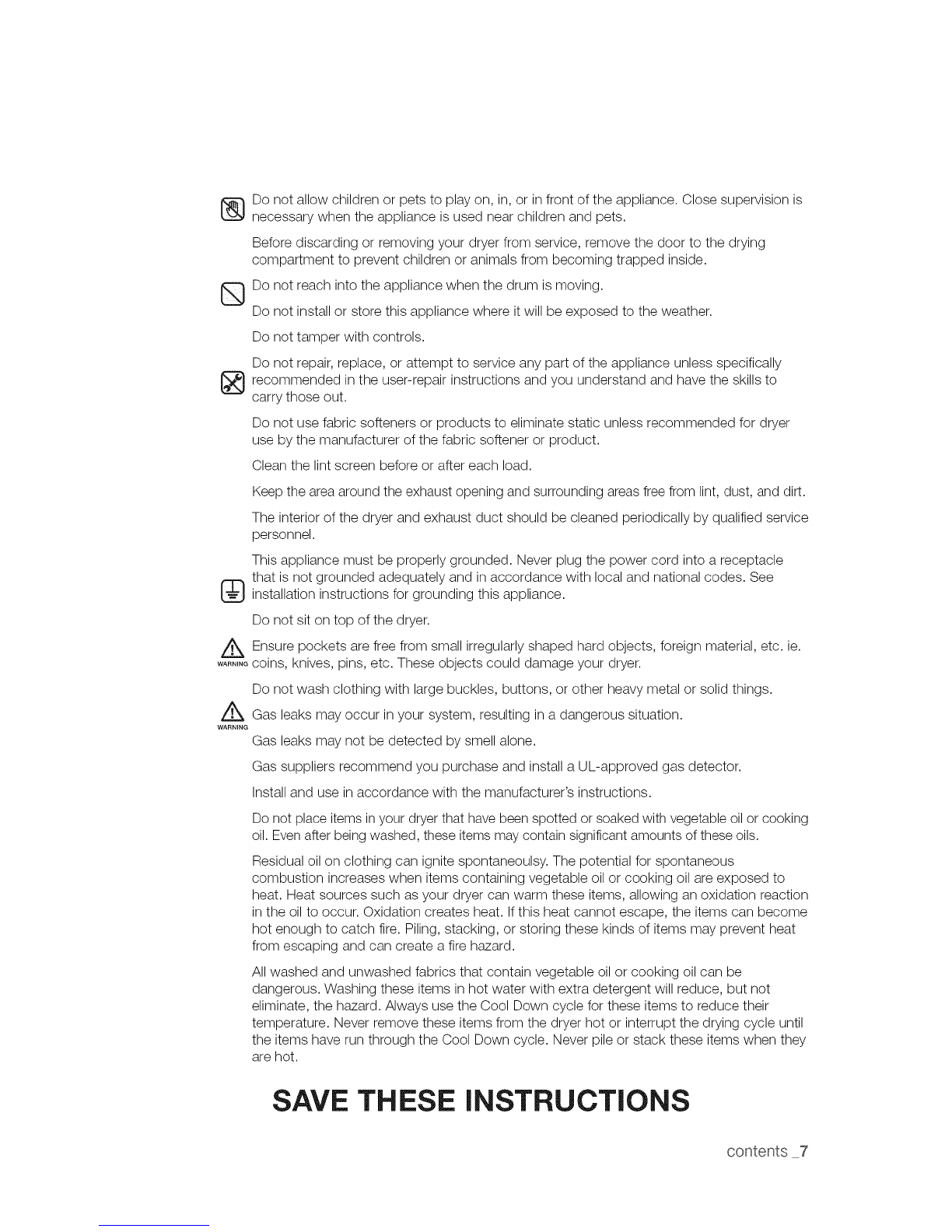

Do not allow children or pets to play on, in, or in front of the appliance. Close supervision is

necessary when the appliance is used near children and pets.

Before discarding or removing your dryer from service, remove the door to the drying

compartment to prevent children or animals from becoming trapped inside.

Do not reach into the appliance when the drum is moving.

Do not install or store this appliance where it will be exposed to the weather.

Do not tamper with controls.

Do not repair, replace, or attempt to service any part of the appliance unless specifically

_ ecommended in the user-repair instructions and you understand and have the skills to

carry those out.

Do not use fabric softeners or products to eliminate static unless recommended for dryer

use by the manufacturer of the fabric softener or product.

Clean the lint screen before or after each load.

WARNING

it,,

WARNING

Keep the area around the exhaust opening and surrounding areas free from lint, dust, and dirt.

The interior of the dryer and exhaust duct should be cleaned periodically by qualified service

personnel.

This appliance must be properly grounded. Never plug the power cord into a receptacle

that is not grounded adequately and in accordance with local and national codes. See

installation instructions for grounding this appliance.

Do not sit on top of the dryer.

Ensure pockets are free from small irregularly shaped hard objects, foreign material, etc. ie.

coins, knives, pins, etc. These objects could damage your dryer.

Do not wash clothing with large buckles, buttons, or other heavy metal or solid things.

Gas leaks may occur in your system, resulting in a dangerous situation.

Gas leaks may not be detected by smell alone.

Gas suppliers recommend you purchase and install a UL-approved gas detector.

Install and use in accordance with the manufacturer's instructions.

Do not place items in your dryer that have been spotted or soaked with vegetable oil or cooking

oil. Even after being washed, these items may contain significant amounts of these oils.

Residual oil on clothing can ignite spontaneoulsy. The potential for spontaneous

combustion increases when items containing vegetable oil or cooking oil are exposed to

heat. Heat sources such as your dryer can warm these items, allowing an oxidation reaction

in the oil to occur. Oxidation creates heat. Ifthis heat cannot escape, the items can become

hot enough to catch fire. Piling, stacking, or storing these kinds of items may prevent heat

from escaping and can create a fire hazard.

All washed and unwashed fabrics that contain vegetable oil or cooking oil can be

dangerous. Washing these items in hot water with extra detergent will reduce, but not

eliminate, the hazard. Always use the Cool Down cycle for these items to reduce their

temperature. Never remove these items from the dryer hot or interrupt the drying cycle until

the items have run through the Cool Down cycle. Never pile or stack these items when they

are hot.

SAVE THESE iNSTRUCTiONS

contents 7

content

INSTALLING YOUR DRYER

OPERATING INSTRUCTIONS, TIPS

CARE AND CLEANING

SPECIAL LAUNDRY TIPS

......

TROUBLESHOOTING

9 Unpacking your dryer

10 Basic requirments

11 Ducting requirements

12 Important to installer

12 Location considerations

12 Alcove or closet installation

13 Mobile home installation

13 Exhausting

14 Gas requirements

14 Commonwealth of Massachusetts

installation instructions

15 Electrical requirements

15 Grounding

16 Electrical connections

17 Connecting the inlet hose

18 Replacement parts and accessories

18 Installation

21 Final installation checklist

22 Dryer Exhaust Tips

23 Door Reversal

24 Overview of the control panel

26 Child lock

27 Drum Light

27 Changing Language

27 My cycle

28 Drying Rack

29 Clean the lint filter

29 Load the dryer properly

29 Getting started

30 Control Panel

30 Tumbler

30 Stainless Steel Tumbler

30 Dryer Exterior

30 Dryer Exhaust System

31 Special laundry tips

32 Check these points if your dryer.,.

34 Information codes

APPENDIX 35 Fabric care chart

36 Protecting the environment

36 Declaration of conformity

36 Specifications

37 Cycle chart

8 instaling your dryer

ng 7o ArdrTer

UNPACKING YOUR DRYER

Unpack your Dryer and inspect it for shipping damage. Make sure you have received all of the items shown

below. Ifyour Dryer was damaged during shipping, or you do not have all of the items, contact 1-800-

SAMSUNG(726-7864).

To prevent personal injury or strain, wear protective gloves whenever lifting or carrying the unit.

_ Packing materials can be dangerous to children; keep all packing material (plastic bags, polystyrene,

....... etc.) well out of the reach of children.

SEE EXHAUST REQUIREMENTS

t Top Cover

panel [ BACK ]

Door

Filter Water Inlet

IFrame Front Duct Exhaust

"Y'=connector Short inlet hose Rubber Washer Long inlet hose

instaling your dryer 9

roousneeded

Pipe wrench

Pliers Cutting knife (gas only) Nut drivers

o j

Level Phillips Screwdriver Duct tape Wrench

BASIC REQUIRMENTS

Make sure you have everything necessary for proper installation

*A GROUNDED ELECTRICAL OUTLET is required. See Electrical Requirements.

A POWER CORD electric dryers (except for Canada).

GAS LINES (if a gas dryer) must meet national and local codes.

EHAUST SYSTEM - must be rigid metal or flexible stiff-walled metal exhaust ducting.

10 instaling your dryer

This manual suits for next models

Table of contents

Languages:

Other Samsung Dryer manuals

Samsung

Samsung DV48H7400E DV48H7400G User manual

Samsung

Samsung DV316LG User manual

Samsung

Samsung DV231A Series User manual

Samsung

Samsung DVE50A8800 Series User manual

Samsung

Samsung DV203 SERIES User manual

Samsung

Samsung DV50F9A8GVP Manual

Samsung

Samsung DV9 Series User manual

Samsung

Samsung DV435ETGJWR/A1 User manual

Samsung

Samsung DV365GTBGSF/AC User manual

Samsung

Samsung DV400EWHDWR/AA User manual

Samsung

Samsung DVE45R6300 Series User manual

Samsung

Samsung DV5451AEWXAC User manual

Samsung

Samsung DV210A Series User manual

Samsung

Samsung DVE52B7650 Series User manual

Samsung

Samsung DV400EWHDWR Instruction Manual

Samsung

Samsung FlexDry DVE60A9900 Series User manual

Samsung

Samsung DV9 TA2 Series User manual

Samsung

Samsung FlexDry DVE55M9600W User manual

Samsung

Samsung DV456EWHDSU/AA User manual

Samsung

Samsung DV9ST5241AT User manual

Samsung

Samsung DV428AE series User manual

Samsung

Samsung DV435GTGJRA User manual

Samsung

Samsung DV431AEPXAC User manual

Samsung

Samsung FLEXDRY DV*60M9900 series User manual

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Original instructions

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Electrolux

Electrolux EW2H328R2 user manual

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

Electrolux

Electrolux TP5080TW user manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Installation

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions
