Samsung SH07APG User manual

E§§HNIKA ENGLISH

OWNER’S INSTRUCTIONS

MANUAL DE INSTRUCCIONES

MANUEL D’UTILISATION

ISTRUZIONI PER L’USO

MANUAL DE INSTRUÇÕES

GEBRAUCHSANWEISUNG

√¢∏°π∂™ Ã ∏™∆∏

Split-type Room Air Conditioner (Cool and Heat)

Aire acondicionado doméstico sistema Split (Refrigeración y Calefacción)

Climatiseur de type Séparé(Refroidissement et Chauffage)

Condizionatore d’aria per ambienti ad unitàSeparate (Raffreddamento e Riscaldamento)

Aparelho de ar condicionado tipo Split (Refrigeração e Aquecimento)

Geteilte raumklimaanlage (Kühlen und Wärmen)

¢IAIPOYMENO K§IMATI™TIKO ¢øMATIOY (æ‡ÍË˜ Î·È £¤ÚÌ·ÓÛË˜)

ESPAÑOL

FRANÇAIS

ITALIANO

PORTUGUÊS

DEUTSCH

E S F I P D G DB98-14758A(4)

AQ07P2GE

SH07APG

SH07APGA

SH07ZP2

SH07ZP2A

AQ09P2GB

AQ09P2GE

SH09APG

SH09APGA

SH09ZP2

SH09ZP2A

AQ12P4GB

AQ12P4GE

SH12APG

SH12APGA

SH12ZP4

SH12ZP4A

AQ18P0GBA

AQ18P0GEA

SH18AP0

SH18ZP0B

AQ24P6GBA

AQ24P6GEA

SH24AP6

SH24ZP6B

Indoor unit

UQ07P2GE

SH07APGX

SH07APGAX

SH07ZP2X

SH07ZP2AX

UQ09P2GB

UQ09P2GE

SH09APGX

SH09APGAX

SH09ZP2X

SH09ZP2AX

UQ12P4GB

UQ12P4GE

SH12APGX

SH12APGAX

SH12ZP4X

SH12ZP4AX

UQ18P0GBA

UQ18P0GEA

SH18AP0X

SH18ZP0BX

UQ24P6GBA

UQ24P6GEA

SH24AP6X

SH24ZP6BX

Outdoor unit

E-2

Safety Precautions

The following safety precautions must be taken when using your air conditioner.

◆Users of this product are cautioned not to attempt repair of this product

at their own discretion. Instead, they are requested to directly contact a

designated service center or the outlet at which the product was

purchased.

◆Never spill any kind of liquid into the unit. Should this happen, unplug

or main switch off the unit and contact an authorized service center.

◆Do not insert anything between the air outlet blades because the inner

fan may be damaged and could cause injury. Keep children away from

the unit.

◆Do not place any obstacles in front of the unit.

◆Do not spray liquid of any kind into the indoor unit. Should this happen,

switch off the breaker used for your air conditioner and contact your

installation specialist.

◆Make sure that the unit is correctly ventilated at all times:

Do not place clothing or other materials over it.

◆If the wireless remote control will not be used for a long time, remove

the batteries. (If applicable)

◆When using a wireless remote control, the distance should not be more

than 7 meters from the air conditioner. (If applicable)

WARNING

DURING OPERATION

◆Never store or ship the air conditioner upside down or sideways to

avoid damage to the compressor.

◆The appliance is not intended for use by young children or infirm

persons without supervision: Young children should be supervised to

ensure that they do not play with the appliance.

◆Max current is measured according to IEC standard for safety and

current is measured according to ISO standard for energy efficiency.

OTHERS

◆Before throwing out the device, it is necessary to pull back the battery

cells and get rid of them safely for recycling reasons.

◆When you need to dispose of the unit, consult your dealer. If pipes are

removed incorrectly, refrigerant may blow out and come into contact

with your skin, causing injury. Releasing refrigerant into the atmosphere

also damages the environments.

◆Please recycle or dispose of the packaging material for this product in

an environmentally responsible manner.

ISPOSING OF THE UNIT

Risk of electric shock. • Can cause injury or death. • Disconnect all

remote electric power supplies before servicing, installing or cleaning.

• This must be done by the manufacturer or its service agent or a similar

qualified person in order to avoid a hazard.

E-3

ENGLISH

Contents

◆P

REPARING YOUR AIR CONDITIONER

■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

■ View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

■ Remote Control-Buttons and Display . . . . . . . . . . . . . . . . . . . . . . 6

■ Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

■ Inserting the Remote Control Batteries . . . . . . . . . . . . . . . . . . . . . 8

◆O

PERATING YOUR AIR CONDITIONER

■ Selecting the Automatic Operating Mode . . . . . . . . . . . . . . . . . . . 9

■ Cooling Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

■ Heating Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

■ Changing the Room Temperature Quickly . . . . . . . . . . . . . . . . . . 12

■ Removing Excess Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

■ Airing Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

■ Selecting Energy Saving Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

■ Generating Anion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

■ Adjusting the Air Flow Direction Vertically . . . . . . . . . . . . . . . . . . . 17

■ Adjusting the Air Flow Direction Horizontally . . . . . . . . . . . . . . . . 17

◆P

ROGRAMMING YOUR AIR CONDITIONER

■ Setting the On Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

■ Setting the Off Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

■ Setting the Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

◆R

ECOMMENDATIONS FOR USE

■ Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

■ Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . . . . . 22

■ Operating Your Air Conditioner Without the Remote Control . . . . . 22

■ Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

■ Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

■ Cleaning Deodorizing and Bio-Green Filters (option) . . . . . . . . . . 25

View of the Unit

E-4

◆If you want to turn on/off the Display during operation,

press the button on the remote control.

◆The room temperature sensor senses air temperature

around the sensor, and shows the temperature on the

display.

NNoo

oott

ttee

Indoor Unit

Air filter

(under the grille) Air flow blades

(outlet)

Remote Control Sensor

On/Off switch

Timer indicator

Fan speed setting

Sleep Timer indicator

Operation indicator

Set temperature &

room temperature

Anion indicator

Auto grille Air Inlet Room temperature sensor

The design and shape are subject to change according to the model.

E-5

ENGLISH

Air Inlet(Rear)

Air Outlet

Connection Valve

(inside)

Outdoor Unit

SH07APGX SH07APGAX

SH09APGX SH09APGAX

SH12APGX SH12APGAX

Air Inlet(Rear)

Air Outlet

Connection Valve

Outdoor Unit

UQ07P2GE SH07ZP2X SH07ZP2AX

UQ09P2GB UQ09P2GE SH09ZP2X SH09ZP2AX

UQ12P4GB UQ12P4GE SH12ZP4X SH12ZP4AX

Air Inlet(Rear)

Air Outlet

Connection Valve

Outdoor Unit

UQ18P0GBA UQ18P0GEA SH18AP0X SH18ZP0BX

UQ24P6GBA UQ24P6GEA SH24AP6X SH24ZP6BX

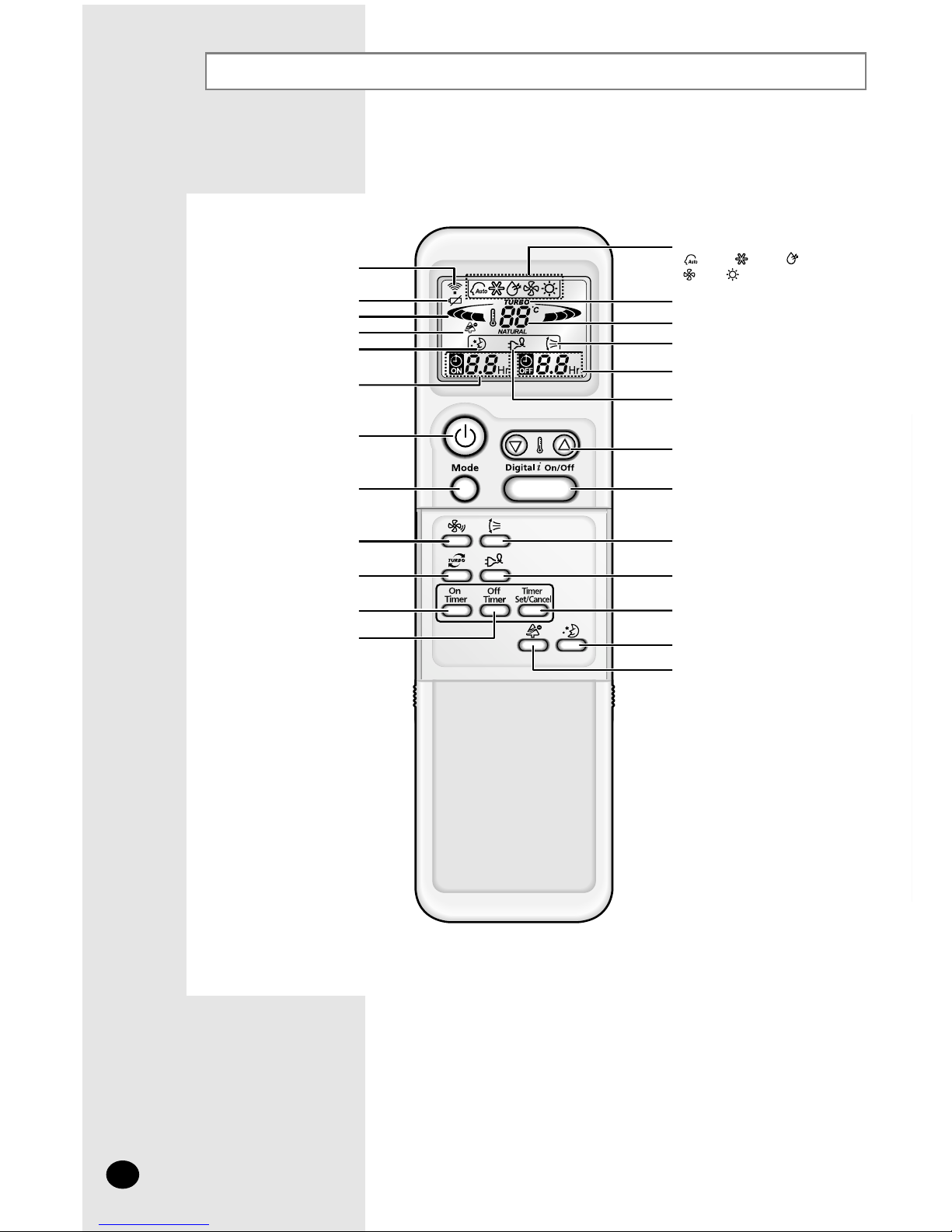

Remote Control - Buttons and Display

E-6

Operating mode

( AUTO, COOL, DRY,

FAN, HEAT)

Remote control

transmission indicator

Digital iOn/Off button

Off Timer setting

Energy saving

Anion button

Sleep button

Energy saving button

Swing button

Timer Set/Cancel button

Temperature adjustment

buttons

Temperature setting

Air flow direction

Turbo mode

Sleep mode

On/Off button

Mode selection button

(AUTO, COOL, DRY, FAN, HEAT)

Fan speed adjustment

button

Turbo button

On Timer button

Off Timer button

Fan speed

Anion indicator

On Timer setting

Battery discharge indicator

Getting Started

You have just purchased a split type air conditioner and it has been

installed by your installation specialist.

Your Owner’s Instructions contains valuable information on using your

air conditioner. Please take the time to read it as it will help you take full

advantage of the unit’s features.

The booklet is organized as follows.

◆The following figures are shown on pages from 4 to 6 :

- Indoor and outdoor units

- Remote control(buttons and display)

They will help you find the buttons and understand the symbols displayed.

◆In the manual, you will find a series of step-by-step procedures for each

function available.

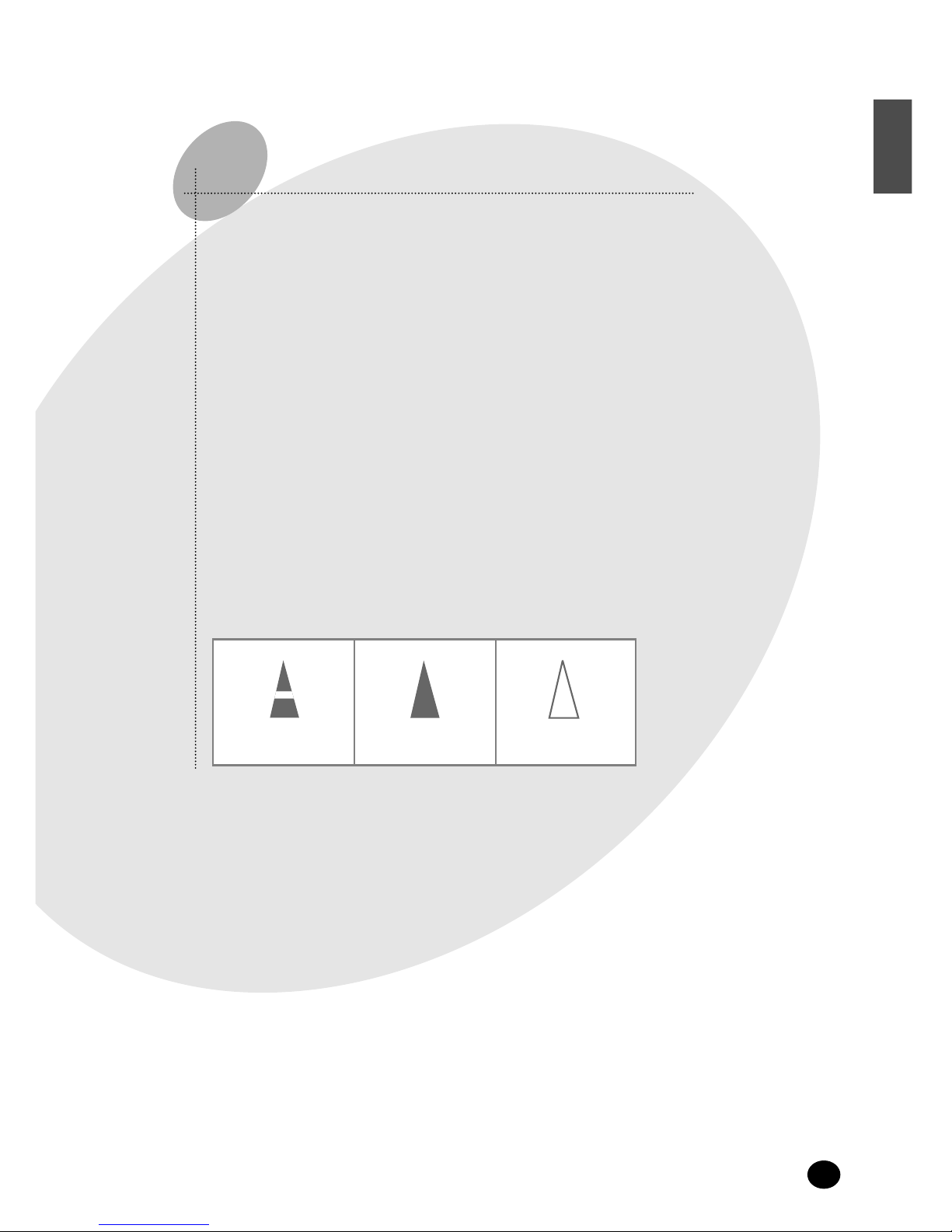

The illustrations in the step-by-step procedures use three different symbols:

PRESS PUSH HOLD DOWN

E-7

ENGLISH

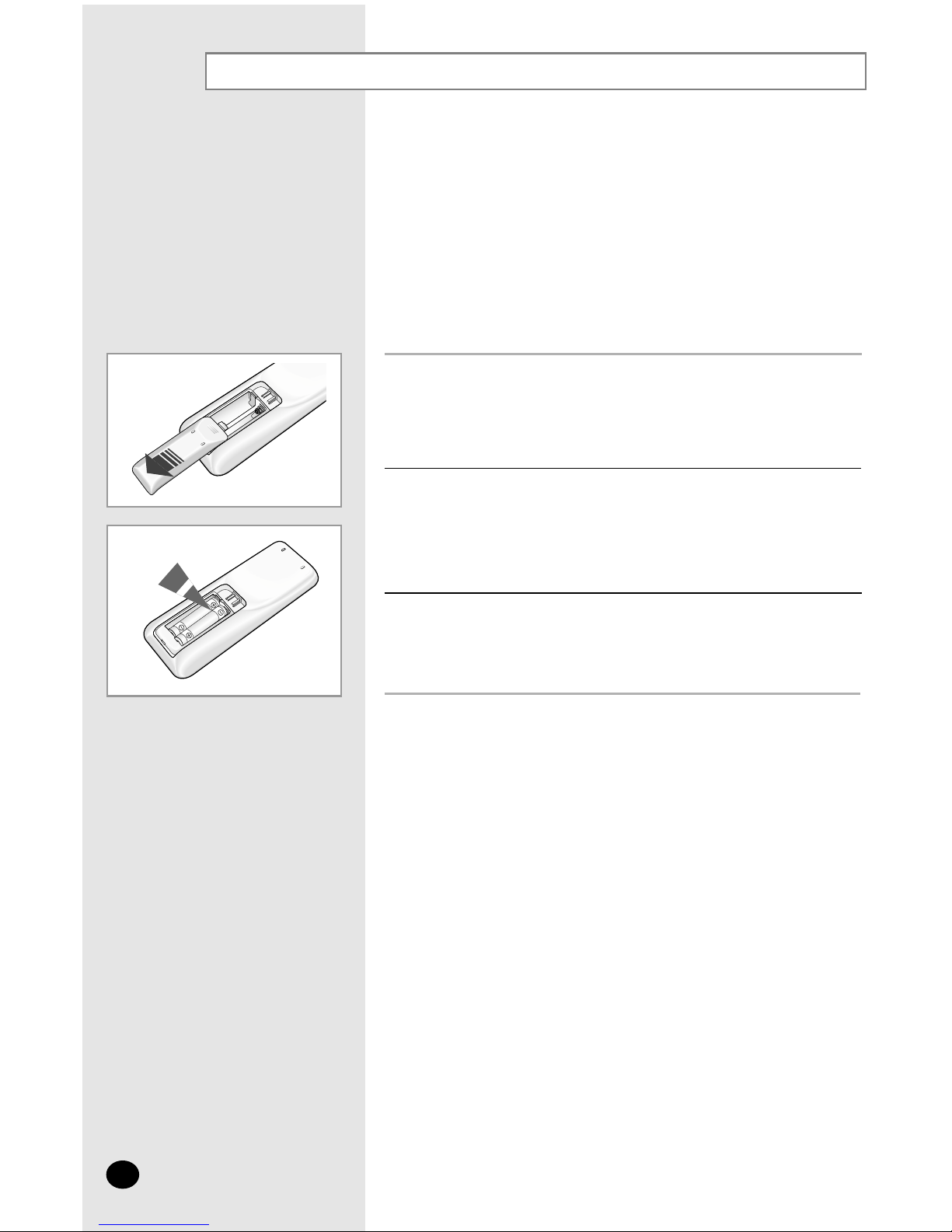

Inserting the Remote Control Batteries

Push the battery cover on the rear of the remote control with your thumb

in the direction of the arrow and remove it.

Insert the two batteries, taking care to respect the polarities :

◆+ on the battery with + on the remote control.

◆- on the battery with - on the remote control.

Close the cover by sliding it back until it clicks into place.

◆Use two AAA, LR03 1.5V batteries.

◆Do not use old batteries or different kinds of batteries together.

◆Batteries may be completely discharged after 12 months, even

◆if they have not actually been used.

You must insert or replace the remote control batteries when :

◆You purchase the air conditioner

◆The remote control does not work correctly

NNoo

oott

ttee

E-8

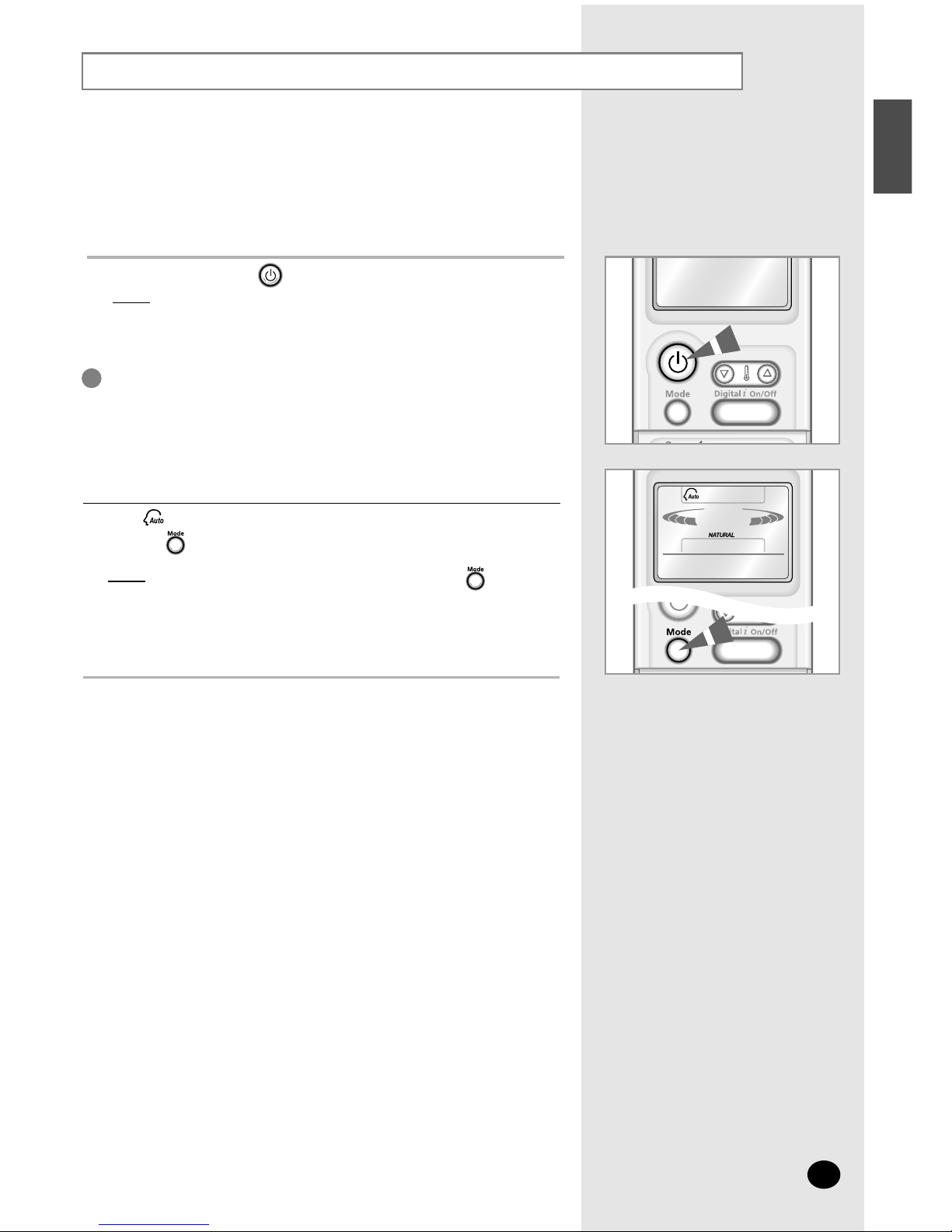

Selecting the Automatic Operating Mode

E-9

ENGLISH

You can start the air conditioner in Automatic mode from your remote

control. In the Automatic mode, the optimum temperature and the fan

speed is selected automatically.

If the is not displayed at the top of the remote control,

press the button on the remote control one or more times until it

appears.

Result:◆The indoor unit beeps each time you press the button.

◆The air conditioner runs in AUTO mode.

You can change modes at any time.

If necessary, press the (On/Off) button.

Result:◆The operation indicator on the indoor unit lights up.

◆The air conditioner starts up in the mode selected

when the unit was last used.

◆The indoor unit beeps.

The air conditioner is fitted with a protection mechanism to

prevent the unit from being damaged when it is started

immediately after being:

◆Plugged in

◆Stopped

lt will start up normally after three minutes.

IMPORTANT

NNoo

oott

ttee

Cooling Your Room

1If necessary, press the (On/Off) button.

Result:

◆

The operation indicator on the indoor unit lights up.

◆The air conditioner starts up in the mode selected

when the unit was last used.

◆The indoor unit beeps.

The air conditioner is fitted with a protection mechanism to

prevent the unit from being damaged when it is started

immediately after being:

◆Plugged in

◆Stopped

lt will start up normally after three minutes.

IMPORTANT

If the is not displayed at the top of the remote control,

press the button on the remote control one or more times until it

appears.

Result:

◆

The indoor unit beeps each time you press the button.

◆

The air conditioner runs in COOL mode.

You can change modes at any time.

NNoo

oott

ttee

To adjust the temperature, press the button one or more times until

the required temperature is displayed.

Possible temperatures are between 18°C and 30°C inclusive.

Result:◆

Each time you press the button:

- The temperature is adjusted by 1°C

- The indoor unit beeps

◆The air conditioner starts cooling, provided that the room

temperature is higher than the selected temperature.

◆If the room temperature reaches the set temperature, the air

conditioner stops cooling, but the fan is still operating.

Select the fan speed by pressing the button one or more times

until the required setting is displayed:

Automatic (rotated : )

Low

Medium

High

Result: Each time you press the button, the indoor unit

beeps.

To control the direction of the air flow, refer to page 17.

You must select the Cool mode if you wish to adjust the:

◆Cooling temperature

◆Fan speed when cooling

E-10

Other manuals for SH07APG

This manual suits for next models

122

Table of contents

Other Samsung Air Conditioner manuals

Samsung

Samsung AM JN1DEH Series User manual

Samsung

Samsung ACN016NDEHA User manual

Samsung

Samsung AQV09YWAN Guide

Samsung

Samsung MXD-14K Series User manual

Samsung

Samsung AS12 Series User manual

Samsung

Samsung AC024BXUPCH User manual

Samsung

Samsung AW08ECB7 User manual

Samsung

Samsung AR KV Series Guide

Samsung

Samsung AR Series User manual

Samsung

Samsung AW0595M User manual

Samsung

Samsung AWH120JE User manual

Samsung

Samsung TH026EAV User manual

Samsung

Samsung AJ100TXJ5KG User manual

Samsung

Samsung AWT18SBWDA User manual

Samsung

Samsung AC444FBRDEH User manual

Samsung

Samsung AC024MN4DKH/VN User manual

Samsung

Samsung AJ040 Series User manual

Samsung

Samsung NS***HHXEH Guide

Samsung

Samsung AR12TVEAAWKNAP User manual

Samsung

Samsung AM053FXMDCH User manual

Samsung

Samsung AS10V Series User manual

Samsung

Samsung MH035FBEA User manual

Samsung

Samsung AJ052RBNDEG/EU User manual

Samsung

Samsung AVXDB*022** User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use

Frigidaire

Frigidaire FAZ12ES2A installation instructions
