Samsung AW0595M User manual

DB98-17031A(1)

AW0505M AW0595M

Window-type Room Air Conditioner

(Cool)

OWNER’S

INSTRUCTIONS

E-2

The following safety precautions must be taken when installing

and using your air conditioner.

Safety Precautions

1The air conditioner must be plugged into its own specific power source, which must be

installed in compliance with national wiring, earthing and safety regulations.

Depending on national regulations and your specific installation, you may need to install:

◆ A circuit breaker

For further information on electrical requirements, contact a professional electrician.

This device must be installed according to the national electrical rules.

2Make sure that the unit is correctly ventilated at all times;

do NOT place clothing or other materials over it.

4Do NOT insert anything between the air outlet blades, as it may damage the inner fan

and you may get hurt. Keep children away from the unit.

5If the supply cord is damaged, it must be replaced by the manufacturer, its service agent

or similarly qualified persons in order to avoid a hazard.

6Do NOT attempt to repair the unit yourself. If it is damaged in any way, contact:

◆ An authorized service center

◆ The dealer from whom you purchased the air conditioner.

7Do NOT place any blocking objects in front of the unit.

3NEVER spill liquids of any kind into the unit.

Should this happen, unplug the unit and contact your installation specialist.

8If the remote control will not be used for a long time, remove the batteries.

9Before throwing out the device, it is necessary to pull back the battery cells

and get rid of them safely.

10 The appliance is not intended for use by young children or infirm person without supervision;

young children should be supervised to ensure that they do not play with the appliance.

11 Do NOT use an extension cord with this product.

The manufacturer does not assume responsibility for accidents or injury

caused by an incorrectly installed air conditioner. If you are unsure about

installation, contact an installation specialist.

Contents

◆PREPARING YOUR AIR CONDITIONER

■Safety Precautions ......................................................................................... 2

■Description of Each Component .................................................................... 4

■Getting Started ............................................................................................... 5

◆OPERATING YOUR AIR CONDITIONER

■Cooling Your Room ........................................................................................ 6

■Ventilating Your Room .................................................................................... 7

■Switching the Air Conditioner Off .................................................................... 8

■Adjusting the Air Flow Direction Horizontally .................................................. 9

■Adjusting the Air Flow Direction Vertically ...................................................... 9

◆RECOMMENDATIONS FOR USE

■Power Failure ................................................................................................. 10

■Temperature and Humidity Ranges ................................................................ 10

■Cleaning Your Air Conditioner ........................................................................ 11

■Solving Common Problems ............................................................................ 12

■Technical Specifications ................................................................................. 13

E-3

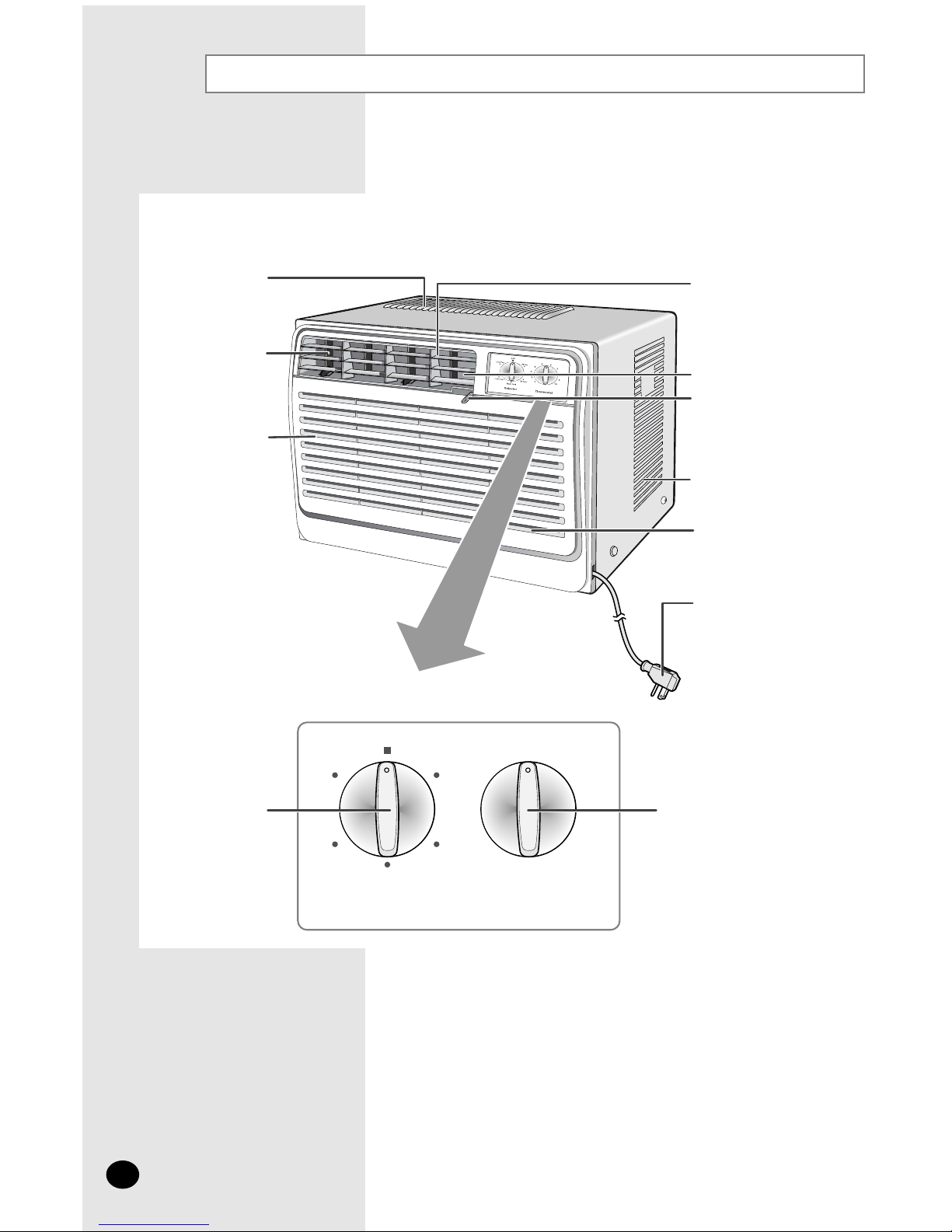

Description of Each Component

E-4

❄The design and shape are subject to

change.

Selector Thermostat

Hi Fan

110

Low Fan

OFF

Hi Cool

Med Cool

Low Cool

Air outlet

Inner air flow

blades (right/left

orientation)

Air inlet (Inside)

Outer air flow blades

(up/down orientation)

- Except AW0505M / AW0595M

Power plug

(The type of power plug

may differ, depending on

the local power supply.)

Operating mode

selection dial Thermostat

control

Ventilation lever

- Except AW0505M / AW0595M

Air outlet

Air inlet (Outside)

Air filter (Inside)

Getting Started

You have just purchased a Samsung window-type room air conditioner which should be

installed following your Owner’s Instructions.

Your Owner's Instructions contain much valuable information on using your air conditioner.

Please take the time to read them as they will help you take full advantage of the unit's

features.

The illustrations in the step-by-step procedures use four different symbols:

E-5

PRESS PUSH IMPORTANT NOTE

☛

➢

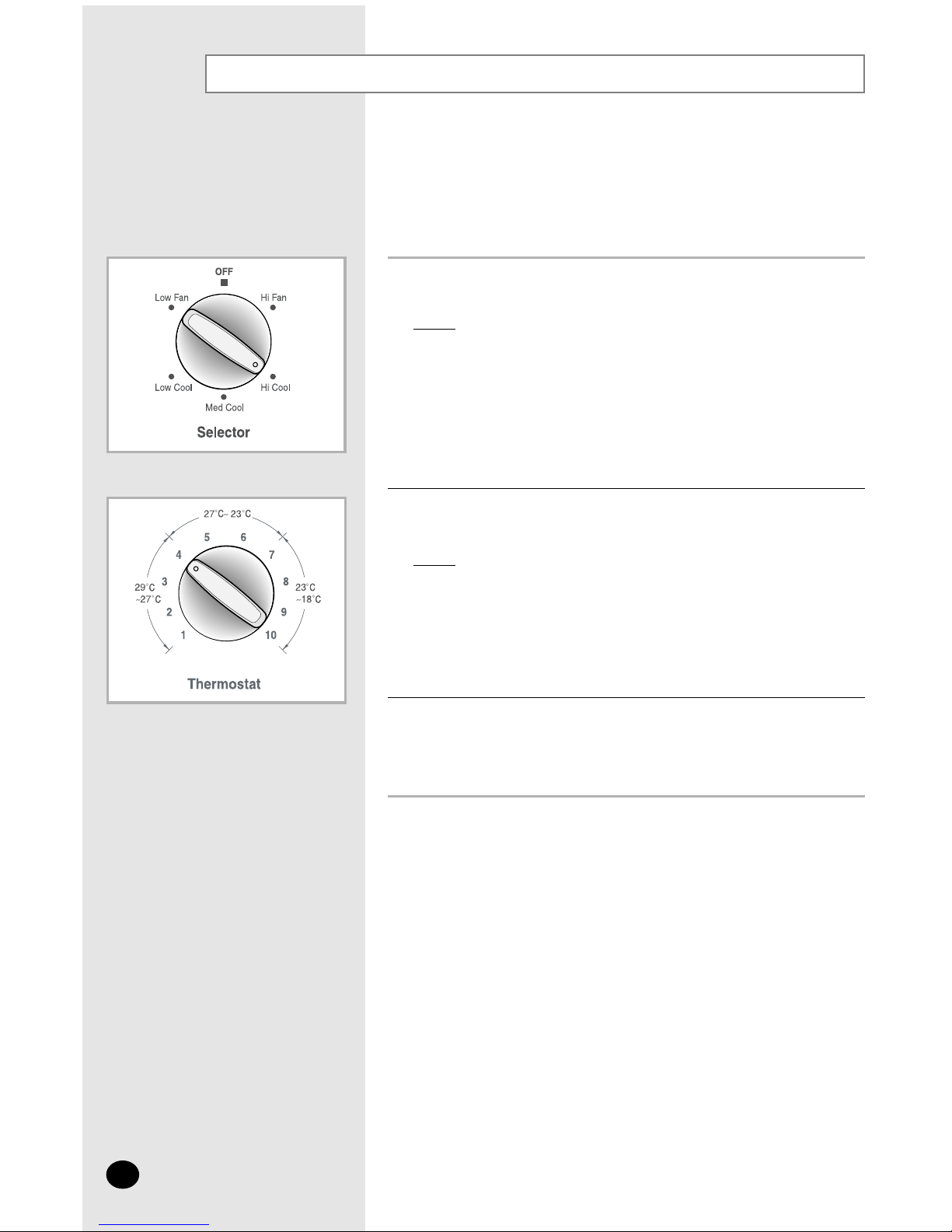

Cooling Your Room

To control the direction of the air flow, refer to page 9.3

Turn the operating mode selection dial and set it to “ Hi Cool ” ,

“ Med Cool ” or “ Low Cool ”.

Result: The air conditioner starts up in cool mode.

➢You can change modes at any time.

Turn the THERMOSTAT control to the desired position.

You must select the COOL mode if you wish to adjust the:

◆ Cooling temperature

◆ Fan speed when Cooling

Possible temperatures: Can be set between 18°Cand 29°C.

Result: The air conditioner starts cooling if the room temperature is

higher than the selected temperature.

E-6

Ventilating Your Room

If the air in your room is stale, you can ventilate the room using the

Fan feature. (Except AW0505M / AW0595M)

Turn the operating mode selection dial and set it to “Hi Fan” or “Low Fan” posi-

tion.

Result: The air conditioner starts up in fan mode.

➢

◆ Hi Fan : The fan turns rapidly.

◆ Low Fan : The fan turns slowly.

◆ You can change modes at any time.

To control the direction of the air flow, refer to page 9.

If you wish to discharge stale air, push the ventilation lever on the front

of the unit to the right and open position ( ).

Result: The air inside the room circulates and stale air is discharged

outside.

Otherwise, push the ventilation lever to the left and closed position ( ).

Result: The air simply circulates inside the room.

E-7

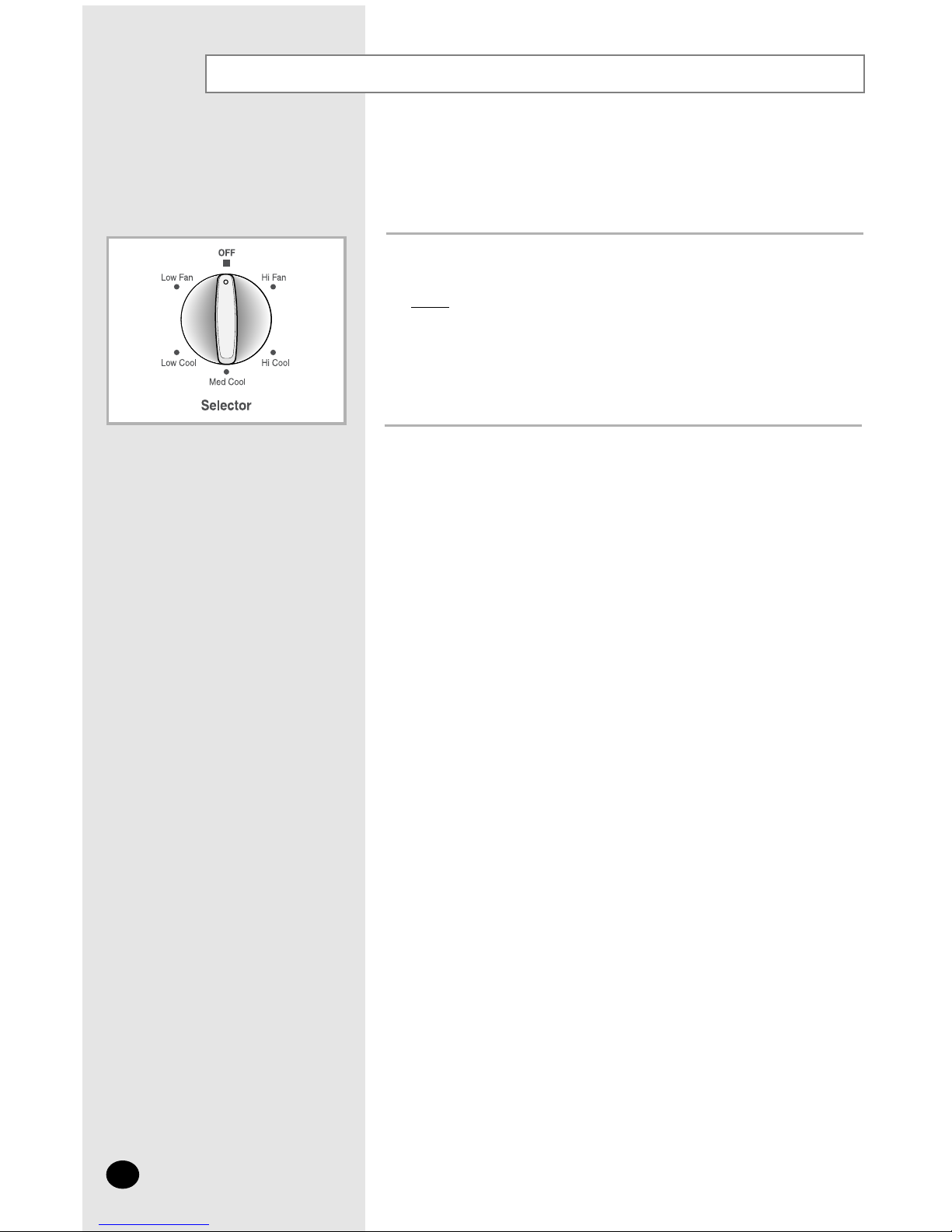

Switching the Air Conditioner Off

To switch the unit off, simply set the operating mode selection dial to the

OFF

position.

Result: The air conditioner stops operating.

You can switch the air conditioner off whenever you want.

E-8

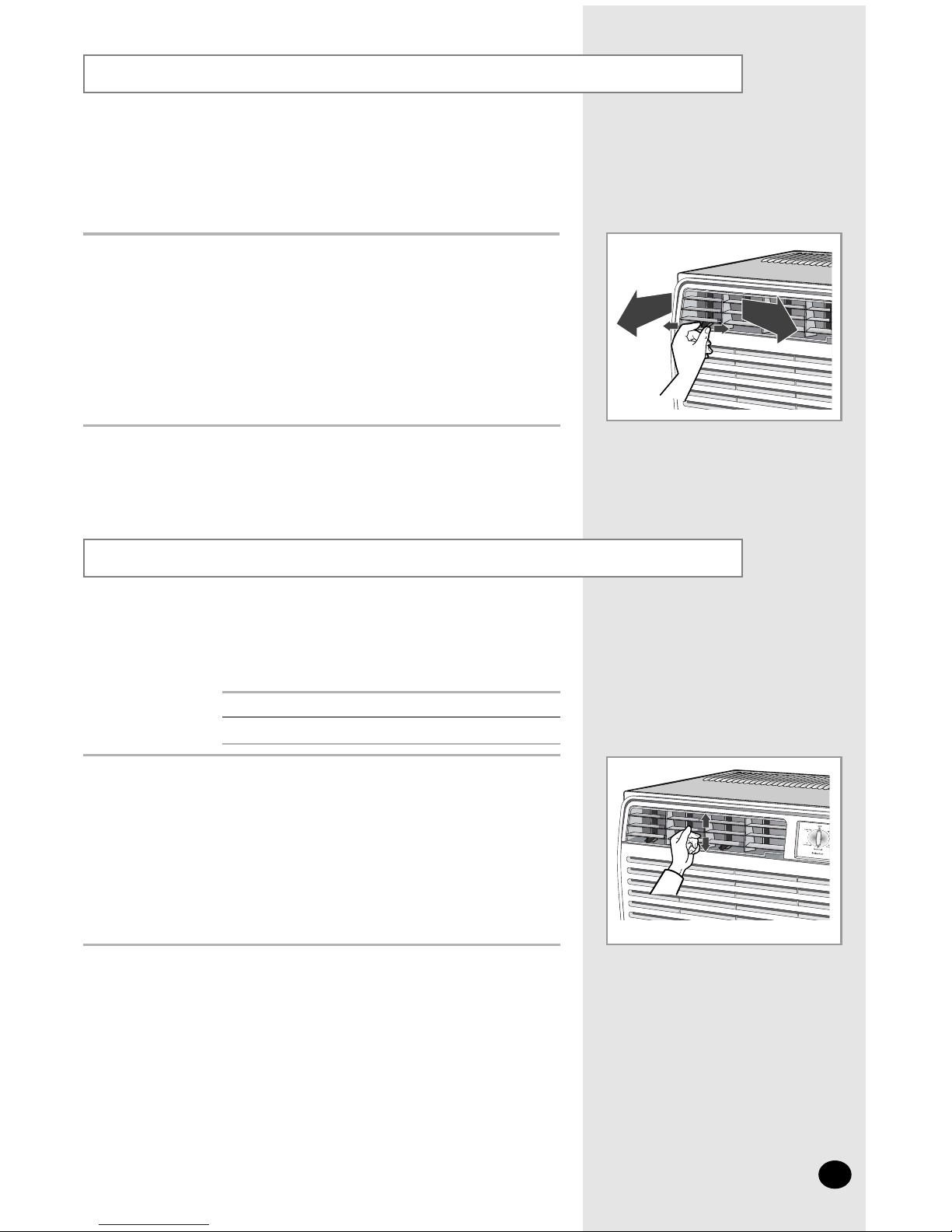

Adjusting the Air Flow Direction Horizontally

Adjusting the Air Flow Direction Vertically

The outer air flow blades can be adjusted to control the vertical air

flow direction. (Except AW0505M / AW0595M)

RECOMMENDATION When...

Cooling

Adjust the blades to face...

Upwards.

Adjust the air flow blades to the desired position, by pushing them

upwards or downwards.

If you orient the air flow blades downwards and the unit operates

in Cool mode for long periods of time, dew may:

Form on the surface of the blades

Drip from the blades

➢

E-9

Depending on the position of the unit in your room, you can adjust

the orientation of the inner air flow blades on the unit.

Adjust the air flow blades to the desired position by sliding them side to side.

Power Failure

Temperature and Humidity Ranges

If the air conditioner is used at... Then...

Higher temperature The automatic protection feature may be triggered

and the air conditioner stopped.

Lower temperature A water leakage or some other malfunction may happen

if the heat exchanger freezes.

Higher humidity levels Water may condense on and drip from the surface of the unit

if it is used for long periods.

The following table indicates the temperature and humidity ranges

within which the air conditioner can be used.

Mode Indoor

Temperature Outdoor

Temperature Indoor Humidity

Cooling 21°Cto 32°Capprox. 21°Cto 43°Capprox. 80% or less

If a power failure occurs, the air conditioner is switched off.

When the power comes back on, the air conditioner starts up again

automatically.

E-10
