Samsung SC12AWHD User manual

E§§HNIKA ENGLISH

OWNER’S INSTRUCTIONS

MANUAL DE INSTRUCCIONES

MANUEL D’UTILISATION

ISTRUZIONI PER L’USO

MANUAL DE INSTRUÇÕES

GEBRAUCHSANWEISUNG

√¢∏°π∂™ Ãƒ∏™∆∏

Split-type Room Air Conditioner (Cool)

Aire acondicionado doméstico sistema Split (Refrigeración)

Climatiseur de type Séparé (Refroidissement)

Condizionatore d’aria per ambienti ad unità Separate (Raffreddamento)

Aparelho de ar condicionado tipo Split (Refrigeração)

Geteilte raumklimaanlage (Kühlen)

¢IAIPOYMENO K§IMATI™TIKO ¢øMATIOY (æ‡ÍË )

ESPAÑOL

FRANÇAIS

ITALIANO

PORTUGUÊS

DEUTSCH

E S F I P D G DB98-22607A(1)

SC12AWHD

Indoor unit

SC12AWHDX

Outdoor unit

SC09AW8 SC09AW8X

E-2

Safety Precautions

The following safety precautions must be taken when using your air conditioner.

◆Users of this product are cautioned not to attempt repair of this product

at their own discretion. Instead, they are requested to directly contact a

designated service center or the outlet at which the product was

purchased.

◆Never spill any kind of liquid into the unit. Should this happen, unplug

or main switch off the unit and contact an authorized service center.

◆Do not insert anything between the air outlet blades because the inner

fan may be damaged and could cause injury. Keep children away from

the unit.

◆Do not place any obstacles in front of the unit.

◆Do not spray liquid of any kind into the indoor unit. Should this happen,

switch off the breaker used for your air conditioner and contact your

installation specialist.

◆Make sure that the unit is correctly ventilated at all times:

Do not place clothing or other materials over it.

◆If the wireless remote control will not be used for a long time, remove

the batteries. (If applicable)

◆When using a wireless remote control, the distance should not be more

than 7 meters from the air conditioner. (If applicable)

WARNING

DURING OPERATION

◆Never store or ship the air conditioner upside down or sideways to

avoid damage to the compressor.

◆The appliance is not intended for use by young children or infirm

persons without supervision: Young children should be supervised to

ensure that they do not play with the appliance.

◆Max current is measured according to IEC standard for safety and

current is measured according to ISO standard for energy efficiency.

OTHERS

◆Before throwing out the device, it is necessary to pull back the battery

cells and get rid of them safely for recycling reasons.

◆When you need to dispose of the unit, consult your dealer. If pipes are

removed incorrectly, refrigerant may blow out and come into contact

with your skin, causing injury. Releasing refrigerant into the atmosphere

also damages the environments.

◆Please recycle or dispose of the packaging material for this product in

an environmentally responsible manner.

ISPOSING OF THE UNIT

Risk of electric shock. • Can cause injury or death. • Disconnect all

remote electric power supplies before servicing, installing or cleaning.

• This must be done by the manufacturer or its service agent or a similar

qualified person in order to avoid a hazard.

SC09AWH IB_E_15996 12/17/03 11:49 AM Page 2

E-3

ENGLISH

Contents

◆

REPARING YOUR AIR CONDITIONER

■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

■ View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

■ Remote Control-Buttons and Display . . . . . . . . . . . . . . . . . . . . . . 6

■ Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

■ Inserting the Remote Control Batteries . . . . . . . . . . . . . . . . . . . . . 8

◆

PERATING YOUR AIR CONDITIONER

■ Selecting theAutomatic Operating Mode . . . . . . . . . . . . . . . . . . . 9

■ Cooling Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

■ Removing Excess Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

■ Airing Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

■ Changing the Room Temperature Quickly . . . . . . . . . . . . . . . . . . 13

■ Selecting Energy Saving Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

■ Adjusting theAir Flow Direction Vertically . . . . . . . . . . . . . . . . . . . 15

■ Adjusting theAir Flow Direction Horizontally . . . . . . . . . . . . . . . . 15

◆

ROGRAMMING YOUR AIR CONDITIONER

■ Setting the On Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

■ Setting the Off Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

■ Setting the Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

■ Setting the 1 Hour Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

◆

ECOMMENDATIONS FOR USE

■ Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

■ Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . . . . . 20

■ Operating Your Air Conditioner Without the Remote Control . . . . . 21

■ Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

■ Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

■ Cleaning Deodorizing and Bio filter (Option) . . . . . . . . . . . . . . . . . 23

SC09AWH IB_E_15996 12/17/03 11:49 AM Page 3

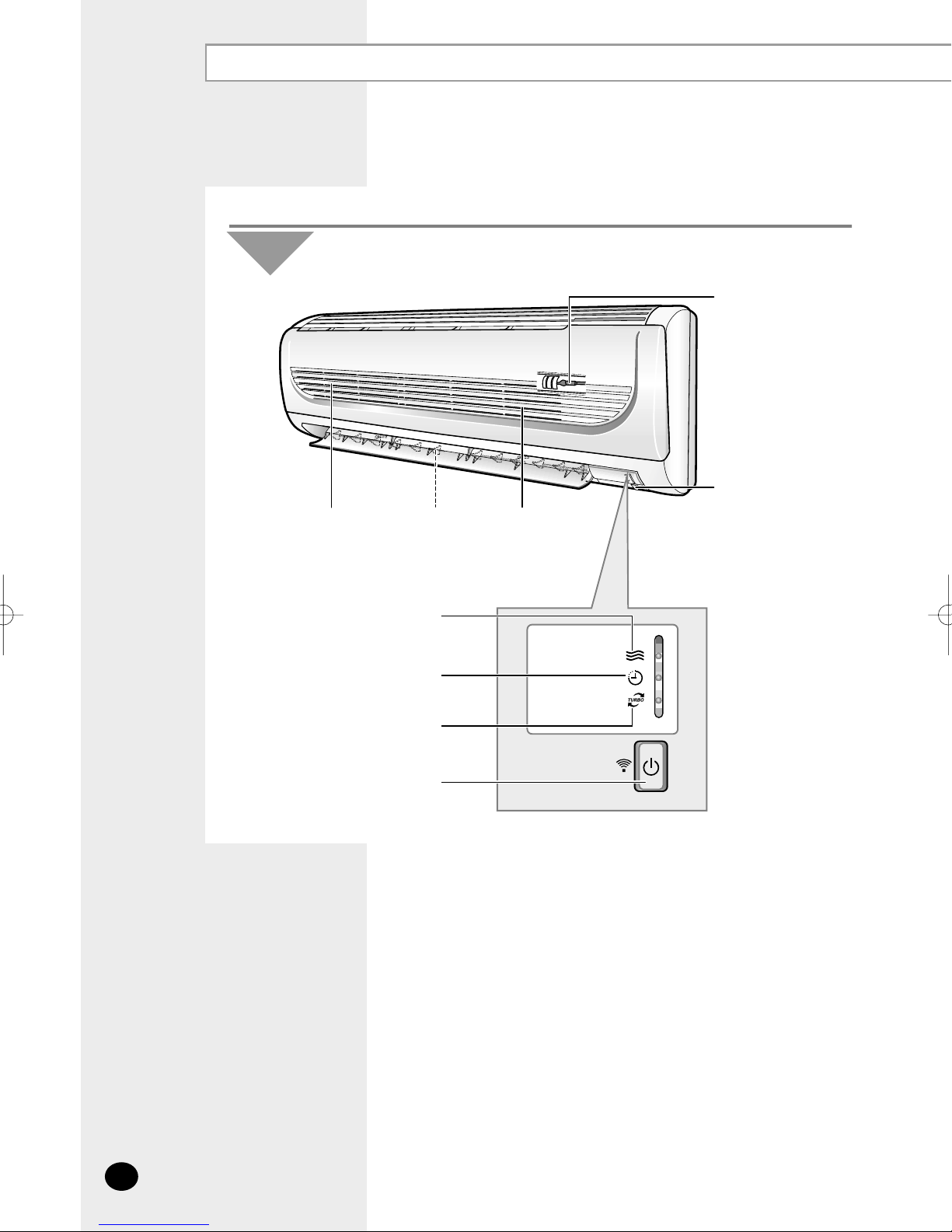

View of the Unit

E-4

The design and shape are subject to change according to the model.

Indoor Unit

Air filter

(under the grille) Air flow blades

(outlet) Air Inlet

On/Off switch

Turbo indicator

(RED)

Operation indicator

(GREEN)

Temperature sensor

Timer indicator

(GREEN)

SC09AWH IB_E_15996 12/17/03 11:49 AM Page 4

E-5

ENGLISH

SH09AWH IB_E_15083 1/16/04 8:22 PM Page 5

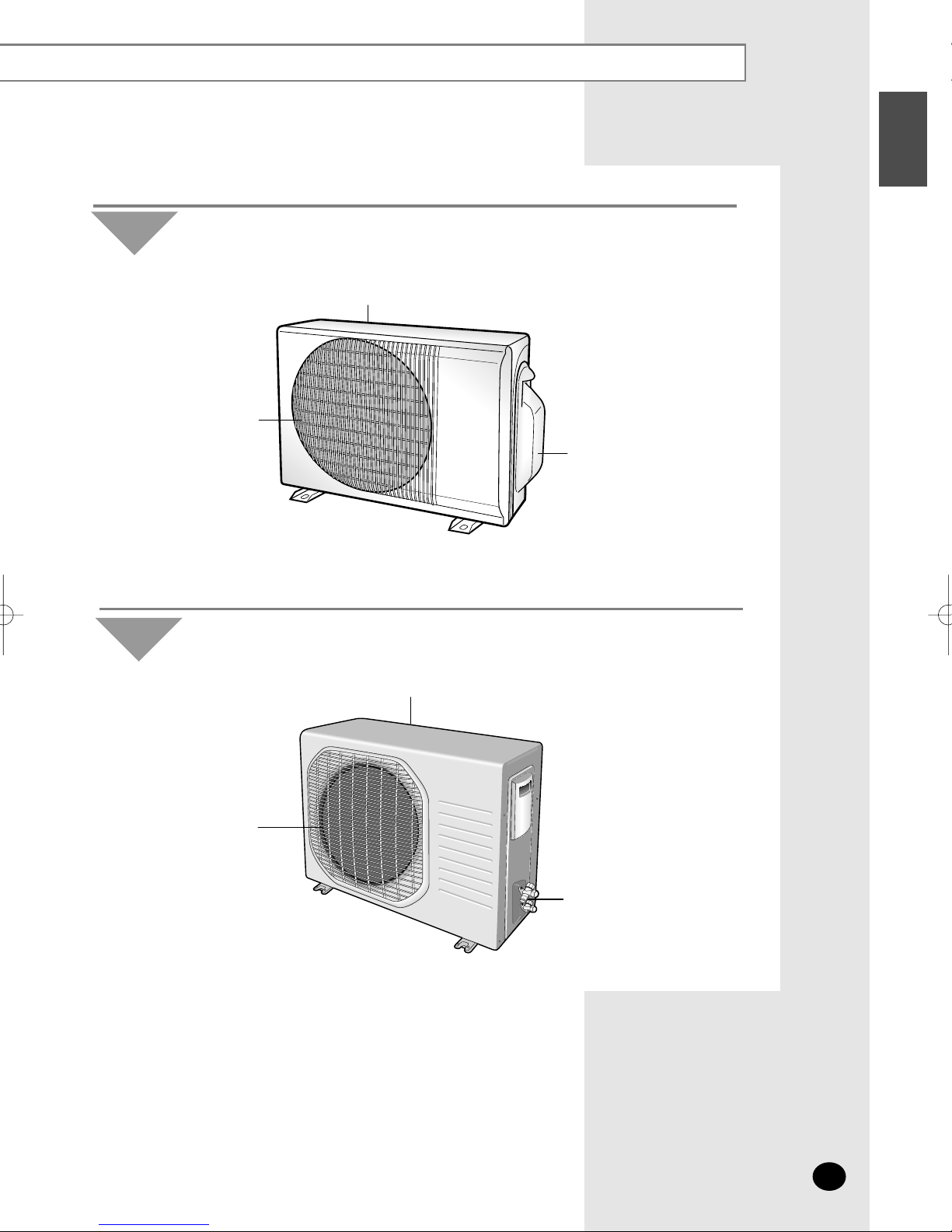

Outdoor Unit

Air Inlet (Rear)

Air Outlet

Connection Valve

Outdoor Unit

SC09AW8X

SC12AWHDX

Air Inlet (Rear)

Remote Control - Buttons and Display

Operating mode

( AUTO, COOL,

DRY, FAN)

Remote control

transmission indicator

Energy Saving button

Sleep button

Mode selection button

(AUTO, COOL, DRY, FAN)

On Timer button

Off Timer button

Temperature and

Timer setting

Turbo button

1 Hour Timer button

1 Hour Timer indicator

Battery life indicator

Battery check button

Timer Set/

Cancel button

Fan speed

Air flow direction

On Timer setting

Off Timer setting

Turbo mode

Sleep mode

Energy saving

On/Off button

Temperature button

Fan speed button

Airflow control button

E-6

◆Each mode indicator shows each mode as well as the battery life.

If you want to check the battery, press the button.

◆

The more is a battery life indicator, the longer will remain the battery life.

If one battery life indicator remains, replace new batteries.

NNoo

oott

ttee

SC09AWH IB_E_15996 12/17/03 11:49 AM Page 6

Getting Started

You have just purchased a split type air conditioner and it has been

installed by your installation specialist.

Your Owner’s Instructions contains valuable information on using your

air conditioner. Please take the time to read it as it will help you take full

advantage of the unit’s features.

The booklet is organized as follows.

◆The following figures are shown on pages from 4 to 6 :

- Indoor and outdoor units

- Remote control(buttons and display)

They will help you find the buttons and understand the symbols displayed.

◆In the manual, you will find a series of step-by-step procedures for each

function available.

The illustrations in the step-by-step procedures use three different symbols:

PRESS PUSH HOLD DOWN

E-7

ENGLISH

SC09AWH IB_E_15996 12/17/03 11:49 AM Page 7

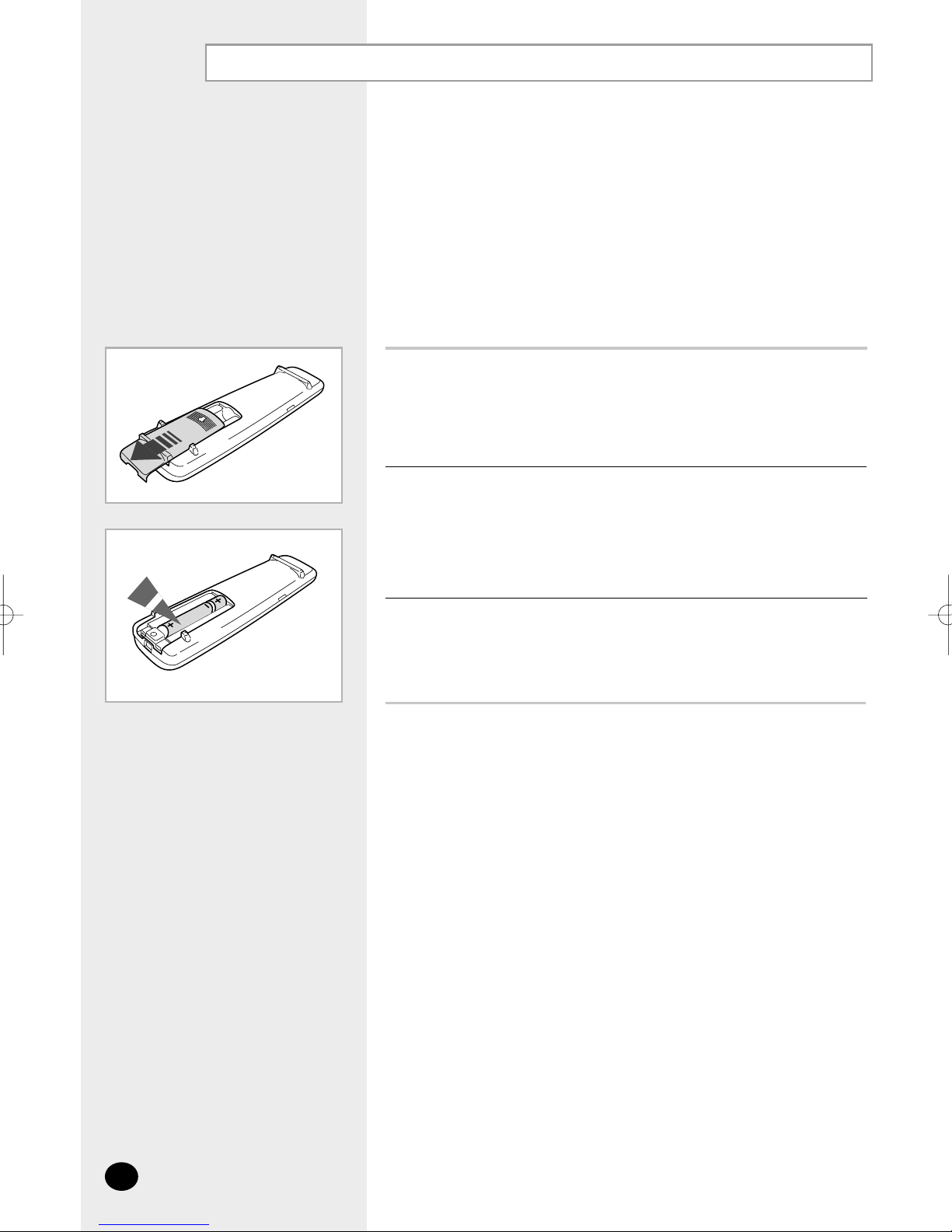

Inserting the Remote Control Batteries

Push the battery cover on the rear of the remote control with your thumb

in the direction of the arrow and remove it.

Insert the two batteries, taking care to respect the polarities :

◆+ on the battery with + on the remote control.

◆- on the battery with - on the remote control.

Close the cover by sliding it back until it clicks into place.

◆Use two AAA, LR03 1.5V batteries.

◆Do not use old batteries or different kinds of batteries together.

◆Batteries may be completely discharged after 12 months, even

◆if they have not actually been used.

You must insert or replace the remote control batteries when :

◆You purchase the air conditioner

◆The remote control does not work correctly

NNoo

oott

ttee

E-8

SC09AWH IB_E_15996 12/17/03 11:49 AM Page 8

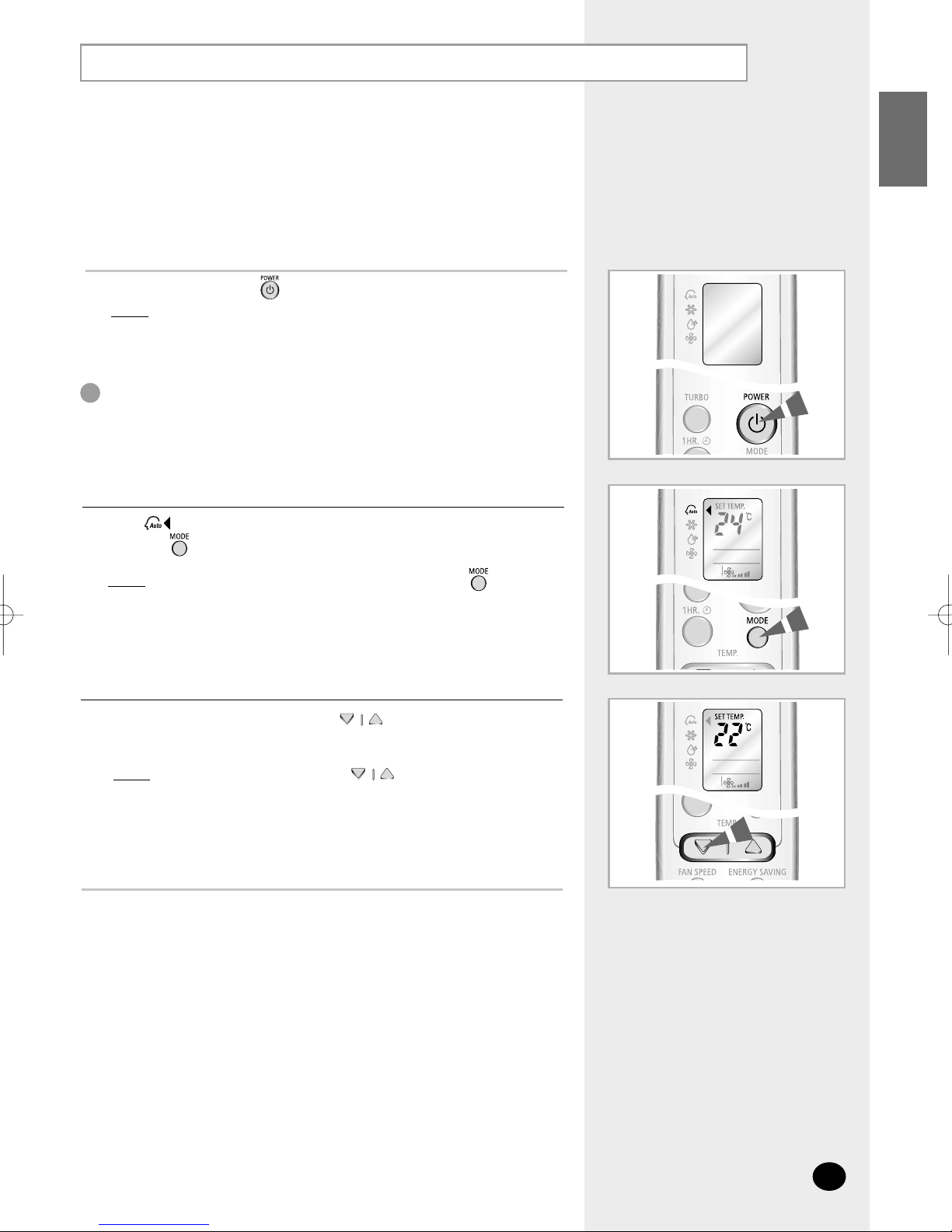

Selecting the Automatic Operating Mode

E-9

ENGLISH

You can start the air conditioner in Auto mode from your remote

control. In the Auto mode, the optimum temperature is selected

automatically. You can also raise or lower the temperature

and the fan speed in the Auto mode.

If the is not displayed at the top of the remote control,

press the button on the remote control one or more times until it

appears.

Result:◆The indoor unit beeps each time you press the button.

◆The air conditioner runs in the Auto mode.

◆The Auto mode cools the room in optimum condition by

adjusting the indoor temperature depending on the set

temperature.

You can change modes at any time.

If necessary, press the button.

Result:◆

The operation indicator on the indoor unit lights up.

◆The air conditioner starts up in the mode selected

when the unit was last used.

◆The indoor unit beeps.

The air conditioner is fitted with a protection mechanism to

prevent the unit from being damaged when it is started

immediately after being:

◆Plugged in

◆Stopped

lt will start up normally after three minutes.

IMPORTANT

NNoo

oott

ttee

To adjust the temperature, press the button one or more times

until the required temperature is displayed.

Possible temperatures are between 16°C and 30°C inclusive.

Result:◆

Each time you press the button:

- The temperature is adjusted by 1°C

- The indoor unit beeps

SC09AWH IB_E_15996 12/17/03 11:49 AM Page 9

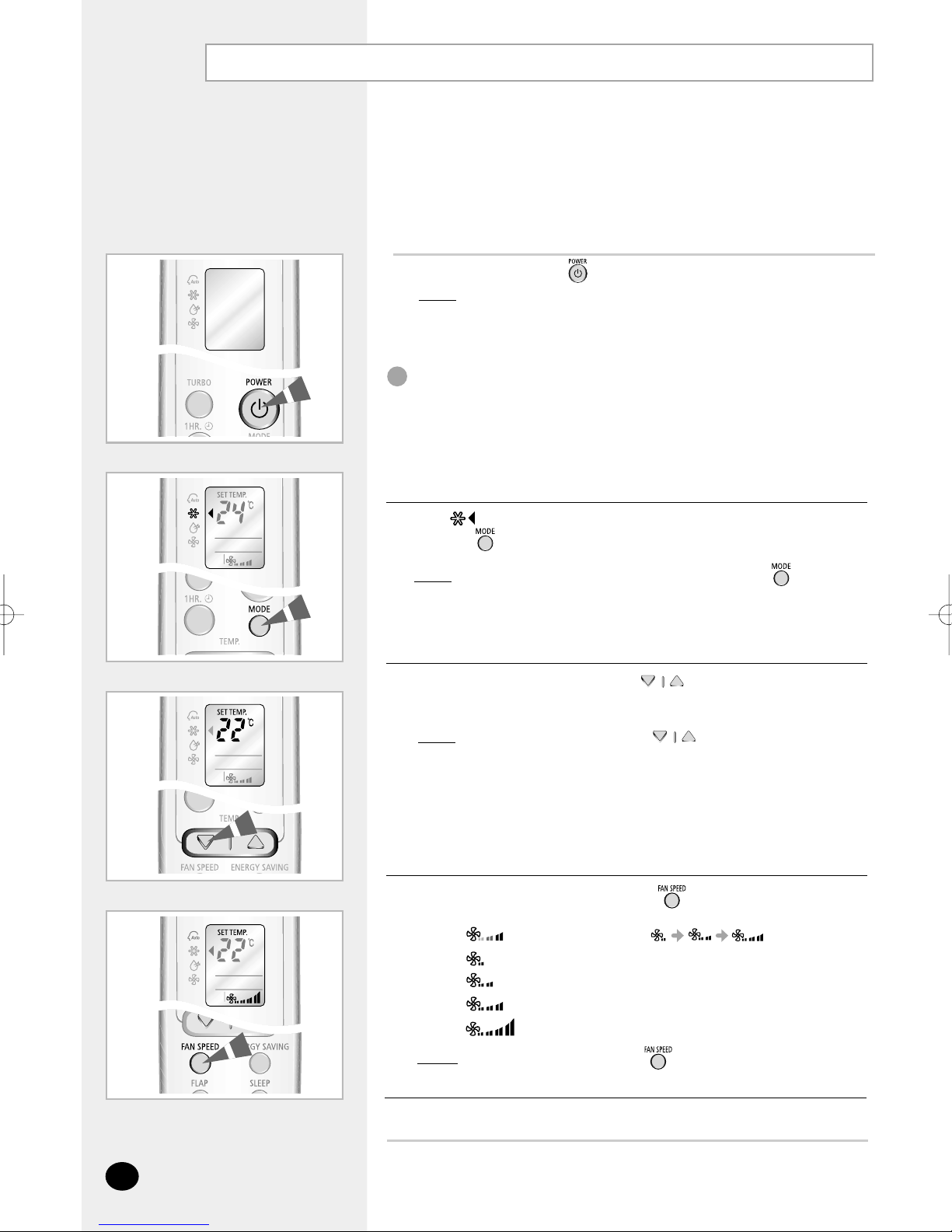

Cooling Your Room

1If necessary, press the button.

Result:

◆The operation indicator on the indoor unit lights up.

◆The air conditioner starts up in the mode selected

when the unit was last used.

◆The indoor unit beeps.

The air conditioner is fitted with a protection mechanism

to prevent the unit from being damaged when it is started

immediately after being:

◆Plugged in

◆Stopped

lt will start up normally after three minutes.

IMPORTANT

If the is not displayed at the top of the remote control,

press the button on the remote control one or more times until it

appears.

Result:

◆

The indoor unit beeps each time you press the button.

◆

The air conditioner runs in the Cool mode.

You can change modes at any time.

NNoo

oott

ttee

To adjust the temperature, press the button one or more times

until the required temperature is displayed.

Possible temperatures are between 16°C and 30°C inclusive.

Result: ◆

Each time you press the button:

- The temperature is adjusted by 1°C

- The indoor unit beeps

◆The air conditioner starts cooling, provided that the room

temperature is higher than the selected temperature.

◆If the room temperature reaches the set temperature, the air

conditioner stops cooling, but the fan is still operating.

Select the fan speed by pressing the button one or more times

until the required setting is displayed:

Automatic (rotated : )

Low

Medium

High

Result: Each time you press the button, the indoor unit

beeps.

To control the direction of the air flow, refer to page 15.

You must select the Cool mode if you wish to adjust the:

◆Cooling temperature

◆Fan speed when cooling

E-10

SC09AWH IB_E_15996 12/17/03 11:49 AM Page 10

Maximum

This manual suits for next models

Table of contents

Other Samsung Air Conditioner manuals

Samsung

Samsung AM017HN1DEH/EU User manual

Samsung

Samsung AR NXFP Series User manual

Samsung

Samsung AR24CSDADWKNCV User manual

Samsung

Samsung AM007FN1DCH Series User manual

Samsung

Samsung GH052EAM User manual

Samsung

Samsung AR TSFY WKNCV Series User manual

Samsung

Samsung AW0719 User manual

Samsung

Samsung SH05ZZ8/SEK User manual

Samsung

Samsung APH289SEF/XFO User manual

Samsung

Samsung AS09A5MA User manual

Samsung

Samsung AC MN4DKH Series User manual

Samsung

Samsung AM***FNFDEH series User manual

Samsung

Samsung Split-type Room Air Conditioner User manual

Samsung

Samsung AS09CM1N User manual

Samsung

Samsung AZ09A1SEA User manual

Samsung

Samsung AM KNTD Series User manual

Samsung

Samsung AC160JNH KH Series User manual

Samsung

Samsung EH052EAMC User manual

Samsung

Samsung AW2402M User manual

Samsung

Samsung AC BNJDCH Series User manual

Samsung

Samsung EH052EAMC User manual

Samsung

Samsung AW0501B User manual

Samsung

Samsung PC4NUNMAN User manual

Samsung

Samsung ND022QHXEA User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use

Frigidaire

Frigidaire FAZ12ES2A installation instructions
