Samsung KH026EAM User manual

KH026EAM

KH035EAM

OWNER’S INSTRUCTIONS

MANUAL DE INSTRUCCIONES

MANUEL D’UTILISATION

ISTRUZIONI PER L’USO

MANUAL DE INSTRUÇÕES

GEBRAUCHSANWEISUNG

√¢∏°π∂™ Ãƒ∏™∆∏

àçëíêìäñàü èéãúáéÇÄíÖãü

System Air Conditioner (Cool and Heat)

Aire acondicionado sistemático (Enfriamiento y Calefacción)

Climatiseur numérique multifonctionnel(Refrigeración y Calefacción)

Sistema Aria Condizionata (Fresca e Calore)

Sistema Ar Condicionado (Arrefecimento e Aquecimento)

Klimaanlage System (Kühlen und Heizen)

™‡Û ËÌ· ∫ÏÈÌ· ÈÛÌÔ‡ (æ‡ÍË˜ Î·È £¤ÚÌ·ÓÛË˜)

ëËÒÚÂÏÌ È ÇÓÁ‰Û¯Ì È äÓÌ‰ËˆËÓÌÂ

(éıÎ‡Ê‰ÂÌËÂ Ë Ó·Ó„Â‚)

E S F I P D G R DB98-13068A(2)

E§§HNIKA ENGLISH

ESPAÑOL

FRANÇAIS

ITALIANO

DEUTSCH PORTUGUÊS

RUSSIAN

E-2

Safety Precautions

The following safety precautions must be taken when using your air conditioner.

◆Users of this product are cautioned not to attempt repair of this product

at their own discretion. Instead, they are requested to directly contact a

designated service center or the outlet at which the product was

purchased.

◆Never spill any kind of liquid into the unit. Should this happen, unplug

or main switch off the unit and contact an authorized service center.

◆Do not insert anything between the air outlet blades because the inner

fan may be damaged and could cause injury. Keep children away from

the unit.

◆Do not place any obstacles in front of the unit.

◆Do not spray liquid of any kind into the indoor unit. Should this happen,

switch off the breaker used for your air conditioner and contact your

installation specialist.

◆Make sure that the unit is correctly ventilated at all times:

Do not place clothing or other materials over it.

◆If the wireless remote control will not be used for a long time, remove

the batteries. (If applicable)

◆When using a wireless remote control, the distance should not be more

than 7 meters from the air conditioner. (If applicable)

WARNING

DURING OPERATION

◆Never store or ship the air conditioner upside down or sideways to

avoid damage to the compressor.

◆The appliance is not intended for use by young children or infirm

persons without supervision: Young children should be supervised to

ensure that they do not play with the appliance.

◆Max current is measured according to IEC standard for safety and

current is measured according to ISO standard for energy efficiency.

OTHERS

◆Before throwing out the device, it is necessary to pull back the battery

cells and get rid of them safely for recycling reasons.

◆When you need to dispose of the unit, consult your dealer. If pipes are

removed incorrectly, refrigerant may blow out and come into contact

with your skin, causing injury. Releasing refrigerant into the atmosphere

also damages the environments.

◆Please recycle or dispose of the packaging material for this product in

an environmentally responsible manner.

ISPOSING OF THE UNIT

Risk of electric shock. • Can cause injury or death. • Disconnect all

remote electric power supplies before servicing, installing or cleaning.

• This must be done by the manufacturer or its service agent or a similar

qualified person in order to avoid a hazard.

Contents

◆

REPARING YOUR AIR CONDITIONER

■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

■ View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

■ Wireless Remote Controller-Buttons and Display . . . . . . . . . . . 6

■ Wired Remote Controller-Buttons and Display . . . . . . . . . . . . . 7

■ Centralized Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

◆

ECOMMENDATIONS FOR USE

■ Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . 9

■ Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . 10

■ Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . 11

■ Bio-Pure Filter Installation (Optional) . . . . . . . . . . . . . . . . . . . . 12

■ Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . 13

◆

ECHNICAL SPECIFICATIONS

E-3

ENGLISH

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household

wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled

waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable

reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government

office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract.

This product should not be mixed with other commercial wastes for disposal.

View of the Unit

The figures are shown in this instruction may differ from yours depending on the model.

Air flow blade

Air inlet

Indoor Unit

E-4

Fan indicator

Filter sign indicator

Timer indicator

On/Off indicator(Green) &

Removing frost

indicator(Red)

Remote control sensor

Air outlet

Connection valve

TYPE A

Outdoor Unit

Air outlet

Connection valve

TYPE B

Air outlet

Connection valve

TYPE C

Air outlet

Connection valve

TYPE D

Air outlet

Connection valve

TYPE E-1, E-2

Air outlet

Connection valve

TYPE F

E-5

ENGLISH

If the heat exchanger in the outdoor unit gets dusty, cooling efficiency may fall. So clean the heat exchanger with water

when it becomes dirty. However, be careful when you wash the surface of the heat exchanger because it is very sharp.

NNoo

oott

ttee

Wireless Remote Controller-Buttons and Display

After cleaning the air filter, press the filter reset button.

NNoo

oott

ttee

Operating mode Mode selection button

Filter Reset button

Swing button

On Timer button

Off Timer button

On/Off & Timer

Set/Cancel button

Fan speed adjustment

button

Temperature adjustment

buttons

Temperature setting

Fan speed

Air flow direction

On Timer setting

Off Timer setting

Battery discharge indicator

E-6

The wireless remote controller is an optional accessory.

To use the wireless remote controller, refer to an appropriate manual.

E-7

ENGLISH

Wired Remote Controller-Buttons and Display

The wired remote controller is an optional accessory and it is installed on the wall.

To use the wired remote controller, refer to an appropriate manual.

- Test button is for your installation specialist. You must NOT press it.

- After cleaning the air filter, press the filter reset button. Then the wired remote

controller will display the FILTER SIGN indicator when the time to clean the air filter;

refer to page 11.

NNoo

oott

ttee

Communication error indicator

On Timer setting

Off Timer setting

Test indicator

On Timer button

Off Timer button

Test button Filter Reset button

Mode selection button

Temperature adjustment

buttons

Centralized controller indicator

(In case of installing the Centralized controller)

Removing frost indicator

Temperature setting

Fan speed

Air flow direction

Filter Sign indicator

On/Off & Timer

Set/Cancel button

Fan speed adjustment

button

Swing button

On/Off indicator

Operating mode

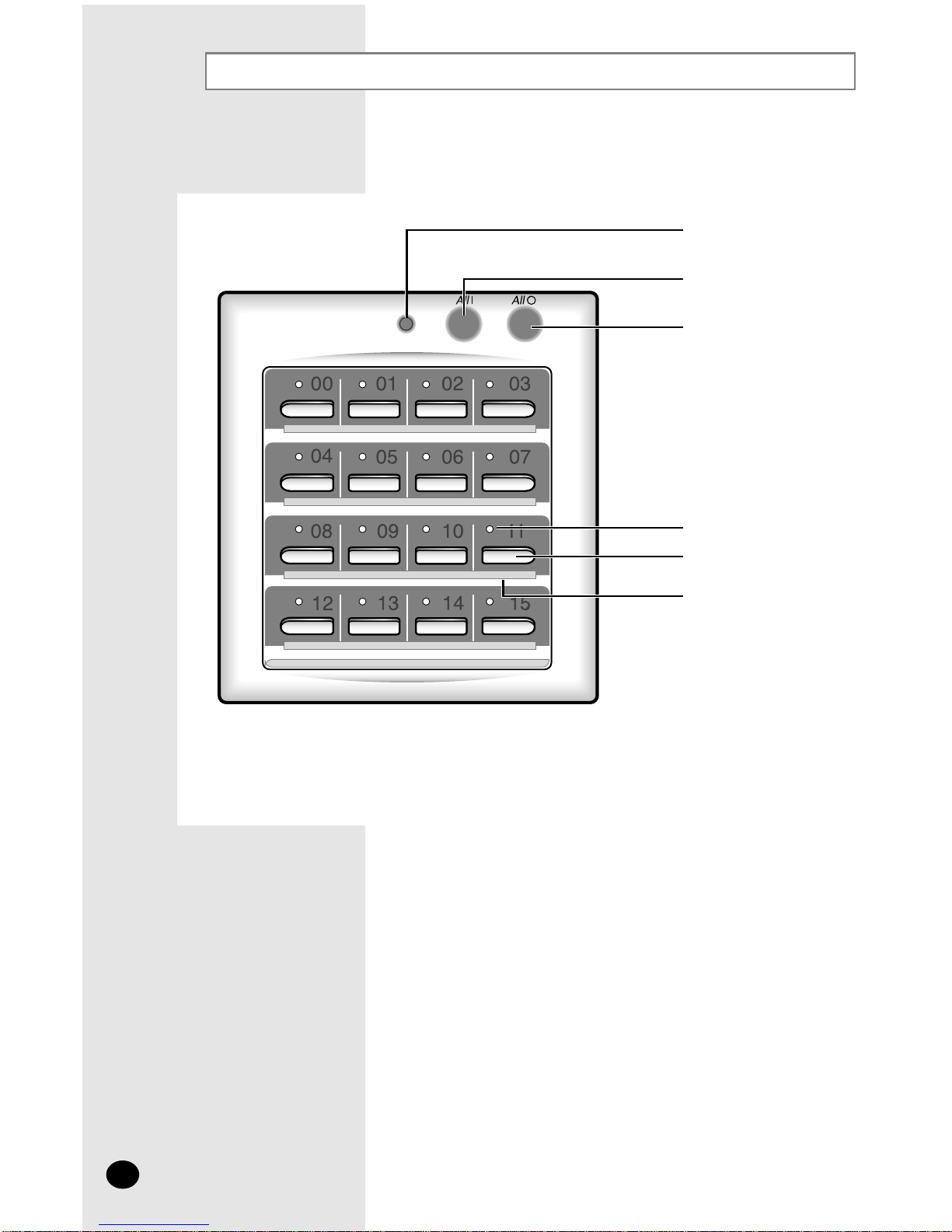

Centralized Controller

The centralized controller is an optional accessory and it is installed on the wall.

To use the centralized controller, refer to an appropriate manual.

E-8

Operating lamp

All On button

All Off button

On/Off indicators

On/Off buttons

Index

Operating lamp comes on when at least one air conditioner connected to the

centralized controller is operating.

NNoo

oott

ttee

Operating Recommendations

E-9

ENGLISH

Here are a few recommendations that you should follow when operating

your air conditioner.

Topic Recommendation

The heat pump function of the air conditioner absorbs heat

from

outside air and brings it indoors. As the temperature of the

outside

air drops, the heating performance of air conditioner will

decrease. If you find that the room is not warm enough, using

an additional heating appliance is recommended.

Heating

performances

When outside temperature is low but humidity is high,

frost may form on the outdoor unit at HEAT mode.

If this happens:

◆ The heating operation stops.

◆ The defrost mode will be triggered automatically for about ten

minutes.

No intervention is required ; after about ten minutes, the air

conditioner operates again normally.

Frost

If both indoor and outdoor temperatures are high and the air

conditioner is running at HEAT mode, the outdoor unit’s fan

and compressor may stop at times.

This is normal ; simply wait until the air conditioner switches

on again.

High indoor

and outdoor

temperatures

If a power failure occurs while the air conditioner is operating,

the unit will be switched off. When the power returns, the air

conditioner starts up again automatically.

Power failure

Temperature and Humidity Ranges

E-10

The following table indicates the temperature and humidity ranges,

within which the air conditioner can be used.

If the air conditioner is used at...

Then...

The automatic protection feature may be

triggered and the air conditioner stopped.

High temperature

A water leakage or some other

malfunction may happen if the heat

exchanger freezes.

Low temperature

Water may condense on and drip from

the surface of the indoor unit if it is used

for a long periods.

High humidity levels

❇ If the heating operation is used at below -5°C(outdoor temperature) then,

it does not heat at its full capacity.

If the cooling operation is used at over 32°C(indoor temperature) then,

it does not cool at its full capacity.

Mode Indoor

Temperature Outdoor Temperature

Indoor Humidity

Heating

Cooling

Drying

15°C to

27°C approx.

21°C to 32°C approx.

°C to 32°C approx.

-5°C to 24°C approx.

-5°C to 43°C approx.

80% or less

This manual suits for next models

Table of contents

Other Samsung Air Conditioner manuals

Samsung

Samsung AW07F0(1)(3)NAA/AB/BA/BB/BC/CA/DA/DB/EA/EB/EC Setup guide

Samsung

Samsung WALL MOUNTED TYPE User manual

Samsung

Samsung AM JNESCH Series User manual

Samsung

Samsung SH09AWH User manual

Samsung

Samsung AWT18PHHBB User manual

Samsung

Samsung AQ18A9(0)RCF User manual

Samsung

Samsung AM KN4DCH Series User manual

Samsung

Samsung AR NXFH Series User manual

Samsung

Samsung AC048KNPPCC User manual

Samsung

Samsung AQV09ABAX User manual

Samsung

Samsung SH18BW6 Series User manual

Samsung

Samsung AC180JXA NH Series User manual

Samsung

Samsung AQV09A Series User manual

Samsung

Samsung AC TXQR H Series User manual

Samsung

Samsung MH020FPEA User manual

Samsung

Samsung DVD-R129 User manual

Samsung

Samsung AF MV1MAEENTC Series Guide

Samsung

Samsung AW18P1HBC User manual

Samsung

Samsung AW05N0YAD User manual

Samsung

Samsung ASV09U Series User manual

Samsung

Samsung AC***MNADKH User manual

Samsung

Samsung SC07ZK8 User manual

Samsung

Samsung AQ09F Series User manual

Samsung

Samsung AM***KNTD** User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use

Frigidaire

Frigidaire FAZ12ES2A installation instructions
