Samsung AW126JE/B User manual

ENGLISH

OWNER’S INSTRUCTIONS

MANUAL DE INSTRUCCIONES

MANUEL D’UTILISATION

MANUAL DE INSTRUÇÕES

ISTRUZIONI PER L’USO

AW127JE/B

AW126JE/B

AW147JB

AW146JB

AW12A6(A7)JD

AW12A6(A7)JA

WC12ZR

Window-type Room Air Conditioner ( Cool )

Acondicionador de aire doméstico sistema de tipo ventana ( Refrigeración )

Climatiseur de type Fenêtre ( Refroidissement )

O ar Condicionado de Window-Type ( Refrigeração )

Condizionatore d’aria per ambienti da finestra ( Raffreddamento )

E S F P I

DB68-30875B(3)

The following safety precautions must be taken when installing

and using your air conditioner.

Safety Precautions

1The air conditioner must be plugged into its own specific power source, which must be

installed in compliance with national wiring, earthing and safety regulations.

Depending on national regulations and your specific installation, you may need to install:

◆ A circuit breaker

For further information on electrical requirements, contact a professional electrician.

This air conditioner must be connected by a licenced electrician.

This device must be installed according to the national electrical rules.

2Make sure that the unit is correctly ventilated at all times;

do NOT place clothing or other materials over it.

3NEVER spill liquid of any kind into the unit.

Should this happen, unplug the unit and contact your installation specialist.

4Do NOT insert anything between the air outlet blades, as the inner fan may be damaged

and you may be hurt. Keep children away from the unit.

5ALWAYS ensure that the power cable is in good condition.

Make sure that it is not walked on or damaged by items placed on or against it.

If the power cord is damaged in any way, it must be replaced by an approved

power cord available from the manufacturer or its service agent.

6Do NOT attempt to repair the unit yourself. If it is damaged in any way, contact:

◆ An approved service center

◆ The outlet at which the air conditioner was purchased

7Do NOT place any obstacles in front of the unit.

8If the remote control will not be used for a long time, remove the batteries.

9Before throwing out the device, it is necessary to pull back the battery cells and get rid

of them safely.

10 The appliance is not intended for use by young children or infirm person without supervision;

young children should be supervised to ensure that they do not play with the appliance.

The manufacturer do not take the responsibility of the accident happened

because the air conditioner is not fixed firmly or installed securely, during

installing or using the product. In case you have difficulty in installation,

you must ask for an installation specialist help. The accident will be hap-

pened in case of installing improperly.

E-2

◆PREPARING YOUR AIR CONDITIONER

■Safety Precautions ......................................................................................... 2

■Air Conditioning Unit - Main Parts, Buttons and Display ................................ 4

■Remote Control Buttons ................................................................................. 5

■Getting Started ............................................................................................... 6

■Inserting the Remote Control Batteries .......................................................... 7

◆OPERATING YOUR AIR CONDITIONER

■Cooling Your Room ......................................................................................... 8

■Airing Your Room ............................................................................................ 9

■Adjusting the Air Flow Direction Horizontally ................................................. 10

■Adjusting the Air Flow Direction Vertically ...................................................... 10

◆PROGRAMMING YOUR AIR CONDITIONER

■Switching the Unit Off Automatically (Off Timer) ............................................ 11

■Cancelling the Off Timer ................................................................................. 11

◆RECOMMENDATIONS FOR USE

■Operating Recommendation ........................................................................... 12

■Temperature and Humidity Ranges ................................................................ 12

■Cleaning Your Air Conditioner ......................................................................... 13

■Solving Common Problems ............................................................................ 14

■Installing a Filter ............................................................................................. 15

■Technical Specifications ................................................................................. 15

◆METHOD OF INSTALLATION ..................................................................................... 16

Contents

E-3

ENGLISH

Air Conditioning Unit - Main Parts, Buttons and Display

Inner air flow blades

(right/left orientation)

Outer air flow blades

(up/down orientation)

Air inlet (inside)

Ventilation lever

Air outlet

Air inlet (Outside)

Temperature indicator

Temperature/timer setting

Timer indicator

Remote control sensor

ON/OFF & Operating mode

selection button

Operating mode indicators

(COOL, FAN)

E-4

❄The design and shape are subject to

change according to the model.

Air filter

(The air filter is located inside)

Power plug

◆

The type of power plug

may differ, depending

on the local power supply.

◆

The power plug may be

not supplied depending

on the model.

Remote Control - Buttons

Timer setting buttons

Operating mode selection

buttons (FAN, COOL)

Air flow blade swing button

Fan speed adjustment

buttons

ON/OFF Button

Temperature adjustment

buttons

E-5

ENGLISH

PRESS PUSH IMPORTANT NOTE

Getting Started

You have just purchased a window-type room air conditioner and it has been installed by your

installation specialist.

Your Owner’s Instructions contain much valuable information on using your air conditioner.

Please take the time to read them as they will help you take full advantage of the unit’s features.

The booklet is organized as follows.

◆The following figures are shown on pages 4 and 5:

-Air conditioning unit (main parts, buttons and display)

-Remote control (buttons)

They will help you find the buttons and understand the symbols displayed.

◆In the main part of the document, you will find a series of step-by-step procedures for each

function available.

The illustrations in the step-by-step procedures use four different symbols:

☛

➢

Moreover, applicable, wherever the illustrations show the positions of the buttons on both the

remote control and the unit itself.

For the... The illustrations have a...

Remote control Dark background.

Example:

Unit itself White background.

Example:

E-6

Inserting the Remote Control Batteries

You must insert or replace the remote control batteries when:

◆You purchase the air conditioner

◆The remote control does not work correctly

☛Use two LR03 (R03) 1.5 V batteries. Do not use old

batteries or different kinds of batteries together.

Batteries may be completely discharged after 12 months,

even if they have not actually been used.

1Push the battery cover on the rear of the remote control with your thumb in

the direction of the arrow and remove it.

2Insert the two batteries, taking care to respect the polarities:

◆+ on the battery with + on the remote control

◆– on the battery with – on the remote control

3Close the cover by sliding it back until it clicks into place.

Result:

You can control all the functions on your air conditioning unit

directly from your seat, using the remote control.

E-7

ENGLISH

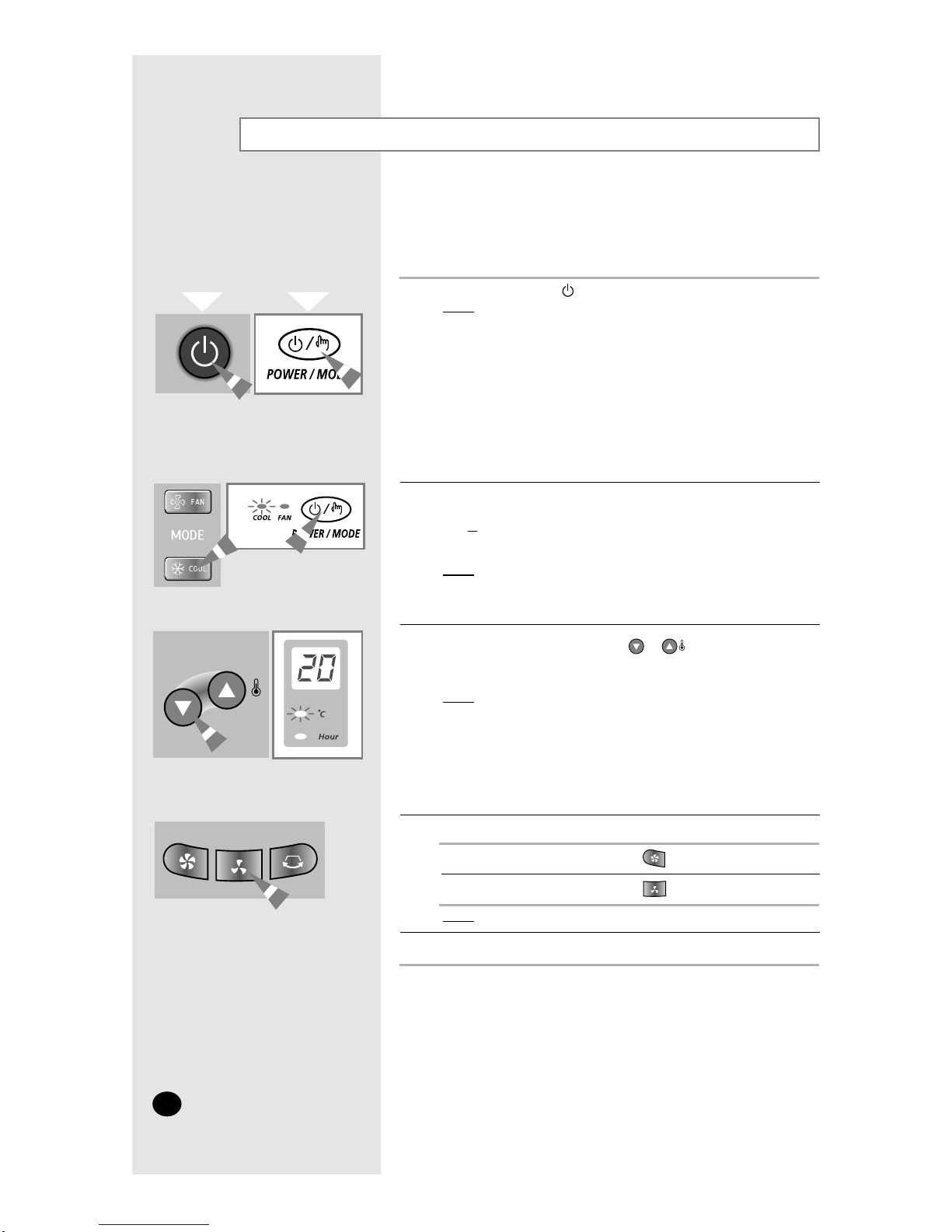

You must select the Cool mode if you wish to lower the temperature

in your room. You can also set the fan speed.

1If necessary, press the (On/Off) button.

Result:◆The operating mode indicator (COOL or FAN) on the

unit comes on.

◆The air conditioner starts up in the mode selected

when the unit was last used.

◆The unit beeps twice.

☛The air conditioner is fitted with a protection mechanism to prevent

the unit from being damaged when it is started immediately after

being:

◆Plugged in

◆Stopped

It will start up normally after a three-minute rest period.

2If the COOL indicator is not lit up on the unit:

◆Press the COOL button on the remote control

◆Press the POWER/MODE button on the unit one or more times until

the COOL indicator lights up

Result:◆The unit beeps each time you press POWER/MODE.

◆The air conditioner starts up in Cool mode.

➢You can change modes at any time.

3To adjust the temperature, press the or buttons on the remote

control one or more times until the required temperature is displayed.

Possible temperatures are between 18°C and 30°C inclusive.

Result:◆Each time you press the temperature buttons:

– The temperature is adjusted by 1°C and

displayed on the control panel

– The unit beeps

◆The air conditioner starts cooling if the room temperature

is higher than the selected temperature.

4To set the fan speed to... Then...

High Press the button on the remote control.

Low Press the button on the remote control.

Result: Each time you press a button, the unit beeps.

5To control the direction of the air flow, refer to page 10.

CoolingYour Room

Remote Control Control Panel

E-8

AiringYour Room

If the atmosphere in your room is stale, you can air it using the Fan

feature and if necessary, evacuate the stale air outside.

1If you wish to evacuate stale air outside, push the ventilation lever on the

front of the unit to the right and the open position ( ).

Result: The air inside the room circulates and stale air is evacuated

outside.

Otherwise, push the ventilation lever to the left and the closed position ( ).

Result: The air simply circulates inside the room.

2If necessary, press the (On/Off) button.

Result:◆The operating mode indicator (COOL or FAN) on the

unit comes on.

◆The air conditioner starts up in the mode selected

when the unit was last used.

◆The unit beeps twice.

3If the FAN indicator is not lit up on the unit:

◆Press the FAN button on the remote control

◆Press the POWER/MODE button on the unit one or more times until

the FAN indicator lights up

Result: ◆The unit beeps each time you press POWER/MODE.

◆The air conditioner starts up in Fan mode.

➢◆You can change modes at any time.

◆When the air conditioner is in Fan mode, the

temperature is not displayed; moreover, you do not

need to set the temperature.

4To set the fan speed to... Then...

High Press the button on the remote control.

Low Press the button on the remote control.

Result: Each time you press a button, the unit beeps.

5To control the direction of the air flow, refer to page 10.

Remote Control Control Panel

E-9

ENGLISH

Again depending on the position of the unit in your room, you can

adjust the orientation of the outer air flow blades on the right-hand

side of the unit.

RECOMMENDATION When... Adjust the blades to face...

Cooling Upwards.

Adjust the air flow blades to the desired position, by pushing them upwards or

downwards.

➢If you orient the air flow blades downwards and the unit operates in Cool mode

for a long period of time, dew may:

◆Form on the surface of the blades

◆Drip from the blades

Adjusting the Air Flow Direction Horizontally

Adjusting the Air Flow Direction Vertically

Depending on the position of the unit in your room, you can adjust

the orientation of the inner air flow blades on the right-hand side of

the unit, thus increasing the efficiency of the air conditioner.

1Press the button on the remote control.

Result: The inner blades swing automatically left and right.

2To stop the blades moving left and right, press the button again.

➢To stop the blades in a specific position and orient the air flow in the

corresponding direction, simply press the button when the

blades are in the desired position.

Remote Control

E-10

This manual suits for next models

Table of contents

Other Samsung Air Conditioner manuals

Samsung

Samsung AR RXFP Series User manual

Samsung

Samsung AC***MNADKH User manual

Samsung

Samsung AJ052RBNDEG/EU User manual

Samsung

Samsung AVMKH020EA0 User manual

Samsung

Samsung AW CGHLAWKNTC Series Guide

Samsung

Samsung RAC Series Instruction manual

Samsung

Samsung AWT18F1MBB/BC User manual

Samsung

Samsung Electronics DVM Series User manual

Samsung

Samsung AS09A5MA User manual

Samsung

Samsung AM KN4DCH Series User manual

Samsung

Samsung AC100KNPDEH/EU Instruction manual

Samsung

Samsung UH070CAV1 User manual

Samsung

Samsung NS026NHXEA User manual

Samsung

Samsung HC175TGZA User manual

Samsung

Samsung SH07ZP2 Series User manual

Samsung

Samsung AQV09A Series User manual

Samsung

Samsung AW07LFABA User manual

Samsung

Samsung SH07ZP2 Series User manual

Samsung

Samsung AQV K Series User manual

Samsung

Samsung AM022FNNDEH Series User manual

Samsung

Samsung AC026KNADEH User manual

Samsung

Samsung AQV24PSBANXAX User manual

Samsung

Samsung AQV18FA User manual

Samsung

Samsung AW0750 Setup guide

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use

Frigidaire

Frigidaire FAZ12ES2A installation instructions
