Samsung AW07LFABA User manual

ENGLISH

E S F P I

DB98-08244A(4)

ESPAÑOL

FRANÇAIS

PORTUGUÊS

ITALIANO

USER’S MANUAL

AW07LFABA/DA/EA

AW09LFABA/DA/EA

AW10LFABA

AW12LFABA/DA/EA

Window-type Room Air Conditioner

(Cooling)

AW07LFABA_E_08244 4/7/06 9:28 AM Page 23

The following safety precautions must be taken when installing

and using your air conditioner.

Safety Precautions

1The air conditioner must be plugged into its own specific power source, which must be

installed in compliance with national wiring, earthing and safety regulations.

Depending on national regulations and your specific installation, you may need to install:

◆A circuit breaker

For further information on electrical requirements, contact a professional electrician.

This device must be installed according to the national electrical rules.

2Make sure that the unit is correctly ventilated at all times;

do NOT place clothing or other materials over it.

4Do NOT insert anything between the air outlet blades, as it may damage the inner fan

and you may be hurt. Keep children away from the unit.

5If the supply cord is damaged, it must be replaced by the manufacturer, its service agent

or similarly qualified persons in order to avoid a hazard.

6Do NOT attempt to repair the unit yourself. If it is damaged in any way, contact:

◆ An authorized service center

◆ The dealer from whom you purchased the air conditioner.

7Do NOT place any blocking objects in front of the unit.

3NEVER spill liquids of any kind into the unit.

Should this happen, unplug the unit and contact your installation specialist.

8If the remote control will not be used for a long time, remove the batteries.

9Before throwing out the device, it is necessary to pull back the battery cells

and get rid of them safely.

10 The appliance is not intended for use by young children or infirm person without supervision;

young children should be supervised to ensure that they do not play with the appliance.

11 Do NOT use an extension cord with this product.

E-2

The manufacturer does not assume responsibility for accidents or injury

caused by an incorrectly installed air conditioner. If you are unsure about

installation, contact an installation specialist.

CCAA

AAUU

UUTT

TTII

IIOO

OONN

Contents

◆PREPARING YOUR AIR CONDITIONER

■Safety Precautions ......................................................................................... 2

■Air Conditioning Unit - Main Parts, Buttons and Display ............................... 4

■Remote Control Buttons ................................................................................. 5

■Getting Started ............................................................................................... 6

■Inserting the Remote Control Batteries .......................................................... 7

◆OPERATING YOUR AIR CONDITIONER

■Cooling Your Room ........................................................................................ 8

■Airing Your Room ........................................................................................... 9

■Adjusting the Air Flow Direction Horizontally .................................................. 10

■Adjusting the Air Flow Direction Vertically ...................................................... 11

◆PROGRAMMING YOUR AIR CONDITIONER

■Setting the On Timer ...................................................................................... 12

■Setting the Off Timer ...................................................................................... 13

■Setting the Sleep Timer .................................................................................. 14

■Selecting Energy Saving mode ...................................................................... 15

◆RECOMMENDATIONS FOR USE

■Operating Recommendation ........................................................................... 16

■Temperature and Humidity Ranges ................................................................ 16

■Cleaning Your Air Conditioner ........................................................................ 17

■Solving Common Problems ............................................................................ 18

■Technical Specifications ................................................................................. 19

◆INSTALLATION ......................................................................................................... 19

E-3

ENGLISH

CCAA

AAUU

UUTT

TTII

IIOO

OONN

" The high inrush current of the starting compressor motor can have adverse effects to

the operation of other equipment under unfavorable conditions. This equipment does

not comply with the relevant technical standards for the limitation of voltage

fluctuations and flicker."

Before connecting this equipment to the power supply system, please report to your

supply authority and obtain the consent.

Do not connect other electric appliances to the same supply lines.

Air Conditioning Unit - Main Parts, Buttons and Display

Air inlet (inside)

Air outlet

Air filter

(The air filter is

located inside)

Air outlet

Outer air flow blades

(Right/left orientation)

Inner air flow blades

(Up/down orientation)

Air inlet (Outside)

The type of the power plug

may differ according to the

type of local power supply.

◆The power plug may be not supplied

depending on the model.

Power plug

Power cable

Power cable connection

should be committed to

an installation engineer.

Blue Brown

Yellow/Green

Main Power Earth

Temperature/Timer/

Fan speed settings

Temperature

adjustment buttons

Remote control sensor

Fan speed adjustment button

Energy Saver indicator

Timer/Sleep indicator

On/Off button

Operating mode selection

button

(COOL, FAN)

Timer setting button

❄The design and shape are subject to

change according to the model.

E-4

Remote Control - Buttons

Temperature

adjustment buttons

Fan speed

adjustment buttons

On/Off button

E-5

ENGLISH

Timer setting button

Sleep timer setting button

Operating mode

selection buttons

Energy Saver button

Air flow blade swing button

Getting Started

You have just purchased a window-type room air conditioner and it has been installed by your

installation specialist.

Your Owner’s Instructions contain valuable information on using your air conditioner.

Please take the time to read them as they will help you take full advantage of the unit’s functions.

This Owner’s Instructions is just for using your air conditioner correctly.

Thus, the illustrations shown in this manual may not exactly match your air conditioners.

The booklet is organized as follows.

◆The following figures are shown on pages 4 and 5:

-Air conditioning unit (main parts, buttons and display)

-Remote control (buttons)

They will help you find the buttons and understand the symbols displayed.

◆In the manual, you will find a series of step-by-step procedures for each function available.

The illustrations in the step-by-step procedures use four different symbols:

Moreover, applicable, wherever the illustrations show the positions of the buttons on both the

remote control and the unit itself.

For the... The illustrations have a...

Remote control Gray background.

Example:

Unit itself White background.

Example:

PRESS PUSH IMPORTANT NOTE

☛

➢

E-6

Inserting the Remote Control Batteries

You must insert or replace the remote control batteries when:

◆You purchase the air conditioner

◆The remote control does not work correctly

☛Use two AAA, LR03 1.5 V batteries.

Do not use old batteries or different kinds of

batteries together.

Batteries may be completely discharged after 12 months,

even if they have not actually been used.

1Push the battery cover on the rear of the remote control with your thumb

in the direction of the arrow and remove it.

Insert the two batteries, taking care to respect the polarities:

◆+ on the battery with + on the remote control

◆– on the battery with – on the remote control

Close the cover by sliding it back until it clicks into place.

Result:

You can control all the functions on your air conditioning unit

directly from your seat, using the remote control.

E-7

ENGLISH

You must select the Cool mode if you wish to lower the temperature in your

room. You can also set the fan speed. When you operate the air conditioner, air

flow blades are open and half closed automatically to give the proper air flow.

1If necessary, press the (On/Off) button.

Result:◆The air conditioner starts up in the mode selected

when the unit was last used.

◆The unit beeps twice.

☛The air conditioner is fitted with a protection mechanism to prevent

the unit from being damaged when it is started immediately after

being:

◆Plugged in

◆Stopped

It will start up automatically after about three minutes.

If the temperature is not displayed on the control panel:

◆Press the button on the remote control

◆Press the button on the unit one or more times until the

temperature is displayed.

Result:◆The unit beeps each time you press the button.

◆The air conditioner starts up in the Cool mode.

➢You can change modes at any time.

To adjust the temperature, press the or button on the remote

control one or more times until the required temperature is displayed.

To adjust the temperature, press the or button on the unit one

or more times until the required temperature is displayed.

Possible temperatures are between 18°C and 30°C inclusive.

Result:◆Each time you press the temperature buttons:

–The temperature is adjusted by 1°C and

displayed on the control panel

–The unit beeps

◆The air conditioner starts cooling if the room temperature is

higher than the selected temperature.

To set the fan speed to... Then...

Result:Each time you press a button, the unit beeps.

To control the direction of the air flow, refer to page 10~11.

Cooling Your Room

Remote Control Control Panel

High ◆Press the button on the remote control.

◆Press the button on the unit until F3

lights up

Med ◆Press the button on the remote control.

◆Press the button on the unit until F2

lights up

Low ◆Press the button on the remote control.

◆Press the button on the unit until F1

lights up

E-8

Airing Your Room

E-9

ENGLISH

If the atmosphere in your room is stale, you can air it using the Fan

feature.

When you operate the air conditioner, air flow blades are open and

half closed automatically to give the proper air flow.

If necessary, press the (On/Off) button.

Result:◆The air conditioner starts up in the mode selected

when the unit was last used.

◆The unit beeps twice.

If the Fan speed (F1,F2,F3) is not displayed on the unit:

◆Press the button on the remote control

◆Press the button on the unit one or more times

Until the fan speed (F1,F2,F3) is displayed.

Result:◆The unit beeps each time you press the button.

◆The air conditioner starts up in the Fan mode.

➢◆You can change modes at any time.

◆When the air conditioner is in the Fan mode, the

temperature is not displayed; in this case, you do not

need to set the temperature.

To set the fan speed to... Then...

Result:Each time you press a button, the unit beeps.

To control the direction of the air flow, refer to page 10~11.

High ◆Press the button on the remote control.

◆Press the button on the unit until F3

lights up

Med ◆Press the button on the remote control.

◆Press the button on the unit until F2

lights up

Low ◆Press the button on the remote control.

◆Press the button on the unit until F1

lights up

Remote Control Control Panel

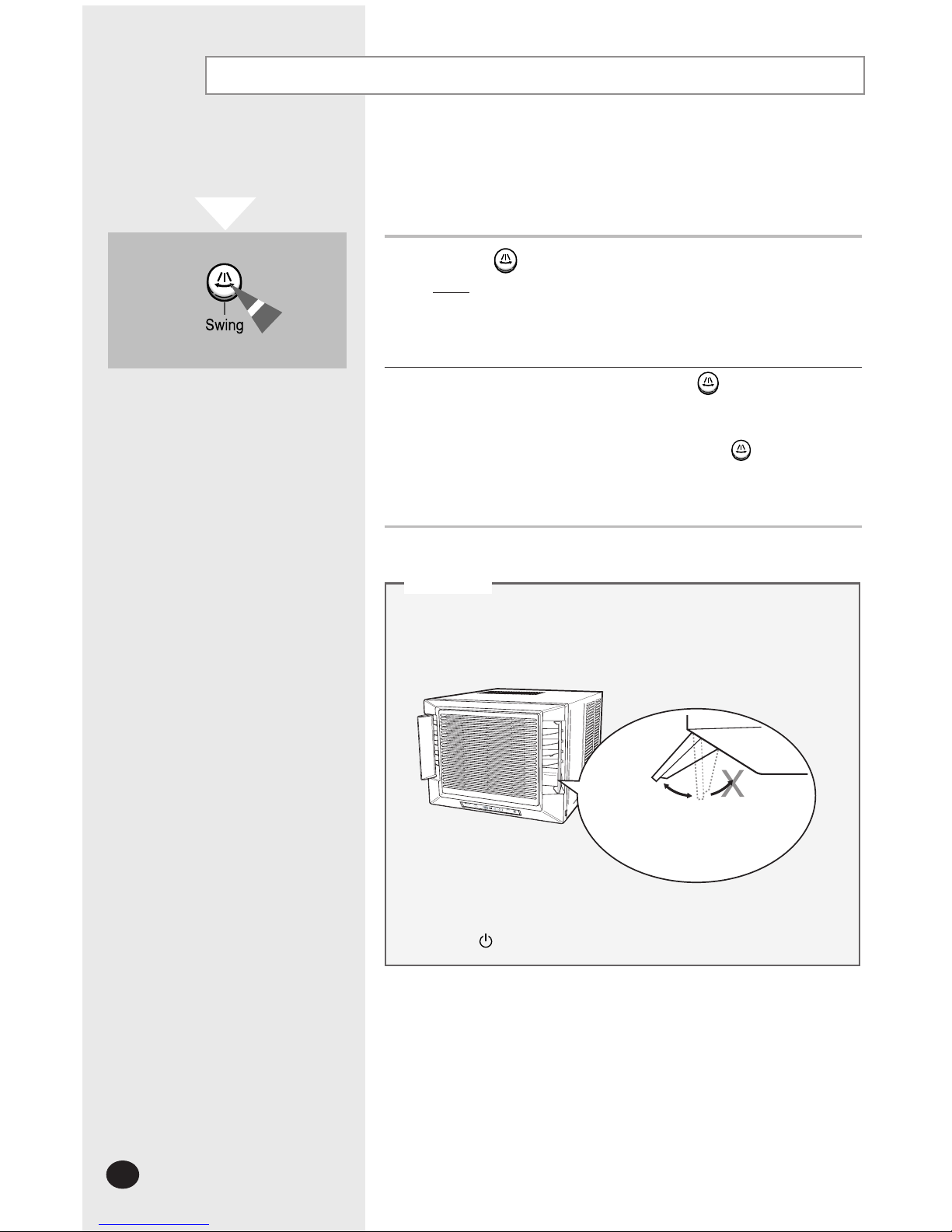

Adjusting the Air Flow Direction Horizontally

E-10

Depending on the position of the unit in your room,

you can adjust the outer air flow blades into the direction you want.

1Press the button on the remote control.

Result:Air flow blades swing automatically left and right.

To stop the blades moving left and right, press the button

on the remote control

➢To stop the blades in a specific position and orient the air flow

in the

corresponding direction, simply press the button

on the remote control

when the blades are in the desired position.

Remote Control

Don't move the blades from the direction you operate with

the remote control. If you force it inwards, the cool air

doesn't flow into the room, but into the air conditioner.

It may cause the malfunction.

CCAA

AAUU

UUTT

TTII

IIOO

OONN

The proper range

operated by the

remote control

Don’t push

the blades

inwards

✳ When operating a swing button, if you move the blades, both blades

operate separately. To return the normal direction of the air flow,

press the (On/Off) button.

This manual suits for next models

Table of contents

Other Samsung Air Conditioner manuals

Samsung

Samsung AVMCC052EA(B)0 User manual

Samsung

Samsung AR MRFQ Series User manual

Samsung

Samsung MWR-ZS00 User manual

Samsung

Samsung APH-2807ERX User manual

Samsung

Samsung DVM PLUS III Instruction manual

Samsung

Samsung AR36BSHUMGMX User manual

Samsung

Samsung AQV12ACME User manual

Samsung

Samsung AQV09F2VE User manual

Samsung

Samsung HTDS1860 User manual

Samsung

Samsung AR TSFY Series User manual

Samsung

Samsung AQV12PWAN User manual

Samsung

Samsung AM KN4DCH Series User manual

Samsung

Samsung RVMC060GDM0 User manual

Samsung

Samsung AW0801B User manual

Samsung

Samsung Smart A/C application User manual

Samsung

Samsung AS18A0RCF User manual

Samsung

Samsung HH175EZM User manual

Samsung

Samsung AM***FXVAF Series User manual

Samsung

Samsung AR09JVSSEWKNED User manual

Samsung

Samsung AJ052NBNDEH/SA User manual

Samsung

Samsung ACH2400C User manual

Samsung

Samsung AJ***NBNDCH series User manual

Samsung

Samsung AS24B1 User manual

Samsung

Samsung MH040FXEA2A User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use

Frigidaire

Frigidaire FAZ12ES2A installation instructions
