Safety Precautions

The following safety precautions must be taken when using your air conditioner.

◆Users of this product are cautioned not to attempt repair of this product

at their own discretion. Instead, they are requested to directly contact a

designated service center or the outlet at which the product was

purchased.

◆Never spill any kind of liquid into the unit. Should this happen, unplug

or main switch off the unit and contact an authorized service center.

◆Do not insert anything between the air outlet blades because the inner

fan may be damaged and could cause injury. Keep children away from

the unit.

◆Do not place any obstacles in front of the unit.

◆Do not spray liquid of any kind into the indoor unit. Should this happen,

switch off the breaker used for your air conditioner and contact your

installation specialist.

◆Make sure that the unit is correctly ventilated at all times:

Do not place clothing or other materials over it.

◆If the wireless remote control will not be used for a long time, remove

the batteries. (If applicable)

◆When using a wireless remote control, the distance should not be more

than 7 meters from the air conditioner. (If applicable)

WARNING

DURING OPERATION

◆Never store or ship the air conditioner upside down or sideways to

avoid damage to the compressor.

◆The appliance is not intended for use by young children or infirm

persons without supervision: Young children should be supervised to

ensure that they do not play with the appliance.

◆Max current is measured according to IEC standard for safety and

current is measured according to ISO standard for energy efficiency.

OTHERS

◆Before throwing out the device, it is necessary to pull back the battery

cells and get rid of them safely for recycling reasons.

◆When you need to dispose of the unit, consult your dealer. If pipes are

removed incorrectly, refrigerant may blow out and come into contact

with your skin, causing injury. Releasing refrigerant into the atmosphere

also damages the environments.

◆Please recycle or dispose of the packaging material for this product in

an environmentally responsible manner.

ISPOSING OF THE UNIT

Risk of electric shock. • Can cause injury or death. • Disconnect all

remote electric power supplies before servicing, installing or cleaning.

• This must be done by the manufacturer or its service agent or a similar

qualified person in order to avoid a hazard.

AVMCH052CA1 IB_E_14089 2005.12.29 2:48 PM Page 2

E-3

ENGLISH

Contents

◆

REPARING YOUR AIR CONDITIONER

■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

■ View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

■ Wireless Remote Controller-Buttons and Display . . . . . . . . . . . 6

■ Wired Remote Controller-Buttons and Display . . . . . . . . . . . . . 7

■ Centralized Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

■ Function Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

◆

ECOMMENDATIONS FOR USE

■ Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . 10

■ Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . . 11

■ Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . 12

■ Bio-Pure Filter Installation (Optional) . . . . . . . . . . . . . . . . . . . . 13

■ Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . 14

◆

ECHNICAL SPECIFICATIONS

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the Eu opean Union and othe Eu opean count ies with sepa ate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household

wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled

waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable

reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government

office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract.

This product should not be mixed with other commercial wastes for disposal.

AVMCH052CA1 IB_E_14089 2005.12.29 2:48 PM Page 3

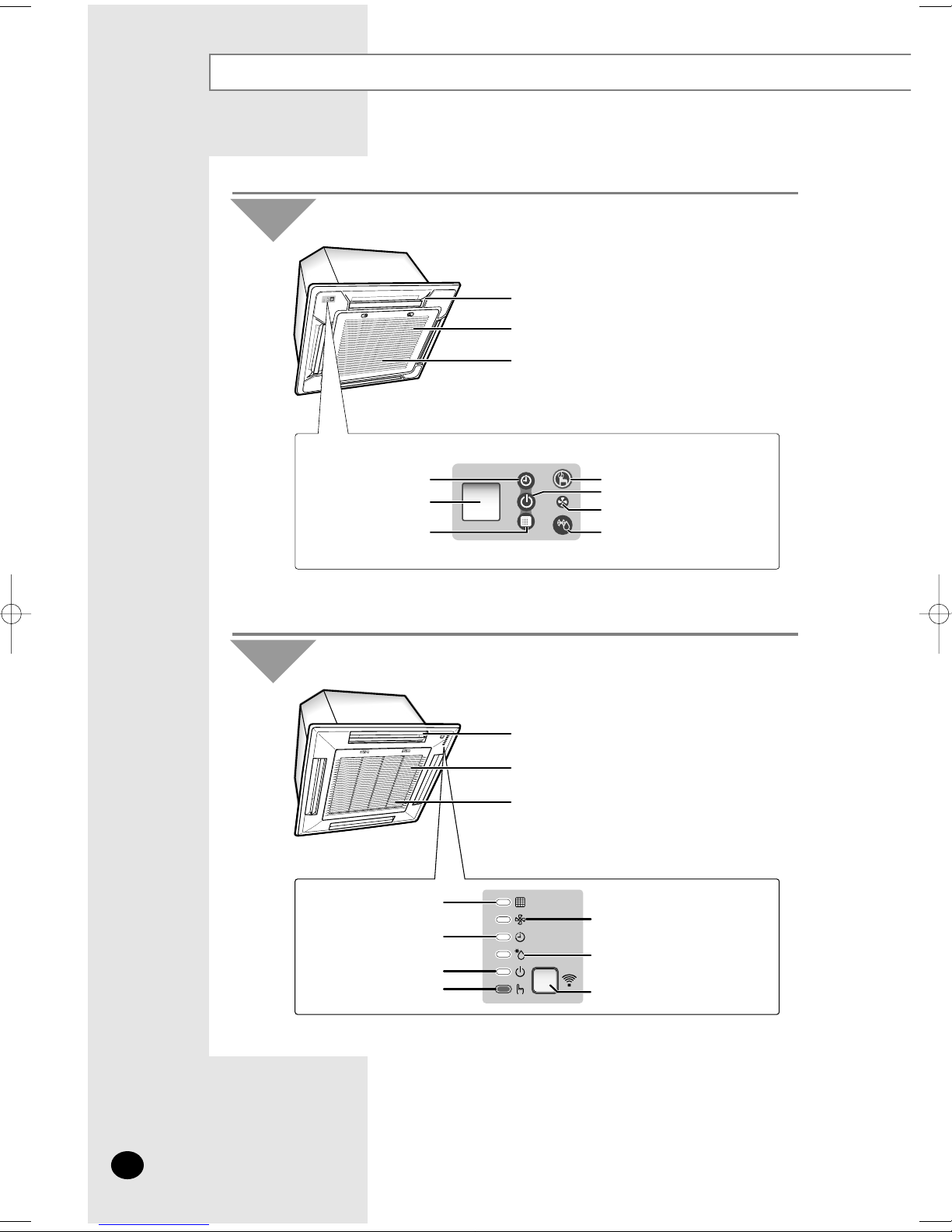

View of the Unit

E-4

The figures shown in this instruction may differ from yours depending on the model.

Air flow blades(outlet)

Air inlet

Air filter(under the grille)

Indoor Unit

TYPE A

Indoor Unit

TYPE B

Timer indicator

Remote control sensor

On/Off button

On/Off indicator

Fan indicator

Removing frost indicator

Filter Sign indicator

Air flow blades(outlet)

Air inlet

Air filter(under the grille)

Timer indicator

Remote control sensor

On/Off button

On/Off indicator

Fan indicator

Removing frost indicator

Filter Sign indicator

AVMCH052CA1 IB_E_14089 2005.12.29 2:48 PM Page 4

E-5

ENGLISH

Air outlet

Connection valve

TYPE A

Outdoor Unit

Air outlet

Connection valve

TYPE B

Outdoor Unit

Air outlet

Connection valve

TYPE C

Outdoor Unit

Air outlet

Connection valve

TYPE D

Outdoor Unit

Air outlet

Connection valve

TYPE E

Outdoor Unit

If the heat exchanger in the outdoor unit gets dusty, cooling efficiency may fall. So clean the heat exchanger with water

when it becomes dirty. However, be careful when you wash the surface of the heat exchanger because it is very sharp.

NNoo

oott

ttee

AVMCH052CA1 IB_E_14089 2005.12.29 2:48 PM Page 5

Wireless Remote Controller-Buttons and Display

◆After cleaning the air filter, press the filter reset button.

◆The heating mode( ) is not selected in cooling only models.

NNoo

oott

ttee

Operating mode Mode selection button

Filter Reset button

Swing button

On Timer button

Off Timer button

On/Off & Timer

Set/Cancel button

Fan speed adjustment

button

Temperature adjustment

buttons

Temperature setting

Fan speed

Air flow direction

On Timer setting

Off Timer setting

Battery discharge indicator

The wireless remote controller is an optional accessory.

To use the wireless remote controller, refer to an appropriate manual.

E-6

AVMCH052CA1 IB_E_14089 2005.12.29 2:48 PM Page 6

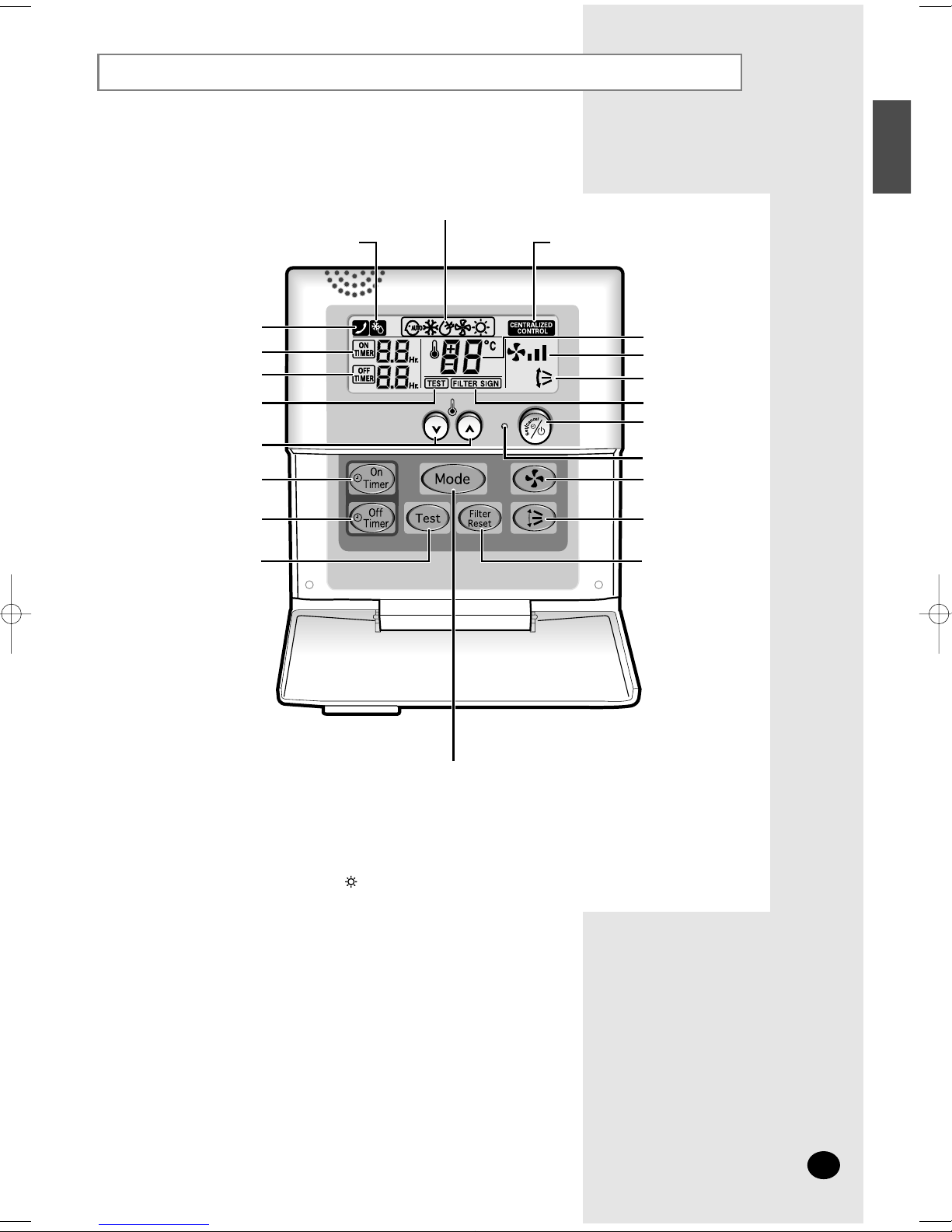

Wired Remote Controller-Buttons and Display

The wired remote controller is an optional accessory and it is installed on the wall.

To use the wired remote controller, refer to an appropriate manual.

◆Test button is for your installation specialist. You must NOT press it.

◆After cleaning the air filter, press the filter reset button. Then the wired remote

controller will display the FILTER SIGN indicator when the time to clean the air filter;

refer to page 12.

◆The heating mode( ) is not selected in cooling only models.

NNoo

oott

ttee

Communication error indicator

On Timer setting

Off Timer setting

Test indicator

On Timer button

Off Timer button

Test button Filter Reset button

Mode selection button

Temperature adjustment

buttons

Centralized controller indicator

(In case of installing the Centralized controller)

Removing frost indicator

(Except Cooling Only Models)

Temperature setting

Fan speed

Air flow direction

Filter Sign indicator

On/Off & Timer

Set/Cancel button

Fan speed adjustment

button

Swing button

On/Off indicator

Operating mode

E-7

ENGLISH

AVMCH052CA1 IB_E_14089 2005.12.29 2:48 PM Page 7

Centralized Controller

The centralized controller is an optional accessory and it is installed on the wall.

To use the centralized controller, refer to an appropriate manual.

E-8

Operating lamp

All On button

All Off button

On/Off indicators

On/Off buttons

Index

◆The operating lamp comes on even when only one air conditioner

connected to the centralized controller is operating.

NNoo

oott

ttee

Front View

Operating Mode Switch

COOL

AUTO

HEAT

◆Choose the appropriate operating mode with the Operating Mode Switch

that enables the user to choose between the Cool/Auto/Heat mode.

◆The heating mode( ) is not selected in cooling only models.

NNoo

oott

ttee

Side View

AVMCH052CA1 IB_E_14089 2005.12.29 2:48 PM Page 8

Function Controller

E-9

ENGLISH

The function controller is an additional controller which is used with the centralized controller.

To use the function controller, refer to an appropriate manual.

◆

Test button is for your installation specialist. You must NOT press it.

◆After cleaning the air filter, press the filter reset button. Then the wired remote controller

will display the FILTER SIGN indicator when the time to clean the air filter.

◆The heating mode( ) is not selected in cooling only models.

NNoo

oott

ttee

Mode selection button

Room number display

Test indicator

Indoor unit selection button

Test button Filter Reset button

Swing button

Temperature adjustment

buttons

Temperature setting

Fan speed

Air flow direction

Filter Sign indicator

On/Off & Timer

Set/Cancel button

Fan speed adjustment

button

On/Off indicator

Centralized controller indicator

Communication error indicator

Removing frost indicator

(Except Cooling Only Models)

Operating mode

AVMCH052CA1 IB_E_14089 2005.12.29 2:48 PM Page 9

Operating Recommendations

E-10

Here are a few recommendations that you should follow when operating

your air conditioner.

Topic Recommendation

The heat pump function of the air conditioner absorbs heat

from

outside air and brings it indoors. As the temperature of the

outside

air drops, the heating performance of air conditioner will

decrease. If you find that the room is not warm enough, using

an additional heating appliance is recommended.

Heating

performances

When outside temperature is low but humidity is high,

frost may form on the outdoor unit at HEAT mode.

If this happens:

◆ The heating operation stops.

◆ The defrost mode will be triggered automatically for about ten

minutes.

No intervention is required ; after about ten minutes, the air

conditioner operates again normally.

Frost

If both indoor and outdoor temperatures are high and the air

conditioner is running at HEAT mode, the outdoor unit’s fan

and compressor may stop at times.

This is normal ; simply wait until the air conditioner switches

on again.

High indoor

and outdoor

temperatures

If a power failure occurs while the air conditioner is operating,

the unit will be switched off. When the power returns, the air

conditioner starts up again automatically.

Power failure

When you use the heat pump model, it is impossible to

operate HEAT and COOL mode of several indoor units at the

same time.

The

simultaneous

operation

AVMCH052CA1 IB_E_14089 2005.12.29 2:48 PM Page 10

This manual suits for next models

Table of contents

Other Samsung Air Conditioner manuals

Samsung

Samsung AS24B1 User manual

Samsung

Samsung ND 4HXEA Series User manual

Samsung

Samsung AM018KN4DCH User manual

Samsung

Samsung PL-50D4H User manual

Samsung

Samsung ASH-0906ER User manual

Samsung

Samsung AM090NN4DEH/TL User manual

Samsung

Samsung SH07ZP2 Series User manual

Samsung

Samsung AE090JNYDGH User manual

Samsung

Samsung MCU-S6NEK3N User manual

Samsung

Samsung AC026FBRDEH User manual

Samsung

Samsung AG TN1DKH Series User manual

Samsung

Samsung AC036JB1DEC User manual

Samsung

Samsung AD SERIES Configuration guide

Samsung

Samsung AM096HNPDCH Series User manual

Samsung

Samsung AR07CSDAFWKNCV User manual

Samsung

Samsung AJ052TNMDEG User manual

Samsung

Samsung MH020FNEA User manual

Samsung

Samsung AC JNCDEH Series User manual

Samsung

Samsung MWR-WE10N User manual

Samsung

Samsung SH09AI8VX User manual

Samsung

Samsung AQV09F** Series User manual

Samsung

Samsung AR12KC3JAMV Troubleshooting guide

Samsung

Samsung AR BX Z Series User manual

Samsung

Samsung AQV09T Series Guide

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use

Frigidaire

Frigidaire FAZ12ES2A installation instructions
