Samsung AR TXFC Series User manual

Air conditioner

User manual

AR**TXFC*** / AR**TXEA***

Thank you for purchasing this Samsung air conditioner.

Before operating this unit, please read this user manual carefully and retain it for future

reference.

English

Contents

Safety Information 4

At a Glance 15

Indoor Unit Overview 15

Display 16

Remote Control Overview 17

Replacing the remote control batteries 17

Remote Control Operation 18

Selecting an operation mode 18

To set the temperatureTo adjust the fan speedTo adjust the airflow direction 19

Smart Features 20

Power Smart Features 20

Wind-Free Cooling function 20

AI Auto mode 21

Auto modeCool mode 22

Dry modeFan mode 23

Heat modeAutomatic defrost 24

Variety Smart Features 25

Fast function 25

Quiet functionBeep function 26

Display lighting functionWi-Fi function (SmartThings app) 27

Energy-Saving Features 28

Electricity consumption check 28

Usage time check 29

Eco function 30

Timed on/ Timed off function 31

good'sleep function 32

English

Cleaning and Maintenance 33

Schedule 33

Cleaning 34

Appendix 40

Troubleshooting 40

Information about Refrigerant 42

SmartThings app 43

Reference 46

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic

accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste

at the end of theirworking life. To prevent possible harm to the environment or human health from

uncontrolled waste disposal, please separate these items from other types of waste and recycle them

responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local

government office, for details of where and how they can take these items for environmentally safe

recycling.

Business users should contact their supplier and check the terms and conditions of the purchase

contract. This product and its electronic accessories should not be mixed with other commercial wastes

for disposal.

Correct disposal of batteries in this product

This marking on the battery, manual or packaging indicates that the batteries in this product should not

be disposed of with other household waste at the end of theirworking life. Where marked, the chemical

symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference

levels in EC Directive 2006/66.

For information on Samsung’s environmental commitments and product-specific regulatory

obligations, e.g. REACH, WEEE, Batteries, visit : samsung.com/uk/aboutsamsung/samsungelectronics/

corporatecitizenship/data_corner.html

Safety Information

English

Safety InformationSafety Information

Safety Information

WARNING: Read This Manual

Read and follow all safety information and instructions before

installation, use, or maintenance of this appliance. Incorrect

installation, use, or maintenance of this appliance can result in death,

serious injury, or property damage. Keep these instructions with this

appliance. This manual is subject to change. For the latest version, visit

www.samsung.com.

Because the instructions in this manual covervarious models, the

characteristics of your air conditioner may differ slightly from those

described. If you have any questions, please contact your service

provider or visit www.samsung.com.

Notices and notes

To make you aware of safety messages and highlighted information,

we use the following notices and notes throughout this manual:

WARNING

Hazards or unsafe practices that may result in severe personal injury

or death.

CAUTION

Hazards or unsafe practices that may result in minor personal injury or

property damage.

IMPORTANT

Information of special interest

NOTE

Supplementary information that may be useful

Safety Information

English

Safety InformationSafety Information

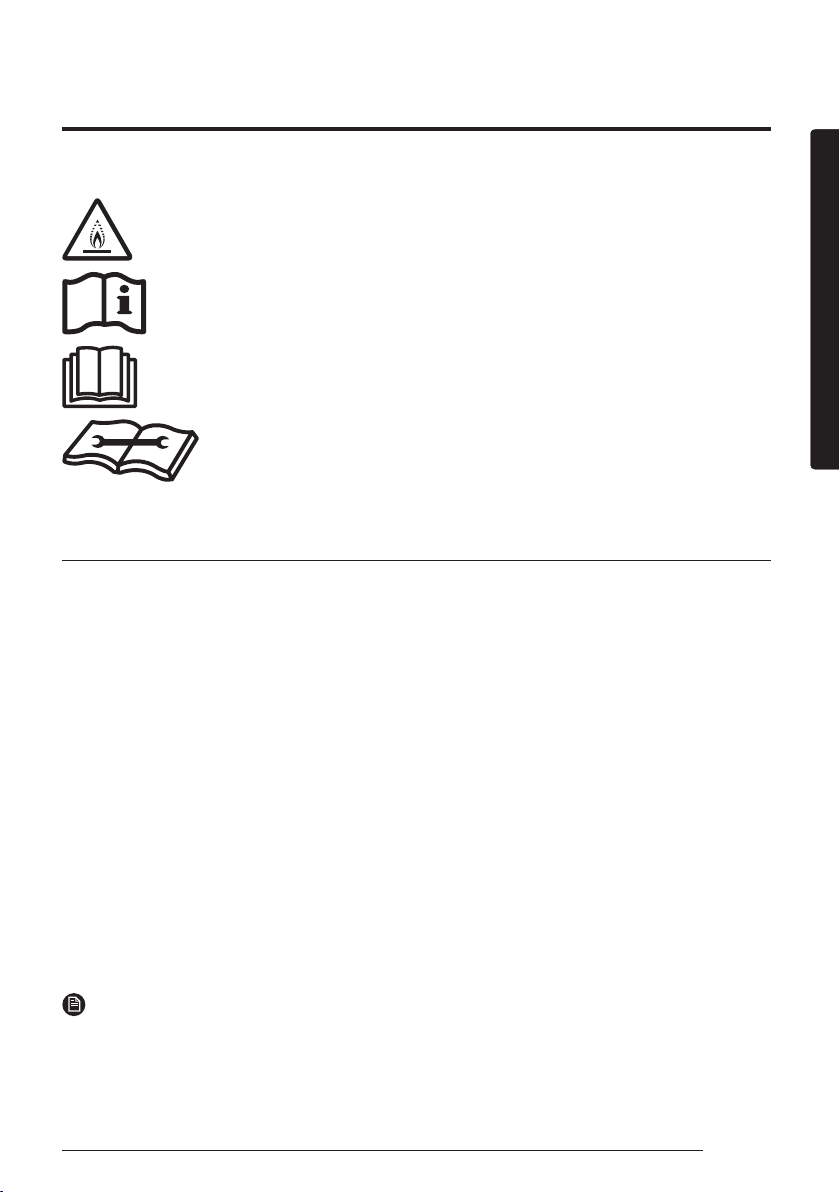

WARNING: Low burning velocity material

(This appliance is filled with R-32.)

The user and installer guides should be read carefully.

The service guide should be read carefully.

FOR GENERAL

This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities,

or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance

by a person responsible for their safety. Children should be

supervised to ensure that they do not play with the appliance.

For use in Europe : This appliance can be used by children aged

from 8 years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience and

knowledge if they have been given supervision or instruction

concerning use of the appliance in a safe way and understand

the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children

without supervision.

IMPORTANT

To perform its antimicrobial function this product has been

treated with the biocide substance Silver zinc zeolite.

Safety Information

English

Safety InformationSafety Information

FOR INSTALLATION

WARNING

Use a power cord with this product's power specifications or

higher and use the power cord forthis appliance only. In addition,

do not use an extension cord.

Extending the power cord may result in electric shock or fire.

Do not use an electric transformer. This may result in electric

shock or fire.

If the voltage/frequency/rated current condition is different, it

may cause fire.

The installation of this appliance must be performed by a

qualified technician or service company.

Failing to do so may result in electric shock, fire, explosion,

problems with the product, or injury and may also void

warranty on the installed product.

Install an Isolation Switch next to the Air Conditioner (but not on

the panels of the Air Conditioner) and circuit breaker dedicated

to the air conditioner.

Failing to do so may result in electric shock or fire.

Fix the outdoor unit firmly so that the electric part of the outdoor

unit is not exposed.

Failing to do so may result in electric shock, fire, explosion, or

problems with the product.

Do not install this appliance near a heater, or inflammable

material. Do not install this appliance in a humid, oily or dusty

location, in a location exposed to direct sunlight and water (or

rain). Do not install this appliance in a location where gas may

leak.

This may result in electric shock or fire.

English

Safety InformationSafety Information

Never install the outdoor unit in a location such as on a high

external wall where it could fall.

If the outdoor unit falls, it may result in injury, death or

property damage.

This appliance must be properly grounded. Do not ground the

appliance to a gas pipe, plastic, water pipe, or telephone line.

Failing to do so may result in electric shock, fire, and

explosion.

Make sure to use a socket-outlet with ground.

CAUTION

Please cover the air conditionerwith PE BAG after installation,

and remove it when you start to run air conditioner.

Install your appliance on a level and hard floor that can support

its weight.

Failing to do so may result in abnormal vibrations, noise, or

problems with the product.

Install the drain hose properly so that water drains correctly.

Failing to do so may result in water overflowing and property

damage. Avoid adding drain to waste pipes as odours may

arise in the future.

The product shall be stored in a room with no ignition sources

(e.g. open flames, gas appliance, electric heater, etc.).

Note that the refrigerant has no odour.

When installing the outdoor unit, make sure to connect the drain

hose so that draining is performed correctly.

The water generated during heating by the outdoor unit may

overflow and result in property damage.

In particular, in winter, if a block of ice falls, it may result in

injury, death or property damage.

Safety Information

English

Safety InformationSafety Information

Do not install the product in a place where thermo-hygrostat is

needed (such as server room, machinery room, computer room,

etc.)

Those places do not provide guaranteed operation condition

of the product therefore performance can be poor in these

places.

FOR POWER SUPPLY

WARNING

When the circuit breaker is damaged, contact your nearest

service centre.

Do not pull or excessively bend the power line. Do not twist or tie

the power line. Do not hook the power line over a metal object,

place a heavy object on the power line, insert the power line

between objects, or push the power line into the space behind

the appliance.

This may result in electric shock or fire.

If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified persons in

orderto avoid a hazard.

CAUTION

When not using the air conditioner for a long period of time or

during a thunder/lightning storm, cut the power at the circuit

breaker.

Failing to do so may result in electric shock or fire.

English

Safety InformationSafety Information

FOR USING

WARNING

If the appliance is flooded, please contact your nearest service

centre.

Failing to do so may result in electric shock or fire.

If the appliance generates a strange noise, a burning smell or

smoke, cut off the power supply immediately and contact the

nearest service centre.

Failing to do so may result in electric shock or fire.

In case of a malfunction, immediately stop operation of the

air conditioner and disconnect the entire power system. Then

consult the authorized service personnel.

In the event of a gas leak (such as propane gas, LP gas, etc.),

ventilate immediately without touching the power line. Do not

touch the appliance or power line.

Do not use a ventilating fan.

A spark may result in an explosion or fire.

To reinstall the air conditioner, please contact your nearest

service centre.

Failing to do so may result in problems with the product,

water leakage, electric shock, or fire.

Delivery service for the product is not provided. If you reinstall

the product in another location, additional construction

expenses and an installation fee will be charged.

Especially, when you wish to install the product in an unusual

location such as in an industrial area or near the seaside

where it is exposed to salt in the air, please contact your

nearest service centre.

Safety Information

English

Safety InformationSafety Information

Do not touch the circuit breaker with wet hands.

This may result in electric shock.

Do not turn the air conditioner off with the circuit breakerwhile

it is operating.

Turning the air conditioner off and then on again with the

circuit breaker may cause a spark and result in electric shock

or fire.

After unpacking the air conditioner, keep all packaging materials

well out of the reach of children, as packaging materials can be

dangerous to children.

If a child places a bag over its head, it may result in

suffocation.

Do not touch the airflow blade with your hands or fingers during

heating.

This may result in electric shock or burns.

Do not insert your fingers or foreign substances into the air inlet/

outlet of the air conditioner.

Take special care that children do not injure themselves by

inserting their fingers into the product.

Do not strike or pull the air conditionerwith excessive force.

This may result in fire, injury, or problems with the product.

Do not place an object nearthe outdoor unit that allows children

to climb onto the machine.

This may result in children seriously injuring themselves.

Do not use this air conditionerfor long periods of time in badly

ventilated locations or near infirm people.

Since this may be dangerous due to a lack of oxygen, open a

window at least once an hour.

This manual suits for next models

Table of contents

Other Samsung Air Conditioner manuals

Samsung

Samsung AQ12F Series User manual

Samsung

Samsung AC BN4PKG Series User manual

Samsung

Samsung AVMBH020EA4 User manual

Samsung

Samsung AC KN4 Series User manual

Samsung

Samsung AW07LH Series User manual

Samsung

Samsung AC RNCDKG Series User manual

Samsung

Samsung AW08NK Series User manual

Samsung

Samsung AR TXFY Series User manual

Samsung

Samsung AR JV5N Series Guide

Samsung

Samsung AW07A0SE User manual

Samsung

Samsung AMxxxNN1PEH Series User manual

Samsung

Samsung AM040KXMDEH/EU User manual

Samsung

Samsung AC160JNHFKH User manual

Samsung

Samsung DIGIMAX A6 User manual

Samsung

Samsung AJ NBRDCH Series User manual

Samsung

Samsung AW0505B User manual

Samsung

Samsung AS18A1(A2)QE/B User manual

Samsung

Samsung AF**FSSDA Series Guide

Samsung

Samsung AM JNESCH Series User manual

Samsung

Samsung SH24TAB5 User manual

Samsung

Samsung AVXTFH071EB User manual

Samsung

Samsung AQ12?5(6)MB User manual

Samsung

Samsung DVM PLUS III Instruction manual

Samsung

Samsung ND 4HXEA Series User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use

Frigidaire

Frigidaire FAZ12ES2A installation instructions
