Samsung DIGIMAX A6 User manual

ENGLISH

OWNER’S INSTRUCTIONS &

INSTALLATION MANUAL

MANUAL DE INSTRUCCIONES &

MANUAL DE INSTALACIÓN

MANUEL D’UTILISATION &

MANUEL D’INSTALLATION

DUCTLESS MINI - SPLIT (Cool)

ENDIDURA - MINI ENDÓCRINO (Refrigeración)

SANS CONDUIT MINI - SÉPARÉ (Refroidissement)

E S F

DB68-01822A(3)

ESPAÑOL

FRANÇAIS

AS07A5(A6)MA

AS09A5(A6)MA

AS12A5(A6)MC

AS18A5(A6)RC

AS24A1(A2)RC

Indoor Unit

US07A5(A6)MA

US09A5(A6)MA

US12A5(A6)MC

US18A5(A6)RC

US24A1(A2)RC

Outdoor Unit

Safety Precautions

The following safety precautions must be taken when using your air conditioner.

1 Make sure that the indoor unit is correctly ventilated at all times; do NOT place clothing or other materials

over it.

2 NEVER spill liquid of any kind into the indoor unit. Should this happen, switch off the breaker used for your

air conditioner and contact your installation specialist.

3 Do NOT insert anything between the air flow blades, as the inner fan may be damaged and you may be hurt.

Keep children away from the indoor unit.

4 Do NOT place any obstacles in front of the outdoor unit.

5 If the remote control will not be used for a long time, remove the batteries.

6 Users of this product are cautioned not to attempt repair of this product at their own discretion.

Instead, they are requested to directly contact a designated service center or the outlet at which the

product was purchased.

7 If the supply cord is damaged, it must be replaced by a special cord or assembly available from the

manufacturer or its service agent.

8 This device must be installed according to the national electrical rules.

9 Before throwing out the device, it is necessary to pull back the battery cells and get rid of them safely.

10 The appliance is not intended for use by young children or infirm person without supervision;

young children should be supervised to ensure that they do not play with the appliance.

The manufacturer do not take the responsibility of the accident happened

because the air conditioner is not fixed firmly or installed securely, during

installing or using the product. In case you have difficulty in installation,

you must ask for an installation specialist help. The accident will be

happened in case of installing improperly.

CCAA

AAUU

UUTT

TTII

IIOO

OONN

E-2

Contents

◆

REPARING YOUR AIR CONDITIONER

■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

■ View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

■ Remote Control-Buttons and Dis lay . . . . . . . . . . . . . . . . . . . . 6

■ Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

■ Inserting the Remote Control Batteries . . . . . . . . . . . . . . . . . . . 8

◆

PERATING YOUR AIR CONDITIONER

■ 5 Way Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

■ Selecting the Automatic O erating Mode . . . . . . . . . . . . . . . . 10

■ Cooling Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

■ Changing the Room Tem erature Quickly . . . . . . . . . . . . . . . 12

■ Removing Excess Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . 13

■ Airing Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

■ Adjusting the Air Flow Direction Vertically . . . . . . . . . . . . . . . 15

■ Adjusting the Air Flow Direction Horizontally . . . . . . . . . . . . . 15

◆

ROGRAMMING YOUR AIR CONDITIONER

■ Setting the On Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

■ Setting the Off Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

■ Setting the Slee Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

◆

ECOMMENDATIONS FOR USE

■ O erating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . 19

■ Tem erature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . 20

■ Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . 21

■ Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . 22

■ Installing a Filter (O tion) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

◆

ECHNICAL SPECIFICATIONS

E-3

ENGLISH

View of the Unit

The design and sha e are subject to change according to the model.

Indoor Unit

Air filter

(under the grille)

Air flow blades (outlet) Air Inlet

Timer indicator

STANDARD indicator

NATURE indicator POWER indicator

SILENCE indicator

Remote Control Sensor

SAVING indicator

On/Off & 5 Way

selection button

◆For details on the 5 Way, refer to age 9.

NNoo

oott

ttee

E-4

Air Inlet(Rear)

Air Outlet

Connection Valve

US07A5(A6)MA

US09A5(A6)MA

Outdoor Unit

Air Inlet(Rear)

Air Outlet

Connection Valve

(Inside)

US12A5(A6)MC

Outdoor Unit

Air Inlet(Rear)

Air Outlet

Connection Valve

US1 A5(A6)RC

US24A1(A2)RC

Outdoor Unit

E-5

ENGLISH

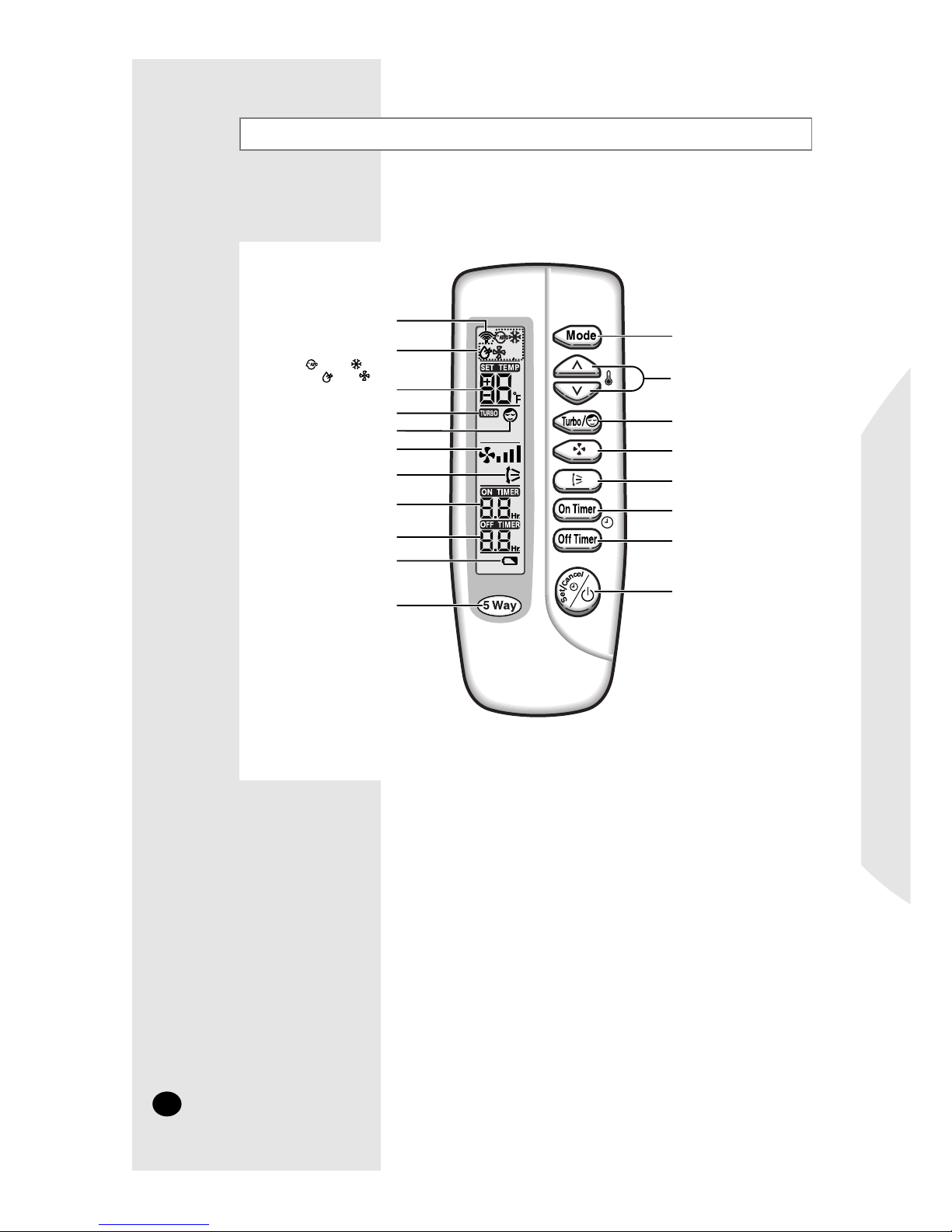

Remote Control - Buttons and Display

O erating mode

( AUTO, COOL,

DRY, FAN)

Remote control

transmission indicator Mode selection button

(AUTO, COOL, DRY, FAN)

Turbo/Slee mode

selection button

Swing button

On Timer button

Off Timer button

On/Off &

Timer Set/Cancel button

Fan s eed adjustment

button

Tem erature adjustment

buttons

Tem erature setting

Slee mode

Turbo mode

Fan s eed

Air flow direction

On Timer setting

Off Timer setting

Battery discharge indicator

5 Way selection button

E-6

Getting Started

You have just purchased a split type air conditioner and it has been

installed by your installation specialist.

Your Owner’s Instructions contain much valuable information on using your

air conditioner. Please take the time to read them as they will help you take full

advantage of the unit’s features.

The booklet is organized as follows.

◆The following figures are shown on pages from 4 to 6 :

- Indoor and outdoor units

- Remote control(buttons and display)

They will help you find the buttons and understand the symbols displayed.

◆In the main part of the document, you will find a series of step-by-step

procedures for each function available.

The illustrations in the step-by-step procedures use three different symbols:

PRESS PUSH HOLD DOWN

E-7

ENGLISH

Inserting the Remote Control Batteries

Push the battery cover on the rear of the remote control with your thumb

in the direction of the arrow and remove it.

Insert the two batteries, taking care to res ect the olarities :

◆+ on the battery with + on the remote control.

◆- on the battery with - on the remote control.

Close the cover by sliding it back until it clicks into lace.

◆Use two AAA, LR03 1.5V batteries.

◆Do not use old batteries or different kinds of batteries together.

◆Batteries may be com letely discharged after 12 months, even

◆if they have not actually been used.

You must insert or replace the remote control batteries when :

◆You purchase the air conditioner

◆The remote control does not work correctly

NNoo

oott

ttee

E-8

5 Way Function

Press the (ON/OFF) button one or more times until the desired mode is

selected.

To sto the o erating, ress the (ON/OFF) button until all indicators

turn off.

You can select the 5 Way function with operating mode of the air conditioner for

more comfortable circumstances. You can use the 5 Way function with the indoor

unit as well as the remote control. Thus, you can use this function

even though you have lost your remote control.

Using with the indoor unit

To select the 5 Way function with the remote control, ress the 5 Way

button one or more times until the desired mode is selected.

◆Each time you ress the 5 Way button:

Each 5 Way indicator on the indoor unit comes on in order.

Selecting with the Remote Control

Even if the air conditioner has been turned on via the ON/OFF

button, o erations can still be controlled using the remote control

as usual.

NNoo

oott

ttee

To obtain a(n)...

Normal o erating (STANDARD) mode

Then select...

(NATURE) mode

Reducing the uncomfortable

tem erature swing

(POWER) mode

Stronger air-conditioner environment

faster

(SAVING) mode

Energy saving

(SILENCE) mode

Quiet environment

E-9

ENGLISH

Selecting the Automatic Operating Mode

You can start the air conditioner in Automatic mode from your remote

control. In the Automatic mode, the standard temperature and the

optimum fan speed is selected automatically. You can adjust the

standard temperature but not the fan speed.

If the is not dis layed at the to of the remote control,

ress the MODE button on the remote control one or more times until it

a ears.

Result:◆The indoor unit bee s each time you ress the MODE button.

◆The air conditioner runs in AUTO mode.

You can change modes at any time.

If necessary, ress the (On/Off) button.

Result:◆The 5 Way indicator on the indoor unit comes on.

◆The air conditioner starts u in the mode selected

when the unit was last used.

◆The indoor unit bee s.

The air conditioner is fitted with a rotection mechanism to

revent the unit from being damaged when it is started

immediately after being:

◆Plugged in

◆Sto ed

lt will start u normally after three minutes.

IMPORTANT

NNoo

oott

ttee

To adjust the standard tem erature (The air conditioner automatically

set the standard tem erature by the current room tem erature.),

ress the TEMPERATURE buttons one or more times.

SET TEMP. SET TEMP. - SET TEMP. SET TEMP.

-4°F/-2°C -2°F/-1°C Standard tem erature +2°F/+1°C +4°F/+2°C

< When you feel hot > < When you feel chilly >

E-10
