Salus iT500 User manual
iT500 Internet Thermostat
U S E R M A N UA L
iT500 User Manual 16pp 025_Layout 1 03/09/2013 12:00 Page 1
Product compliance & safety information
These instructions are applicable to the SALUS Controls model stated on the front cover of this manual
only, and must not be used with any other make or model.
This accessory must be tted by a competent person, and installation must comply with the guidance
provided in the current IEEWiring Regulations and current Building Regulations. Failure to comply with
the requirements of these publications could lead to prosecution.
When tting batteries, do not mix old and new batteries together.
Do not use rechargeable batteries.
Please leave these instructions with the end user where they should be kept in a safe place for future
reference.
Always isolate the AC Mains supply before installing or working
on any components that require 230 VAC 50Hz supply.
02 iT500 User Manual
iT500 User Manual 16pp 025_Layout 1 03/09/2013 12:00 Page 2
Contents of the box
iT500 User Manual 03
iT500TR Thermostat iT500RX Receiver
iTA500 Power adaptor
ADSL Cable
Optional Stand
Fixing screws & plugs
iTG500 Gateway
Wall mount Wall mount
iT500 User Manual 16pp 025_Layout 1 03/09/2013 12:00 Page 3
04 iT500 User Manual
Installation
Connection & Control
www.salus-controls.com
Please refer to the installation guide.
The installation guide also shows how to
connect your iT500 thermostat to the internet.
For details please refer to page 18 in the installation manual.
iT500 User Manual 16pp 025_Layout 1 03/09/2013 12:01 Page 4
iT500 User Manual 05
LCD ICONS DESCRIPTION FUNCTION
Day of the week Displays the number of the day of the week. 1 being Monday
Temperature indicator Displays set or measured temperature
Clock display Displays time
Program number indicator Displays the number of the active (selected) program
Heat mode indicator Indicates heating output is turned on*
Heat zone indicator Indicates heating zone*
Hot water indicator Indicates hot water control*
Hot water mode indicator Indicates hot water output is turned on*
RF signal indicator Indicates the unit is transmitting a wireless signal to the
iT500RX or is receiving the signal from the iT300*
Touch lock indicator Indicates touch lock is activated
Battery status Indicates battery is low
Holiday indicator Indicates holiday operation mode is selected
Internet indicator Indicates connection to iTG500 and SALUS server
Cooling indicator Indicates cooling output is on*
ON indicator Hot water continuously on*
Once indicator Hot water is on once*
AUTO indicator Automatic program mode
OFF indicator O mode
Setting indicator Manual override or settings mode
OR
LCD Overview
* System conguration specic.
iT500 User Manual 16pp 025_Layout 1 03/09/2013 12:01 Page 5
06 iT500 User Manual
Controls
Conrm
Backup
Increase
Display ON
Decrease
Settings
iT500 User Manual 16pp 025_Layout 1 03/09/2013 12:02 Page 6

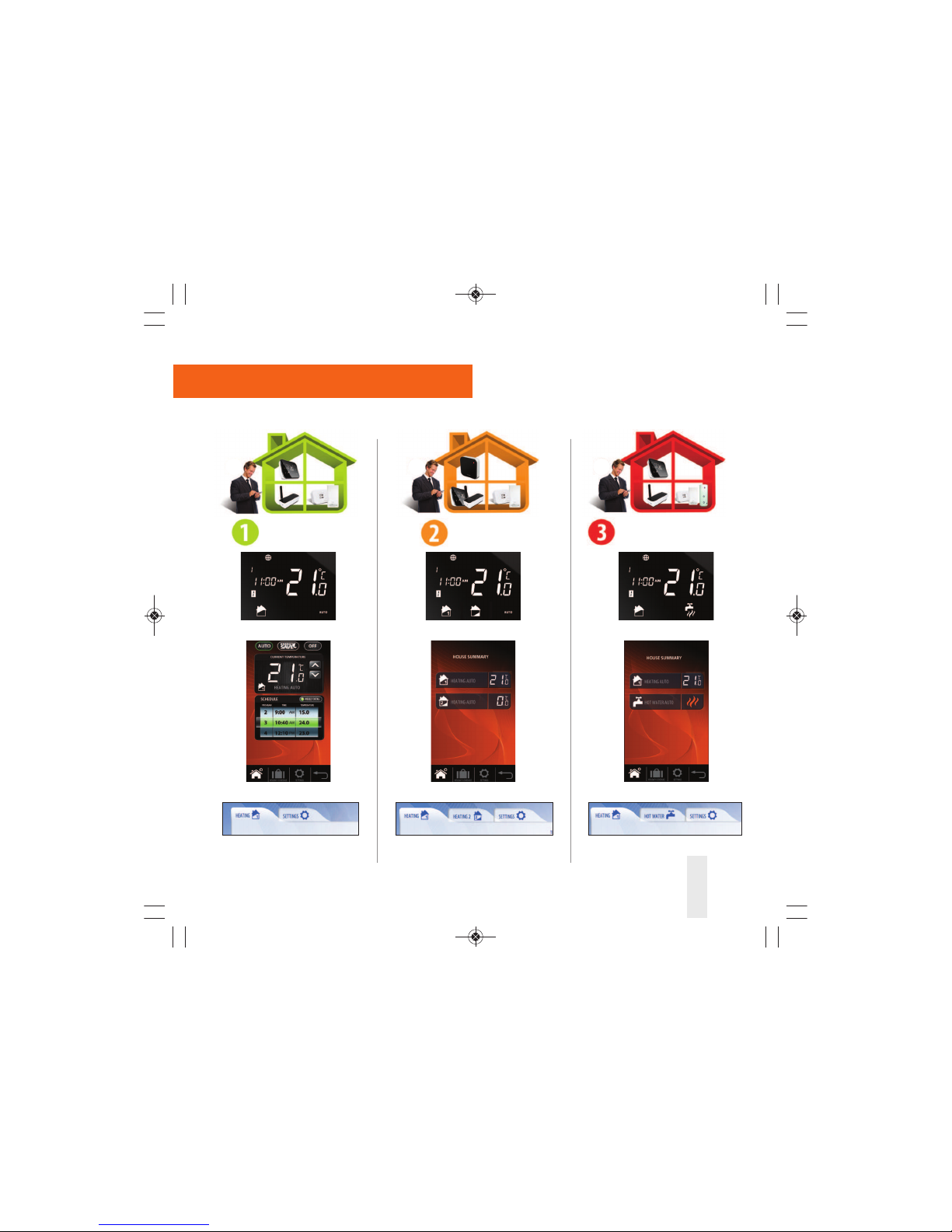

Identify your system type
One central heating zone only.
iT500 Display
Smartphone Display
PC Display
iT500 Display
Smartphone Display
PC Display
iT500 Display
Smartphone Display
PC Display
One central heating zone plus hot water.
Two central heating zones.
iT500 User Manual 07
The system type is unique to your system conguration.
The system will be set by your installer and should only
be changed by your installer.
iT500 User Manual 16pp 025_Layout 1 03/09/2013 12:03 Page 7
One central heating zone only.
One Central Heating Zone System PC & Smartphone Control
Energy save will use the lowest set
temperature on your daily schedule.
Now that you have identied your system type, you can use
your PC or smartphone to fully control your iT500.
Follows
weekly
schedule
Energy
save
mode
Home Holiday Settings Back
Heating
continuously
o
Override
program
temperature*
Change/view
weekly heating
schedule
Current
program
*Press AUTO to cancel temporary override of program temperature.
Will be displayed when the current program
has been manually overridden
08 iT500 User Manual
iT500 User Manual 16pp 025_Layout 1 03/09/2013 12:03 Page 8
One Central Heating Zone System Local Control
iT500 User Manual 09
Temporary override
of your temperature
Press the power button to
start and use the buttons
indicated to change the
SET temperature. Then
press the tick to accept.
Note:
Status has
been added.
OR
The unit will return to the
home screen with the
symbol showing.
The operations
described in the next
few pages can be
controlled via your
Smartphone or PC.
All changes made
locally on the iT500
will automatically
update PC and
Smartphone.
Control available on your Smartphone or PC is also available locally on the iT500.
Press to cancel
temporary override.
iT500 User Manual 16pp 025_Layout 1 03/09/2013 12:03 Page 9
10 iT500 User Manual
witching your
heating from
AUTO to OFF.
Press the power button to
start and use the buttons
indicated to switch from
AUTO to OFF.
+
OR
The unit will return to the
home screen.
One Central Heating Zone System Local Control
iT500 User Manual 16pp 025_Layout 1 03/09/2013 12:04 Page 10
Other manuals for iT500
8
This manual suits for next models
3
Table of contents
Other Salus Thermostat manuals
Salus
Salus VS30W User manual
Salus
Salus ERT50 User manual
Salus
Salus CT100 User manual
Salus
Salus RT500 User manual
Salus
Salus HTRP24 User manual
Salus
Salus RXRT505 User manual
Salus
Salus RT510+ User manual
Salus
Salus VS35W User manual
Salus
Salus QUANTUM SQ610RF User manual
Salus
Salus ERT50T Triac User manual
Salus
Salus CE-HTR230 User guide
Salus
Salus RXRT520 User manual
Salus
Salus QUANTUM SQ610RF User manual
Salus
Salus Optima S User manual
Salus
Salus DT300 User manual
Salus
Salus ERT20RF User manual
Salus
Salus VS20WRF User manual
Salus
Salus RT310i User manual
Salus
Salus RT200 Owner's manual
