Rosewill R7229 R7229 User manual

ATX Computer Case R7229

User Manual

1

User Manual

ATX Computer Case R7229

Chapter 1 Product Introduction

Drawing ………………………………….........................……….. 2

Speciﬁcation……………………………......................…….……. 3

Chapter 2 Installation

Removing and installing side panels..........................................3

Installing the Motherboard.........................................................4

Installing Add-on card ...............................................................4

Installing Drives (CD/DVD ROM, FDD and HDD)........................5

Replacing the Power Device ……………....…........................….5

Replacing/ Installing the Case Fan ……….….............................6

I/O Function Panel Installation Guide …………..........................6

2

User Manual

ATX Computer Case R7229

Chapter 1: Introduction

Mechanical Drawing:

3

User Manual

ATX Computer Case R7229

Speciﬁcations:

Dimensions 200mm(W) x 430mm(H) x 480mm(D)

M/B Type ATX 12” x 9.6” (30.5cm x 24.5 cm); Micro-ATX

Material SECC Metal 0.8cm

5.25” Drive Bay 5 (Exposed)

3.5” Drive Bay 2 (Exposed); 5 (Hidden)

I/O Panel USB2.0 x 2; MIC x 1; SPK x 1

Cooling System One 80mm rear fan ( Exhaust )

Power Supply Standard ATX PS2, 350W

Expansion slot 7 slots

Chapter 2: Installation

Removing and installing side panels

1. Loosen the thumb screws from the back and pull the side panel backward to remove it.

2. Fit the hooks of the panel to the elongated holes on the edges of casing, and slide the

panel toward and secure with screws to install the panel.

4

User Manual

ATX Computer Case R7229

Installing the Motherboard

1. Installing the IO panel that comes with Motherboard package.

2. Aiming at the holes on the Motherboard, and secure the copper posts (stand off) on

Motherboard plate.

3. Align the holes of PCB and Motherboard plate, and secure them by fastening screws to

the cooper posts.

Install add-on card

1. Pressing the slot cover and bend forward and

backward to remove it.

2. Insert the add-on card.

3. Secure the add-on card with screws.

5

User Manual

ATX Computer Case R7229

Installing Drives (CD/DVD ROM, FDD and HDD)

1. Detach the front panel from the casing by pressing the clips that on the rear side of front

panel.

2. Remove the metal cover of the bay.

3. Insert the device in place; and secure with screws.

Replacing the power device

1. Loosen the screws to remove the power supply.

2. Place the power supply on the power rack with the wiring end facing forward and connect

it to the back of the casing.

3. Secure the power supply device with screws.

6

User Manual

ATX Computer Case R7229

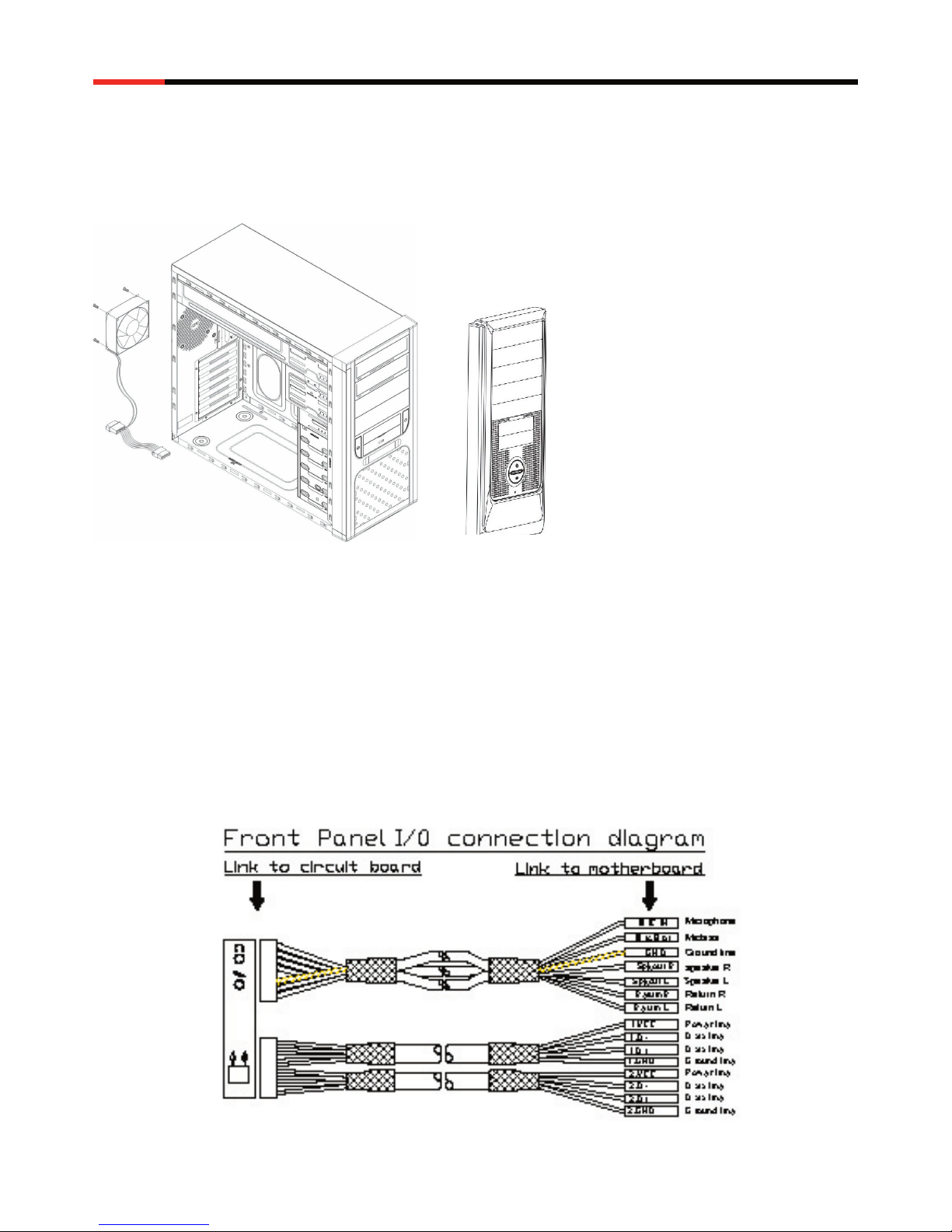

Replacing/Installing the Case Fan

Change the Front Fan

1. Loosen the fan screws from the rear casing, and remove the fan.

2. Install the new fan and secure it with screws.

I/O Function Panel Installation Guide

Please refer to the illustration on the section of USB2.0 and Audio connector from the

motherboard user’s manual.

The following illustration is a connection diagram for the front panel I/O cable.

Please check with your motherboard manual before installing.

7

User Manual

ATX Computer Case R7229

Thank you for purchasing Rosewill Product.

Please register your product at www.rosewill.com for complete warranty information and future

support for your product.
