Rosewill CULLINAN V Series User manual
1
Product Overview
Disassembly Chart (components vary by country)
Thank you for purchasing a Rosewill Computer Case.
Please read the instruction manual before use and retain for future reference.
CULLINAN V Series
Left Side Panel Front Panel
Right Side Panel
Dust Filter
Dust Filter
Cooling Fan
Cooling Fan
Dust Filter
(CULLINAN V-Silent)
Dimensions (W x H x D): 223 x 490 x 474 (mm)
Front View Right Side View
223 474
490
2
Accessory Box
Image Part Name Qty Function / Component
Screw-A (6-32 x 6 mm) 5 PSU
Screw-B (M3 x 5 mm) 37 Motherboard
2.5” SSD
Screw-C (6-32 x 5 mm) 10 3.5” HDD
Screw-D (6-32 x 30 mm) 14 Front Radiator
Screw-E (M5 x 10 mm) 14 Fan
Standoff
6 (pre-
installed)
+5
Motherboard
Nut Setter 1 Standoff Installation
Cable Tie 5 Cable Management
Top I/O
PowerUSB 3.0 USB 3.0 Fan ControlMic.
Speaker Reset
Top I/O Cable Pinout
USB 3.0 CONNECTOR HD AUDIO CONNECTOR
3
1. Open the Unit
1-1. Loosen the thumbscrews and take off Panel R and L (Figure 1).
1
2. Install Power Supply
2-1. Seat the power supply unit (PSU) at the bottom-rear of the case and secure with Screw-A
(Figure 2).
2
Installation Guide
3. Install Motherboard
3-1. Secure the motherboard down onto the pre-installed standoff with Screw-B (Figure 3).
3
4

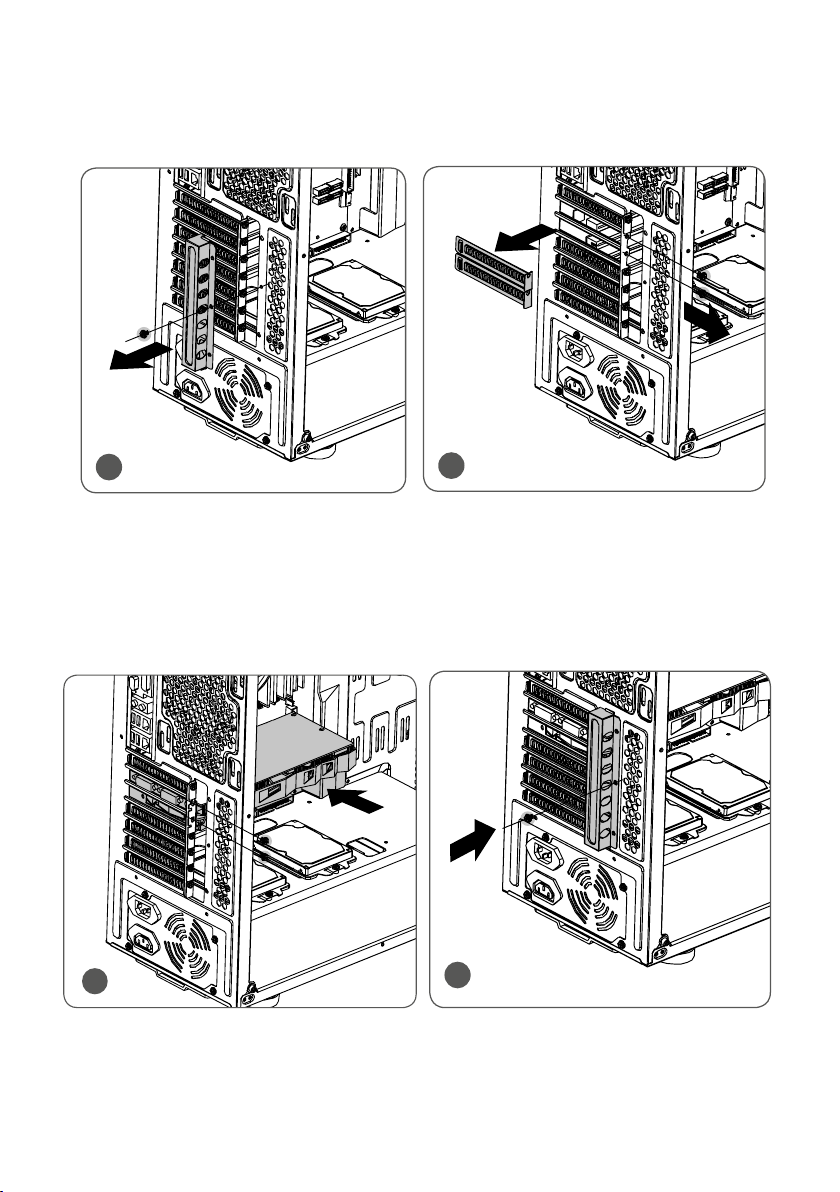

4. Install Add-on Card
4-1. Loosen the screws to open the cover panel (Figure 4a).
4a
4-2. Unscrew to release the slot cover (Figure 4b).
4b
4-3. Install the add-on card and secure with screws (Figure 4c).
4-4. Put the cover panel back on and secure with screw (Figure 4d).
4d
4c
5
5. Install 3.5” HDD
5-1. Take out the 3.5” HDD tray from the cage.
5-2. Install the 3.5” drive onto the tool-less tray and secure with Screw-B if so desired (Figure 5a).
A 2.5” SSD can also be installed on the tray with Screw-C (Figure 5b).
5a 5b
5-3. Insert the 3.5” drive tray back into the HDD cage (Figure 5c).
5c
6. Install 2.5” SSD
6-1. Unscrew to remove the 2.5” SSD trays from the chassis.
6-2. Secure the 2.5” drive onto the tray with Screw-B (Figure 6a).
6a
6
6-3. Secure the trays back onto chassis with screw (Figure 6b/6c).
6b 6c
7b
7. Care
To prevent damage, keep all panels closed and secured.
7-1. Put the side panels back in place and secure with thumbscrews (Figure 7a).
7-2. Clean the dust lters on top/bottom regularly to ensure adequate airow (Figure 7b).
7a
7
8. Options
8-1. Additional Fan Installation
The CULLINAN V Series features ample space for additional cooling fans. Please refer to
the Specications Table for options.
8-2. Liquid Cooling Radiator Installation
The CULLINAN V Series supports optional max. 280 mm radiator installation on top or a
360 mm radiator in the front to more effectively cool high-performance systems.
Front Water Cooling Radiator Installation Instructions:
a. Remove the front panel (Figure 8a).
b. Unscrew to remove the 120 mm fans (Figure 8b).
c. Secure the fans onto the radiator with Screw-D and put the front panel back (Figure 8c).
8c
8a
8d
8b
Top Water Cooling Radiator Installation Instructions:
a. Remove the top dust lter.
b. Secure the radiator with screws and put the dust lter back on (Figure 8d).
Model
Model Name CULLINAN V Series
Specs
Type Mid Tower
Color Black
Case Material Steel / Plastic / Tempered Glass
With Power Supply No
Motherboard Compatibility Micro-ATX, AT X, E-ATX
Expansion
External 5.25" Drive Bays N/A
Internal 3.5" Drive Bays 2 (0)
Internal 2.5" Drive Bays 4 (6)
Expansion Slots 7
I/O
Front Ports
4 x USB 3.0
Audio In/Out
Fan Speed Control
Cooling System
120 mm Fans
3 x Front (pre-installed)
3 x Top (optional)
1 x Rear (pre-installed)
140 mm Fans
3 x Front (optional)
2 x Top (optional)
1 x Rear (optional)
Physical Specs
Max GPU Length Allowance 400 mm
Max CPU Cooler Height Allowance 170 mm
Dimensions 8.78 x 19.30 x 18.66 in (W x H x D)
Weight 22.71 lb
CULLINAN V Series_A
Please register your product at www.rosewill.com for complete warranty information and support for your product.
Specifications Table
Features
Supports up to 400 mm long VGA Card
Supports up to 170 mm high CPU Cooler
Supports up to 360 mm long Liquid Cooling Radiator in Front
Supports up to 280 mm long Liquid Cooling Radiator on Top
Supports up to max. 250 mm long PSU
