Rinnai RHFE-308 FTR User manual
Installation and User Manual
RHFE-308 FTR
RHFE-308 FTR
Energysaver Space Heater
Important.
Read these instructions carefully before attempting installation or use of
this appliance. All work must be carried out by competent persons.
– 2 –
CONTENTS
Getting to Know your RHFE-308 FTR ………………………………………………………………………3
Remote Control …………………………………………………………………………………………………4
Control Panel Layout …………………………………………………………………………………………5
Features …………………………………………………………………………………………………………6
Safety Points ……………………………………………………………………………………………………8
Operating your new RHFE-308 FTR ………………………………………………………………………10
Setting the Clock ………………………………………………………………………………………………14
Pre-heat ………………………………………………………………………………………………………17
Override Function ……………………………………………………………………………………………18
Caring for your new RHFE-308 FTR ………………………………………………………………………19
Error Messages ………………………………………………………………………………………………21
Installation Instructions ………………………………………………………………………………………22
Location ………………………………………………………………………………………………………24
Installing the Flue ……………………………………………………………………………………………27
Sleeve and Manifold Installation ……………………………………………………………………………29
Flue Extension Kits ……………………………………………………………………………………………32
Conversion ……………………………………………………………………………………………………36
Connecting Gas and Electrical Services ……………………………………………………………………37
Testing …………………………………………………………………………………………………………38
Gas Pressure Setting …………………………………………………………………………………………39
Block and Wiring Diagram ……………………………………………………………………………………42
Dimensions ……………………………………………………………………………………………………44
Specification……………………………………………………………………………………………………46
Service Contact ………………………………………………………………………………………………48
–3 –

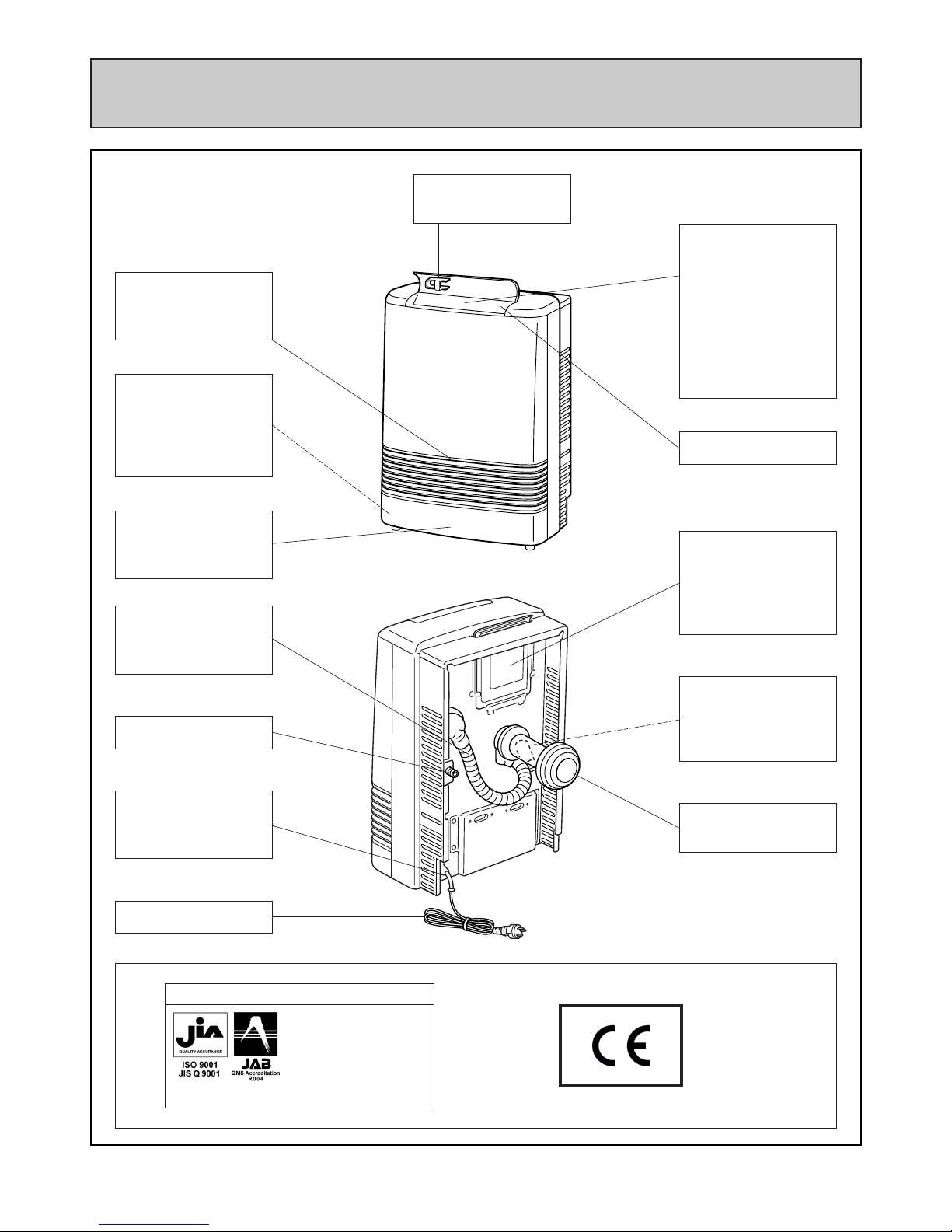

GETTING TO KNOW YOUR NEW RHFE-308FTR
REMOTE CONTROL
BRACKET
ROOM
TEMPERATURE
SENSOR
GAS CONNECTION
ELECTRICAL CORD
HUMIDIFIER TRAY
Built into the warm air
discharge duct.
Humidifies the warm
air flow.
BOTTOM TRIM
Pulls off to allow filling
of humidifier tray.
ON/OFF SWITCH
CONTROL PANEL
Concealed panel with
clock, room and pre-
set temperature
selection.
Time, temperature
and appliance error
codes are shown
here.
AIR FILTER
Helps to protect the
interior of the
appliance and fan
from dust particles.
EXHAUST OUTLET
Exhausts flue products
to the outside of the
building.
AIR INLET TUBE
Carries air for
combustion.
FLUE SYSTEM
(Supplied Separately)
LOUVRE
Warm air discharge
duct.
Rinnai Corporation - Japan
Manufactured under a
Quality System Certified
as complying with ISO
9001 by an Accredited
Certification Body.
ISO 9001
APPROVED BY JIA
–4 –
REMOTE CONTROL
ON
OFF
OFF BUTTON
Stops heater manually.
TEMPERATURE
ADJUSTMENT
Increases or decreases
the temperature setting.
ON BUTTON
Operates the heater
manually.
C
R
2
0
3
2
OPEN
TO REPLACE BATTERY
Simply open the back of the remote
control and replace Lithium battery.
TYPE: CR 2032
BATTERY
Power source
for operating
remote control.
FRONT REVERSE
■NOTE
>Some fluorescent lights may interfere with the transmission of remote control signals, in this case
changing the position from which you are operating the remote control may help.
>Avoid leaving the remote control in direct sunlight and do not place the remote close to the louvres
of the heater.
>Avoid getting the remote control wet, or dropping it.
>The remote control works within 5 metres and an angle of 40˚to the receiver on the heater.
>Only use the battery type specified. (CR 2032).
>Remove battery if control is not going to be used for a long period. This will help to avoid damage
from leaking batteries.
–5 –
Child Lock
Timer 1
Economy
Timer 2 Override
AM
PM
Set ・Room
Temp
・
Time Set times
Clock
Timer 1
Timer 2
Filter
on off
ON / OFF
ON
CONTROL PANEL LAYOUT
ECONOMY
Selects energy
saving function.
CHILD LOCK
Locks all controls when
pressed.
(EXCEPT OFF)
SET TIMES
Selects clock and/or
Timers for adjusting
or programming.
REMOTE CONTROL
RECEIVER
TIME/TEMP ADJUSTMENT
Increases or decreases the
temperature setting as well as
changing hours or minutes.
CHILD LOCK
INDICATOR
Indicates Child lock is
activated.
TIMER INDICATOR
Indicates that Timer 1
or Timer 2 has been
selected to operate.
OVERRIDE
Temporarily changes operation
from ON to OFF or OFF to ON,
until next programmed setting
is reached.
ECONOMY
INDICATOR
Indicates that the
Economy mode is in
operation.
OVERRIDE
INDICATOR
Indicates that the
override function is
activated.
ON TIMER
Selects operating
mode for Timer 1
or 2.
ON/OFF BUTTON
Main switch for turning
ON/OFF.
TIME/TEMP DISPLAY
Shows either the time of
day, temperatures, or
coded error messages.
POWER ON/COMBUSTION
INDICATOR
Indicates that the appliance is turned
ON and whether the burner is alight.
FILTER INDICATOR
Indicates that the filter
needs cleaning.
CLOCK ADJUSTMENT AND
TIMER INDICATORS
Indicates that clock or dual timer
programme is being set.

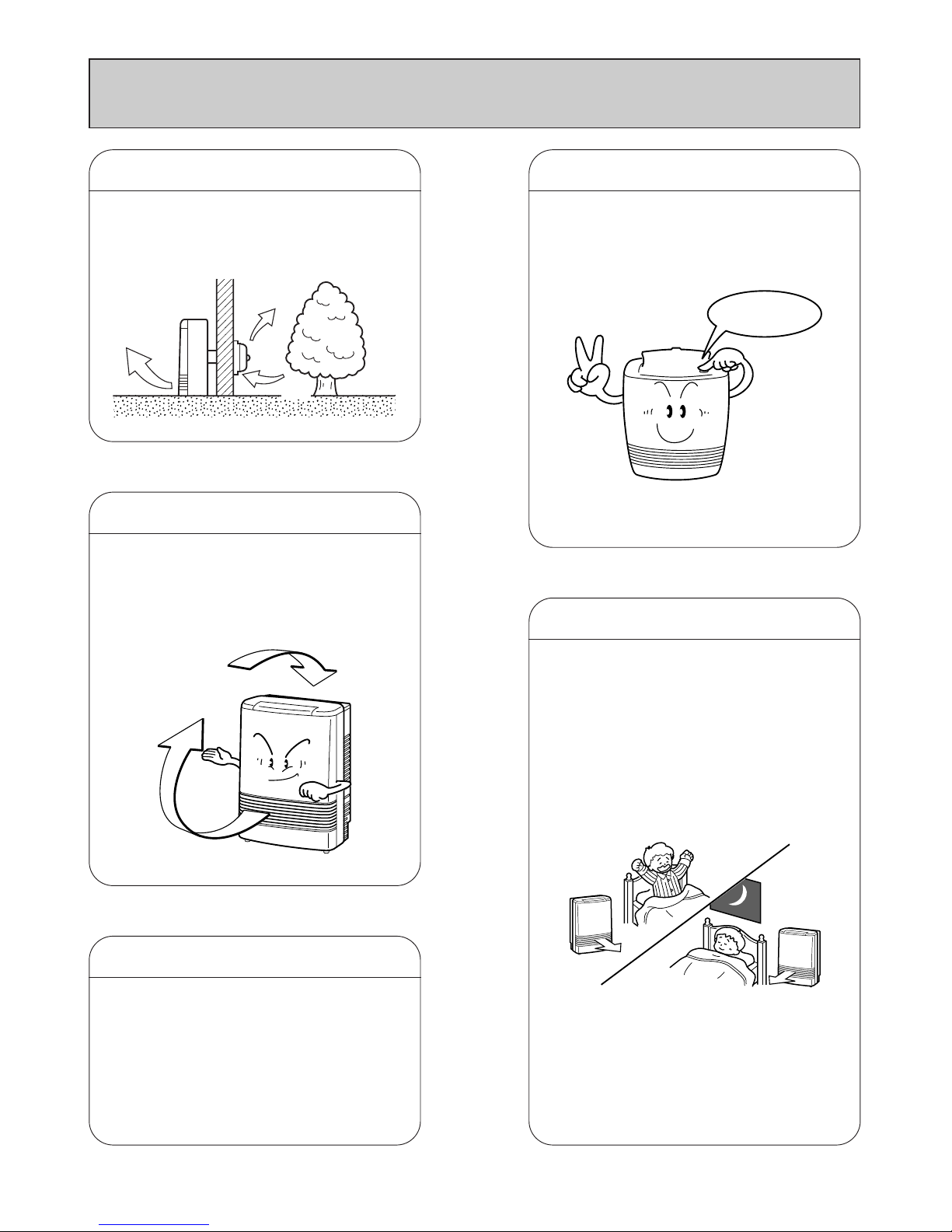

–6 –
FORCED FLUE SYSTEM PUSH BUTTON IGNITION
Air for combustion is taken from outside the
room and the flue products are exhausted
outside, keeping the room air clean.
Only one touch of the ON/OFF switch is
required to operate the heater.
EXHAUST
AIR
INLET
PRE-HEAT
The function will automatically operate the
appliance within one hour prior to the
programmed time of the Timer. This is
designed to heat a room to the pre-set
temperature by the programmed time.
WARM AIR DISCHARGE
Warm air flows from the bottom of the
appliance through the louvres, assisting in
even heat distribution. An integral humidifier
tray is built into the warm air discharge duct.
ONE
TOUCH
DUAL ON/OFF TIMER
The Dual Timer allows you to programme
the appliance to come on for two separate
periods each day, usually one period in the
morning, and one period in the evening.
The built in Intelligent Mode brings the room
temperature to the temperature you have
selected, by the time programmed into the
Timer.
The Dual Timer feature means that you can
“Set and Forget”your heater. It will turn
itself ON and OFF at times you have
programmed until you cancel the Timer
program.
FEATURES
–7 –

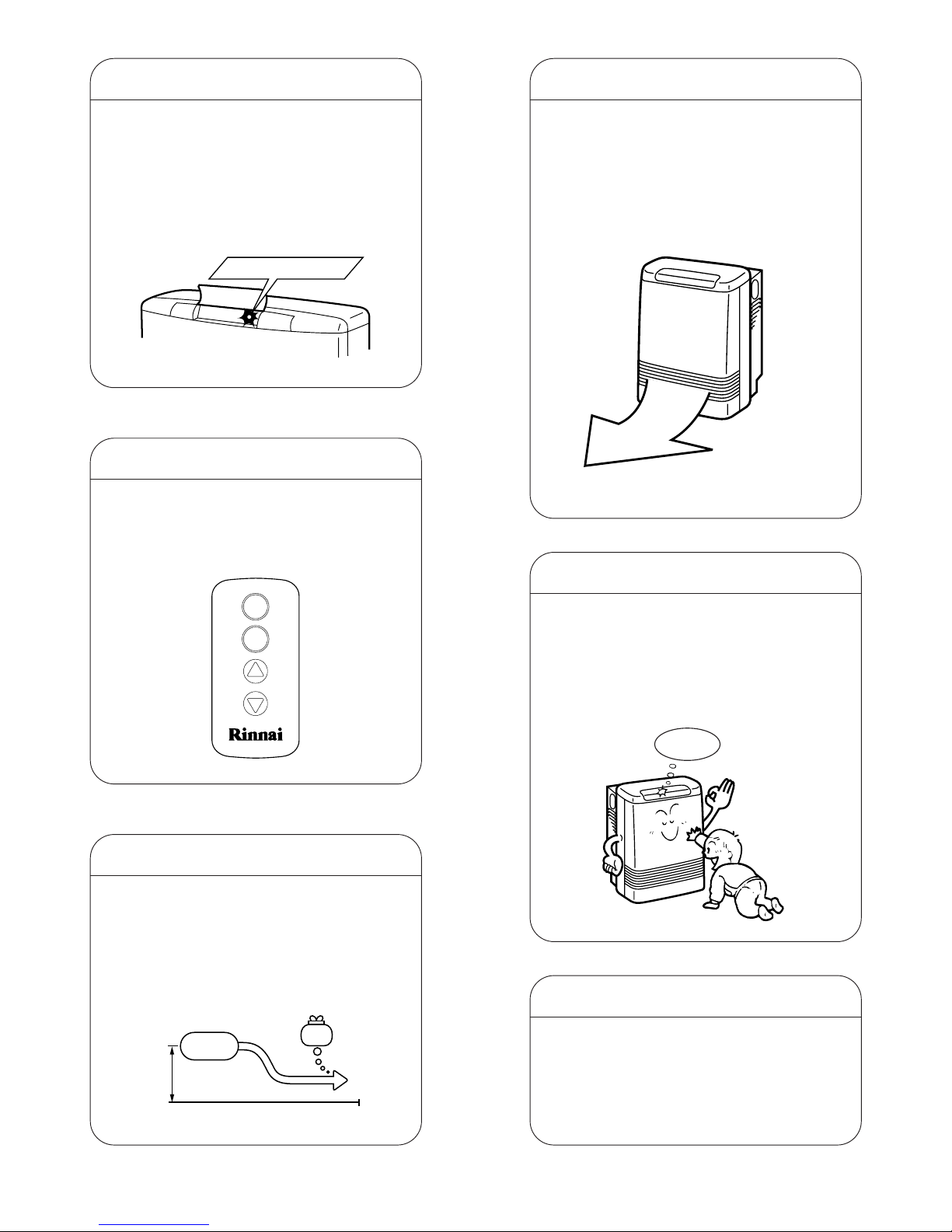

MEMORY
The micro-computer records selected pre-
set temperatures, the times programmed
into the Timers as well as operating the
Economy and Intelligent modes, to maintain
comfort levels.
FILTER INDICATOR
When the fan filter becomes covered with
dust and the temperature inside the
appliance rises, the filter indicator will flash.
The filter should be vacuumed at regular
intervals to avoid unnecessary strain on the
appliance.
FITERINDICATOR
REMOTE CONTROL
For the convenience of turning the heater
ON or OFF, as well as adjusting the
temperature up or down while at a short
distance from the heater.
ON
OFF
ECONOMY MODE
This is an energy saving feature designed to
reduce the room temperature to 1˚C less
than the pre-set temperature over a period
of 30 minutes, and an additional 1˚C after
another 30 minutes.
PRE-SET
TEMP
2C
1hour
￡
AUTO COMFORT
Ensures that the flow of warm air from the
louvres is maintained at a comfortable
volume during the warm-up period by a 8
step modulating convection fan, in
conjunction with the thermostat, reducing
cool draughts.
CHILD LOCK
When the Child lock is activated all controls
other than the OFF switch will be locked.
Deactivating the lock releases the controls.
If the lock is activated when the appliance is
off, all functions will be locked.
LOCKED
–8 –

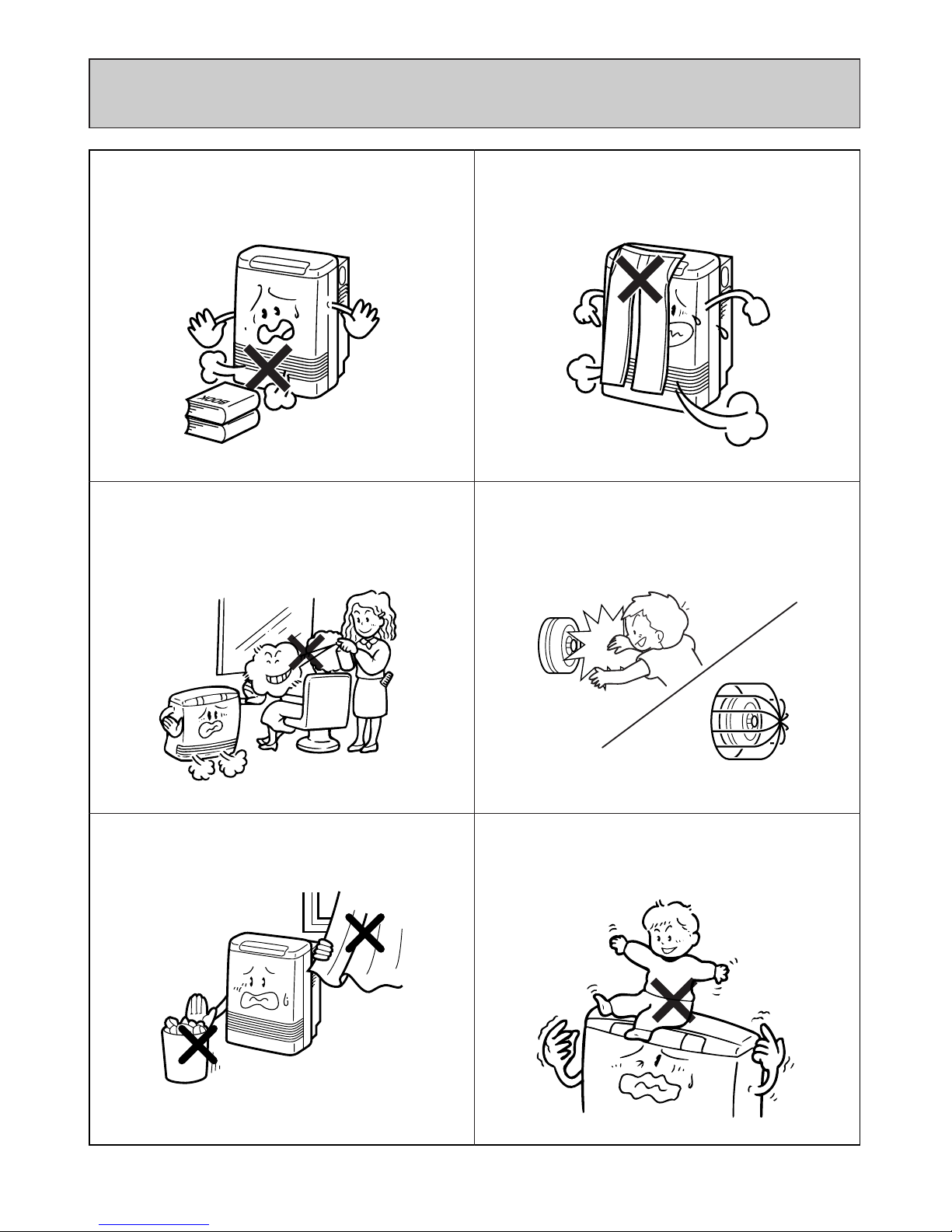

SAFETY POINTS
Do not restrict the warm air discharge by
placing articles in front of the heater.
This appliance must not be used for any
purpose other than heating.
Do not spray aerosols whilst the heater is
operating. Most aerosols contain butane gas,
and can be a fire hazard if used near this
heater when it is in use.
Flue guard is recommended where children
may be able to touch the flue terminal.
Do not allow curtains or other flammable or
combustible materials to come into contact
with the heater.
Combustible materials must not be placed
where the heater could ignite them.
Do not allow anyone to sit on or lean against
the appliance.
–9 –

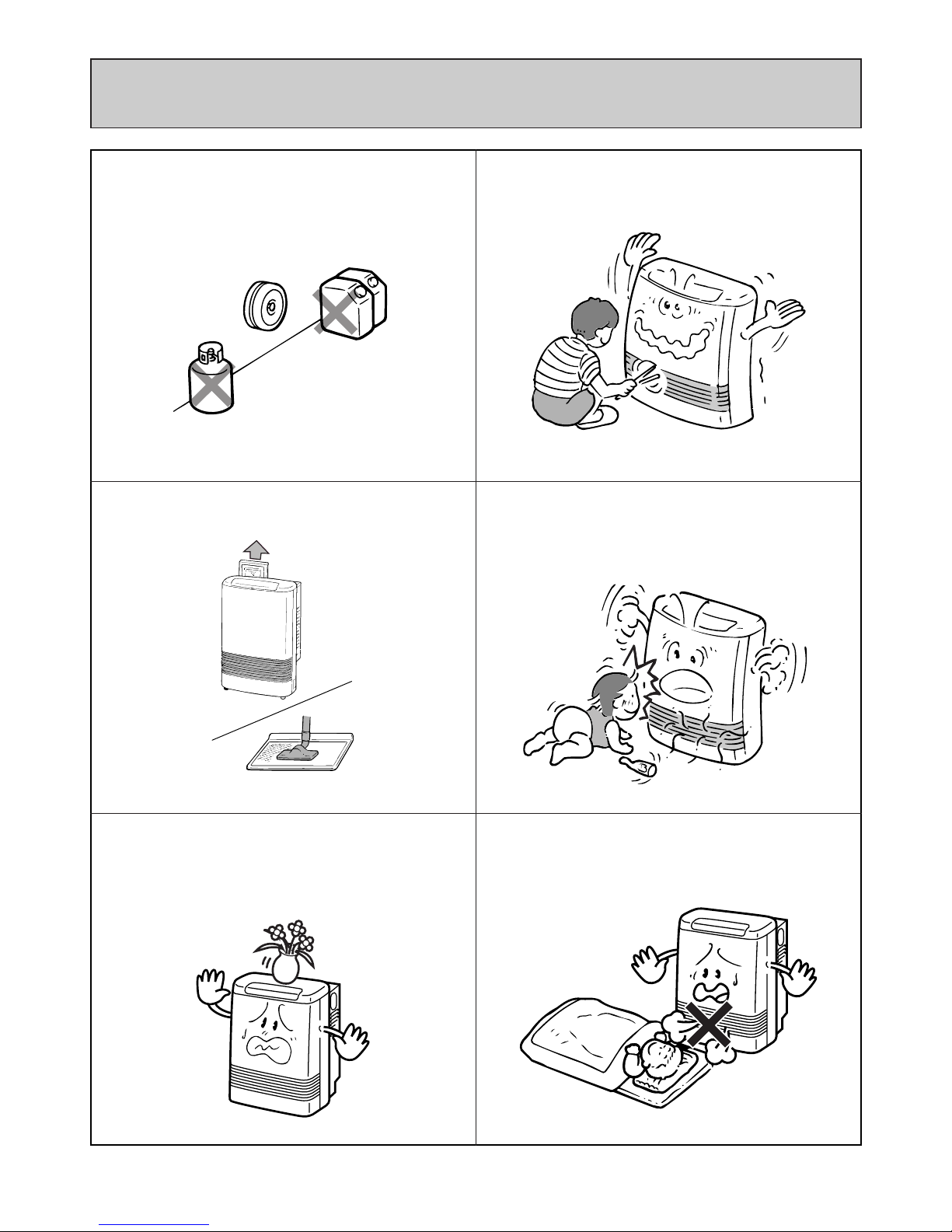

SAFETY POINTS
Keep flammable materials, trees, shrubs, etc,
away from the flue terminal.
Do not allow anyone to post articles through
the louvres.
LPGAS
GAS
Gasoline
Filter should be cleaned at regular intervals. Young children should be supervised at all
times. Hand or body contact with the louvres
should be avoided.
Do not place articles containing liquids on top
of the heater. Liquids spilt on the controls may
cause extensive damage.
Do not allow young children or the infirm to
sleep directly in front of the heater.
Clean with vacuum cleaner, weekly.
–10 –

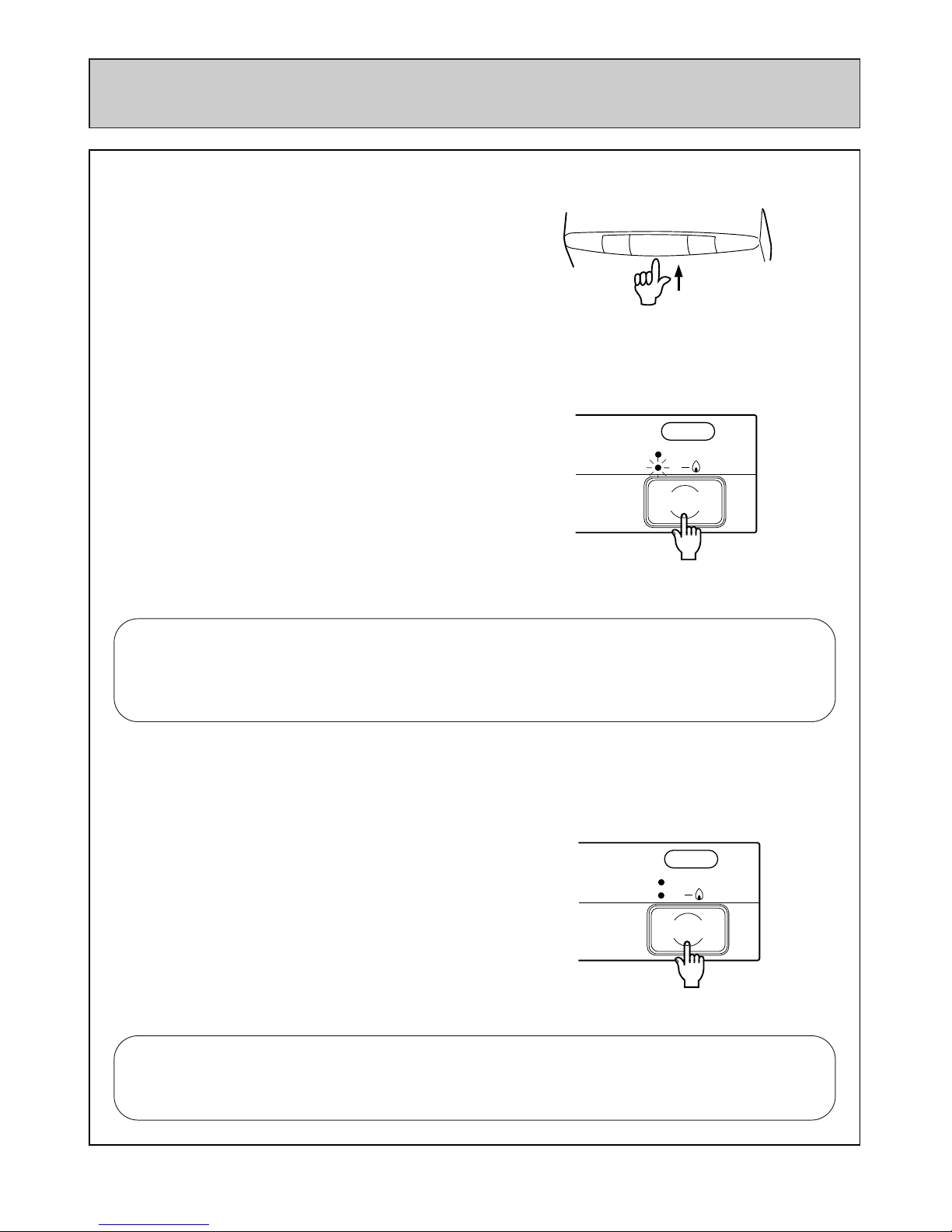

OPERATING YOUR NEW RHFE-308FTR
■TO OPEN THE CONTROL PANEL
Lift lightly in the centre of the lid where there is
a catch. The control panel lid will then drop
backward to an angle.
■TURNING ON
Press the ON/OFF button to operate the
heater. The ON indicator will glow green.
After approximately 20 seconds the spark
generator will be heard before the burner
ignites and the ON indicator glows red,
indicating that the burner is alight. Warm air
can be felt coming from the louvres 15
seconds later.
If the heater does not ignite on initial use, this may be due to air remaining in the gas supply line. The
spark generator will only continue for 15 seconds. After this it will be necessary to press the ON/OFF
button OFF, then ON again.
■TURNING OFF
Simply press the ON/OFF button to switch off
the heater. The ON indicator will go out. The
convection fan will continue to operate for
several minutes after the burner has gone out
in order to cool the appliance. Do not unplug
the appliance while the convection fan is
running.
DO NOT turn heater off by unplugging at the power point.
The convection fan must continue to run until the appliance cools.
LIFT
Filter
ON / OFF
ON
Filter
ON / OFF
ON
Table of contents
Other Rinnai Heater manuals
Rinnai
Rinnai 1001T User manual
Rinnai
Rinnai RHFE-1004T User manual
Rinnai
Rinnai Energysaver RHFE-556FM User manual
Rinnai
Rinnai RCE-229A Quick start guide
Rinnai
Rinnai Sapphire User manual
Rinnai
Rinnai FS35ETRBL/US Specification sheet
Rinnai
Rinnai Energysaver RHFE-1004FTR Operating instructions
Rinnai
Rinnai ORH15S User manual
Rinnai
Rinnai FS35ETRN Quick start guide
Rinnai
Rinnai Cosypanel User manual
Rinnai
Rinnai RCE-460PTR User manual
Rinnai
Rinnai RHFE-309FT Specification sheet
Rinnai
Rinnai RHFE-951ETR User manual
Rinnai
Rinnai FC510 User manual
Rinnai
Rinnai ENERGYSAVER RHFE-308FTR Operating instructions
Rinnai
Rinnai RCE-329A Quick start guide
Rinnai
Rinnai RHFE-309FT Specification sheet
Rinnai
Rinnai RHFE-551FT User manual
Rinnai
Rinnai RHFE-309FT User manual
Rinnai
Rinnai RHFE-556FTR Specification sheet
Popular Heater manuals by other brands
oventrop
oventrop Regucor Series quick start guide
Blaze King
Blaze King CLARITY CL2118.IPI.1 Operation & installation manual
ELMEKO
ELMEKO ML 150 Installation and operating manual
BN Thermic
BN Thermic 830T instructions
KING
KING K Series Installation, operation & maintenance instructions
Empire Comfort Systems
Empire Comfort Systems RH-50-5 Installation instructions and owner's manual
Empire Heating Systems
Empire Heating Systems WCC65 Installation and owner's instructions
Wetekom
Wetekom 92 86 43 Original instructions
Desa
Desa SPC170-F owner's manual
Watlow
Watlow Watrod Electric Tubular Heaters Specifications
Haverland
Haverland ECO-DRY GPS Series Instruction & installation manual
Stelpro
Stelpro ASILVC2060 Series user guide
