Rinnai RHFE-556FTR Specification sheet

Please note:

Flue System Installation Instructions

enclosed with Flue Terminal packaged

separately.

This appliance shall be installed in accordance with:

• Manufacturer’s Installation Instructions

• Local Gas Fitting Regulations

• Municipal Building Codes

• AS/NZS 5601 Gas Installations, AS/NZS 3000 Wiring Rules

• Any other relevant Statutory Regulations

This appliance must be installed, serviced and removed by an authorised person.

All Rinnai gas products

are A.G.A. certified.

Energysaver® Space Heaters

Operation and Installation Manual

To Suit Models:

RHFE-556FTR / RHFE-556FDT

RHFE-557FTR

RHFE-1004FTR / RHFE-1004FDT

Rinnai Australia ii Energysaver® - Operation & Installation Manual

INSTALLATION REQUIREMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

CERTIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

CARTON CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

INSTALLATION RECORD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

SAFETY DEVICES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

ABOUT YOUR ENERGYSAVER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

CUSTOMER INFORMATION - CONTROL PANEL. . . . . . . . . . . . . . . . . . . . . . . . . .11

REMOTE CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

CUSTOMER INFORMATION - OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

FDT Models Only .........................................................................................................16

Fixed Time Period Operation for FDT Models only: .....................................................16

How to Operate the FDT Models Only .........................................................................16

To Turn the Unit ‘ON’ ...................................................................................................16

To Turn the Unit ‘OFF’ .................................................................................................17

Adjusting the Temperature ...........................................................................................17

SETTING THE CLOCK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Operating the Timers ...................................................................................................19

Set and Forget Operation ............................................................................................19

OPERATING THE TIMERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Pre-Heat .......................................................................................................................20

Humidifier Tray .............................................................................................................20

Outside Flue Terminal ..................................................................................................20

OTHER OPERATING INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Cleaning .......................................................................................................................21

Fan Filter ......................................................................................................................21

CARE OF YOUR ENERGYSAVER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

TROUBLE SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

ERROR MESSAGES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

INSTALLATION MANUAL - TABLE OF CONTENTS . . . . . . . . . . . . . . . . . . . . . . . .26

CONTACT INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

TABLE OF CONTENTS

Rinnai Australia 1 Energysaver® - Operation & Installation Manual

INSTALLATION REQUIREMENTS

This heater must be installed by an authorised person. The installation must conform to local regulations.

The installation must also comply with the instructions supplied by Rinnai.

Service and removal must be carried out by an authorised person.

The Rinnai Energysaver®Range have been certified by the Australian Gas Association.

The AGA Certification Number is shown on the appliance dataplate.

No parts or functions should be modified or permanently removed from the heater.

Please keep these instructions in a safe place for future reference.

Check you have the following:

1 x Rinnai Energysaver Space Heater - Model either:

RHFE-556FTR/FDT, RHFE-557FTR, RHFE-1004FTR or RHFE-1004FDT

1 x Rear Cover set, comprising of left, right and top cover panels

1 x Bolt pack containing;

• Stainless steel sheath clamp

• 2 x securing brackets

• 2 x 8g x 30 mm stainless steel securing bracket screws

• 2 x plastic inlet hose clamps

• 1 x 150 mm long cable tie

• 1 x HD stainless steel flue clamp

• 2 x 6g x 10 mm button head screws

• 4 x 6g x 8 mm pan head screws.

For Flueing details, please refer to seperate Energysaver Co-Axial Flueing Installation

Manual’.

IMPORTANT

CERTIFICATION

CARTON CONTENTS

Rinnai Australia 2 Energysaver® - Operation & Installation Manual

INSTALLATION RECORD

INSTALLERS / GAS FITTERS DETAILS

Installers Name: ____________________________________________________________________

Company Name: ____________________________________________________________________

Company Address: ____________________________________________________________________

____________________________________________________________________

Company Contact Details

Telephone: ____________________________________________________________________

Mobile Phone: ____________________________________________________________________

Certificate of Compliance / Certification Number: _____________________________________________

Authorised Persons - Licence Number: _____________________________________________________

Installers Signature: ____________________________________________________________________

Installation Date: ____________________________________________________________________

APPLIANCE DETAILS

Model Number: ____________________________________________________________________

Serial Number: ____________________________________________________________________

Installation Address: ____________________________________________________________________

____________________________________________________________________

Rinnai Australia 3 Energysaver® - Operation & Installation Manual

• Failure to comply with these instructions could result in a fire or explosion,

which could cause serious injury, death or property damage.

• Improper installation, adjustments, service or maintainence can cause serious

injury, death or property damage. Such work must be performed by an

authorised person.

• The appliance must be installed in accordance with the local gas and electrical

authority regulations.

• For information on gas consumption, see data plate on the appliance.

• This appliance must not be installed where curtains or other combustible

materials could come in contact with it. In some cases curtains may need

restraining.

• When considering installation ensure minimum clearances as follows are

adhered to.

• Heat radiating from the front of the heater

may over time affect the appearance of

some materials used for flooring such as

carpet, vinyl, cork or timber. This effect

may be amplified if the air in the room

contains cooking vapours or cigarette

smoke. To avoid this possibility, it is

recommended that a mat or similar

protective sheet be placed in front of the

appliance, extending at least 750 mm in

front of the air outlet.

• The appliance is not intended for use by young children or infirm persons

without supervision.

• This appliance is not intended for use by persons (including children) with

reduced physical, sensor or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instructions

concerning use of this appliance by a person responsible for their safety.

• These appliances are not intended for use by young children or infirm persons

without supervision.

• Young children should be supervised when in the vicinity of these heaters while

in operation.

• If the supply cord is damaged or require replacing, it must be replaced by the

manufacturer or the manufacturer's agent or similarly qualified person in order

to avoid a hazard.

• This heater must not be located immediately below a power socket outlet.

• DO NOT connect to an LPG Gas cylinder indoors.

• A dedicated 240 V earthed 10 Amp power point must be used with this

appliance.

• DO NOT modify this appliance. Modifying it in any way or form, from original

specifications may create a dangerous situation and will void your warranty.

• Only the flue components specified by Rinnai must be used.

• Unpack the heater and check for damage. DO NOT INSTALL DAMAGED

HEATER. If the heater is damaged, contact your supplier for advice.

• Before installing the heater, check the label for the correct gas type (see rating

plate, right hand side panel).

• Refer to local gas authority for confirmation of the gas type if you are in doubt.

WARNING

AT L E A S T

750 mm

SAFETY

Rinnai Australia 4 Energysaver® - Operation & Installation Manual

DO NOT allow children to post articles in the

louvres.

The appliance is not intended for use by

young children or infirm persons without

supervision.

Young children should be supervised to

ensure they DO NOT play with the appliance.

DO NOT allow children or elderly persons to

sleep in the warm air discharge from the

heater.

DO NOT cover or place articles on this

heater.

Turn ‘OFF’ heater after use.

SAFETY

Rinnai Australia 5 Energysaver® - Operation & Installation Manual

Keep away from flammable materials.

Combustible materials must not be placed

where the heater could ignite them.

DO NOT place articles on or against this

appliance.

DO NOT use or store flammable materials

near this appliance.

DO NOT spray aerosols in the vicinity of this

appliance while it is in operation.

Most aerosols contain butane gas which can

be a fire hazard if used near this heater when

it is in use.

DO NOT sit on this heater.

DO NOT place articles in front of the louvres.

DO NOT unplug the heater while it is in

operation or while the fans are still cycling.

DO NOT turn the heater ‘OFF’ by unplugging

it from the wall.

SAFETY

Rinnai Australia 6 Energysaver® - Operation & Installation Manual

DO NOT place containers of liquid on top of

the heater. Water spillage can cause

extensive damage to the appliance and may

result in electric shock.

A dedicated 240V 10 Amp power point be

used with this appliance.

DO NOT use power boards or double

adaptors to operate this appliance.

Heater must not be located below a power

socket-outlet.

This appliance must not be built-in

The clearances must be maintained.

Access panel and Humidifier tray have to be

fitted while the heater is in use.

Rinnai recommend you fill the tray to the

water level indicator as marked. Take care

not to overfill.

Heat emanating from the front of this

appliance may over time affect the

appearance of some materials used for

flooring such as carpet, vinyl, cork or timber.

This effect may be amplified if the air in the

room contains cooking vapours or cigarette

smoke. To avoid this possibility, it is

recommended that a mat be placed in front of

the appliance, extending at least 750 mm in

front of the air outlet.

1000 mm

50 mm

50 mm 50 mm

250mm

TOP

FRONT

LEFT SIDE RIGHT SIDE

WATER LEVEL

Pull Humidifier Tray

WATERLEVEL

Gently Remove

Access Panel

Pull

AT L E A S T

750 mm

SAFETY

Rinnai Australia 7 Energysaver® - Operation & Installation Manual

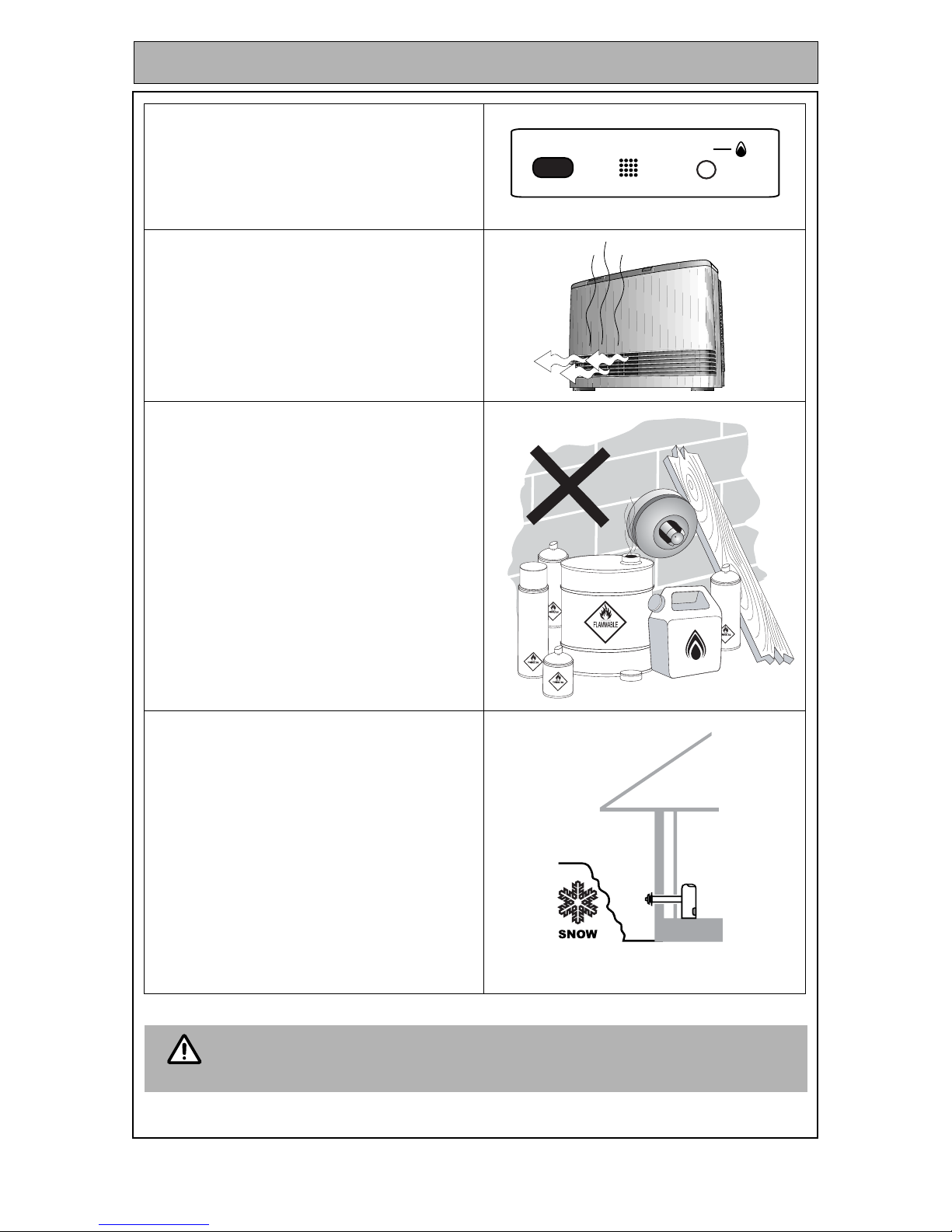

During peak operating periods the filters

should be cleaned weekly, however if the

“FILTER” warning indicator flashes in the

control panel display, turn off the appliance

immediately and clean filters before further

use.

When the heater is operated for the first time

or after long periods of non use a slight odour

may be emitted, this is normal.

However if odours persist switch off the

appliance and contact Rinnai.

Keep flammable materials, trees shrubs etc.

away from the flue terminal.

Snow Areas - in areas subject to heavy

snowfall, keep snow clear of flue terminal at

all times.

Servicing shall be carried out only by an Authorised Person

Filter ON

IMPORTANT

SAFETY

Rinnai Australia 8 Energysaver - Operation & Installation Manual

Overheat Switch:

This device automatically cuts the gas off if the heater exceeds a predetermined temperature.

This is normally caused by an obstruction in front of the louvres, or a blocked fan filter.

If this switch operates, turn the unit OFF, remove the obstruction (clean filters) and let the unit cool off

before re-operating.

Two Fusible Links:

Backs up the overheat switch. If a fusible link cuts the gas off, a service call is required to repair the

appliance replace the link.

Flame Failure Device:

If the flame goes out during operation this device cuts the unit off (lockout). To reset, turn the unit ‘OFF’,

then ‘ON’ again. If this happens repeatedly a service call is required.

Fan Switch:

Turns the fan on automatically when the heat exchanger warms up and off when it cools down.

This helps to prevent cold draughts and maximises efficiency.

Electrical Fuse:

The electrical circuits areprotected by an electric fuse. When the fuseblows, the heater will not operate.

The fuse must be replaced by an authorised person.

Power Failure:

In the event of a power failure or power cut, the gas valves will automatically close. After the power is

re-instated the appliance must be re-started manually.

Rinnai Australia has a service and spare parts network in all states. Our service network personnel are

fully trained and equipped to give the best service on your Rinnai appliance. If your appliance needs

servicing, please ring one of the service contact numbers on the back of this booklet.

Rinnai recommend that this appliance be serviced every 2 years.

SAFETY DEVICES

SERVICE

Other manuals for RHFE-556FTR

This manual suits for next models

Table of contents

Other Rinnai Heater manuals

Rinnai

Rinnai EX17 Operation manual

Rinnai

Rinnai RHFE-557FT User manual

Rinnai

Rinnai RHFE-1510F User manual

Rinnai

Rinnai RHFE-952ER User manual

Rinnai

Rinnai ENERGYSAVER RHFE-308FTR User manual

Rinnai

Rinnai ES750 User manual

Rinnai

Rinnai rhfe-431ft User manual

Rinnai

Rinnai Energysaver RHFE-1004FDT Operating instructions

Rinnai

Rinnai Cosypanel User manual

Rinnai

Rinnai Arriva 750 User manual

Rinnai

Rinnai Granada 252 User manual

Rinnai

Rinnai SPECTRUM 28 REH281 EB User manual

Rinnai

Rinnai Avenger 25 Plus User manual

Rinnai

Rinnai RCE-329A Quick start guide

Rinnai

Rinnai RHFE-1004T User manual

Rinnai

Rinnai FS35ETRN Quick start guide

Rinnai

Rinnai RHFE-309FT Specification sheet

Rinnai

Rinnai RHFE-556FTD Operating instructions

Rinnai

Rinnai RHFE-308 FTR User manual

Rinnai

Rinnai ES38 RHFE-1004RFA Quick start guide

Rinnai

Rinnai FC824 User manual

Rinnai

Rinnai ENERGYSAVER RHFE-308FTR User manual

Rinnai

Rinnai RHFE-951ETR User manual

Rinnai

Rinnai RCE-606TRA II Quick start guide

Popular Heater manuals by other brands

oventrop

oventrop Regucor Series quick start guide

Blaze King

Blaze King CLARITY CL2118.IPI.1 Operation & installation manual

ELMEKO

ELMEKO ML 150 Installation and operating manual

BN Thermic

BN Thermic 830T instructions

KING

KING K Series Installation, operation & maintenance instructions

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Installation instructions and owner's manual

Well Straler

Well Straler RC-16B user guide

EUROM

EUROM 333299 instruction manual

Heylo

Heylo K 170 operating instructions

Eterna

Eterna TR70W installation instructions

Clarke

Clarke GRH15 Operation & maintenance instructions

IRSAP

IRSAP The Radiator Company Ovali Fitting instructions

Empire Heating Systems

Empire Heating Systems WCC65 Installation and owner's instructions

Wetekom

Wetekom 92 86 43 Original instructions

Desa

Desa SPC170-F owner's manual

Watlow

Watlow Watrod Electric Tubular Heaters Specifications

Haverland

Haverland ECO-DRY GPS Series Instruction & installation manual

Stelpro

Stelpro ASILVC2060 Series user guide
