Rimage DL5200/DLN5200

User Guide

Corporate Headquarters:

Rimage Corporation

7725 Washington Avenue South

Minneapolis, MN 55439

USA

800-553-8312 (toll free US)

Service: +1 952-946-0004 (International)

Fax: +1 952-944-6956

European Headquarters:

Rimage Europe GmbH

Albert-Einstein-Str. 26

63128 Dietzenbach Germany

Tel: +49-(0) 6074-8521-0

Fax: +49-(0) 6074-8521-21

Rimage Corporation reserves the right to make

improvements to the equipment and software described

in this document at any time without any prior notice.

Rimage Corporation reserves the right to revise this

publication and to make changes from time to time in the

content hereof without obligation of Rimage Corporation

to notify any person or organization of such revisions or

changes.

This document may contain links to web sites that were

current at the time of publication, but may have moved or

become inactive since. This document may contain links

to sites on the Internet that are owned and operated by

third parties. Rimage Corporation is not responsible for

the content of any such third-party site.

Rimage™ is a trademark of the Rimage Corporation.

DL5200/DLN5200™ is a trademark of the Rimage

Corporation. Dell®is registered trademark of Dell

Computer Corporation. FireWire®is a registered

trademark of Apple Computer, Inc.

All other trademarks and registered trademarks are the

property of their respective owners.

110768-000_F

Contents

Introduction..............................................................................................................1

Important Information..............................................................................................2

Support Information..........................................................................................................................2

Learn More Online ...........................................................................................................................2

Technical Support and Product Updates.........................................................................................3

CD and DVD Recording Software Disclaimer..................................................................................3

Safety and Compliance Information.................................................................................................3

Safety Precautions....................................................................................................................................3

Compliance Information............................................................................................................................4

DL5200/DLN5200 Specifications.....................................................................................................5

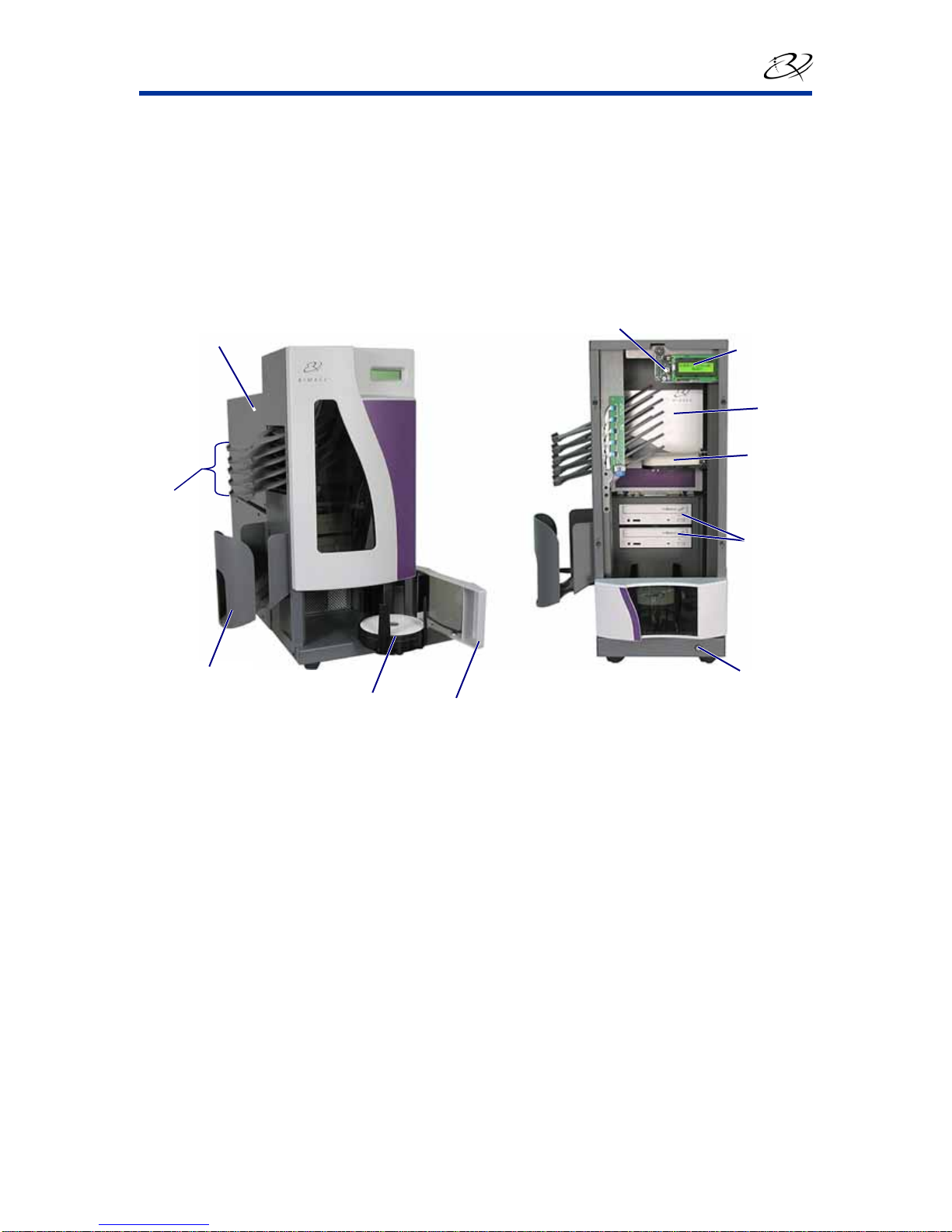

Identify the Parts of the Rimage DL5200/DLN5200...............................................7

Front View........................................................................................................................................7

Rear View - Rimage DLN5200.........................................................................................................8

Rear View - Rimage DL5200...........................................................................................................8

Description of Parts..........................................................................................................................9

Operator panel..........................................................................................................................................9

Operator button.........................................................................................................................................9

Beeper......................................................................................................................................................9

Output trays..............................................................................................................................................9

Output bin...............................................................................................................................................10

Operate the Rimage DL5200/DLN5200.................................................................11

Power On.......................................................................................................................................11

Power on the Rimage DLN5200.............................................................................................................11

Power on the Rimage DL5200................................................................................................................11

Power Off.......................................................................................................................................12

Power off the Rimage DLN5200.............................................................................................................12

Power off the Rimage DL5200................................................................................................................12

Load Discs .....................................................................................................................................12

Remove or Install the Front Panel .................................................................................................13

Remove the front panel ..........................................................................................................................13

Install the front panel ..............................................................................................................................13

Maintain the DL5200/DLN5200..............................................................................15

Preventive Maintenance Schedule ................................................................................................15

Align the Everest Printer ................................................................................................................15

Operate Gemini Utilities.................................................................................................................18

Start Gemini Utilities...............................................................................................................................18

Change the autoloader display name.....................................................................................................18

Enable the beeper ..................................................................................................................................18

Stop Gemini Utilities ...............................................................................................................................18

110768_F i

Introduction

This manual provides the information needed to operate the DL5200/DLN5200 and identify the parts. To set

up and install your DL5200/DLN5200, refer to the Setup and Installation Guide included with your product.

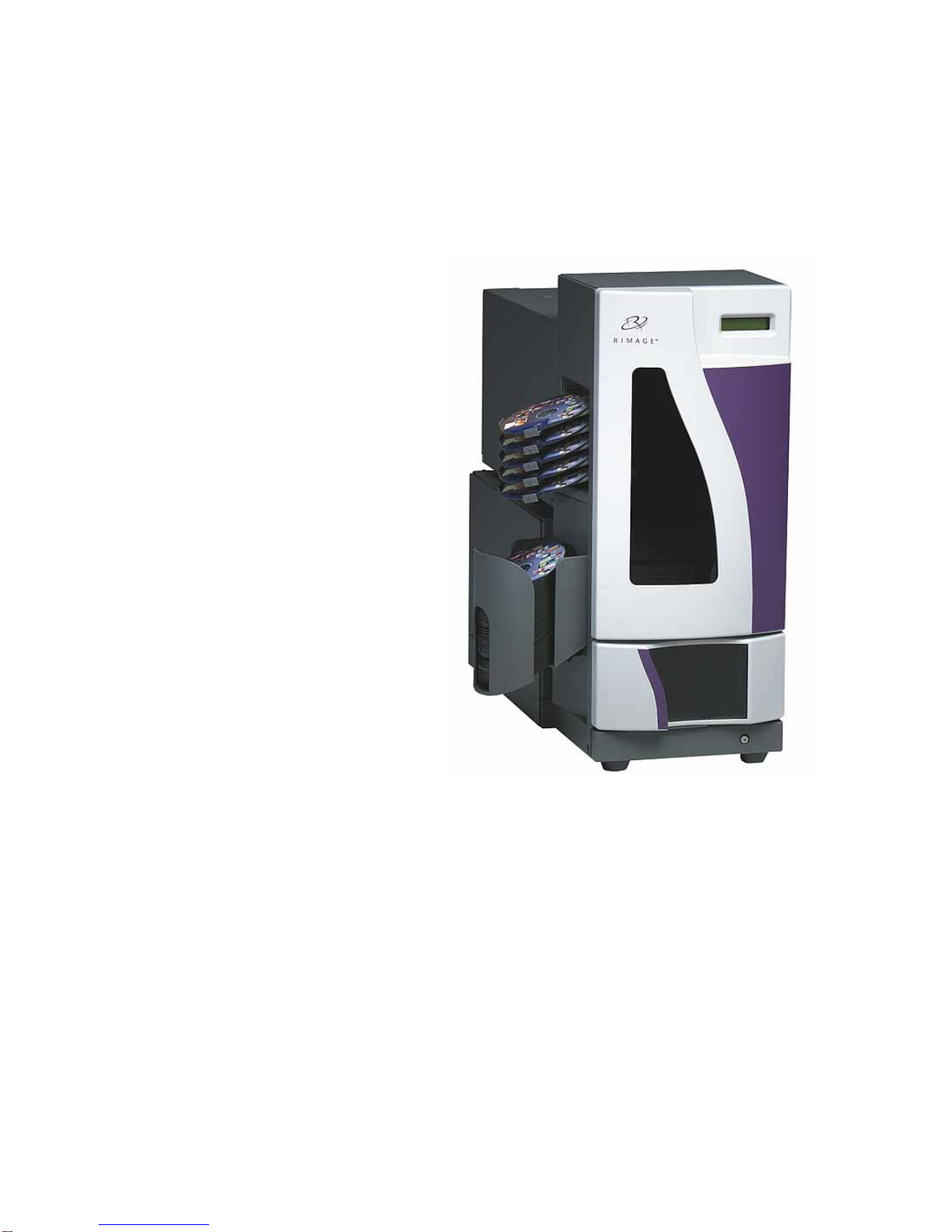

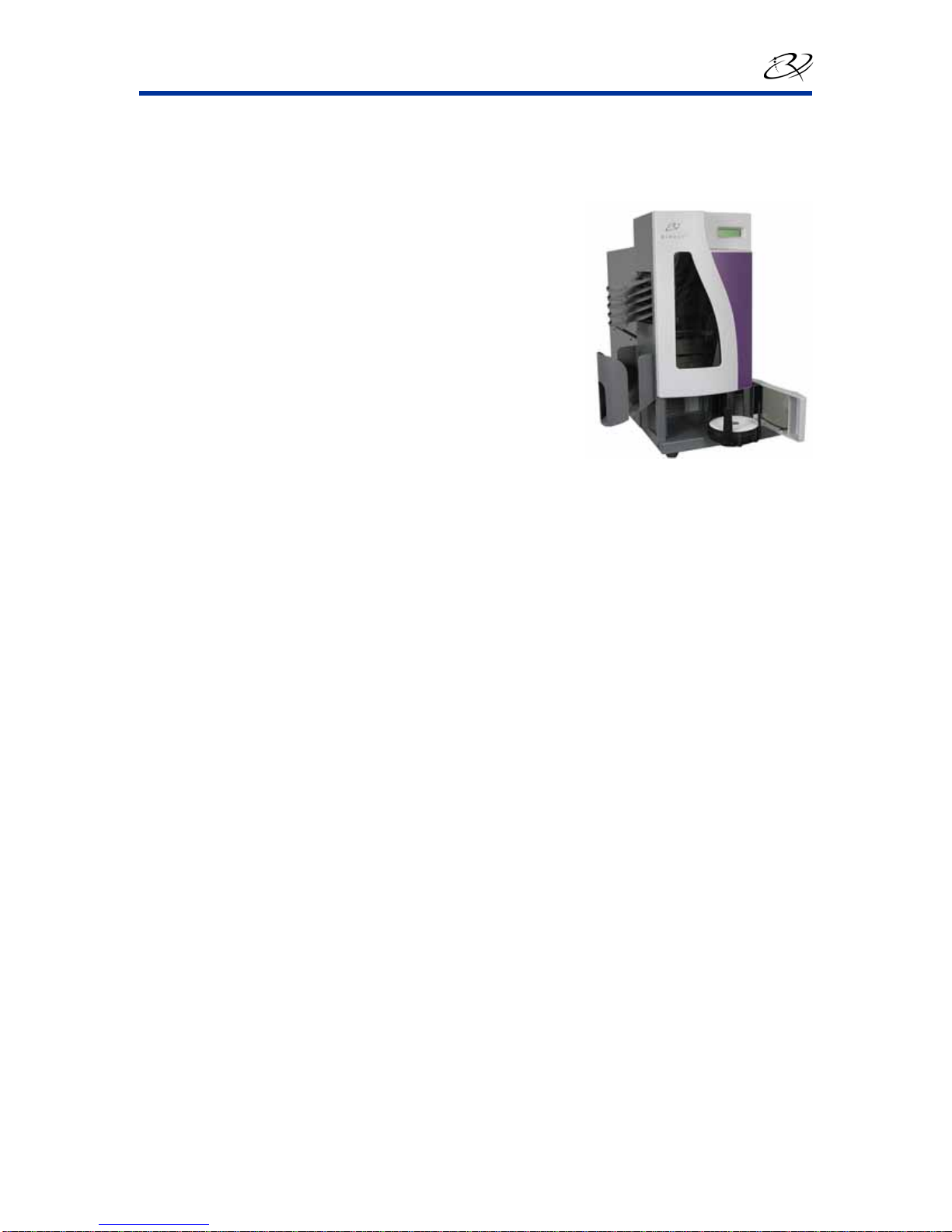

The Rimage DLN5200 and DL5200 are robotic-controlled

autoloaders containing two recorders, a two-line display panel,

and an Everest™ printer. The Rimage DL5200/DLN5200

records and prints discs, then places the finished discs in the

output bin, or in one of the five output trays.

The Rimage DL5200 requires a PC.

The Rimage DLN5200 has an embedded PC and is a network

ready device that receives orders from other networked

computers. You can also operate the Rimage DLN5200 by

attaching a monitor, keyboard, and mouse.

Rimage DL5200/DLN5200

110768_F 1

Rimage DL5200/DLN5200 User Guide

Important Information

This section provides support contact information, cautions and warnings, and product specifications for the

DL5200/DLN5200.

Support Information

US, Asia/Pacific, Mexico/Latin America Europe

Rimage Corporation

7725 Washington Avenue South

Minneapolis, MN 55439

USA

Attn: Rimage Services

Rimage Europe GmbH

Albert-Einstein-Str. 26

63128 Dietzenbach Germany

Contact Rimage Services:

www.rimage.com/support.html

Email: http://www.rimage.com/support_form.cfm

Telephone:

North America: 800-553-8312

Asia/Pacific, Mexico/ Latin America: 952-946-0004

Fax: 952-946-6956

Contact Rimage Services Europe:

www.rimage.com/support.html

Email: [email protected]

Telephone: +49-(0) 1805-7462-43

Fax: +49-(0) 6074-8521-100

When you contact Rimage Services, please

provide: My Rimage Product Information:

Copy this information from your Rimage Product for future

reference.

•Unit serial number and software version. Serial Number:

•Functional and technical description of the problem. Product Name:

•Exact error message received. Date of

Purchase:

Learn More Online

At www.rimage.com/support.html, you can experience Rimage’s world-class Support and Services.

1. Select your product family. 2. Select your product. 3. Learn more on your product

page.

From your product page you can access:

yInformation about the latest software and firmware updates

yProduct specifications

yThe latest documents

yCurrent firmware and driver downloads

2 110768_F

Important Information

Technical Support and Product Updates

Support for the DL5200/DLN5200 is available through your authorized reseller.

-Important! Be sure to register your DL5200/DLN5200 so Rimage can notify you of upgrades as they

become available.

nuipment.

nve this guideline could result in loss or damage to the

the precautions in this document and familiarize yourself with their meaning

efore using the equipment.

nWar

•rmful to

•instrument in conjunction

Use the supplied AC power cord, or use a safety

agency-approved power cord.

•

battery according to the manufacture’s

instructions included with the battery package.

CD and DVD Recording Software Disclaimer

This Product, Software, or Documentation may be designed to assist you in reproducing material in which

you own the copyright or have obtained permission to copy from the copyright owner. Unless you own the

subject to payment of damages and other remedies. If you are uncertain about your rights, you should

contact your legal advisor. If you are neither in possession of the copyright nor have authorization from the

owner of the copyright, unauthorized copying of CDs and DVDs violates national and international legislation

and can result in severe penalties.

Safety and Compliance Information

Safety Precautions

This manual and the indications on the product allow proper and safe operation. The indication marks below

help protect you and other persons from injury, and equipment from damage.

Warning! According to ANSI (American National Standards Institute) standards, a warning is used to

indicate situations that could result in bodily injury to personnel operating or maintaining the eq

Caution: Indicates that failure to obser

equipment, product, software, or data.

To ensure safety, please read

ning:

The laser beam used by this CD-R or DVD-R

recorder is a class 1 laser and can be ha

the eyes. Do not attempt to open the recorder.

Do not attempt to view the laser beam.

Never use any optical

with this unit. To do so will greatly increase the

hazard to your eyes.

•Please observe all warning and caution labels

ensure safety of personnel.

•Replace all fuses with the same voltage and

current ratings to maintain UL safety approvals.

•

nCaution:

Any equipment that has AC line voltage, or low

DC voltages, such as switches, power supplies,

fuses, fans, non-stepper motors, must be

replaced with Rimage–approved components to

maintain the safety approval issued by UL.

The DLN5200 model contains a lithium battery.

There is a risk of explosion if the battery is

replaced by an incorrect battery. Dispose the old

110768_F 3

Rimage DL5200/DLN5200 User Guide

Compliance Information

Product name: DL5200/DLN5200

Model: DLN5200: RAS15E

DL5200: RAS15

Notice for USA

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when this equipment is operated in a commercial

environment. This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a residential area is likely to cause harmful

interference, in which case the user will be required to correct the interference at his own expense.

This product complies with UL 60950-1, 1st Edition.

Notice for Canada

This Class A digital apparatus complies with Canadian ICES-003 Issue 4:2004. Cet appareil

numerigue de la classe A est conforme a la norme NMB-003 du Canade.

This product complies with CAN/CSA-C22.2 No. 60950-1-03

Notice for Europe

This product is in conformity with the EMC Directive (89/336/EEC) and the Low-Voltage Directive

(73/23/EEC) through compliance with the following European standards: EN 55022: 2006;

EN 55024: 1998 +A1:2001 +A2:2003; EN6100-3-2:2000 +A2:2005; EN 61000-3-

3:1995 + Amd 1: 2001 +A2:2005; IEC 60950-1 (2001). The CE mark has been affixed in

accordance with the CE Marking Directive 93/68/EEC.

Notice for Japan

This is a Class A product based on the standard of the Voluntary Control Council for Interference by

Information Technology Equipment (VCCI). If this equipment is used in a domestic environment,

radio interference may occur, in which case, the user may be required to take corrective action.

Translation:

この装置は、情報処理装置等電波障害自主規制協議会（ＶＣＣＩ）の基準に基づくクラス

A情報技術装置です。この装置を家庭環境で使用すると電波妨害を引き起こすことがありま

す。この場合には使用者が適切な対策を講ずるよう要求されることがあります。

Notice for Australia

This product complies with AS/NZS CISPR22:2006.

4 110768_F

Important Information

DL5200/DLN5200 Specifications

Note: For printer specifications, refer to your Printer User Guide.

Standard system Rimage DL5200 autoloader, an Everest printer, and Rimage software.

Rimage DLN5200 autoloader, an Everest printer, a network-ready embedded PC, and Rimage

software.

Rimage DL5200 Rimage DLN5200

Number of Recorders 2 2

Software

requirements DL5200: Pentium 4 2.8 GHz, 512MB L2 Cache , 800MHz FSB

512MB DDR2-200, 400Mhz Bus

Microsoft Windows® 2000 Professional Service Pack 4, Microsoft Windows XP Professional

Service Pack 1or 2, Windows Server 2003

Rimage recommends 4 hard drives – One for the OS, one for the Rimage System Folder, and

two for caching (one for each recorder).

One open PCI slot for the provided FireWire®/USB card.

Ships with the correct software installed on the embedded PC. Operate only with the Rimage

software installed on the embedded PC.

DLN5200: Celeron D 340 processor with 533Mhz Front Side Bus

512MB DDR2-400, SDRAM

Windows XP Embedded with Service Pack 2

Two 36 GB, Serial ATA, 10,000 RPM, 8 MB cache, Hard Drives

Operates only with the Producer Software Suite.

Input bin capacity One removable 50-disc bin.

Output capacity Five single-disc output trays and one 75-disc output bin.

Physical size

DL5200 DLN5200

Height 23.25 inches (59.1

cm) 23.25 inches (59.1

cm)

Width* 14.5 inches (36.8 cm)

14.5 inches (36.8 cm)

Depth** 23.5 inches (59.1 cm)

23.5 inches (59.1 cm)

Weight 44.5 lbs (20.2 kg) 51 lbs (23.2 kg))

Weight with

Everest 88.5 lbs. (40.2 kg) 95 lbs. (43.2 kg))

* Allow an additional 2.4 inches (6.1 cm) of space for the door to swing open.

** Leave an additional 3.5 inches (9 cm) for cabling.

Supported

operating systems DL5200: Microsoft Windows® 2000 Professional Service Pack 4, Microsoft Windows XP

Professional Service Pack 1or 2, Windows Server 2003.

DLN5200: The DLN5200 has an embedded operating system. The DLN5200 and software will

function only with the embedded operating system.

Power 100 – 240VAC, 60/50 Hz, 4.7 – 3.7 Amps

Temperature and

humidity Operating Temperature

60° to 80º F (15.5º to 26.7°

Humidity

40% to 80% non-condensing Storage Temperature

5° to 95° F (-15° to 35° C)

Networking ability Refer to the Rimage Advanced Setup Guide for instructions on submitting orders from a

networked computer.

Media

requirements Refer to your printer user guide for the correct media requirements. Rimage Media Kits™ are

designed for optimum recording and print performance.

110768_F 5

Rimage DL5200/DLN5200 User Guide

Specifications cont:

Ribbon

requirements Refer to your printer user guide for the correct printer ribbons. Rimage Media Kits™ include the

required print ribbons.

Label design

requirements Refer to your printer user guide for label design requirements.

6 110768_F

Identify the Parts of the Rimage DL5200/DLN5200

This section describes the Rimage DL5200/DLN5200 hardware and its features.

Front View

Operator

Button

Printer Operator

Panel

Printer

Output

Trays

Lift Arm

Recorders

Output Bin

Input Bin Supply Door

PC Power

Button

(DLN5200

only)

110768_F 7

Other manuals for DL5200

This manual suits for next models

Table of contents

Other Rimage Disc Duplicator manuals

Rimage

Rimage 2000i 6.5-7.1 Service Pack 1 User manual

Rimage

Rimage Professional 3400 Quick start guide

Rimage

Rimage DL5200 Use and care manual

Rimage

Rimage Professional 5100N User manual

Rimage

Rimage 3410 User manual

Rimage

Rimage 2000i 6.5-7.1 Service Pack 1 User manual

Rimage

Rimage Producer III 7100 Operating and safety instructions

Rimage

Rimage Producer 8200N User manual

Rimage

Rimage Professional Endeavor Programming manual

Rimage

Rimage Everest User manual

Rimage

Rimage Producer III 7100 User manual

Rimage

Rimage 2000i 6.5-7.1 Service Pack 1 User manual

Rimage

Rimage Producer 7100 User manual

Rimage

Rimage Allegro 100 Operating and safety instructions

Rimage

Rimage Producer III 8100 Manual

Rimage

Rimage DL5200 User manual

Rimage

Rimage 3410 User manual

Rimage

Rimage 2000i 6.5-7.1 Service Pack 1 User manual

Rimage

Rimage AMIGO II EVEREST Instructions for use

Rimage

Rimage DL5200 Use and care manual

Rimage

Rimage Allegro 20 Operating and safety instructions

Rimage

Rimage Producer III 7100 User manual

Rimage

Rimage Professional 2450 User manual

Rimage

Rimage Allegro 20 User manual

Popular Disc Duplicator manuals by other brands

Riso

Riso CV Series Setting manual

MicroBoards Technology

MicroBoards Technology GX-2 user manual

Addonics Technologies

Addonics Technologies HDUS325DX user guide

Carry

Carry Pro118 user guide

CopyPro

CopyPro PowerPro II user manual

Primera

Primera Max user manual

Logicube

Logicube EchoPlus-NG user manual

Silca

Silca Delta 2000 SA operating manual

Reflex7

Reflex7 Daisy Chain Series user manual

Vinpower Digital

Vinpower Digital SharkCopier DC user manual

Codonics

Codonics Virtua E manual

Octave

Octave Copy Master II user guide

Kanguru

Kanguru U2-DVDDUPE-S user guide

StarTech.com

StarTech.com 8STSATDUP11 manual

DUPLO SEIKO CORPORATION

DUPLO SEIKO CORPORATION Duprinter DP-460 Service manual

Addonics Technologies

Addonics Technologies UDFH7 user guide

Vinpower Digital

Vinpower Digital MiniLoader VDX-1 user manual

Addonics Technologies

Addonics Technologies CFASTD5 user guide
