Rimage Professional 3400 Quick start guide

For more information visit rimage.com/support

2002183_E 1

OperatorProfessionalTM Series 3400, 3410, 5400N, and 5410N

Install the Output Bin Upgrade

Use this procedure to install the output bin upgrade on the Rimage Professional 3400, 3410, 5400N, and 5410N.

Operator: Rimage approved parts must be used for this process. The product warranty may become void if parts not

approved by Rimage are used; equipment or parts are tampered with, misused, neglected, or modied in any respect

without the wrien consent of Rimage.

nCauon! Some cable connectors in this system are latched. Equipment damage may occur if cables are not

disconnected appropriately.

Notes:

• Your system may not look exactly like the system pictured.

• The term “Disc Publisher” is used throughout this document to refer to the Professional 5400N, 5410N, 3400, and

3410 systems.

Before you Begin

1. Stop or pause all jobs.

2. Power o the embedded PC using the PC Power

Buon (5400N/5410N only) or power o the external

control center (PC).

3. Power o the Disc Publisher (rear power switch).

4. Disconnect the Power Cord from the Disc Publisher.

Required Tools

#Phillips screwdriver

For more information visit rimage.com/support

2002183_E 2

OperatorProfessionalTM Series 3400, 3410, 5400N, and 5410N

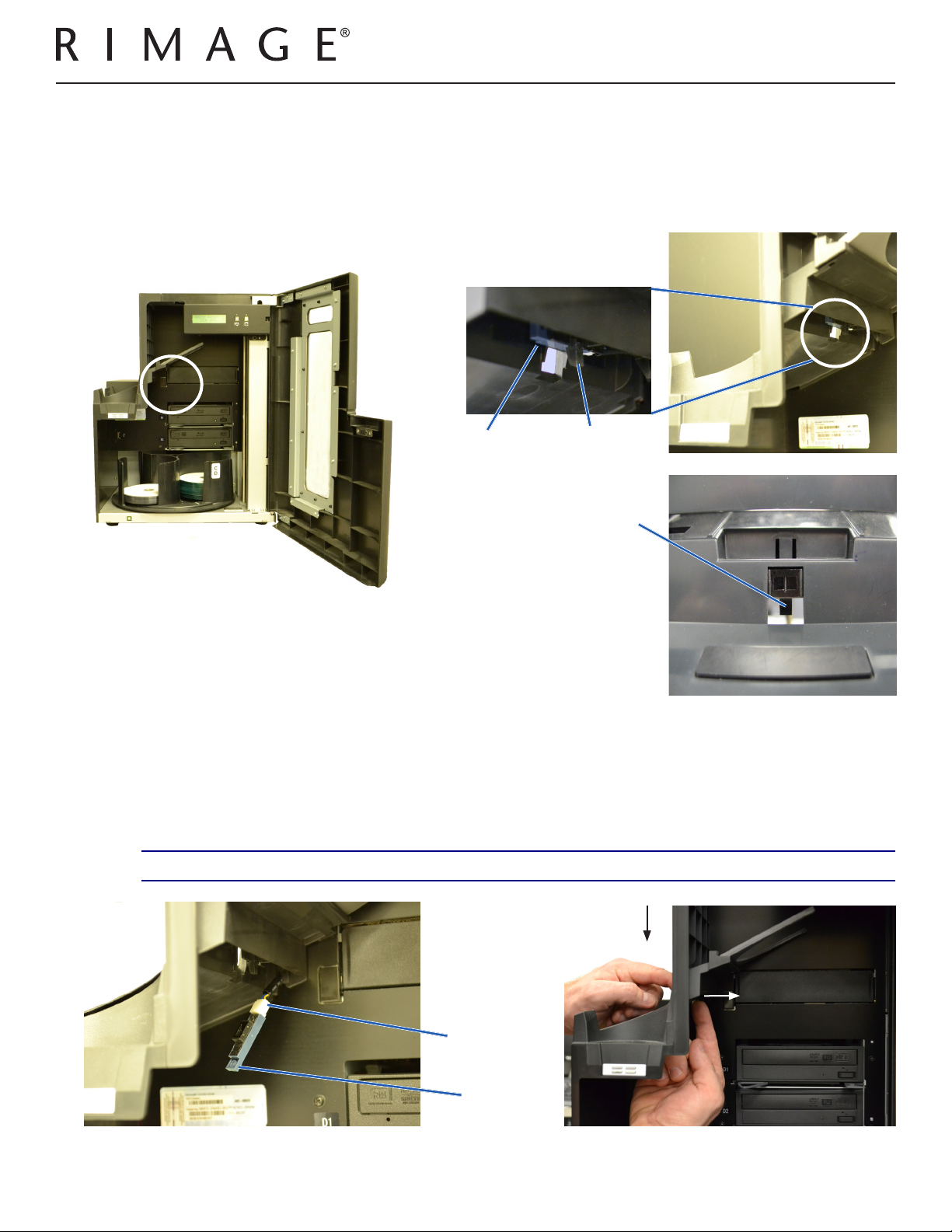

1. Remove the output bin sensor that is currently in the Disc Publisher.

a. Open the front door of the system.

b. Locate the sensor and sensor tab inside the system (see pictures below).

c. Remove the sensor.

i. From inside the Disc Publisher, pull the sensor tab away from the system. At the same me, push down on

the sensor from the outside of the Disc Publisher.

ii. Unplug the sensor from the sensor cable and discard.

Tip: Hold on to the sensor and pull on the wire to disconnect the sensor cable from the sensor.

SensorandSensorTabLocaon

Sensor

Sensor Cable

View of Sensor and Sensor Tab from

Outside the Disc Publisher

View of Sensor and Sensor Tab from

Inside the Disc Publisher

Tab

Sensor

Tab

2002183_E 3

Install The Output Bin Upgrade

10/8/2012

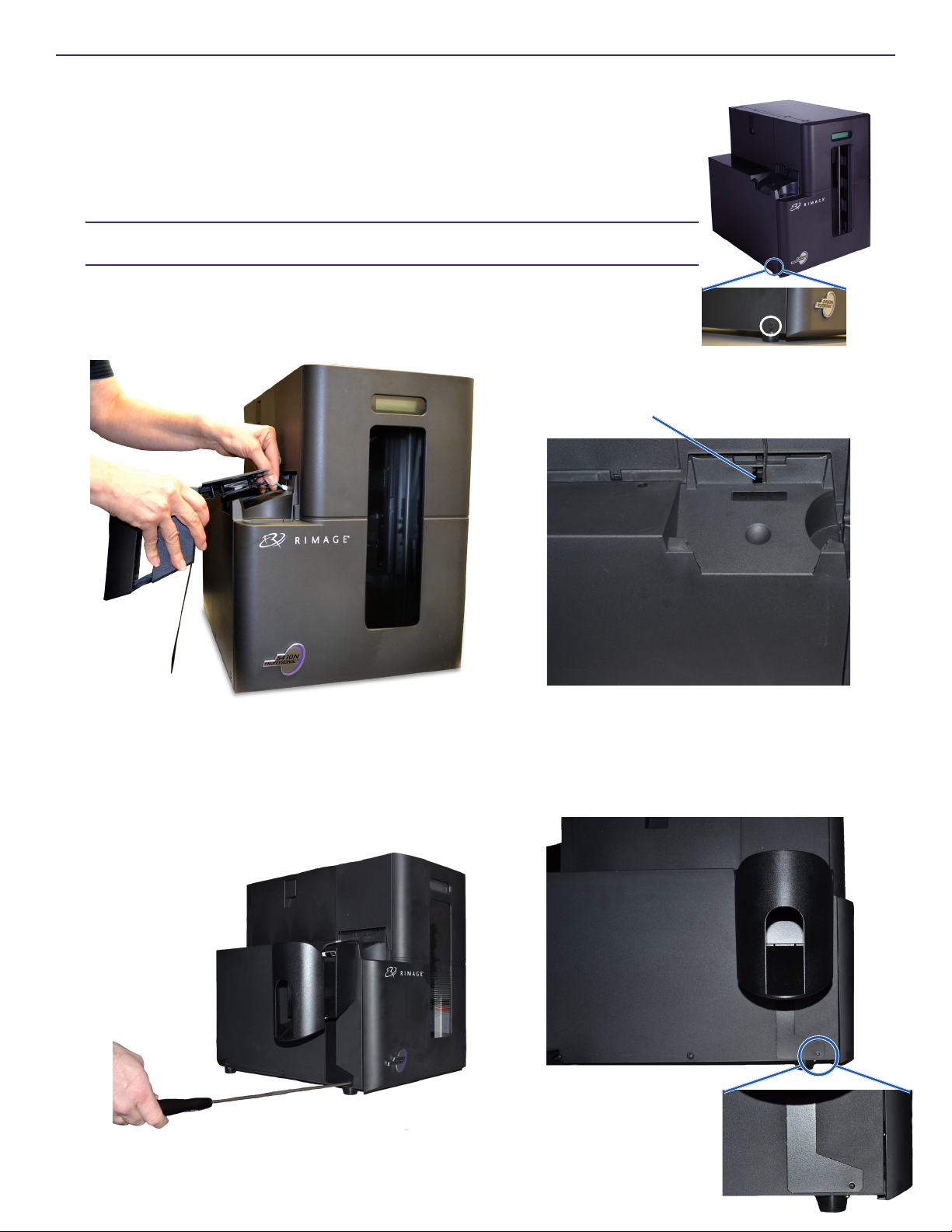

AachtheOutputBintotheRimageSystem

1. Remove the rst Phillips screw on the le hand side of the system.

Important! Set the screw to the side. You will use it again to secure the output bin to

the Rimage system.

2. Place the new output bin inside the original output bin.

a. Feed the sensor cable through the sensor opening. At the same me, place the new

output bin assembly into the exisng output bin on the system.

b. Push the output bin securely in place.

3. Secure the new output bin to the Rimage system.

a. Insert the Phillips screw that was removed from the system in step 1.

b. Tighten the screw to secure the output bin to the system.

LocaonofScrew

Sensor Opening

2002183_E 4

Install The Output Bin Upgrade

10/8/2012

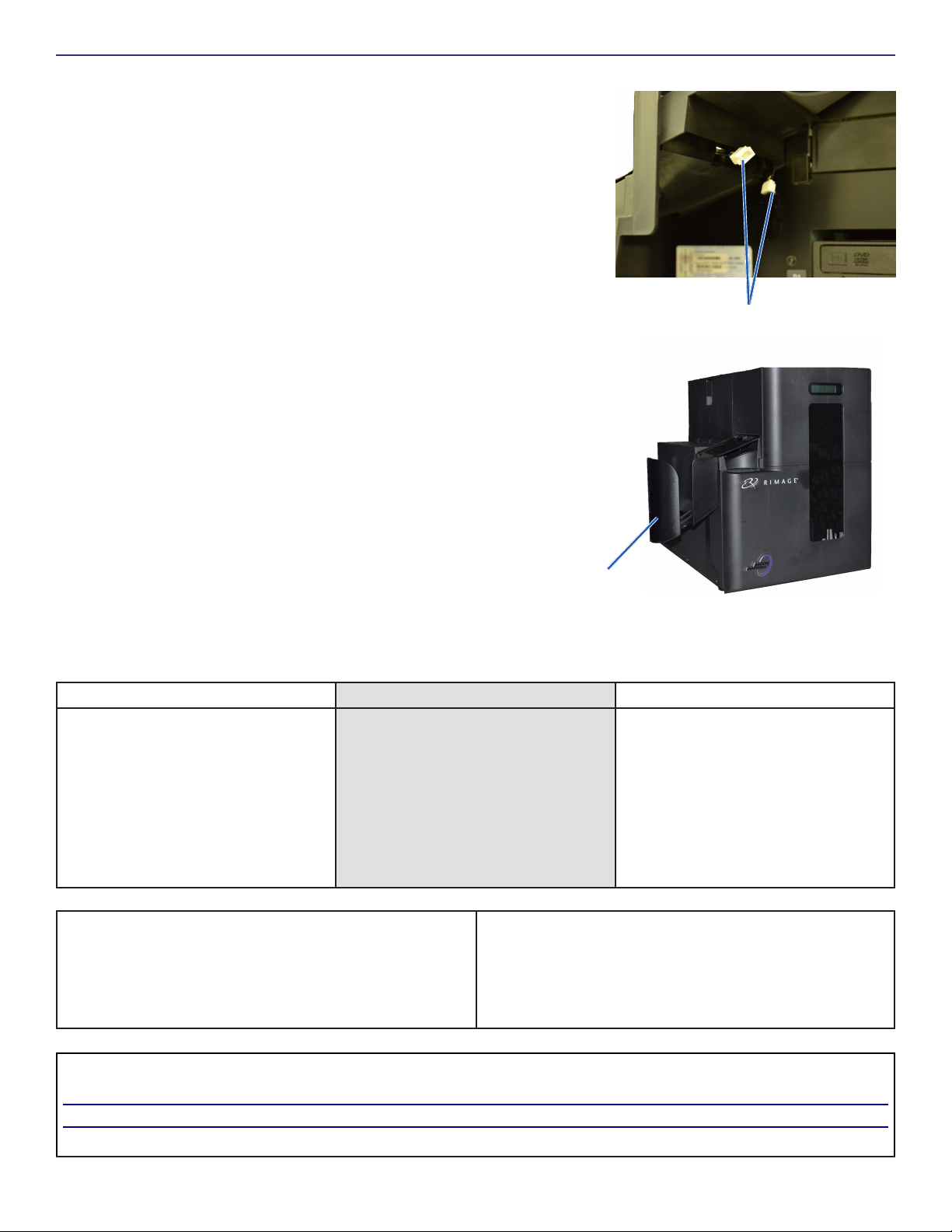

Connect the Sensor Cables

1. Connect the sensor cable from the output bin to the sensor cable inside the

disc publisher.

The output bin is installed.

Prepare the Autoloader for Use

1. Connect the Power Cord to the Disc Publisher.

2. Power on the Disc Publisher (rear power switch).

3. Power on the PCPowerBuon (5400N/5410N only) or power on the

external/embedded control center (PC).

The Disc Publisher is ready for use.

SupportInformaon

US,Canada,LanAmerica Europe, Middle East, Africa Asia/Pacic

RimageCorporaon

7725 Washington Avenue South

Minneapolis, MN 55439

USA

Telephone:

North America: 1-800-553-8312

Mexico/Lan America: 1-952-944-8144

Fax: 1-952-944-7808

Rimage Europe GmbH

Albert-Einstein-Str. 26

63128 Dietzenbach

Germany

Telephone: +49 6074-8521-14

Fax: +49 6074-8521-100

Rimage Japan Co., Ltd.

2F., WIND Bldg.

7-4-8 Roppongi Minato-ku,

Tokyo 106-0032 JAPAN

Telephone: +81-3-5771-7181

Fax: +81-3-5771-7185

Contact Rimage Services:

Website: www.rimage.com/support

KnowledgeBase: hp://rimage.custhelp.com

When you contact Rimage Services, please provide:

• System serial number and soware version

• Funconal and technical descripon of the problem

• Exact error message received

MyRimageProductInformaon:

Copy this informaon from your Rimage product for future reference.

Note: Make sure you update the Serial Number here anyme you receive a replacement system.

Serial Number: Product Name: Date of Purchase:

Output

Bin

Connect Two Cables
