Ricoh LCIT RT5060 Service manual

Technical Bulletin PAGE: 1/1

Model: LCIT RT5060 (D516) Date: 20-Jun-11 No.: RD516001

Subject: Firmware Release Note: LCIT RT5060 Prepared by: K.Tsutsui

From: PPBG Service Planning Dept.

Classification: Troubleshooting

Mechanical

Paper path

Part information

Electrical

Transmit/receive

Action required

Service manual revision

Retrofit information

Product Safety Other (Firmware) Tier 2

This RTB has been issued to announce the firmware release information for the LCIT.

Version Program No. Effective Date Availability of RFU

01.030:04 D5165510B 1st Mass production Available

Note: Definition of Availability of RFU via @Remote

“Available”: The firmware can be updated via RFU or SD card.

“Not available”: The firmware can only be updated via SD card.

Version Modified Points or Symptom Corrected

01.030:04 1st Mass production

Technical Bulletin PAGE: 1/2

Model: Aegis-C1 (D016) Date: 23-Jan-12 No.: RD016018

Subject: Part Changes; Handle assembly and Shoe Prepared by: A. Takada

From: PP Tech Service Dept., 1st PP Tech Service Sect.

Classification: Troubleshooting

Mechanical

Paper path

Part information

Electrical

Transmit/receive

Action required

Service manual revision

Retrofit information

Product Safety Other ( ) Tier 2

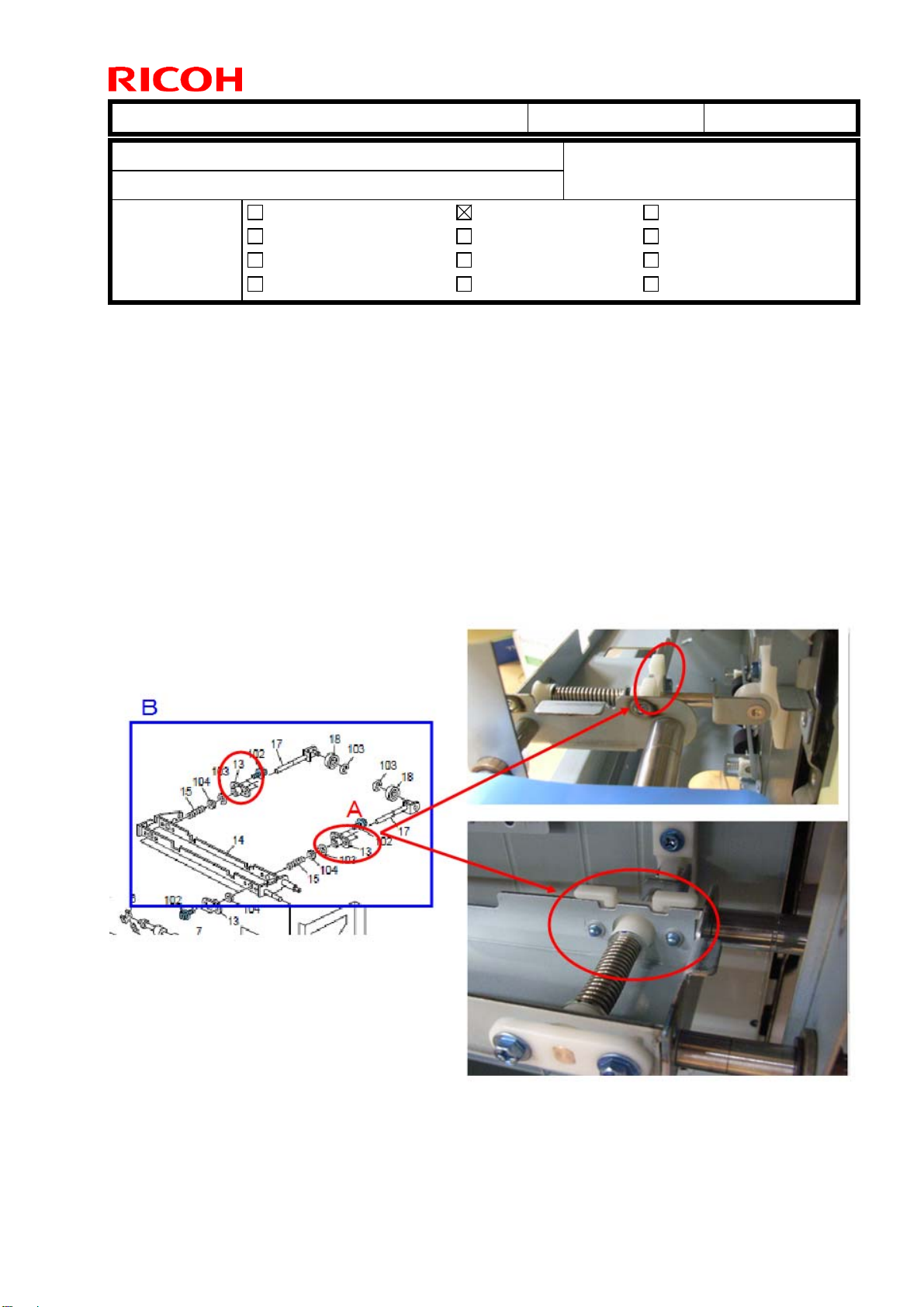

Change: Shape of the Handle assembly and Shoe

Reason: To enable usage of common parts with different products

Changed parts

A：Shoe: Handle: Release

Shape of the Shoe was partially modified.

B：Handle: Ass’y

Handle was also modified in accordance with the shape change of the Shoe.

(Shape of the plate was also modified.)

Technical Bulletin PAGE: 2/2

Model: Aegis-C1 (D016) Date: 23-Jan-12 No.: RD016018

Model

：

Aegis-C1 (D016)

Old Part

Number New Part

Number Description Q’ty Int Page Index Note

D3553566 D3553567 Handle:Ass’y 2 X/O 287 11 -

- D5163847 Shoe:Handle:Release 4 287 17 -

・ If the unit is now installed with D3553566, replace with D3553567. D5163847 is not

needed.

・ D5163847 can be attached ONLY to D3553567.

・ The modification described in this bulletin also applies to Aries C-1.5 (D095), LCT

RT5020 (D355), LCIT RT5050 (D532), and LCIT RT5060 (D516).

Technical Bulletin PAGE: 1/1

Model: Taurus-C1/P1 (D074/D075/M044) Date: 15-Feb-12 No.: RD516002

Subject: Parts Number Information (Tray Heater for

Taurus-C1/P1 LCIT RT5060) Prepared by: T. Komori

From: 1st Tech Service Sect., PP Tech Service Dept.

Classification: Troubleshooting

Mechanical

Paper path

Product Safety

Part information

Electrical

Transmit/receive

Other ( )

Action required

Service manual revision

Retrofit information

Tier 2

The tray heater kit has been registered with the following part number.

This tray heater can be used in both 230V and 120V areas.

D4530900 (HEATER:DEHUMIDIFIER:230V:KIT)

For the installation procedure, refer to the following section of the Field Service Manual:

2. Installation > A3/DLT LCIT > LCIT (D516) Tray Heaters

Technical Bulletin PAGE: 1/1

Model: Large Capacity Tray RT5060 (D516) Date: 26-Mar-12 No.: RD516003

Subject: Part Changes (Slide Rails) Prepared by: S. Sasaki

From: 1st PP Tech Service Sec., PP Tech Service Dept.,

Classification: Troubleshooting

Mechanical

Paper path

Part information

Electrical

Transmit/receive

Action required

Service manual revision

Retrofit information

Product Safety Other ( ) Tier 2

Please apply the following part number modifications to your Large Capacity Tray RT5060

(D516) parts catalog.

Main Frame (D516)

Details

The part numbers of the rails for the 1k trays (Trays 3 and 5) have changed. Part number

of the rails for the 2k tray (Tray 4) remains the same.

Note

Rails for both sides of the tray must be replaced as a set. Replace [A] & [B] as a set, and

[C] & [D] as a set.

Old Part

Number New Part

Number Description Q’ty Int Page Index Note

D5161145 D5161125 SLIDE RAIL:LEFT:1K:ASS'Y 2 -

D5161155 D5161135 SLIDE RAIL:RIGHT:1K:ASS'Y 2

O /O

As a

set -

[A] [B]

[C] [D]

echnical

ulletin PAGE: 1/5

Model:

Large Capacity Tray RT5060 (D516)

Date:

22-May-2012

No.:

RD516004

Subject:

Post card fence attachment procedure

Prepared by:

K. Tsutsui

From:

1st PP Tech Service Section, PP Tech Service Dep.

Classification:

Troubleshooting

Mechanical

Paper path

Part information

Electrical

Transmit/receive

Action required

Service manual revision

Retrofit information

Product Safety Other ( ) Tier 2

General

Procedure for installing the auxiliary “post card” fences onto the A3/DLT LCIT (RT5060) –

for feeding short edge paper stocks such as post cards– is missing in the current Taurus

Users Manual.

If installation of the post card fences is requested by the customer, please provide

instructions on how to install/remove the post card fences by referring to the procedure in

this bulletin.

Procedure: Installing the auxiliary “post card” fences in the LCIT (RT5060)

1. Open the front door.

echnical

ulletin PAGE: 2/5

Model:

Large Capacity Tray RT5060 (D516)

Date:

22-May-2012

No.:

RD516004

2. Pull to remove the snap-fit retainer ring.

3. Lift up to clear the auxiliary post card fences from the 2 shafts.

Remove the fences

(

)

one at a time.

4. Unscrew to remove the green knob screws (x4).

echnical

ulletin PAGE: 3/5

Model:

Large Capacity Tray RT5060 (D516)

Date:

22-May-2012

No.:

RD516004

5. Check that the removed parts are as shown below.

6. Apply the short fences for Trays 3 or 5, and the long fences for Tray 4.

Attachment procedures are identical for all trays. The fences are attached to

Tra

3 in the followin

procedure.

Tray 3 (1,000 sheets)

Tray 4 (2,000 sheets)

Tray 5 (1,000 sheets)

Post card fence -REAR

Post card fence -FRONT

Distinguish the fences

by locating the

cushion piece which

is attached only on

the REAR fence.

echnical

ulletin PAGE: 4/5

Model:

Large Capacity Tray RT5060 (D516)

Date:

22-May-2012

No.:

RD516004

7. Attach the U-shaped hook to the bolt located at the bottom of the side plate (rear).

8. Fix the post card fence by aligning the boss and screwing the green knob screw.

Align the hole on the fence with the boss on the side plate.

echnical

ulletin PAGE: 5/5

Model:

Large Capacity Tray RT5060 (D516)

Date:

22-May-2012

No.:

RD516004

9. Check that the post card fence is installed as shown in the photos below.

NOTE: To remove the post card fences, follow the above steps in the reverse order.

Install the opposing fence (front) similarly.
