Adjustment Settings for Operators
This section explains Adjustment Settings for Operators and how to specify them.
How to Use the [Adjustment Settings for
Operators] Screen
This section explains how to use the Adjustment Settings for Operators.

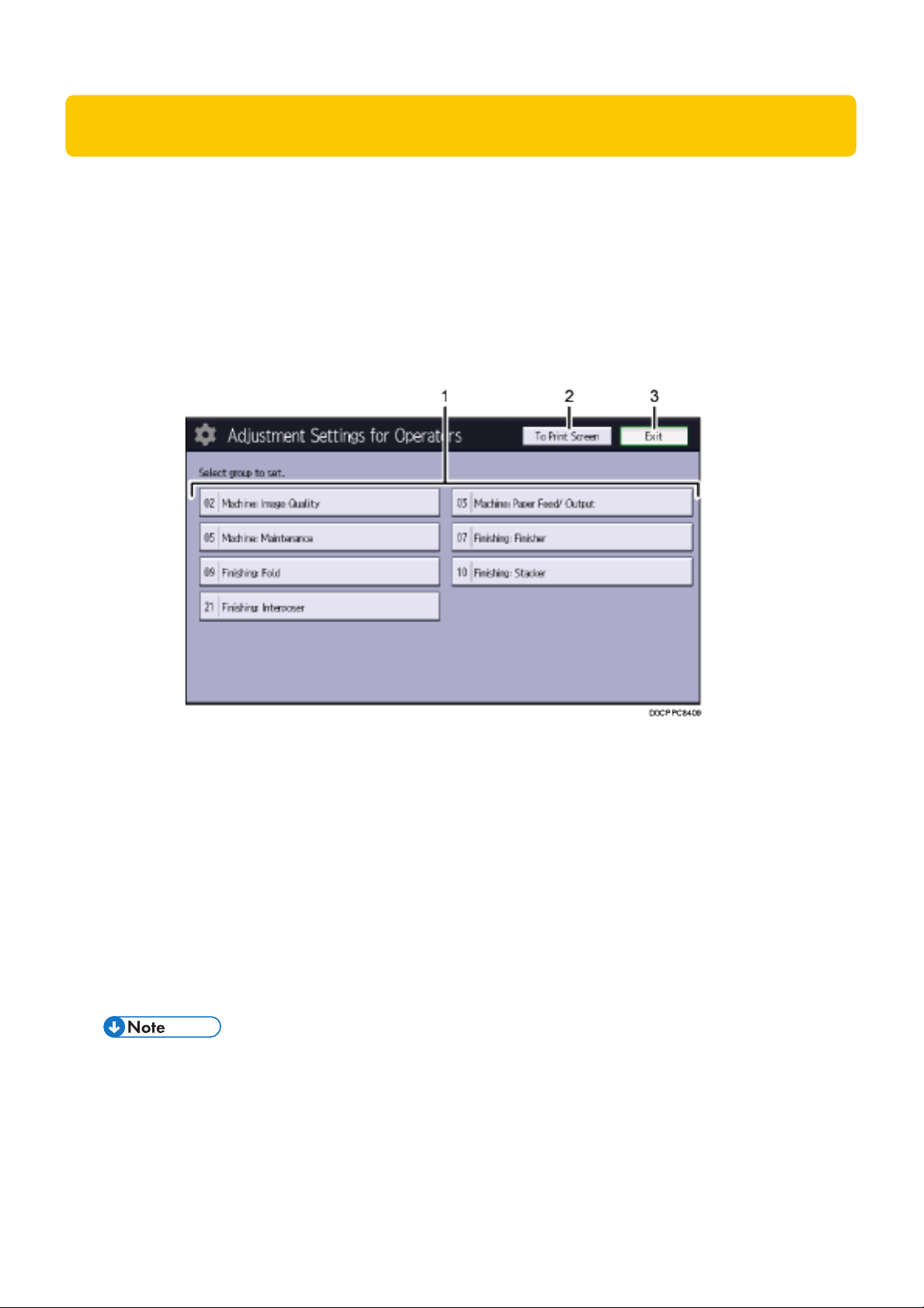

1. Adjustment items
Adjustment items are displayed in this area. When you select an item, its configuration screen will
then open.
2. [To Print Screen]
Press this key to display the print screen. You can use this screen to view the changes you have made.
3. [Exit]
Press this key to close the Adjustment Settings for Operators menu.
209
•All items in Adjustment Settings for Operators appear regardless of which of the machine's
optional components are installed. If you change the settings of options that are not installed, the
changes will have no effect.
Pro C5300 series
CIP Training
Adjustment Settings for Operators
CIP Training C7200 series
Adjustment Settings for Operators
Opening Adjustment Settings for Operators
1. After completing the settings, press [Back] twice.
2. Press [Exit] to close the Adjustment Settings for Operators screen.
Features of the Displayed Items and Setting Operations
The following operations are available for each adjustment item:
•Value setting
•Item setting
•Executing
•Display only
1. Press [Adjustment Settings for Operators] on the Home screen.
6. Adjustment Settings for Operators
Closing Adjustment Settings for Operators
Value setting
Press [+] to increase the value, or [-] to
decrease. You can also use the number keys
to enter numbers.
Select [OK] to apply the new setting.
Pro C5300 series
CIP Training
Adjustment Settings for Operators
CIP Training C7200 series
Adjustment Settings for Operators
Item setting
Select the item you require.
Select [OK] to apply the new setting.
Executing
Press [OK] to perform a selected function.
Display Only
You can check the setting of the selected
item.
Pro C5300 series
CIP Training
Adjustment Settings for Operators
CIP Training C7200 series
Adjustment Settings for Operators
Printing with Adjusted Settings
To print with the settings you have adjusted, be sure to select the paper tray and paper size to
which the settings apply.
•Settings adjustable for each paper tray
•Settings adjustable for each paper size
Settings adjustable for each paper tray
•These are settings adjustable for each paper tray.
•Print jobs are processed with the adjusted settings when printing from a tray with the
applied settings.
Settings adjustable for each paper size
•These are settings adjustable for each paper size.
•Print jobs are processed with the adjusted settings when printing with a paper size that has
the applied settings.
•For details about selecting the paper tray and paper size for printing, see the manuals
for the related functions.
Pro C5300 series
CIP Training
Adjustment Settings for Operators
CIP Training C7200 series
Adjustment Settings for Operators
Menu Items and Function
All items in Adjustment Settings for Operators appear regardless of which of the machine's
optional components are installed. If you change the settings of options that are not installed, the
changes will have no effect.
02: Machine: Image Quality
0209: Photoconductor Special Mode
Increase the amount of lubricant applied to the photoconductor.
If you continuously print images that consume a lot of toner, white spots may appear because of a
lack of lubricant. If this happens, you can prevent the spots by selecting [On].
In Special Mode, the replacement cycle of the cleaning unit for the PCU is shorter because of the
increased amount of lubricant that is applied.
0210: Smooth Fusing Belt
Remove vertical and horizontal lines from the printouts.
Vertical or horizontal lines may appear when printing on paper that is larger than the paper used
immediately before it.
In such case, press [OK] to cause a roller to press on the fusing belt and prevent vertical and
horizontal lines. Select [For Belt Scratches] if vertical or horizontal lines appear on the edges of the
paper. Select [For Uneven Gloss (Short Time)] if there are patches of uneven glossiness.
Setting Items Selection Default Value
Black
Cyan
Magenta
Yellow
Off
On
Off
Setting Items Selection
For Belt Scratches
For Uneven Gloss (Short Time)
Press [OK].
Pro C5300 series
CIP Training
Adjustment Settings for Operators
CIP Training C7200 series
Adjustment Settings for Operators
0214: Fusing Ability by Feed Speed
Specify whether or not to automatically execute [For Uneven Gloss (Short Time)] for smooth fusing
belt.
Setting Items Selection Default Value
Control Method Off
Auto
Off
0211: Fusing Ability by Feed Speed
Increase fusing performance.
Fusing quality may vary depending on the ambient temperature, paper being used, and
configuration of options. If this happens, select [Thick Paper Priority] to increase the fusing quality
by decreasing the printing speed.
Setting Items Selection Default Value
Feed Speed Mode Standard
Thick Paper Priority
Standard
CIP Training Pro C5300 series
Adjustment Settings for Operators
CIP Training C7200 series
Adjustment Settings for Operators
0303: Criteria for Paper Weight
The machine may fail to correctly detect the weight of the paper loaded in the paper tray. This
may happen even if you have specified the correct paper weight in [Tray Paper Settings].
If this happens, you can adjust the machine so the printing conditions are suitable by inputting a
numerical value (um) for the thickness of the paper.
03: Machine: Paper Feed/ Output
Setting Items Default
Value
Max.
Value
Min.
Value Step Unit
Tray: Paper Weight 2 89 999 0 1 um
Tray: Paper Weight 3 104 999 0 1 um
Tray: Paper Weight 4 123 999 0 1 um
Tray: Paper Weight 5 149 999 0 1 um
Tray: Paper Weight 6 171 999 0 1 um
Tray: Paper Weight 7 235 999 0 1 um
Tray: Paper Weight 8 274 999 0 1 um
Tray: Paper Weight 9 317 999 0 1 um
Bypass Tray: Paper Weight 2 89 999 0 1 um
Bypass Tray: Paper Weight 3 104 999 0 1 um
Bypass Tray: Paper Weight 4 123 999 0 1 um
Bypass Tray: Paper Weight 5 149 999 0 1 um
Bypass Tray: Paper Weight 6 171 999 0 1 um
Bypass Tray: Paper Weight 7 235 999 0 1 um
Bypass Tray: Paper Weight 8 274 999 0 1 um
Bypass Tray: Paper Weight 9 317 999 0 1 um
LCT Connection Unit: Paper Weight 2 89 999 0 1 um
LCT Connection Unit: Paper Weight 3 104 999 0 1 um
CIP Training Pro C5300 series
Adjustment Settings for Operators
CIP Training C7200 series
Adjustment Settings for Operators
Setting
Items
Default
Value
Max.
Value
Min
.
Value Step Unit
LCT Connection Unit: Paper Weight 4 123 999 0 1 um
LCT Connection Unit: Paper Weight 5 149 999 0 1 um
LCT Connection Unit: Paper Weight 6 171 999 0 1 um
LCT Connection Unit: Paper Weight 7 235 999 0 1 um
LCT Connection Unit: Paper Weight 8 274 999 0 1 um
LCT Connection Unit: Paper Weight 9 317 999 0 1 um
0308: Connection Unit: Registration Gate Home Position
Adjust optimum value to increase the accuracy of Skew Correction depending on paper
weight. If the image is highly skewed, adjust the value to [+] direction for thin paper, [-]
direction for thick paper.
Setting
Items
Max.
Value
Min
.
Value Step Unit
Paper Weight 1
Paper Weight 2
Paper Weight 3
Paper Weight 4
Paper Weight 5
Paper Weight 6
Paper Weight 7
Paper Weight 8
Paper Weight 9
9 -8 1 None
