Pyle PLVIN65 User manual
Instruction Manual
6.5 IN-DASHTFT LCDCOLORVIDEO MONITOR
WARNING:
DO NOT WATCH MONITOR WHILE
VEHICLE IN MOTION ITCAN BE
HAZARDOUS
PLVIN65
WWW.PYLEAUDIO.COM
Select
Open button
AV1/AV2
Remote receiver
Analog decrease Analog increase
Power switch
Menu
Type:TFT LCD VideoMonitor
Built-in Clock
Display Size:6.5"
Display Format:4:3
Power:About7W
Operation Temperature:0 60
Power supply: DC 11V-14V
System: NTSC
Resolution:1048x234
Overall Dimension:190(L)x182(W)x50(H)mm
Weight:About 1900g
09 28
Adjust minuter
Adjust hour
Control Panel
Performance Parameter
White to video 2
Yellow to video 1
Green to manual brake
Yellow toACC(+12V)
Red to battery +12V
Black to grounding
Power switch
Precast picture
U/D and L/R Image Reversion
Remote Control
Power Cord
P. P
AV
MENU
Mute
V1V2
MENU
Clock
Video cord
Power cord Videocord
Fuse 2A
Green
Yellow
Black
Red
Yellow
White

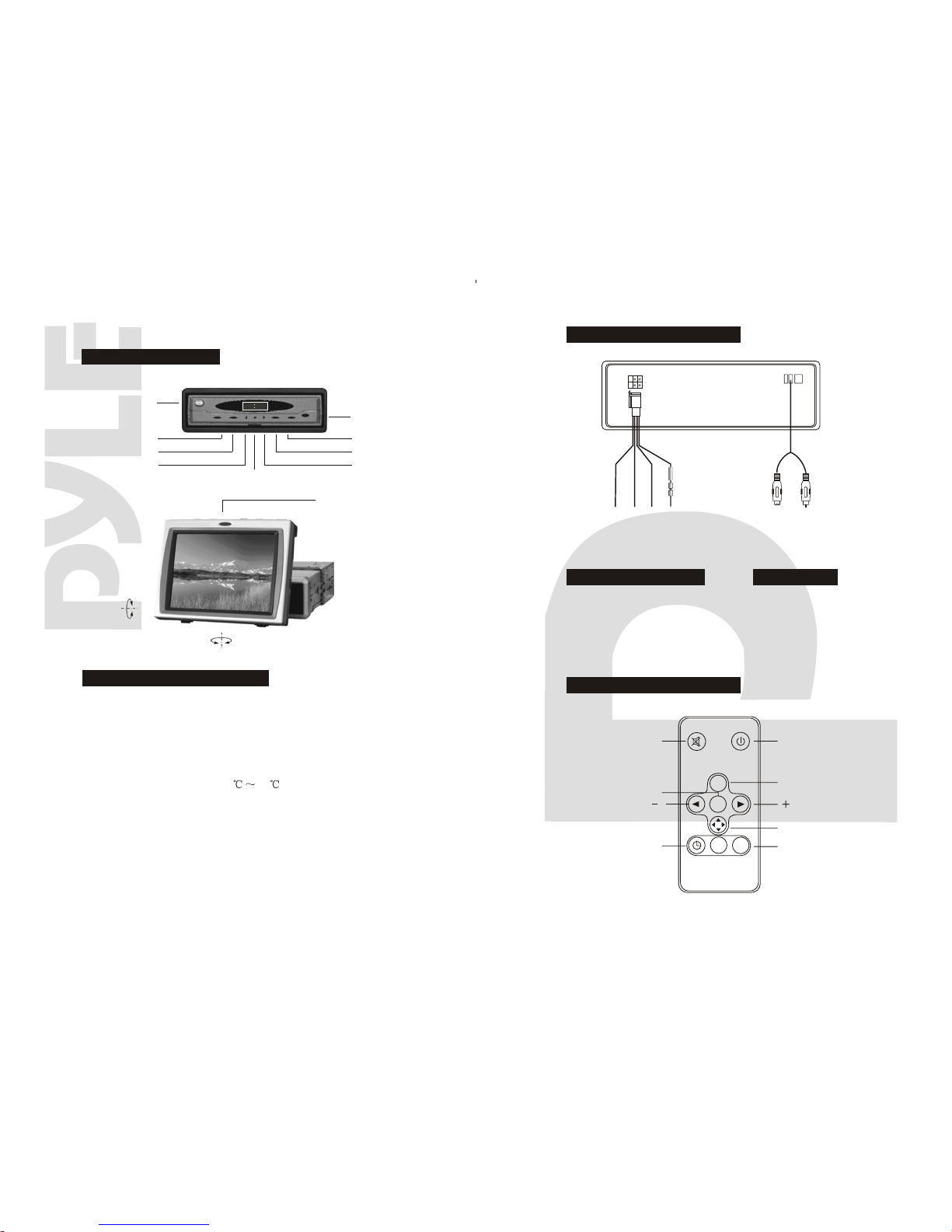

Method Of Wiring
This manual suits for next models
1
