OWNER’’SS MANUAL

PLTV7R

MOTORIZED 7””

IN -DASH

COLOR LCD MONITOR

WITH AM/FM STEREO RADIO

MODEL:

Any changes or modifications in construction of this

device which is not expressly approved by the party

responsible for compliance could void the user’’

authority to operate the equipment.

DO NOT DISASSEMBLE OR ALTER

KEEP SMALL ARTICLES OUT OF THE REACH OF CHILDREN

USE THE CORRECT AMPERE RATING WHEN REPLACING FUSES

HALT USE IMMEDIATELY IF A PROBLEM APPEARS

DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR ATTENTION AWAY FROM

SAFELY DRIVING YOUR VEHICLE

Attempts to disassemble or alter may lead to an accident, fire and / or electric shock.

Store small articles (screws etc.) in places not accessible to children. If swallowed, consult

a physician immediately.

Replace fuses only with fuses of the same ampere rating. Failure to do so may result in a

fire and / or damage to the vehicle.

When problems appear, stop using the system immediately and contact the dealer from

whom you purchased the equipment.

The exclamation point within an equilateral triangle and

““WARNING””are intended

to alert the user to the presence of important operating instructions.

Failure to heed the instruction will result in severe injury or death.

DO NOT WATCH VIDEO WHILE DRIVING

Watching the video may distract the driver from looking ahead of the vehicle and cause an

accident.

Any function that requires your prolonged attention should only be performed after coming

to a complete stop. Always stop the vehicle in a safe location before performing these

functions. Failure to do so may result in an accident.

WARNING

CAUTION

The exclamation point within an equilateral triangle and

““CAUTION””

are intended to

alert the user to the presence of important operating instructions. Failure to heed

the instructions can result in injury or material damage.

DO NOT RAISE THE VOLUME EXCESSIVELY

Keep the volume at a level, where you can still hear outside noises while driving .

Driving while unable to hear outside could cause an accident.

DO NOT USE THIS EQUIPMENT OUTSIDE THE VEHICLE

Do not use this equipment for purposes other than those listed for a vehicle.

Failure to do so may result in an electric shock or an injury.

KEEP FOREIGN OBJECTS OUT OF THE MONITOR COMPARTMENT

Keep foreign objects out of the monitor compartment.

Also, avoid placing your hands in the area where it might interfere with the monitor’s

operation.

STOP THE VEHICLE BEFORE CARRYING OUT ANY OPERATION THAT COULD

INTERFERES WITH YOUR DRIVING.

If the operation of this unit (such as raising or lowering of the monitor, etc.) interferes with

you driving, stop the vehicle in a safe location before attempting operation.

DO NOT MIX NEW BATTERIES WITH OLD BATTERIES. INSERT WITH THE

CORRECT BATTERY POLARITY

Do not mix new batteries with old batteries and do not replace with other than specified

batteries. When inserting the batteries, be sure to observe proper polarity (+ and - ) as

instructed. Battery rupture or chemical leakage can cause an injury or equipment

malfunction.

The exclamation point within an equilateral triangle and

““CAUTION””

are intended to

alert the user to the presence of important operating instructions. Failure to heed

the instructions can result in injury or material damage.

Operation of some of the functions of this unit is very complex. Because of this, it

was deemed necessary to place these functions into a special SETUP screen. this

will restrict operation of these functions to times when the vehicle is parked. This

ensures the focus of the driver’s attention will be on the road and not on the unit.

This has been done for the safety of the driver and passengers.

TEMPERATURE

Be sure the temperature inside the vehicle is between +60。C (+140。F) and -5。C (+23。F)

before turning your unit on.

FUSE REPLACEMENT

When replacing the fuses, the replacement must be the same amperage as shown on the

fuse holder. If the fuse(s) blow more then once, carefully check all electrical connections

for shorted circuitry. Also have your vehicle’s voltage regulator checked.

If you have problems, do not attempt to repair the unit yourself. Return it to your

purchasing dealer.

Make sure the unit will not be exposed to :

▶Direct sun & heat

▶High humidity

▶Excessive dust

▶Excessive vibrations

MAINTENANCE

INSTALLATION LOCATION

CAUTION

AV IN

⑩

①

②⑨⑤

③⑥⑧④⑦

①①POWER ON/OFF BUTTON

②②MODE SELECTION BUTTON

③③AS/ATM BUTTON

④④SOUND MUTE BUTTON

⑤⑤VOLUME UP/DOWN BUTTON

⑥⑥SEARCH UP/DOWN BUTTON

⑦⑦OPEN/CLOSE BUTTON

⑧⑧TILT BUTTON

⑨⑨BAND SELECTION BUTTON

⑩⑩MENU SELECTION BUTTON

INTRODUCTION

MONITOR

POWER

VOL

AS/ATM

MODE

MUTE

PAUS E

PAUSE

123

456

789

NAVI

①①POWER ON/OFF BUTTON

②②MODE SELECTION BUTTON

③③AS/ATM BUTTON

④④SOUND MUTE BUTTON

⑤⑤VOLUME UP/DOWN BUTTON

⑥⑥SEARCH UP/DOWN BUTTON

⑦⑦OPEN/CLOSE BUTTON

⑧⑧MANUAL MEMORY BUTTON

⑨⑨CHANNEL UP/DOWN BUTTON

⑩⑩NAVIGATION BUTTON

⑪⑪ASPECT BUTTON

⑫⑫MENU SELECTION BUTTON

①

②

③④

⑤

⑥

⑦

⑧

⑨

⑩

⑪

⑫

REMOTE CONTROLLER

REMOTE CONTROL UNIT

Replacing battery

Applicable battery : Use two“AAA”sized

dry batteries.

1. Opening the battery cover.

Push and slide the cover in the arrow

direction, and the cover will be removed.

2.Replacing the battery.

Remove the old batteries.

Insert new ones matching the (+) and (-)

polarities as shown in the diagram inside

the unit.

3. Closing the cover.

Push the cover in the arrow direction until

a click is heard.

1.POWER ON

1) Press the POWER button to turn the power on. But the monitor will not open.

2) You can also turn the power on by pressing the OPEN/CLOSE button. The power

will be on and the monitor will open.

2. POWER OFF

1) Press the POWER button again to turn the power off.

2) If you turn the power off by presing the POWER button when the monitor opens, the

monitor will not close.

If the car key is pulled out, or the OPEN/CLOSE button is pressed the monitor will

automatically close.

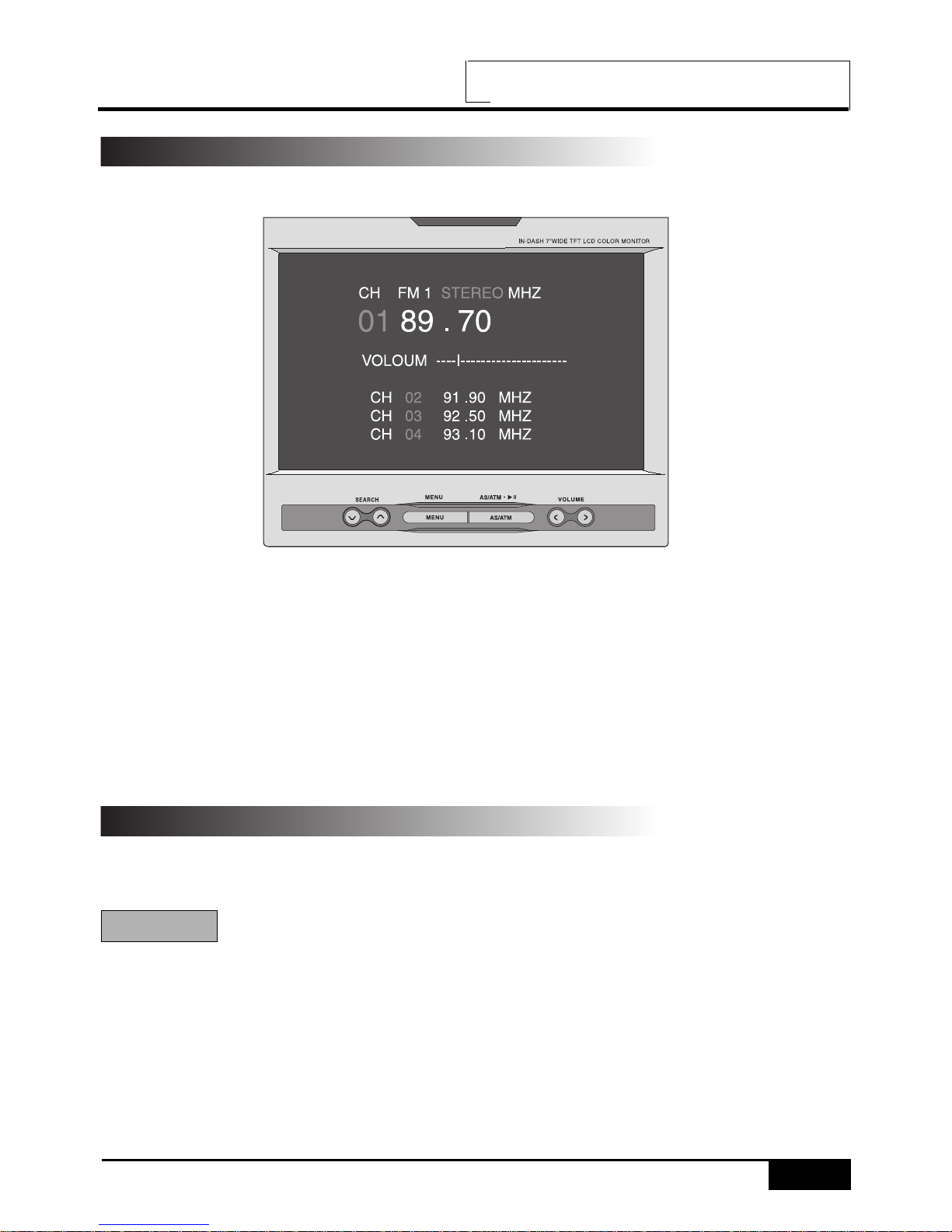

BASIC OPERATION

POWER ON / OFF

OPENING THE MONITOR

Press OPEN/CLOSE button. The monitor will open.

NOTE

If the OPEN/CLOSE button is pressed when the monitor is closed, the monitor will open

and the power will turn on.
