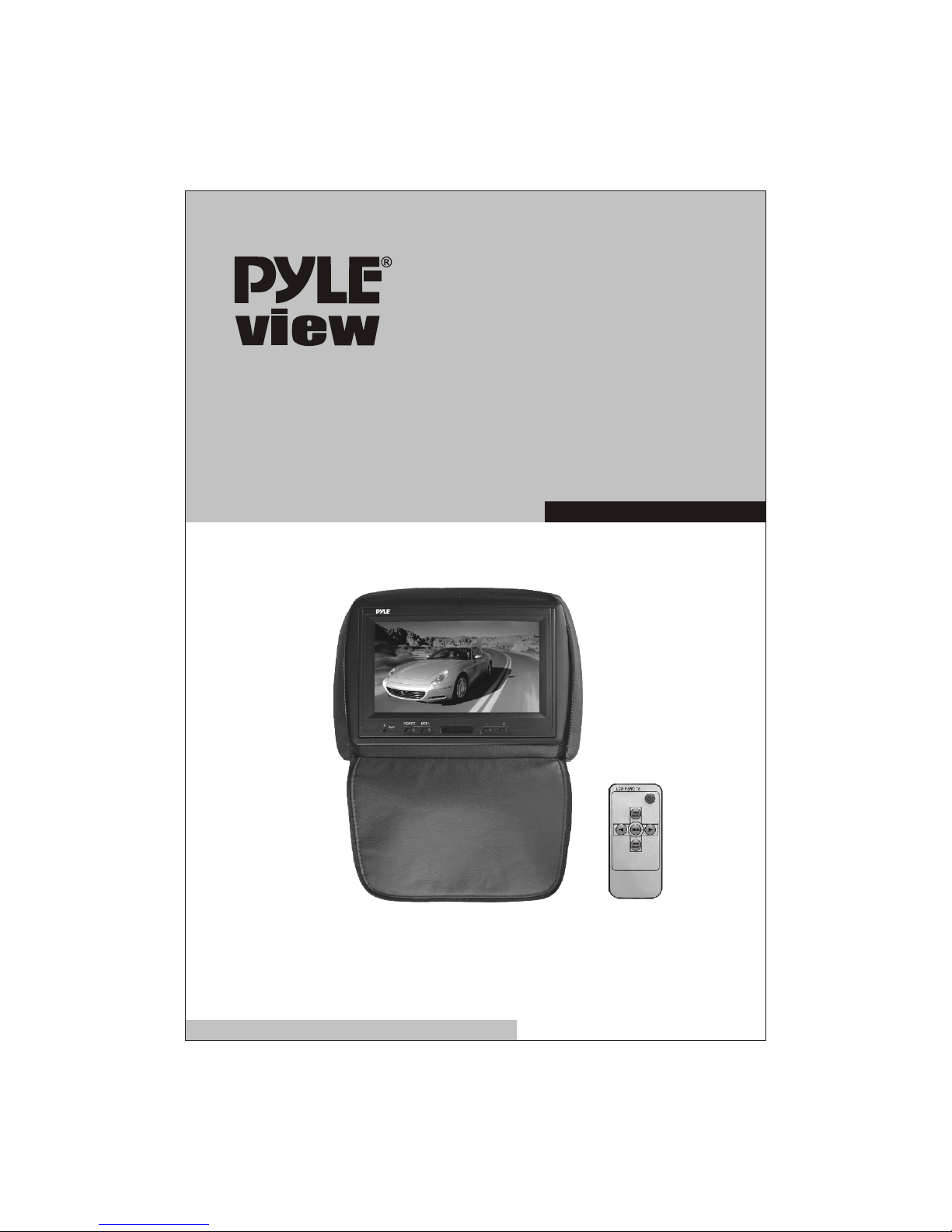

Instruction Manual

PL90HR

Adjustable Headrest w/Built-in 9" TFT-LCD Monitor

with IR Transmitter

H T T P : / / W W W . P Y L E A U D I O . C O M

PL90HRBK

Warning

Read this manual before using this product.

This product is composed of precision components

and should not be dissembled Service must be

perfurmed by a factory authorized technician.

Protect the product from moisture and shock.

1. When connect the electric power wires, you should make clear about the

positive and negative electrode ( the red one is positive and the black

is negative). If you wrongly connected the fuse in the filter box will be

broken protectively. Please replace the fuse in same parameter.

2. Because the LCD screen is the main component It should be paid

attention to be damp-proof.

3. The device must be installed firmly to prevent falling of device that will

possibly cause injury and device-broken.

4. The connecting-point of direct current (12V) should connect on the Main

line of storage battery as possible as it can , for keeping this device in

normal operation and be away from the large voltage drop influence.

5. There is high voltage cluster in this machine, if you are the professional

person, should never to take part the machine if malfunction and

contact the dealer in time.

Attentions:

VCD/DVD

Sound system

Red line (+12V)

Black line (ground)

Yellow line (signal)

Install the Pillow

How to use the adapter tubes

Monitor Controls and Features

1. V2 in(Alternate video input)

2. on/off

Power

Activation of menu indicator

4. IR remote window

5. Negative adjustment

. Positive adjustment

1 2 3 4 5 6

Remote Control

Power ON/OFF

Analog variable increase

Menu button

V1/V2 conversion

Analog variable decrease

Switch for mode

Installation Diagram

Changing the battery in the remote control

The remote battery is held in a small " drawer"

on one edge of the remote. To open this

drawer, press and hold the small button on

the edge of this drawer (as shown below) and

slide the drawer out.

Insert a new battery and push the drawer

back fully into the remote.

Battery

Release button

(Yellow) Video 2 input

(Yellow) Video 1 input

(Red) Audio right input

(White) Audio left input

(Black) Grounding

(Red) Battery +12V

- Available in BLACK, GRAY, TAN

- Adjustable mounting poles to fit any seat

- Poles adjustable from 12.5cm to 20cm

- 9" wide (16:9) TFT LCD monitor

- High resolution: 1024xRGBx600

- 1 set wired AV input

- Faceplate AV mini-jack input

- Color system: PAL/NTSC

- Contrast ratio: 300:1

- Brightness rating: 350 cd/m2

- Built in dual channel IR transmitter

Channel A: 2.3Mhz (left), 2.8Mhz (right)

Channel B: 3.2Mhz (left), 3.8Mhz (right)

- Operating Temperature: -20°C to 50°C

- Storage temperature: -10°C to 70°C

- Environmental humidity: <90%

- Power supply: DC 12V

Specification

Troubleshooting

Accessories

9" TFT LCD Pillow Monitor

Wireless Remote Control

Assembling Stick

AV Input Line

Power Wire

User's Manual

This manual suits for next models
