Pyle view PLD10BT User manual

PLD10BT

USER MANUAL

Motorized Foldout Monitor Holder

10.1 Inch Wide Color TFT Touch Screen

Detachable Control Panel

Remote Control

Digital Video Disc Player

Control Panel USB Port and AUX Input

SD/MMC Card Slot

AM/FM-RDS Digital PLL Tuning Radio

BT Compatible

All manuals and user guides at all-guides.com

all-guides.com

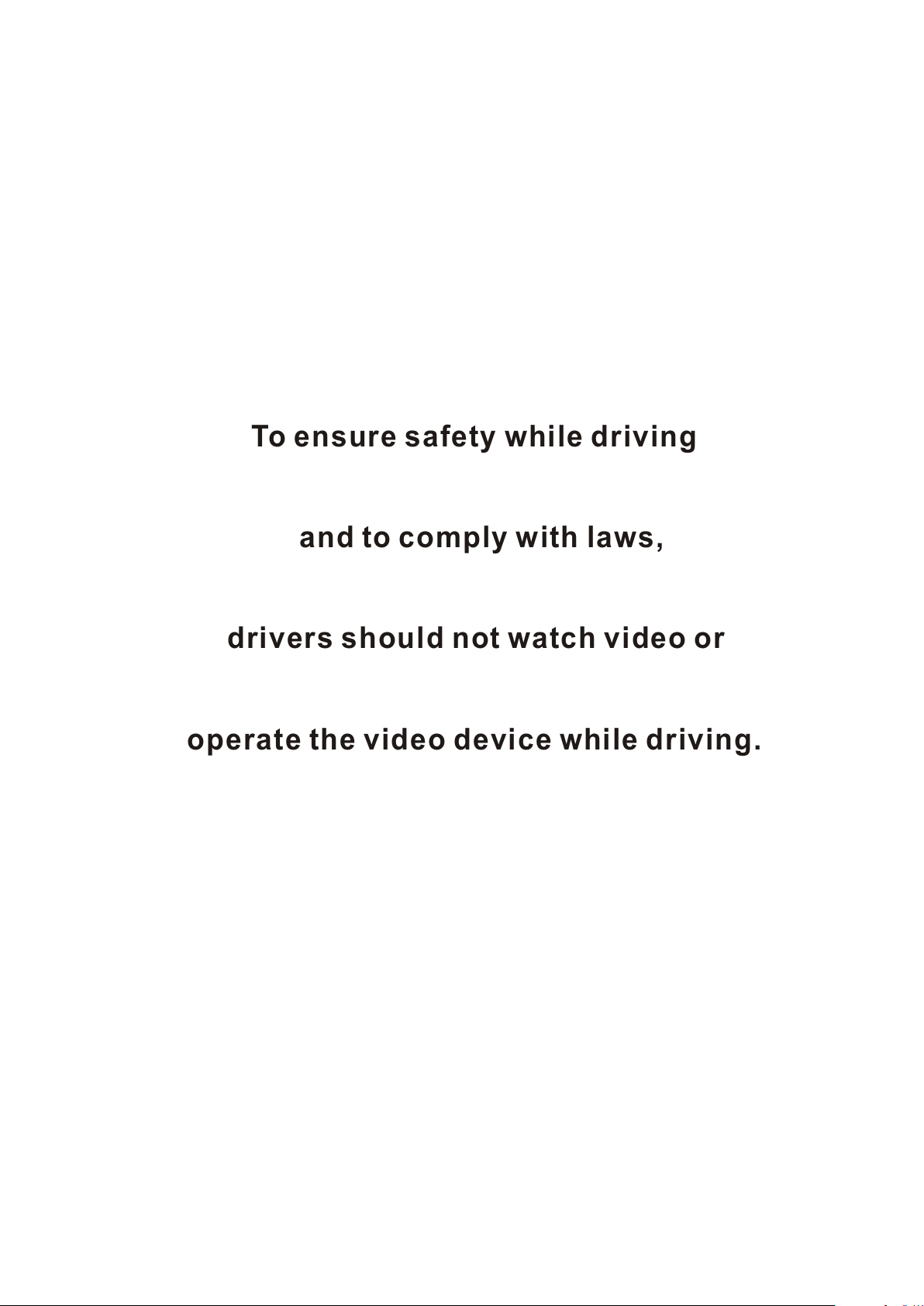

To ensure safety while driving

and to comply with laws,

drivers should not watch video or

operate the video device while driving.

All manuals and user guides at all-guides.com

1. Remove the chassis from Slide Bracket Housing;

1) Press the REL button to release the control panel ;

2) Hold the right side of the control panel to pull it rightwards a little and then to

you for removing it ;

3) Remove the PLASTIC FRAME from the chassis (see the Installation diagram);

4) Insert the 2 KEY PLATES into the grooves at the both sides of the chassis till

they click(see the Installation diagram);

5) Pulling the two KEY PLATES to remove the chassis from the Slide Bracket

Housing ;

2. Mount the Sliding Bracket Housing in the position of car multi-media system and

bend some tabs of Sliding Bracket Housing to fix it.

3. Connecting all wires:

1) Connecting all wires according ot the wiring diagram on next page;

INSTALLATION STEPS

REL button

All manuals and user guides at all-guides.com

WIRING DIAGRAM

NOTE:

1. Must use 4 ohms impedance of speakers.

2. After connecting parking Line, video on screen of control panel

will be displayed only after

3. Before finishing wiring, do not attach control panel onto chassis.

applying parking brake.

SUBWOOFER GREY

VIDEO INPUT YELLOW

RCH RED

LCH WHITE

REAR AUDIO OUTPUT

LCH WHITE

RCH RED

VIDEO OUTPUT YELLOW

FRONT A/V OUTPUT

REAR CAMERA INPUT YELLOW

BROWN

PINK (B+)12V

REAR CAMERA SWITCH

(B-)PARKING BRAKE

GREY

GREY/BLACK

FRONT

RCH SPK.

VIOLET

VIOLET/BLACK

WHITE

WHITE/BLACK

GREEN

GREEN/BLACK

REAR

LCH SPK.

AUTO ANTENNA

BLUE

GROUND(B-)

MEMORY BACK-UP(B+)

IGNITION SWITCH(B+) RED

YELLOW

BLACK

REAR

RCH SPK.

FRONT

LCH SPK.

CHOKE

BOX

RADIO ANTENNA JACK

ISO CONNECTOR

All manuals and user guides at all-guides.com

Hollow

Bulge

2) Attaching the control panel onto the chassis;

(1) Insert the left side of the control panel into the hollow of the chassis .

(NOTE : the “bulge” point on the control panel must be attached into the hollow

of the chassis .)

(2) Gently push the right side of the control panel till you feel a “ Click” .

3) Testing it for making sure that it can work properly .

4. Installing chassis according to the installation diagram on next page:

1) Insert the chassis of the car multi-media system into the Sliding Bracket Housing.

2) Use the metal strap to fix the rear part of chassis.

5. Installing the monitor refer to next next page.

* Uninstalling the chassis:

1) removing the monitor refer to next next page

2) Remove the metal strap from the chassis ;

3) Remove the control panel from the chassis;

4) Remove the plastic frame from the chassis;

5) Insert 2 key plates into the left and right sides of the chassis and draw the chassis

out of the sliding bracket housing.

All manuals and user guides at all-guides.com

Installation Diagram

If you want to take CHASSIS out of the SLIDE BRACKET HOUSING, first remove

the PLASTIC TRIM OUT of the both sides away, then insert the two KEY PLATE into

left and right side of chassis as above illustration.

DASH BOARD

METAL MOUNTING

STRAP

HEX NUT

SPRING WASHER

PLAIN WASHER

TAPPING SCREW

CONSOLE

SLIDE BRACKET

HOUSING

HEX BOLT

SCREWDRIVER

TABS

KEY PLATE

KEY PLATE PLASTIC FRAME

All manuals and user guides at all-guides.com

all-guides.com

Installing the monitor.

1) Press the OPEN/MONITOR-ANGLE button to slide the monitor holder out and

stand it up.

2) Insert the 2 bulges of the monitor into the 2 hollows of the monitor holder and

flip up the monitor, then push the top middle part of the monitor to make the

monitor attach onto the monitor holder.

Removing the monitor.

1) Push the MONITOR REL to detach the monitor from the monitor holder;

2) Hold the top part of the monitor to pull away from the monitor holder and lift it

up to remove it.

Hollow

Bulge

Hollow

Bulge

MONITOR REL

All manuals and user guides at all-guides.com

1. Removing insulating sheet

)

using remote control for the first time, you

can see an insulating sheet at the bottom

side of remote control as right.

you must remove the insulating sheet as right.

Otherwise, the remote control is disabled.

2. Replace lithium cell

If the electric energy of lithium cell is weak,

replace it.

1 Press and hold the movable block as direction

indicated by arrow 1 as right, at one time pull

cell holder out of remote control as direction

indicated by arrow 2 as right.

2 Replace the old cell by a new one with (+)

polarity side upward as right.

3 Insert the cell holder into remote control again

as right.

3 Note about using remote control

1 You should face the emitting window of remote control towards the sensor

window of the unit.

2 Operation angle for front panel: About 30 degree

3 The distance between the emitting window of remote control and the sensor

window of the unit : < 5M .

4 Warning for lithium cells of remote control

leakage may cause damage to remote control.1 Cell

2 Do not throw cells into fire, it may cause explosion.

3.To avoid risk of accident, keep cells out of reach of children.

GENERAL KNOWLEDGE ABOUT REMOTE CONTROL

All manuals and user guides at all-guides.com

Control Panel

Sliding Plate diagram after remo ving Control Panel

Locations and Names of Controls on Main Unit

1. AUX IN JACK(A/V)

2. USB PORT and COVER

3. SEL BUTTON and VOL KNOB

4. REL BUTTON

5. IR SENSOR WINDOW

6. RESET BUTTON

7. EJECT BUTTON

8. POWER/MODE BUTTON

9. BAND/PAIR BUTTON

10. MUTE/PTY BUTTON

11. |<</HANG UP BUTTON

12. >|| or CH1-6 BUTTON

13. >>|/CALL BUTTON

14. SD/MMC CARD SLOT

15. LCD SREEN

16. OPEN/MONITOR-ANGLE BUTTON

17. MICROPHONE

18. TA/AF BUTTON

5 7

10 8

13 17 15

All manuals and user guides at all-guides.com

13 14

1516

25 26

27 28

29 30

Locations and Names of Controls on Remote Control

16. VOL- BUTTON

17. SEL BUTTON

18. SETUP BUTTON

19. GOTO or * BUTTON

20. >|| BUTTON

21. STOP BUTTON

22. AUDIO or MO/ST BUTTON

23. ZOOM BUTTON

24. EQ or LOUD BUTTON

25. CLK BUTTON

26. ^ BUTTON

29. > BUTTON

30. V BUTTON

31. |<< BUTTON

32. INT BUTTON

33. NUMBER(0~9) BUTTON

34. +10 or # BUTTON

35. AF BUTTON

36. TA BUTTON

37. RPT BUTTON

27. >>| BUTTON

28. ENTER BUTTON

1. POWER/MODE BUTTON

2. MUTE BUTTON

3. HANG UP or REDIAL BUTTON

4. MONITOR-ANGLE BUTTON

5. CALL or PAIR BUTTON

6. MENU or SW BUTTON

7. >> BUTTON

8. SUBTITLE or LO/DX BUTTON

9. < BUTTON

BAND or OSD

<< BUTTON

12. A/PS or TITLE/PBC BUTTON

13. TOP BUTTON

14. VOL+ BUTTON

15. RDM BUTTON

10. BUTTON

11.

MENUMENU

SETUP SETUP

ENTERENTER

112233

445566

778899

VOLVOL

SELSEL

A/PSA/PS

MUTEMUTE STOPSTOP

MO/STMO/ST

MODEMODE

CLKCLK

PLAY/PAUSEPLAY/PAUSE

EQEQ

BANDBAND

VOLVOL

OSDOSD

TITLE/PBCTITLE/PBC

LO/DXLO/DX

GOTOGOTO +10+10

TOP INT

RDM

REDIAL

PAIR LOUD

RPT

ZOOMZOOM

All manuals and user guides at all-guides.com
