Prorack PR3090 User manual

Page 1 of 3

09-13-361 PR3090 Rev2

U-Bolt Fitting Kit

Item Component Qty

1U-Bolt 4

2Knob 8

3U-Bolt Plate 4

Kit Contents

First Time Installation

• Please read instructions carefully before installation.

• Check the contents of kit. Contact your Prorack dealer if any parts appear to be missing or damaged.

• Clean your roof racks and alloy tray prior to tting the Gas Bottle Restraint.

Important Warning

• It is critical that all Prorack racks and accessories be properly and securely attached to your vehicle. Improper

attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others.

• You are responsible for securing the racks and accessories to your car, checking the attachments prior to use, and

periodically inspecting the products for adjustment, wear, and damage.

• If you do not understand all of the instructions and cautions, or if you have no mechanical experience and are not

thoroughly familiar with the installation procedures, you should have the product installed by a professional installer

such as a roof rack specialist.

12 3

Page 2 of 3

09-13-361 PR3090 Rev2

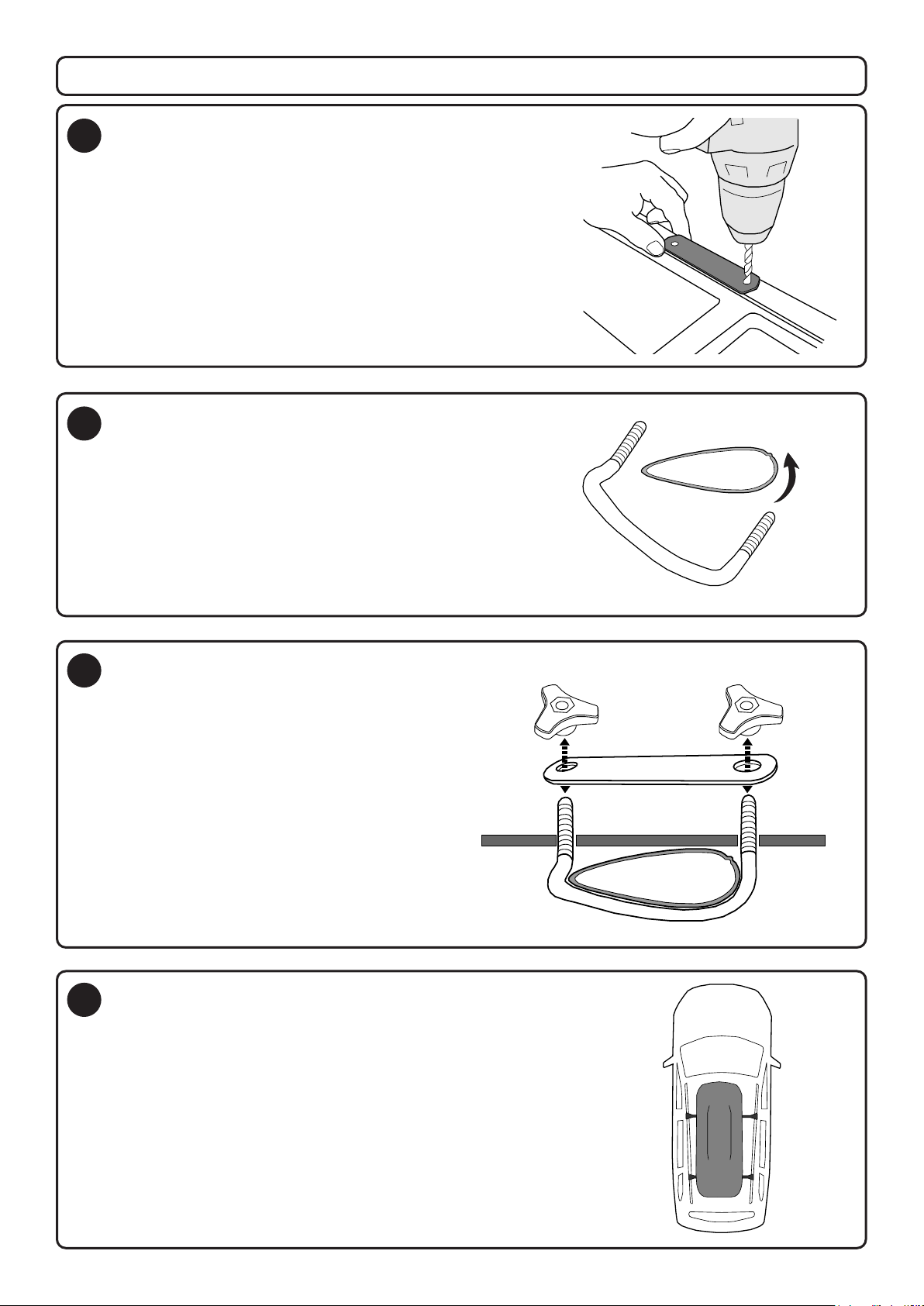

1Roof Box may need 8 mm (516”) holes to be drilled in base, to

match hole centers of U-bolt.

Use U-bolt plate as template.

2Swing U-bolt underneath crossbar as shown.

3Insert U-bolt legs through roof box base. From

inside the roof box, place U-bolt plate over U-bolt

legs.

Loosely attach knobs.

If your roof box comes with tie-down straps, t

these under the U-bolt plates.

4Align rood box in desired position.

Tighten the black plastic knob.

Repeat for all four positions.

Installation on Flush, Through and HD Bars

Page 3 of 3

09-13-361 PR3090 Rev2

Prorack

17 Hinkler Court, Brendale

QLD 4500, Australia

Freephone

AU: 1800 143 548 www.prorack.com.au

NZ: 0800 4776 722 www.prorack.co.nz
