Prorack K746 User manual

K746

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 1 x 1 x 1 x 1

x 1 x 1 x 2 x 2

x 2

Revision No: 2B 1

Fitting Kit K746

MAX kgs (lbs)

W/P WHD

Volkswagen

CC , 4dr Coupe 12-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

CC , 4dr Coupe 12-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)

CC , 4dr Coupe 12-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)

CC , 4dr Coupe 12-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

CC , 4dr Coupe 12-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)

CC , 4dr Coupe 12-+ CN 75 kgs (165 lbs) 75 kgs (165 lbs)

Passat CC , 4dr Coupe 08-11 AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Passat CC , 4dr Coupe 08-11 EU 75 kgs (165 lbs) 75 kgs (165 lbs)

Passat CC , 4dr Coupe 08-11 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

Passat CC , 4dr Coupe 08-11 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

Passat CC , 4dr Coupe 08-11 CN 75 kgs (165 lbs) 75 kgs (165 lbs)

Fitting Kit EN

K746

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

Fitting Kit EN

K746

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

Fitting Kit EN

K746

●Remove locking screw.

●Apply protective strip as shown.

Trim if required.

●It is important to put the clamps in the

correct position on the vehicle.

●Letters refer to the part numbers stamped

on clamps.

●Clamp Part Number:

A = 149A

B = 150A

C = 151A

D = 152A

Fitting Kit EN

K746

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

●It is important to put the pads in the correct

position on the vehicle.

●Letters refer to the pad part numbers and

position.

●Pad Part Number:

A = 241

B = 295

C = 296

Fitting Kit EN

K746

●Fit rubber pads (supplied with fitting kit) to

foot. Pad may vary in shape to that shown.

●Make sure the pad fits into the holes

underneath the foot.

●Clamps onto anchor points under rubber

door frame mouldings

Fitting Kit EN

K746

●The rubber seal must be peeled back from

the vehicle body to allow the clamp to be

inserted between the vehicle body and the

rubber seal.

Fitment

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

●Please check the rear of this manual for

information relating specifically to your

vehicle.

●Press adjusting screw to adjust the leg

positions on the crossbar.

Fitting Kit EN

K746

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

●Tighten locking screw on both legs evenly.

●Check crossbar is securely attached to the

vehicle.

Fitting Kit EN

K746

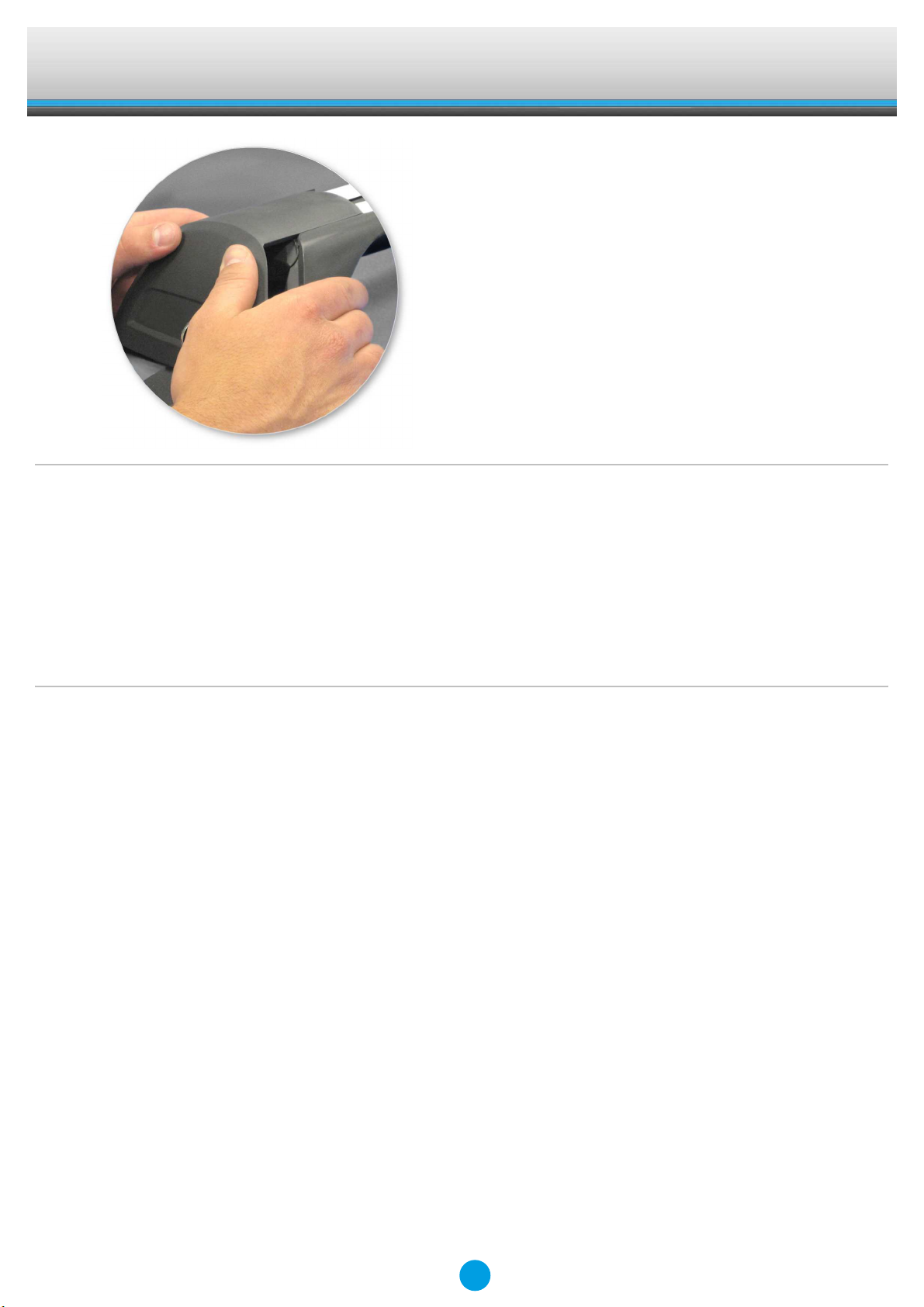

●Use keys to fit and lock covers

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.
