Prorack K567 User manual
K567
Fitting Kit
EN Fitting Instructions for Basic Carrier
x 4 x 4 x 4 x 2
x 2 x 4
Revision No: 6F 1
Fitting Kit K567
MAX kgs (lbs)
W/P WHD
Suzuki
Swift, 3dr Hatch 10-+ EU 50 kgs (110 lbs) 50 kgs (110 lbs)
Swift, 3dr Hatch 10-+ CN 50 kgs (110 lbs) 50 kgs (110 lbs)
Swift, 3dr Hatch 10-+ ZA 50 kgs (110 lbs) 50 kgs (110 lbs)
Swift, 5dr Hatch 11-+ ZA 50 kgs (110 lbs) 50 kgs (110 lbs)
Swift, 5dr Hatch 11-+ US 50 kgs (110 lbs) 50 kgs (110 lbs)
Swift, 5dr Hatch Feb 11-+ NZ 50 kgs (110 lbs) 50 kgs (110 lbs)
Swift, 5dr Hatch Feb 11-+ AU 50 kgs (110 lbs) 50 kgs (110 lbs)
Swift, 5dr Hatch Sep 10-+ EU 50 kgs (110 lbs) 50 kgs (110 lbs)
Swift, 5dr Hatch Sep 10-+ CN 50 kgs (110 lbs) 50 kgs (110 lbs)
2

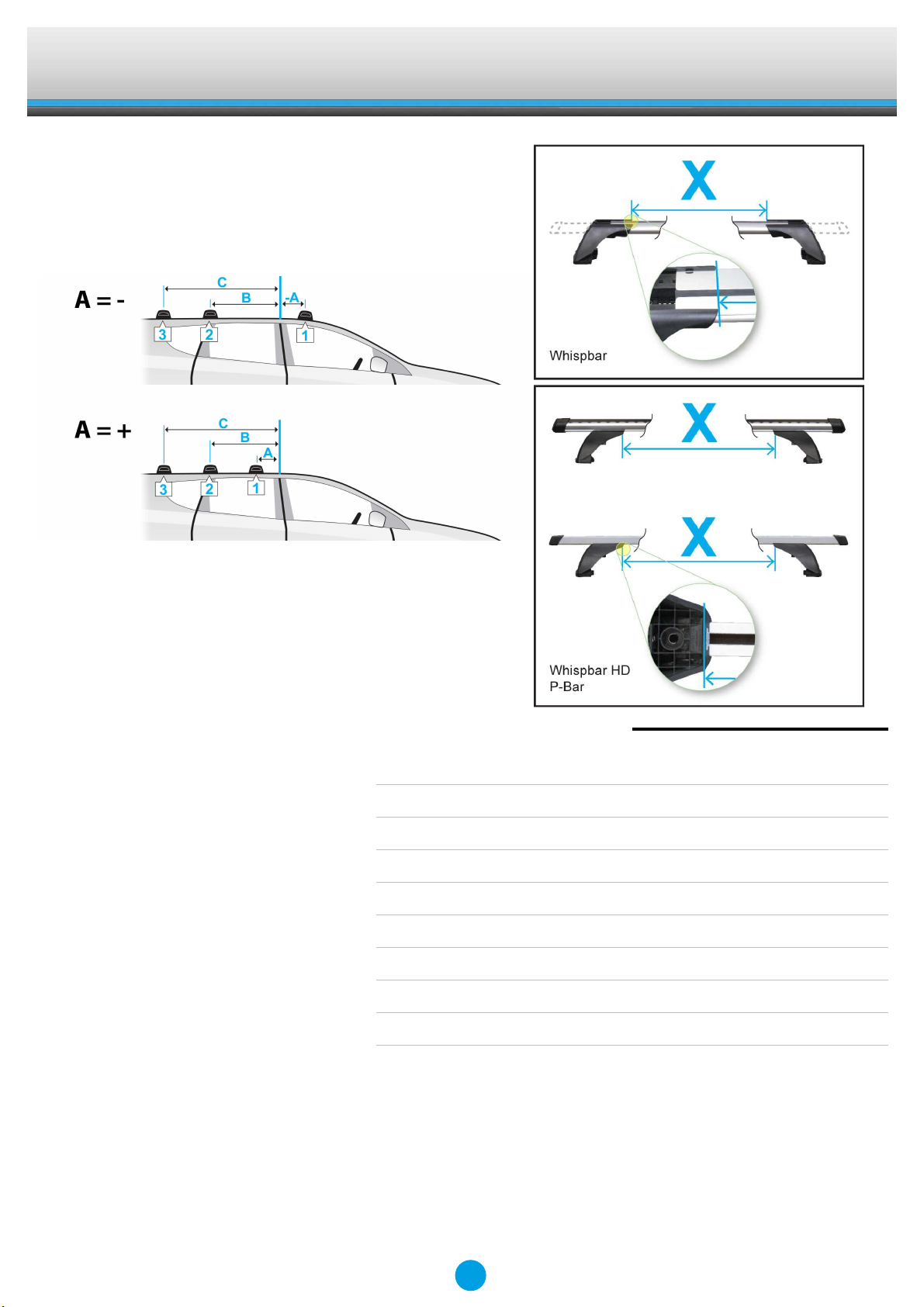

Fitting Kit K567
X
A B C 1 2 3
Swift, 3dr Hatch 10-+ (EU) -460mm 200mm - 810mm 760mm -
-18 -1/8ths" 7 7/8ths" - 31 7/8ths" 29 15/16ths" -
Swift, 3dr Hatch 10-+ (CN) -460mm 200mm - 810mm 760mm -
-18 -1/8ths" 7 7/8ths" - 31 7/8ths" 29 15/16ths" -
Swift, 3dr Hatch 10-+ (ZA) -460mm 200mm - 810mm 760mm -
-18 -1/8ths" 7 7/8ths" - 31 7/8ths" 29 15/16ths" -
Swift, 5dr Hatch 11-+ (ZA) -320mm 340mm - 817mm 763mm -
-12 -5/8ths" 13 3/8ths" - 32 3/16ths" 30 1/16ths" -
Swift, 5dr Hatch 11-+ (US) -320mm 340mm - 817mm 763mm -
-12 -5/8ths" 13 3/8ths" - 32 3/16ths" 30 1/16ths" -
Swift, 5dr Hatch Feb 11-+ (NZ) -320mm 340mm - 817mm 763mm -
-12 -5/8ths" 13 3/8ths" - 32 3/16ths" 30 1/16ths" -
Swift, 5dr Hatch Feb 11-+ (AU) -320mm 340mm - 817mm 763mm -
-12 -5/8ths" 13 3/8ths" - 32 3/16ths" 30 1/16ths" -
Swift, 5dr Hatch Sep 10-+ (EU) -320mm 340mm - 817mm 763mm -
-12 -5/8ths" 13 3/8ths" - 32 3/16ths" 30 1/16ths" -
Swift, 5dr Hatch Sep 10-+ (CN) -320mm 340mm - 817mm 763mm -
-12 -5/8ths" 13 3/8ths" - 32 3/16ths" 30 1/16ths" -
3
Fitting Kit EN
K567
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
●Use keys to remove covers.
4
Fitting Kit EN
K567
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
●Please check the front of this manual for
information relating specifically to your
vehicle.
●Adjust crossbar in or out to suit vehicle.
Refer to the crossbar instructions for
crossbar adjustment.
●Ensure that the crossbar is adjusted evenly
at both ends.
5
Fitting Kit EN
K567
●Tighten adjusting screw to 5 Nm (3.7 ft lb)
hand tight.
●Remove plastic clamp block by gripping bar
leg with fingers and push firmly with
thumbs until clamp block drops out behind
leg.
●Select plastic internal block (from fitting kit)
and insert into foot.
●Repeat for all legs.
6
Fitting Kit EN
K567
●Refer to the underside of the pad for the
part number.
●It is important to put the pads in the correct
position on the vehicle.
●Letters refer to the pad part numbers and
position.
●Pad Part Number:
A = 11-04-250
B = 11-04-251
●Fit rubber pad (supplied with crossbar) to
foot.
●Make sure the pad fits into the holes
underneath the foot.
●Repeat for all legs.
7
Fitting Kit EN
K567
Fitment
●Open or remove fixed-point covers.
●Fixed point may vary to those pictured.
●Hook clamps into the fixed points on the
vehicle.
●Ensure internal clamp sits upright.
●Repeat for all four positions.
8
Fitting Kit EN
K567
●Mount crossbars over clamps.
●Place washer over clamp thread as shown.
●Ensure that tab is inserted into clamp
block.
9
Fitting Kit EN
K567
●Tighten the plastic knob. The side with the
nut showing should be facing up.
●Repeat for all legs.
●Ensure the plastic knob is in the position
shown when fully tightened.
●Check crossbar is securely attached to the
vehicle.
●Use keys to fit and lock covers
10
