Prorack K383 User manual
K383
Fitting Kit
EN Fitting Instructions for Basic Carrier

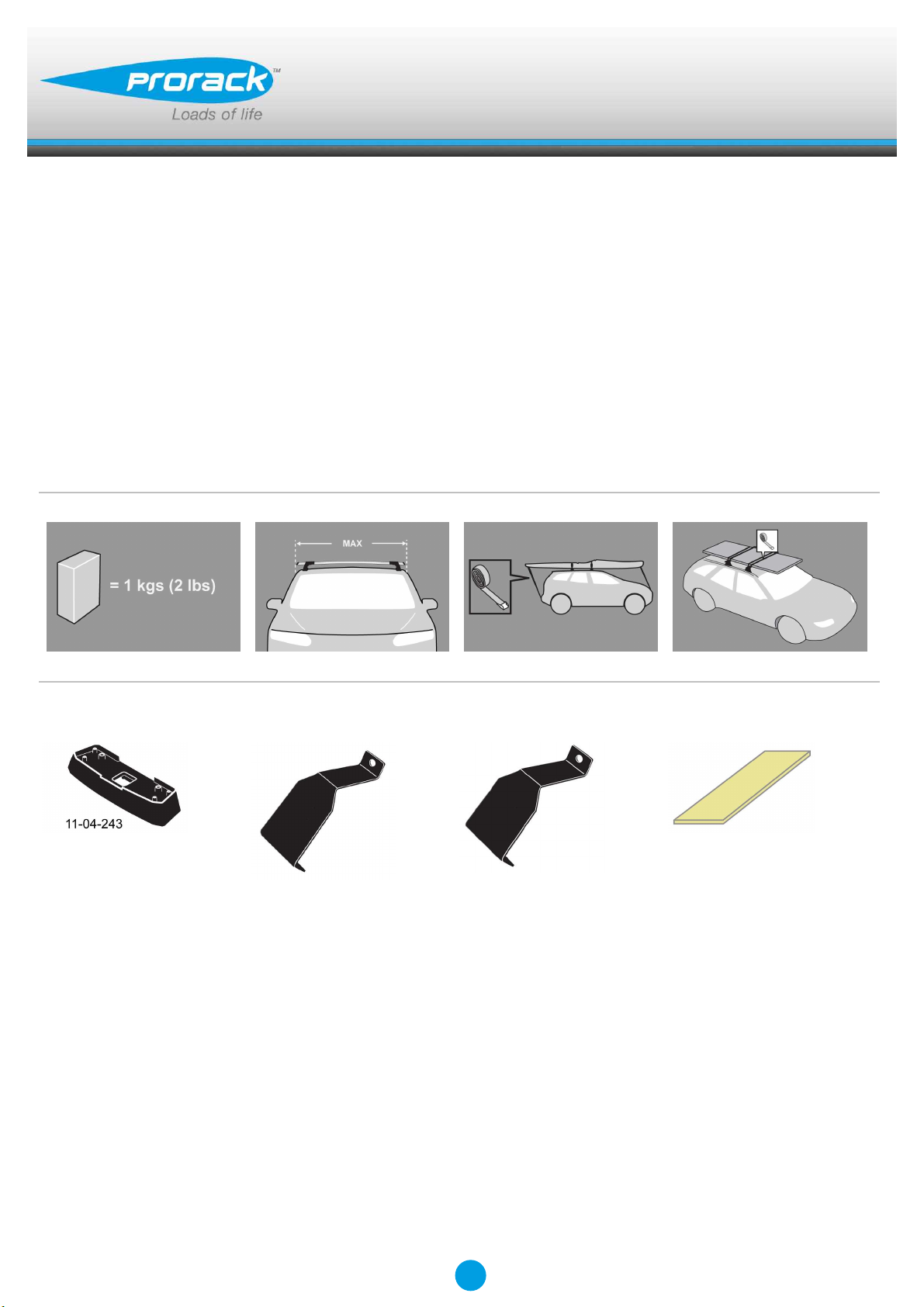

x 4 x 2 x 2 x 4
Revision No: 6F 1
Fitting Kit K383
MAX kgs (lbs)
W/P WHD
SsangYong
Actyon Sport Double Cab, 4dr Ute 05-12 ZA 60 kgs (132 lbs) 60 kgs (132 lbs)
Actyon Sport, 4dr Ute 05-+ CN 60 kgs (132 lbs) 60 kgs (132 lbs)
Actyon Sport, 4dr Ute 05-12 EU 60 kgs (132 lbs) 60 kgs (132 lbs)
Actyon Sport, 4dr Ute 12-+ NZ 60 kgs (132 lbs) 60 kgs (132 lbs)
Actyon Sport, 4dr Ute 12-+ AU 60 kgs (132 lbs) 60 kgs (132 lbs)
Actyon Sport, 4dr Ute 12-+ EU 60 kgs (132 lbs) 60 kgs (132 lbs)
Actyon Sport, 4dr Ute 12-+ ZA 60 kgs (132 lbs) 60 kgs (132 lbs)
Actyon Sport, 4dr Ute Mar 07-12 AU 60 kgs (132 lbs) 60 kgs (132 lbs)
Actyon Sport, 4dr Ute Mar 07-12 NZ 60 kgs (132 lbs) 60 kgs (132 lbs)
2
Fitting Kit K383

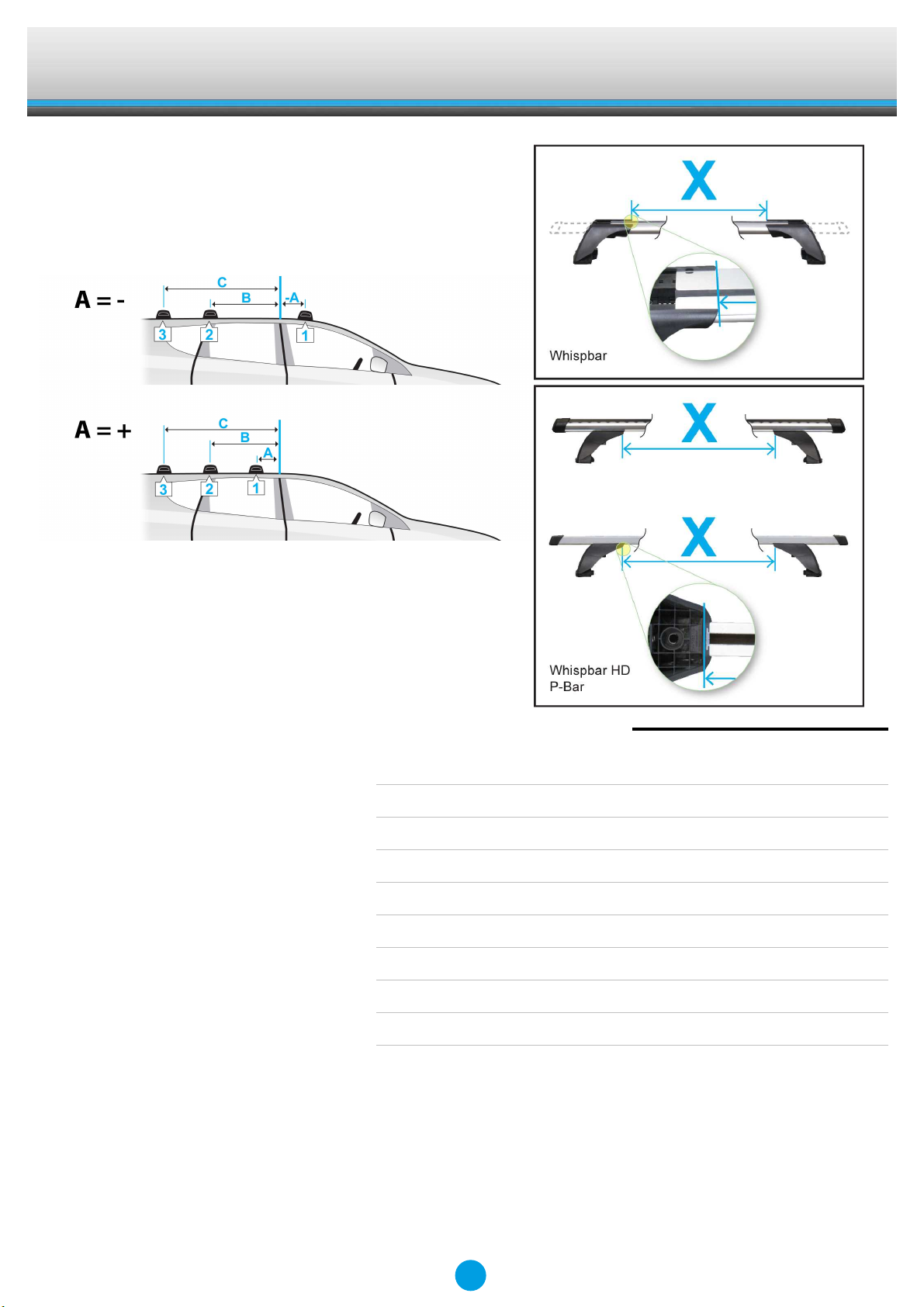

X
A B C 1 2 3
Actyon Sport Double Cab, 4dr Ute 05-12 (ZA) -150mm 650mm - 950mm 940mm -
-5 -7/8ths" 25 9/16ths" - 37 3/8ths" 37" -
Actyon Sport, 4dr Ute 05-+ (CN) -150mm 650mm - 950mm 940mm -
-5 -7/8ths" 25 9/16ths" - 37 3/8ths" 37" -
Actyon Sport, 4dr Ute 05-12 (EU) -150mm 650mm - 950mm 940mm -
-5 -7/8ths" 25 9/16ths" - 37 3/8ths" 37" -
Actyon Sport, 4dr Ute 12-+ (NZ) -150mm 650mm - 965mm 945mm -
-5 -7/8ths" 25 9/16ths" - 38" 37 3/16ths" -
Actyon Sport, 4dr Ute 12-+ (AU) -150mm 650mm - 965mm 945mm -
-5 -7/8ths" 25 9/16ths" - 38" 37 3/16ths" -
Actyon Sport, 4dr Ute 12-+ (EU) -150mm 650mm - 965mm 945mm -
-5 -7/8ths" 25 9/16ths" - 38" 37 3/16ths" -
Actyon Sport, 4dr Ute 12-+ (ZA) -150mm 650mm - 965mm 945mm -
-5 -7/8ths" 25 9/16ths" - 38" 37 3/16ths" -
Actyon Sport, 4dr Ute Mar 07-12 (AU) -150mm 650mm - 950mm 940mm -
-5 -7/8ths" 25 9/16ths" - 37 3/8ths" 37" -
Actyon Sport, 4dr Ute Mar 07-12 (NZ) -150mm 650mm - 950mm 940mm -
-5 -7/8ths" 25 9/16ths" - 37 3/8ths" 37" -
3
Fitting Kit EN
K383
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
NOTE: Clamp images in these instructions may
not be representative of the clamps in this kit
4
Fitting Kit EN
K383
●Use keys to remove covers.
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
5
Fitting Kit EN
K383

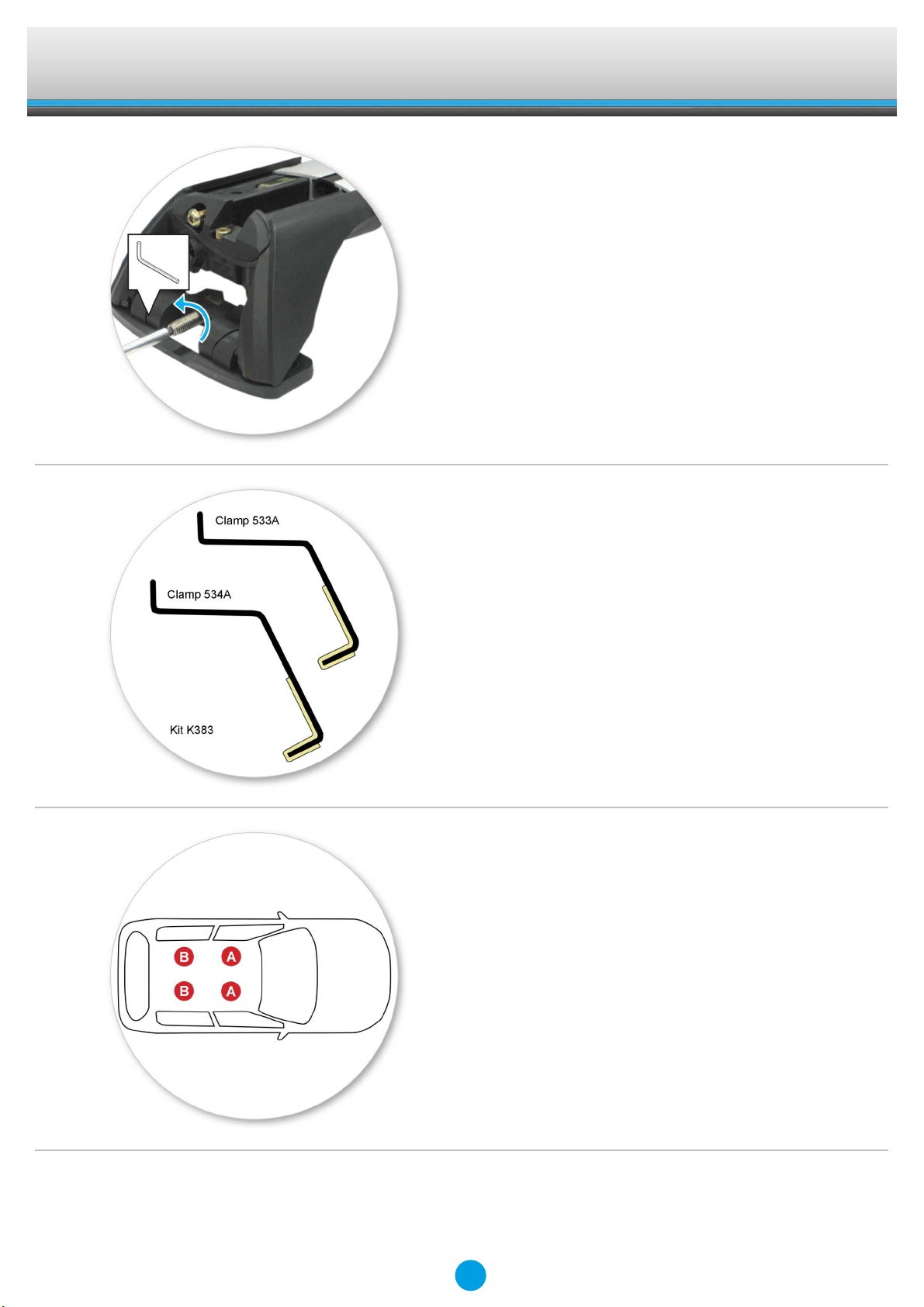

●Remove locking screw.
●Apply protective strip as shown.
Trim if required.
●It is important to put the clamps in the
correct position on the vehicle.
●Letters refer to the part numbers stamped
on clamps.
●Clamp Part Number:
A = 533A
B = 534A
6
Fitting Kit EN
K383

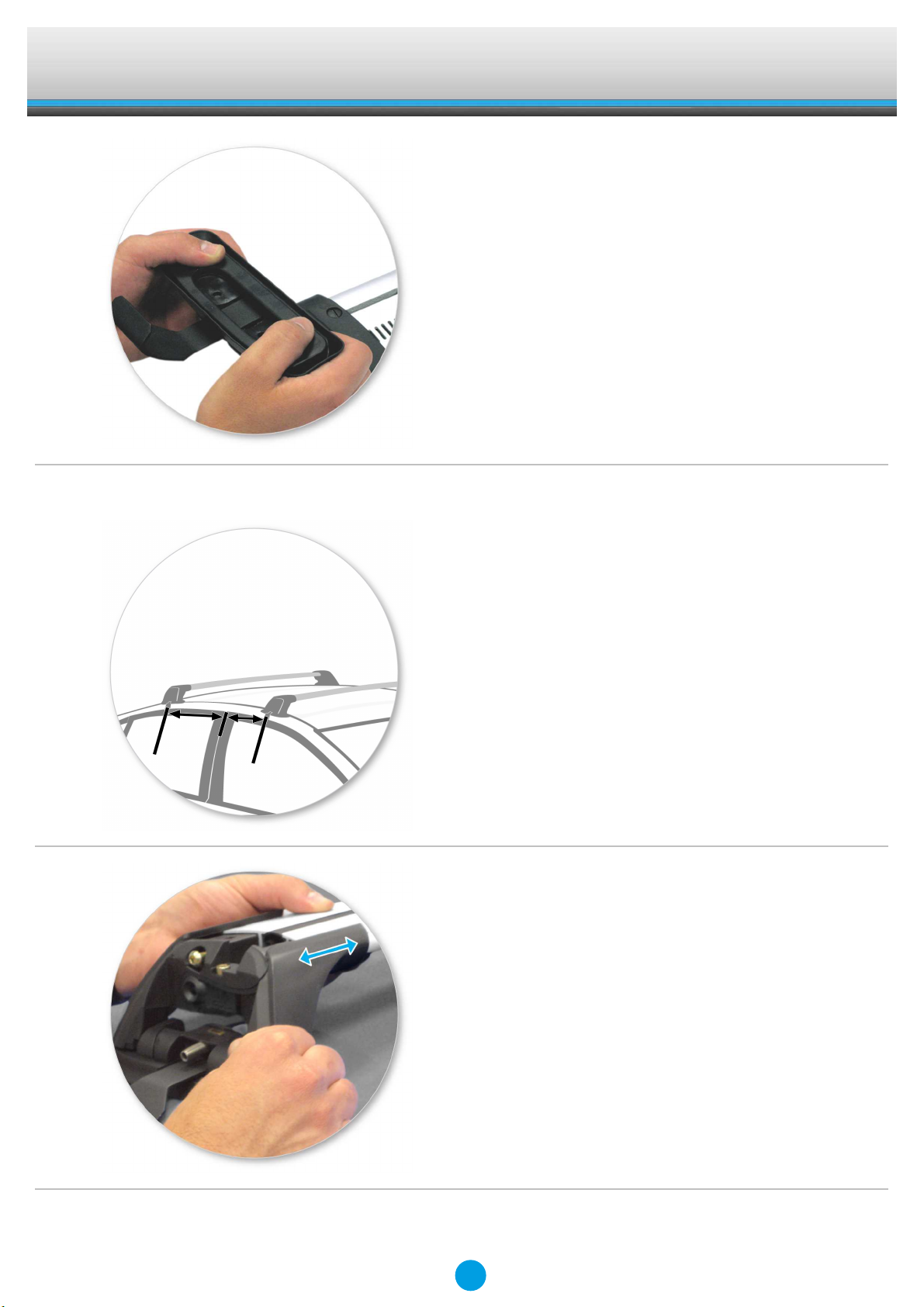

●Attach clamp to each leg. NOTE; clamps
may have labels showing their positions on
the vehicle (For example; "Front Right").
●Refit locking screw so that it goes through
the hole in the clamp. Do not begin to
tighten the locking screw.
●Fit rubber pads (supplied with fitting kit) to
foot. Pad may vary in shape to that shown.
7
Fitting Kit EN
K383
●Make sure the pad fits into the holes
underneath the foot.
Fitment
●Place crossbar on vehicle. Minimum
recommended spacing between the bars is
700mm (27 1/2") (unless otherwise stated).
●Clamps directly to edge of roof under the
doors
●Please check the front of this manual for
information relating specifically to your
vehicle.
●Adjust the legs on the crossbar so that they
are positioned equally from the ends of the
crossbar, and the clamps engage firmly on
the body work of the vehicle.
8
Fitting Kit EN
K383
●Tighten adjusting screw to 3 Nm (2.2 ft lb)
hand tight.
●Tighten locking screw on both legs evenly.
●Check crossbar is securely attached to the
vehicle.
9
Fitting Kit EN
K383
●Use keys to fit and lock covers
CAUTION: Recheck all fasteners immediately after
a load is applied to the crossbars.
Regularly check screws are tight.
10
