Progress Lighting AirPro P250071 User manual

P250071

93153460_A

Limited Lifetime Warranty

Date Purchased

Store Purchased

UL Model No.

Serial No.

Vendor No.

UPC

111017

P250071

Progress Lighting fan motors are warranted to the original purchaser to be free of electrical and/or mechanical

defects for so long as the original purchaser owns the fan. Pull chain switches, reverse switches, capacitors and

metal nishes are warranted to be free from defects in materials or workmanship for a period of 1 year from

the date of purchase. Warping of wooden or plastic blades is not covered by this warranty nor is corrosion and/

or deterioration of any nishes for fans installed within ten miles of any sea coast. Extended warranties for

ENERGY STAR® qualied products may apply.

Progress Lighting ceiling fans with built-in LED light sources, when properly installed and under normal

conditions of use, are warranted to be free from defects in material and workmanship which cause the light

sources to fail to operate in accordance with the specications for (i) ve (5) years from the date of purchase

on the LED Light modules and electrical components for fans used in single family residences, and (ii) three

(3) years from the date of purchase on the LED Light modules and electrical components for fans used in

multi-family or commercial applications. LED bulbs supplied by Progress Lighting carry no warranty other

than manufacturer’s warranty. Non-LED bulbs carry no warranty.

With proof of purchase, the original purchaser may return the defective fan to the place of purchase during the

rst 30 days for replacement. After 30 days, the original purchaser MUST contact Progress Lighting at (864)

678-1000 for repair or replacement which shall be determined in Progress Lighting’s sole discretion and shall

be purchaser’s sole and exclusive remedy.

Labor and Shipping Excluded. This warranty does not cover any costs or fees associated with the labor

(including, but not limited to, electrician’s fees) required to install, remove, or replace a fan or any fan parts.

This warranty shall not apply to any loss or damage resulting from (i) normal wear and tear or alteration,

misuse, abuse or neglect, or (ii) improper installation, operation, repair or maintenance by original purchaser

or a third party, including without limitation improper voltage supply or power surge, use of improper parts or

accessories, unauthorized repair (made or attempted) or failure to provide maintenance to the fan.

THE FOREGOING WARRANTIES STATE PROGRESS LIGHTING’S ENTIRE WARRANTY OBLIGATION

AND ORIGINAL PURCHASER’S SOLE AND EXCLUSIVE REMEDY RELATED TO SUCH PRODUCTS.

PROGRESS LIGHTING IS NOT RESPONSIBLE FOR DAMAGES (INCLUDING INDIRECT, SPECIAL,

INCIDENTIAL OR CONSEQUENTIAL), DUE TO PRODUCT FAILURE, WHETHER ARISING OUT OF

BREACH OF WARRANTY, BREACH OF CONTRACT, OR OTHERWISE. THIS WARRANTY IS GIVEN

IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESSED OR IMPLIED, INCLUDING THOSE

OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NONINFRINGEMENT.

Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitations

of incidental or consequential damages, so the above limitations and exclusions may not apply to you. This

warranty gives you specic rights and you may have other rights which vary from state to state.

785247261048,

785247261031,

785247261055

Safety Rules

Unpacking Your Fan

Installing Your Fan

Making the Electrical Connections

Operating Your Fan

Care of Your Fan

Troubleshooting

Specications

Table of Contents

1. To reduce the risk of electric shock, insure electricity has been

turned off at the circuit breaker or fuse box before beginning.

2. All wiring must be in accordance with the National Electrical

Code ANSI/NFPA 70-1999 and local electrical codes.

Electrical installation should be performed by a qualied

licensed electrician.

3. CAUTION: To reduce the risk of personal injury, use only the

screws provided with the electrical box.

4. The outlet box and support structure must be securely

mounted and capable of reliably supporting 35 lbs. (15.9 kg).

Use only cUL Listed outlet boxes marked “Acceptable for Fan

Support of 35 lbs. (15.9 kg) or less.”

5. CAUTION: The fan must be mounted with a minimum of 7

feet clearance from the trailing edge of the blades to the oor.

6. Do not wait for the fan to stop before pressing the reverse

button. The fan will not reverse direction if the fan is not

moving.

7. Avoid placing objects in path of the blades.

8. To avoid personal injury or damage to the fan and other items,

be cautious when working around or cleaning the fan.

9. Do not use water or detergents when cleaning the fan or fan

blades. A dry dust cloth or lightly dampened cloth will be

suitable for most cleaning.

10. After making electrical connections, spliced conductors should

be turned upward and pushed carefully up into electrical box.

The wires should be spread apart with the grounded conductor

and the equipment-grounding conductor on one side of the

electrical box and ungrounded conductor on the other side of

the electrical box.

11. Electrical diagrams are for reference only. Light kits that

are not packed with the fan must be UL Listed and marked

suitable for use with the model fan you are installing. Switches

must be UL General Use Switches. Refer to the instructions

packaged with the light kits and switches for proper assembly.

12. All set screws must be checked and retightened where

necessary before installation.

13. WARNING: To reduce the risk of re or electric shock,

this fan should only be used with fan speed control part

no. DR-5R, manufactured by DAWNSUN ELECTRONIC

TECHNOLOGY CO LTD ZHONGSHAN.

14. Suitable for use in damp locations.

1. Safety Rules

READ AND SAVE THESE INSTRUCTIONS

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT TO OUTLET BOX MARKED “ACCEPTABLE FOR FAN

SUPPORT OF 35LBS. (15.9 KG) OR LESS”, AND USE SCREWS PRO-

VIDED WITH THE OUTLET BOX.

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE

BLADE BRACKETS (ALSO REFERRED TO AS (“FLANGES”) DURING

ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN

THE PATH OF THE BLADES.

TO REDUCE THE RISK OF SHOCK, THIS FAN MUST BE INSTALLED

WITH AN ISOLATION WALL CONTROL/SWITCH.

a. Blade attachment hardware

(10 screws)

b. Electrical hardware and balancing kit

(1 plastic wire connector, blade balancing

kit )

5. Fan Motor Assembly

6. Blades (3)

7. Transmitter and Receiver

8. Extension Lead Wire

1. Mounting Bracket (inside canopy)

2. 6” Ball/Downrod Assembly (hanger pin

and locking pin pre-attached)

3. Canopy with Canopy Ring (attached)

4. Decorative Motor Collar Cover

2. Unpacking Your Fan

Unpack your fan and check the contents. You should have the following items:

2h 4h 8h

3. Installing Your Fan

Tools Required

Phillips screw driver or straight slotted screw

driver, adjustable wrench, step ladder, and

wire cutters.

Mounting Options

If there isn’t an existing electrical box, then

read the following instructions. Disconnect

the power by removing fuses or turning off

circuit breakers.

Secure the electrical box directly to the building

structure. Use appropriate fasteners and

building materials. The electrical box and

its support must be able to fully support the

moving weight of the fan (at least 35 lbs.).

Do not use plastic electrical boxes.

Figures 1, 2, and 3 are examples of different

ways to mount the electrical box.

Note: You may need a longer downrod to

maintain proper blade clearance when

installing on a steep, sloped ceiling. The

maximum angle allowable is 20˚. If the

canopy touches the downrod, turn the

canopy 180˚ before attaching the canopy to

the mounting plate.

To hang your fan where there is an existing

xture but no ceiling joist, you may need an

installation hanger bar as shown in Figure 4.

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT

TO OUTLET BOX MARKED “ACCEPTABLE

FOR FAN SUPPORT OF 35LBS. (15.9 KG) OR

LESS”, AND USE SCREWS PROVIDED WITH

THE OUTLET BOX. ELECTRICAL BOXES

COMMONLY USED FOR THE SUPPORT OF

LIGHTING FIXTURES MAY NOT BE ACCEPT-

ABLE FOR FAN SUPPORT AND MAY NEED TO

BE REPLACED. CONSULT A QUALIFIED ELEC-

TRICIAN IF IN DOUBT.

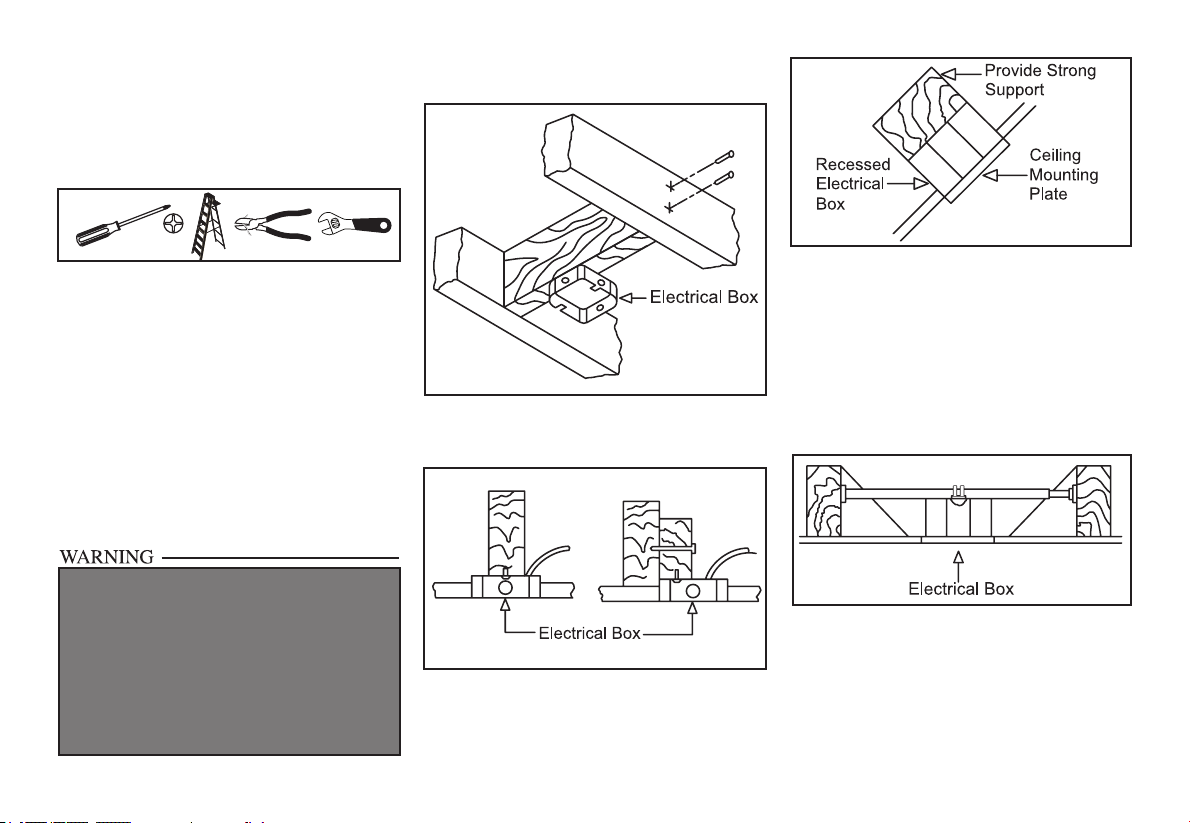

Figure 1

Figure 2

Figure 4

Figure 3

Attaching the Fan

Blades

Figure 5

Screw

Motor Assembly

Screw

1. Remove the three screws from the top

of fan motor assembly , then take off

the top housing (Figure 5)

2. Attach the blades to the fan motor

assembly by aligning the notches

on the blades with alignment post

on the ywheel and put the blade on

to the ywheel, secure with screws

and tighten it. Repeat these steps for

remaining blades. (Figure 6)

3. Put the top housing onto the fan

motor assembly secure with the

screws and tighten it .(Figure 7)

4. Make sure all the screws are rmly

tightened.

Screws

Motor Assembly

Blade

Figure 6

Figure 7

Screw

Motor Assembly

Blade

Screw

Hanging the Fan

REMEMBER to turn off the power. Follow

the steps below to hang your fan properly.

NOTE: This fan is recommended for

standard ceiling mount using the downrod

provided with this fan. When using standard

ceiling installation with the 6 inch downrod

provided, the distance from the ceiling

to the bottom of the fan blades will be

approximately 11 inches.

Standard Ceiling Mounting

1. Remove the canopy ring from the canopy

by turning the ring counter-clockwise

until it unlocks. (Figure 8)

2. Remove the mounting bracket from the

canopy by loosening the four screws on

the top of the canopy. Remove the two

non-slotted screws and loosen the slotted

screws. This will enable you to remove

the mounting bracket. (Figure 9)

3. Remove the hanger pin and locking pin

from downrod assembly.

4. Place downrod over canopy and canopy

ring ,slide the motor collar cover onto the

downrod. Connect the extension lead wires

to the lead wires from motor. Make sure

the quick connectors are clasped rmly.

Route the wires through the ball/down rod

assembly. (Figure 10)

Remove

Loosen but Do Not Remove

Turn Canopy Ring to Remove

Figure 8

Figure 9

5. Loosen, but do not remove, the set screws

on the collar on the top of the motor

housing.

6. Align the holes at the bottom of the

downrod with the holes in the collar on top

of the motor housing. (Figure 10)

Carefully insert the hanger pin through the

holes in the collar and downrod. Be careful

not to jam the hanger pin against the wiring

inside the downrod. Insert the locking pin

through the hole near the end of the bolt

until it snaps into its locked position, as

noted in the circle inset of Figure 10.

7. Re-tighten the set screws on the collar on

top of the motor housing.

8. Make sure the grommet is properly installed

in the collar cover, then slide the collar cover

on the downrod until it rests on the motor

housing. Be sure that the canopy and the

collar cover are both oriented correctly.

9. Proceed to “Installing the Fan” section.

FAILURE TO PROPERLY INSTALL SET SCREWS

AS NOTED IN STEP 7 COULD RESULT IN FAN

LOOSENING AND POSSIBLY FALLING.

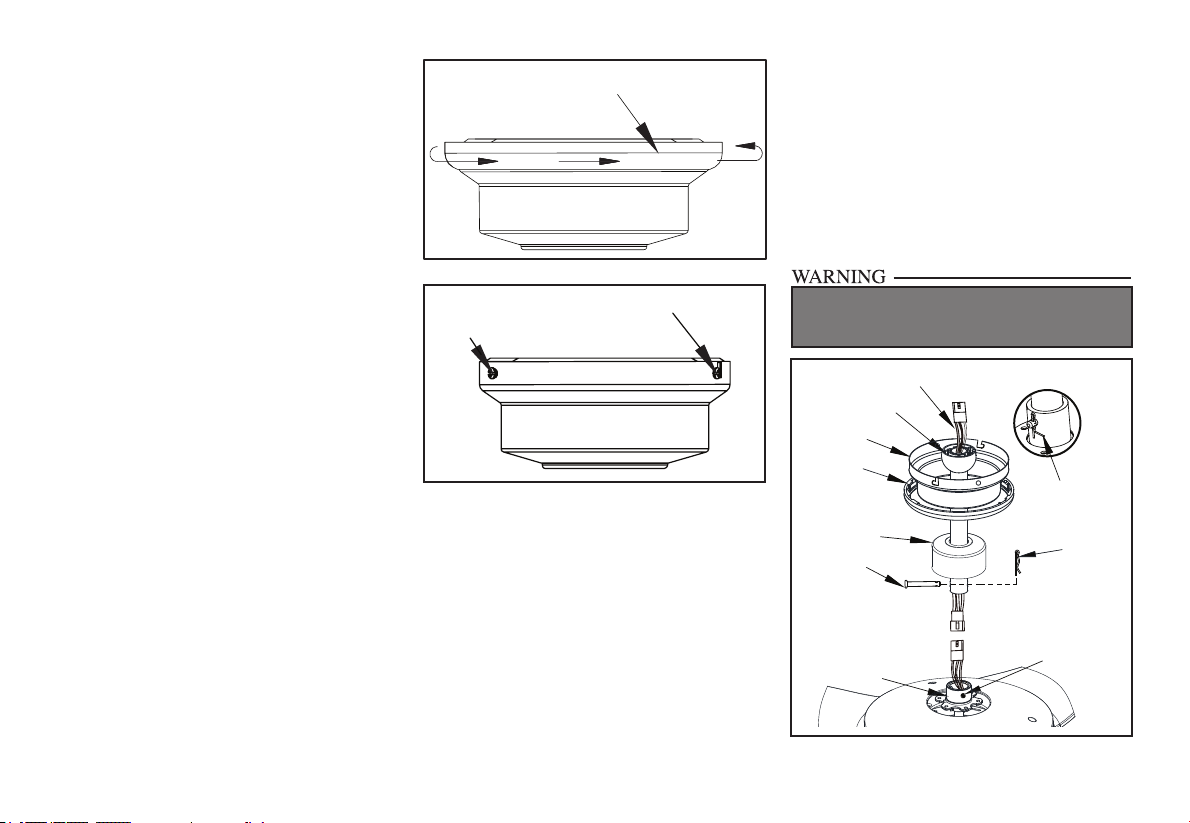

Figure 10

Pin in locked

position

Locking

Hanger pin

Motor collar

cover

Canopy

ring

Motor wires

Ball/Downrod

assembly

Canopy

Tighten screws

Motor collar

Installing Fan to

the Electrical Box

1. Pass the 120-volt supply wires through the

center hole in the ceiling mounting bracket

as shown in Figure 11.

2. Install the ceiling mounting bracket on the

electrical box by using the mounting screws

provided with the electrical box. Note that

the at side of the mounting bracket is

toward the electrical box. (Figure 11)

3. Tighten the two screws on the electrical box

securely.

4. Carefully lift the fan assembly up to the

ceiling mounting bracket. Make sure the tab

on the mounting bracket is properly seated

in the groove in the hanger ball. (Figure 12)

Figure 11

WHEN USING THE STANDARD BALL/DOWNROD

MOUNTING, THE TAB IN THE RING AT THE

BOTTOM OF THE MOUNTING BRACKET MUST

REST IN THE GROOVE OF THE HANGER BALL.

FAILURE TO PROPERLY SEAT THE TAB IN THE

GROOVE COULD CAUSE DAMAGE TO WIRING.

Figure 13

Installing the

Receiver into the

Mounting Bracket

1. Position the house supply wires to one

side of the slide-on mounting bracket;

position the fan wires to the opposite

side.

2. Insert the narrow end of the receiver (as

shown, at side toward ceiling) into the

slide-on mounting bracket until it rests

on top of the ball/downrod assembly.

(Figure 13)

Figure 12

Standard mounting

Figure 14

SUPPLY CIRCUIT

BLUE

Remote

Receiver

WHITE

L N

BLACK

GREY

ROWN

BLUE

BROWN

GREY

GREEN

Wiring the Fan to the

Receiver

1. If using the 6 in. ball downrod assembly

provided, wire the receiver to the fan wires

by connecting the molded adaptor plug

from this receiver with the molded adaptor

of the fan motor assembly together.

(Figure 14)

2. If you wish to use longer downrod, you

can use the extension lead wire (66 in.)

provided by connecting the molded

adaptors together.

Wiring the Receiver to

the Household Wiring

1. Connect the green wire to the household

ground wires using a wire connecting nut.

2. Connect the receiver black wire to

the household black wire using a wire

connecting nut.

3. Connect the receiver white wire to the

household white wire using a wire

connecting nut.

Table of contents

Other Progress Lighting Fan manuals

Progress Lighting

Progress Lighting AirPro P2548 User manual

Progress Lighting

Progress Lighting AirPro Claret P250007 User manual

Progress Lighting

Progress Lighting AirPro P250070 User manual

Progress Lighting

Progress Lighting P2570 User manual

Progress Lighting

Progress Lighting Airpro P250073 User manual

Progress Lighting

Progress Lighting AirPro P250108 User manual

Progress Lighting

Progress Lighting AirPro P250066 User manual

Progress Lighting

Progress Lighting P2550 User manual

Progress Lighting

Progress Lighting AirPro P250000 User manual

Progress Lighting

Progress Lighting AirPro P2588 User manual

Progress Lighting

Progress Lighting AirPro P250082 User manual

Progress Lighting

Progress Lighting AirPro P2572 User manual

Progress Lighting

Progress Lighting P2667 Programming manual

Progress Lighting

Progress Lighting AirPro P250059 User manual

Progress Lighting

Progress Lighting AirPro P2544-2030K User manual

Progress Lighting

Progress Lighting AirPro P2560 User manual

Progress Lighting

Progress Lighting AirPro P250032 User manual

Progress Lighting

Progress Lighting AirPro P250021 User manual

Progress Lighting

Progress Lighting AirPro P2560 User manual

Progress Lighting

Progress Lighting AirPro P2538 User manual

Progress Lighting

Progress Lighting AirPro P2599 User manual

Progress Lighting

Progress Lighting AirPro P250026 User manual

Progress Lighting

Progress Lighting AirPro P250024 User manual

Progress Lighting

Progress Lighting AirPro P2544 User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
