PROAIM P-MLMT-01 User manual

Please inspect the contents of your shipped package to ensure you have received everything that is listed

below.

Mul-Monitor VESA Mount System (P-MLMT-01)

Assembly Manual

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright

statutes or in wring by the Publisher.

What’s In The Box

2 x Cross Tubes

2 x Vesa Mount

2 x Clamps

2 x Cross Bars

2 x Pole

Bag

2 x T-Type Allen Key

(Sizes: 3x16”,4mm)

Mul-Monitor VESA Mount Setup

 Loosen and open the ratchet knob of the

clamp.

 Align and aach the clamp with the rod and

then ghten it using the ratchet knob.

 Similarly, attach the other clamp with the rod

as shown in the image.

 Now, loosen the knob of the clamp and insert

the pole by matching it with the clamp hole.

 Aer inserng the pole, ghten it with the

help of clamp knob.

 Similarly, follow the same procedure for

aaching the another pole of cart.

Assembly of clamps

 Five positions are provided to adjust the

height in the pole, so that height can be

adjusted according to your setup

requirement.

NOTE: It adjusts height in ve posions for

seated/standing monitor viewing angles. as you

can see in images.

 Insert the cross tube by matching it with the

hole of the pole, as shown in the image.

 Similarly, remove both the rod end caps.

 Then loosen all the knobs attached fixed to

the pole and then remove the rod end cap.

 Similarly, insert the second cross tube.

 Loosen both the knobs of the cross bar, as

shown in the image.

 Now align the holes of the cross bar to cross

tubes, and then insert the crass bar by simply

sliding.

 Now equally insert both the cross tubes into

the second pole equally, as shown in the

image.

 Properly tighten and secure the bolt on the

back side of the cross bar with the help of the

Allen key.

 After inserting the cross bar, securely

re-tighten the knobs, and similarly insert the

second cross bar.

 Properly tighten the knobs of the pole to

secure the assembly.

 Then insert the rod end cap to secure the

cross tube, as shown in the image.

 Now, secure it with the help of the provided

knob of the pole.

 Then, mount the cross bar on the Vesa

Mount.

 Loosen and remove the bolt present on the

side of Vesa Mount.

 Loosen the knob of the Vesa Mount, as

shown in the image.

 Now, insert the bolt by matching the thread

holes of Cross Bar and Vesa Mount and

secure the assembly with the Allen key.

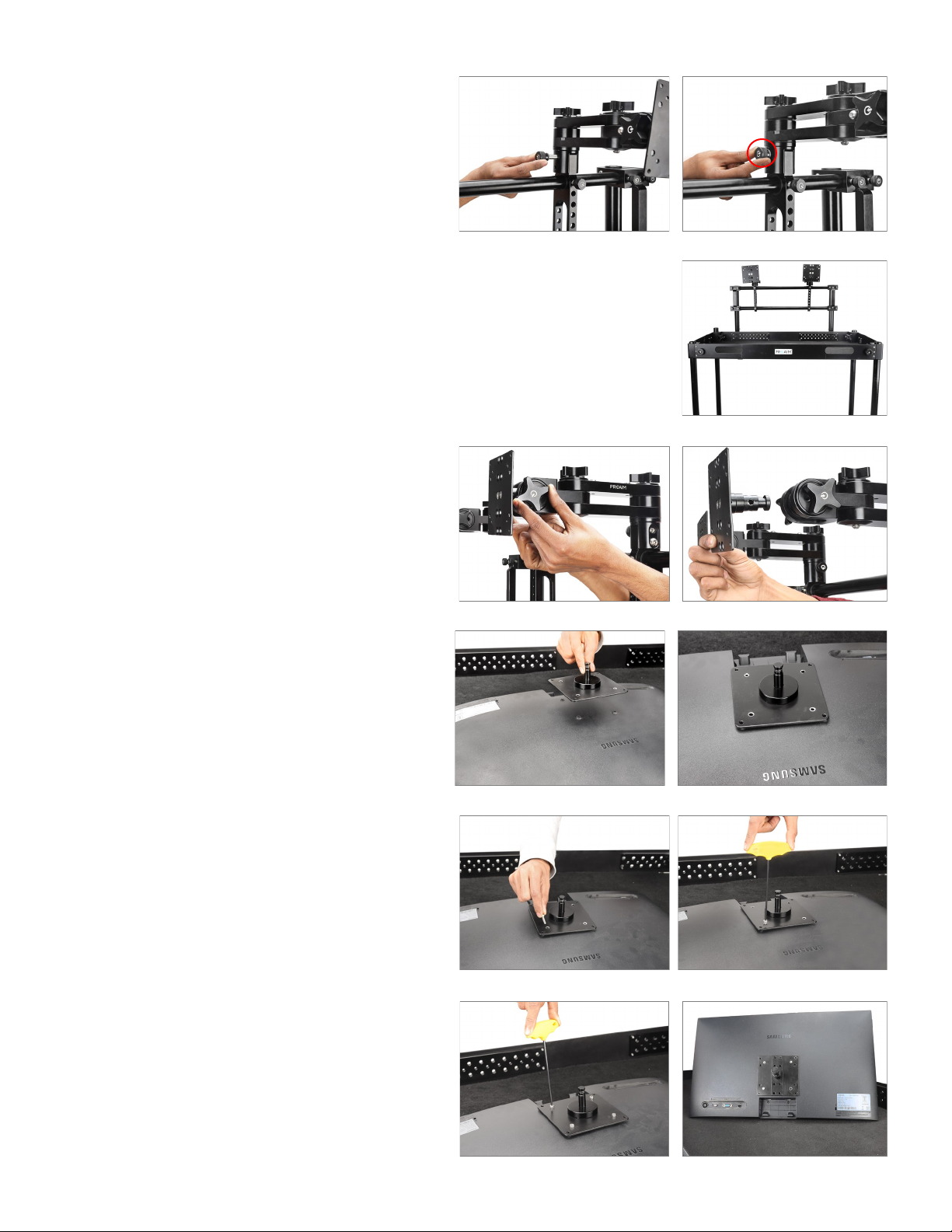

Assembly of Vesa Mount

 Follow the same procedure to aach the

second Vesa Mount.

 Remove the Vesa Mount by loosening the

knob attached to it.

 Re-ghten the knob of the Vesa Mount and

properly secure it with the cross bar.

 Place and attach the Vesa Mount by matching

it with the thread hole at the back of the LCD

monitor (Not Included), as shown in the


 Tighten the assembly with the help of the

Allen key.

 Similarly, properly secure all the bolts by

tightening them.

Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,

we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it

cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon and

evaluaon by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling in

transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.

most support and care unl you use our product.

YOUR PROAIM MULTI-MONITOR VESA MOUNT SYSTEM

ALL DRESSED UP AND READY TO GO!

(SHOWN WITH OPTIONAL ACCESSORIES)

 Finally our Mul-Monitor Vesa mount

system setup is ready to use.

 Insert the LCD monitor (Not Included) on the

Vesa Mount and properly align it. Now, insert

bolts and properly ghten them with the help

of Allen key.
