Premier Mounts EST100 User manual
Single-Stud/Dual-Stud
Short-Throw Projector Wall Mount
Model: EST100/EST200
9530-011-001-00
INSTALLATION INSTRUCTIONS
NORTH AMERICA
3130 East Miraloma Avenue
Anaheim, CA 92806 USA
USA and Canada
Phone: 1-800-368-9700
Fax: 1-800-832-4888
Other Locations
Phone: (001) 714-632-7100
Fax: (001) 714-632-1044
EUROPE
Swallow House,
Shilton Industrial Estate,
Shilton, Coventry, England CV79JY
Phone: +44 (0) 2476 614700
Fax: +44 (0) 2476 614710
Page 2 Visit the Premier Mounts website at http://www.mounts.com Installation Instructions
Table of Contents
PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS PRODUCT FOR
PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY UNAUTHORIZED ATTACHMENTS OR
MODIFICATIONS, AND IS NOT RESPONSIBLE FOR ANY DAMAGES, CLAIMS, DEMANDS, SUITS, ACTIONS OR CAUSES OF ACTION
OF WHATEVER KIND RESULTING FROM, ARISING OUT OF OR IN ANY MANNER RELATING TO ANY SUCH USE, ATTACHMENTS OR
MODIFICATIONS.
SAFETY MEASURES MUST BE PRACTICED AT ALL TIMES DURING THE ASSEMBLY OF THIS PRODUCT. USE PROPER
SAFETY GEAR AND TOOLS FOR THE ASSEMBLY PROCEDURE TO PREVENT PERSONAL INJURY.
At least two qualied people should perform the assembly procedure. Injury and/or damage can result from dropping or mishandling the
projector.
If mounting to studs, make sure that the mounting screws are anchored into the center of the studs. Use of an edge-to-edge stud nder is
recommended.
Be aware of the mounting environment. If drilling and/or cutting into the mounting surface, always make sure that there are no electrical wires in
wall. Cutting/drilling into an electrical line may cause serious injury.
This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal injury.
Do not install near sources of high heat. Do not install on a structure that is prone to vibration, movement or chance of impact
Contact Premier Mounts with any questions
(800) 368-9700
PRIOR TO THE INSTALLATION OF THIS PRODUCT, THE INSTALLATION INSTRUCTIONS SHOULD BE READ AND COMPLETELY UN-
DERSTOOD. THE INSTALLATION INSTRUCTIONS MUST BE READ TO PREVENT PERSONAL INJURY AND PROPERTY DAMAGE. KEEP
THESE INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE LOCATION FOR FUTURE REFERENCE.
Make sure there are no water lines inside the wall where the mount is to be located. Cutting/drilling into a water line may cause severe water
damage to the mounting surface.
EST100/EST200
Weight Capacity
Maximum projector weight: 25 lbs. THE WALL STRUCTURE MUST BE CAPABLE OF HOLDING FIVE
(5) TIMES THE WEIGHT OF THE PROJECTOR. IF NOT, THEN THE
WALL STRUCTURE MUST BE REINFORCED.
Warning Statements
Heading 1
Weight Capacity 2
Warning Statements 2
Installation Tools 3
Parts List 3
Features 4
Determining the Installation Height 5
Wood Stud Installation 6
Throw Distance Calculation 10
Projector Installation 10
Attaching the Mount Carriage 11
Multiple Mounting Point Installation 12
Single Mounting Point Installation 14
Attaching the Mount Carriage to the Projector Arm 15
Cable Routing (Optional) 16
Securing the Projector (Optional) 16
Mount Adjustment 17
Technical Specications 17
Warranty 18
Disclaimer 18
Installation Instructions Visit the Premier Mounts website at http://www.mounts.com Page 3
Projector Arm
(Qty 1)
Mount Carriage
(Qty 1)
Phillips Screwdriver ⅛˝ Drill Bit Electronic Stud Finder
Drill Level
Dual-Stud Back Plate
(Qty 1)
EST100/EST200
Back Plate Hardware Pack (included only with the EST200)
Parts List
Installation Tools
The following tools may be required depending upon your particular installation. They are not included.
Make sure your Premier Mounts product has the following hardware and components before beginning installation. If
there are parts missing and/or damaged, stop the installation and call Premier Mounts at (800) 368-9700.
EST100/EST200 Hardware
M2.5 x 8mm
Security Screw (Qty 4)
M2.5 x 10mm
Security Screw (Qty 4)
M3 x 16mm
Security Screw (Qty 4)
M3 Flat Washer
(Qty 4)
M4 x 12mm
Security Screw (Qty 4)
M5 x 10mm
Security Screw (Qty 3)
M5 x 12mm
Security Screw (Qty 4)
M6 x 12mm Security
Screw (Qty 4)
#14 x 2” Wood Screw
(Qty 2)
¼-20 x 5/16″ Security
Screw (Qty 1)
M5 Security Wrench
(Qty 1)
Barrel Cap
(Qty 4)
M5 x 10mm
Security Screw (Qty 2)
#14 x 2” Wood Screw
(Qty 2)
M5 Flat Washer
(Qty 4)
Sleeve Bushing
Nylon (Qty 4)
Projector Arm
Cover Plate (Qty 1)
Page 4 Visit the Premier Mounts website at http://www.mounts.com Installation Instructions
EST100/EST200
Features
The Single-Stud/Dual-Stud Short-Throw Projector Wall Mount (EST100/EST200) is a simple and elegant tool for mounting
a wide variety of short-throw projectors. Its design allows you to use the same mount even if you need to replace the pro-
jector with a different model. Unique features include a mount carriage that easily slides along the projector arm for quick
screen size adjustments, integrated cable management, and Lock-It™ security screws and barrel for enhanced security.
Dual-Stud Back Plate
The EST200 has all the great fea-
tures of the EST100 plus a back plate
designed for mounting on 12” or 16”
dual studs. The back plate also al-
lows lateral shift after installation.
Radial Glide®
Up to 6°of smooth adjustment
in any direction.
Projector Adjustment
Position the projector anywhere along
the projector arm.
Cable Routing
Discreetly manage signal
and power cables through
the projector arm.
Single Stud
Mounts rmly to a
single wood stud.
Installation Instructions Visit the Premier Mounts website at http://www.mounts.com Page 5

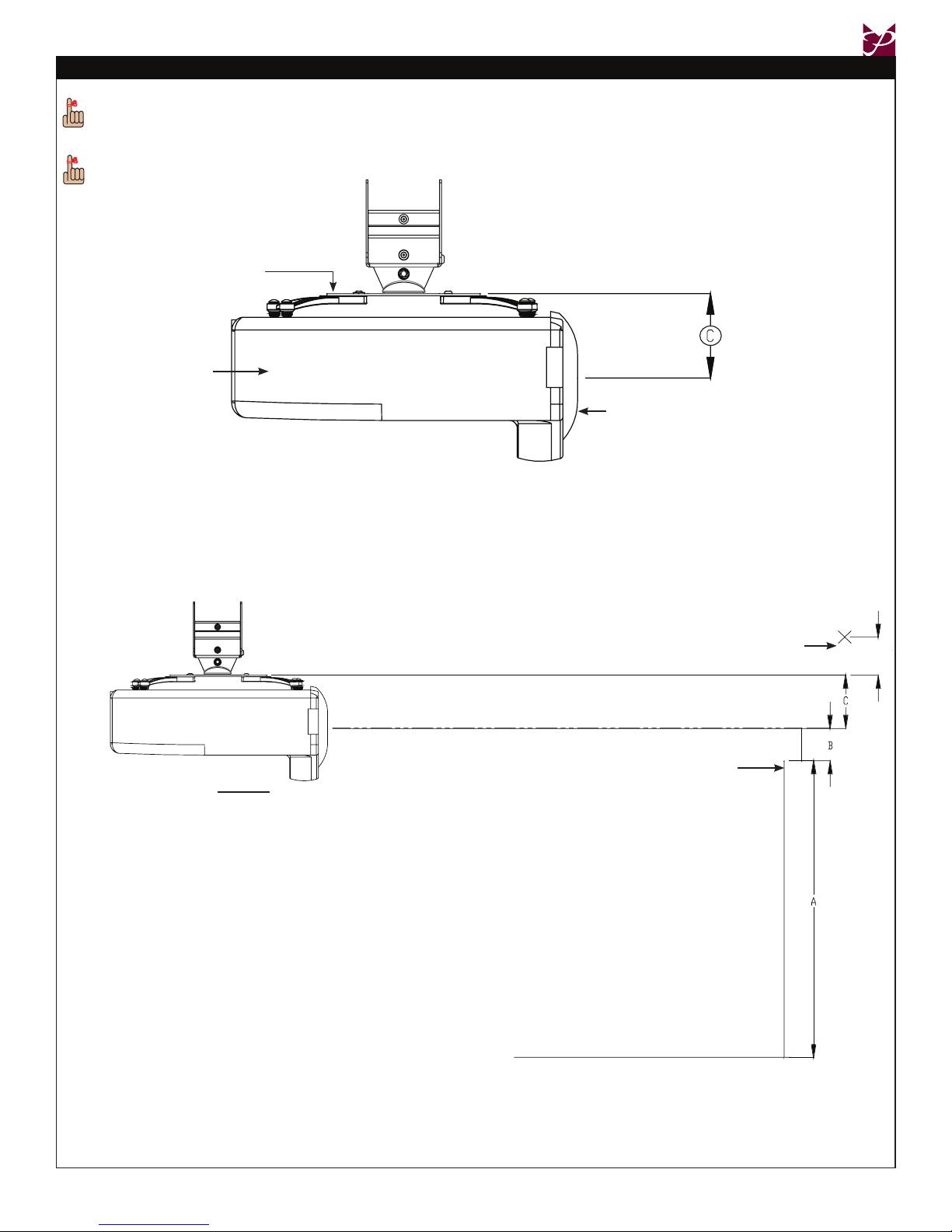

Measure distance from center of lens to the top of the mount carriage (C).
® Add the distance from the ground to the top of the screen (A). Add the projector manufacturers recommended
offset from the projector manual (B). Add the measurement from Step 1 (C), and then add the mounting screw
offset (D) to the total.
(Example: A + B + C + D = ?)
¯ Add the measurements to determine the mounting height mark. Place a mark at the top of the total calculated
height measurement starting from the ground up. This height mark will determine your mounting points.
Refer to the projectors User’s Manual to determine the offset of the projector lens to the top of the
screen/whiteboard (B).
Lens
Mount Carriage
Projector
In order to determine the installation height and throw distance, the mount carriage must be mounted
to the projector.
Top of Screen
Mark
Legend
A - Distance from ground to the top of the
screen/whiteboard (viewable area).
B - Manufacturers recommended offset
measurement. This measurement will
be listed in the Users Manual.
C - Center of the lens to the top of the
projector bracket.
D - If single-stud EST100, add 5.14˝ to
the calculated total.
If dual-stud EST200, add 1.9” to the
calculated total.
This total distance will be the location for the
lower mounting point.
Proceed to the “Wood Stud Installation”
section.
Ground
Determining the Installation Height
EST100/EST200
D
Page 6 Visit the Premier Mounts website at http://www.mounts.com Installation Instructions
EST100/EST200

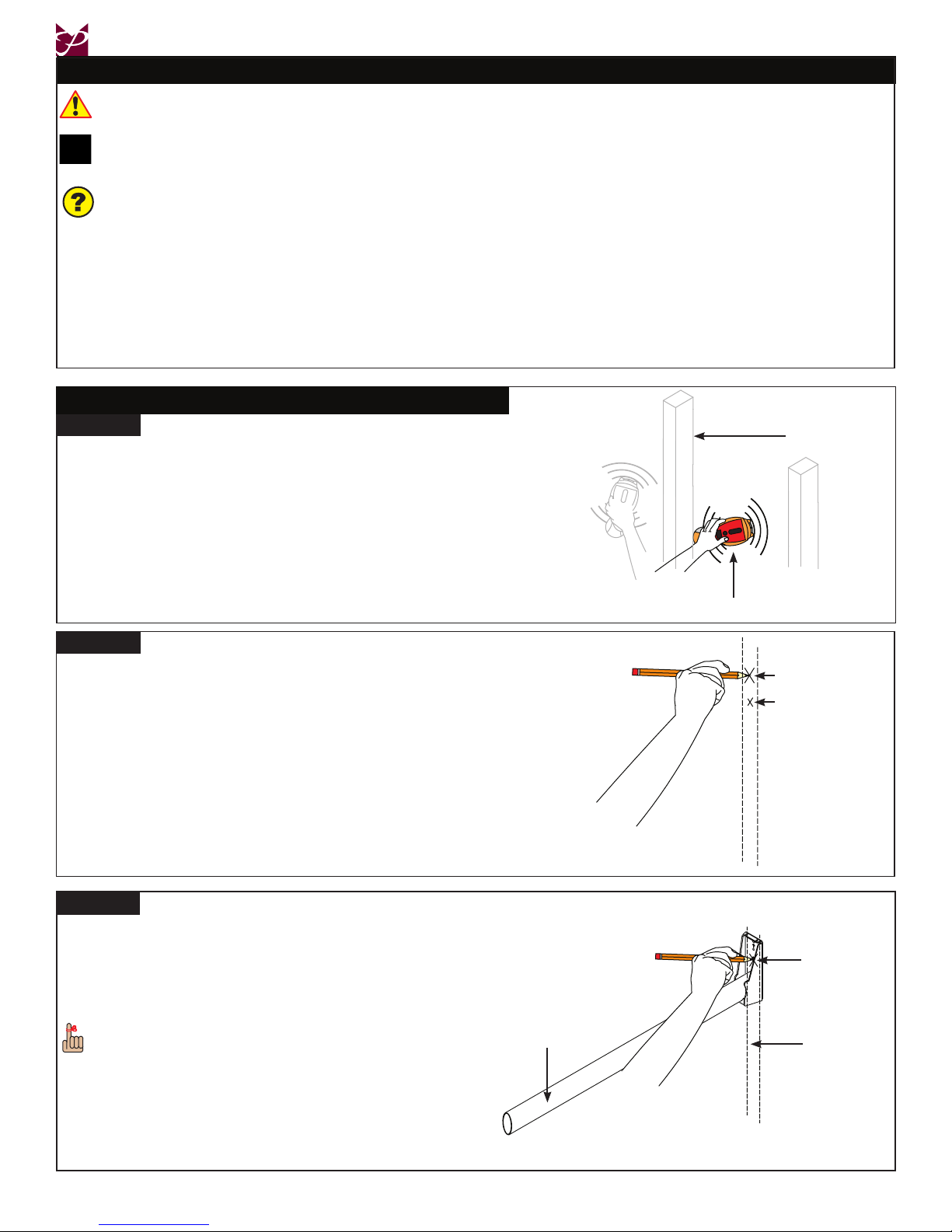

THE EXACT CENTER OF THE STUD MUST BE LOCATED FOR CORRECT AND SAFE INSTALLATION.
Use an electronic stud nder (not supplied) to
locate the center of the stud that is in the wall.
Wood Stud
Stud nder
Height
Mark
(from page 5)
Wood Stud
Marking
Projector
Arm
Do NOT over-tighten lag bolts when attaching the mount to the wall. Improper installation may result in personal
injury or damage to property.
Wood Stud Installation
Mounting Point
Mark
Step 1
Step 2
Use a pencil to mark the rst mounting point, just
above your height mark (from page 5).
Step 3
Use the level to make sure the projector arm is level
from side to side.
® Place the projector arm’s second mounting hole over
the rst mounting point mark, then use a pencil to
mark the upper mounting point.
Two (2) mounting points must be used.
Are you installing the single-stud EST100 or the dual-stud EST200?
If EST100, continue to the “EST100 Installation” section below.
If EST200, go to the “EST200 Installation” section on page 8.
EST100 Installation
Installation Instructions Visit the Premier Mounts website at http://www.mounts.com Page 7
EST100/EST200
After the pilot holes have been drilled, use
two (2) #14 x 2˝ wood screws to mount the projector
arm to the wooden stud.
Step 5

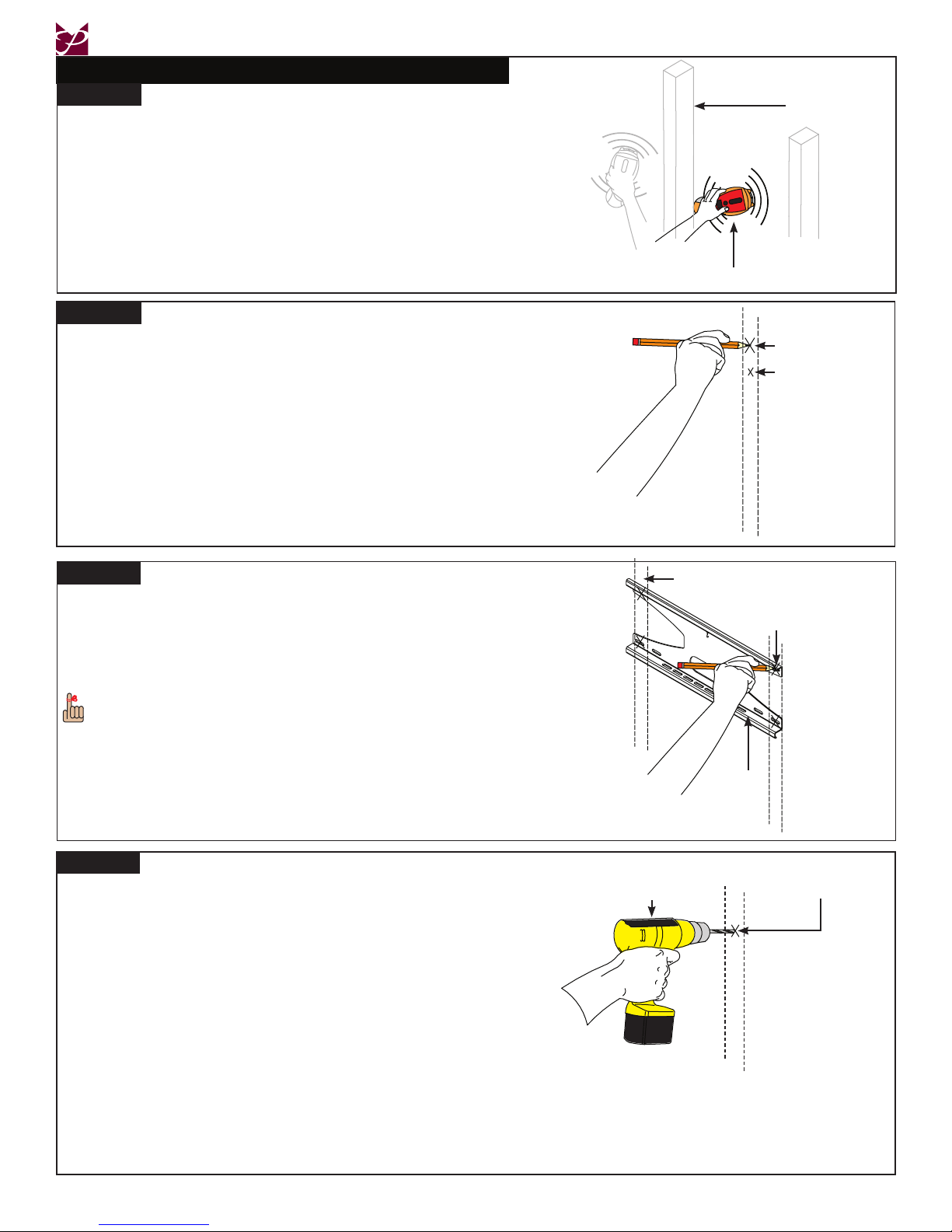

Once the mounting points have been marked, use a
⅛˝ drill bit and portable drill to drill the pilot holes.
Drill Marking
Step 4
Wood Stud
Marking
Projector
Arm
#14 x 2” Wood Screw
Step 6
Use two (2) M5 x 10mm security screws to attach the
projector arm cover plate to the projector arm.
Wood stud not shown
Go to the “Throw Distance Calculation” section on
page 10.
EST200 Installation
EST100/EST200
Use an electronic stud nder (not supplied) to
locate the center of the stud that is in the wall.
Wood Stud
Stud nder
Height
Mark
(from page 5)
Wood Stud
Marking
Back
Plate
Once the mounting points have been marked, use a
⅛˝ drill bit and portable drill to drill the pilot holes.
Drill Marking
Mounting Point
Mark
Step 1
Step 2
Step 4
Use a pencil to mark the rst mounting point, just
above your height mark (from page 5).
Step 3
Use the level to make sure the back plate is level from
side to side.
® Align one of the lower mounting slots of the back plate
with the rst mounting point mark and use a pencil to
mark the rest of the mounting points.
Four (4) mounting points must be used. Two (2)
upper mounting points and two (2) lower mounting
points.
Page 8 Visit the Premier Mounts website at http://www.mounts.com Installation Instructions
EST100/EST200
Installation Instructions Visit the Premier Mounts website at http://www.mounts.com Page 9
Step 5

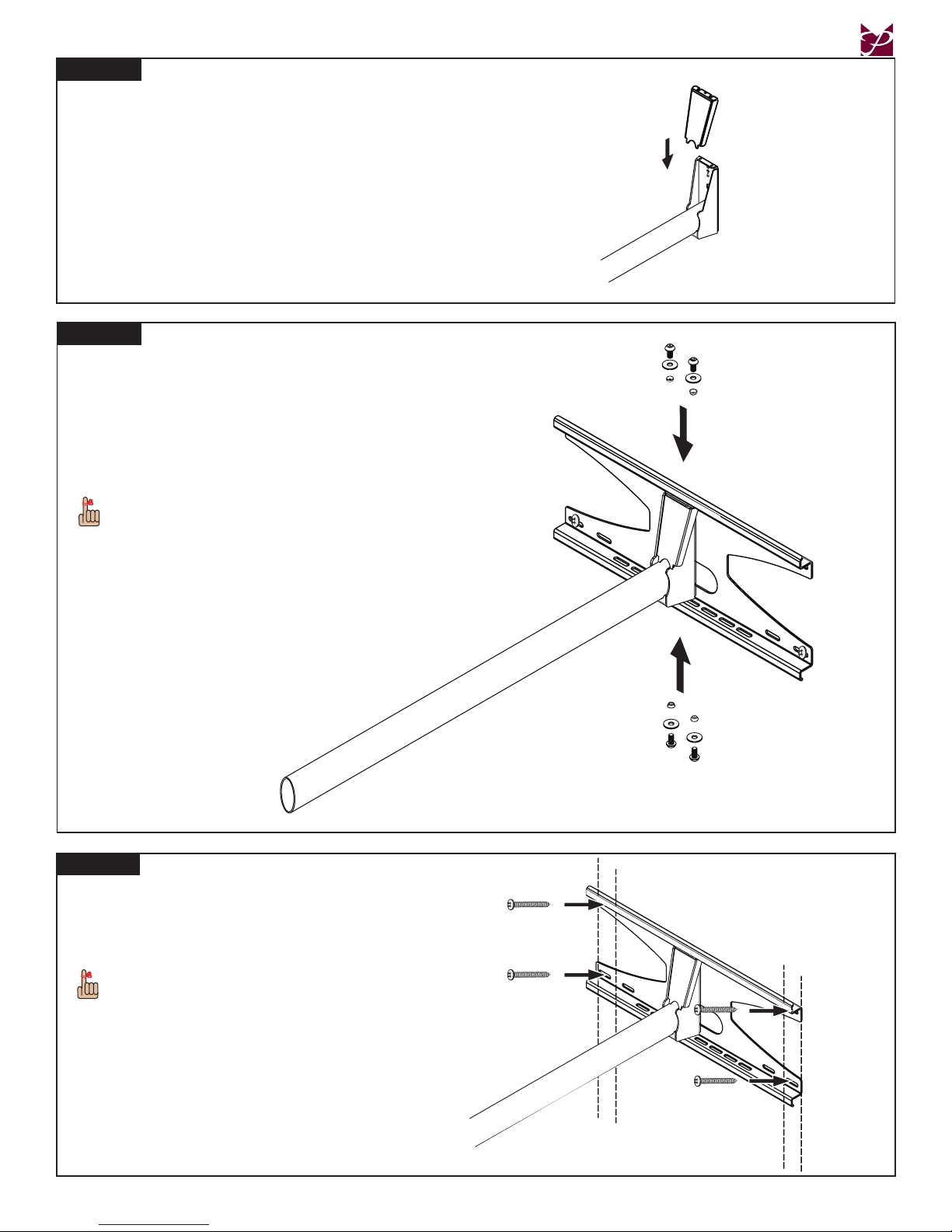

Put the projector arm cover plate on the projector arm.
Projector Arm
Projector Arm
Cover Plate
Step 6
Place the projector arm assembly within the desired
mounting slots on the back plate.
® Use four (4) M5 x 10mm security screws, four (4)
M5 at washers and four (4) sleeve bushing nylons
to attach the projector arm assembly to the back
plate.
The elongated mounting slots in the back plate
allow some lateral shift for precisely adjusting the
projector arm.
Use four (4) #14 x 2” wood screws to mount the back
plate to the wooden studs where the pilot holes are.
The elongated mounting slots in the back plate allow
some lateral shift for precise adjustments against
the studs.
Proceed to the “Throw Distance Calculation” section
on page 10.
Step 7
Page 10 Visit the Premier Mounts website at http://www.mounts.com Installation
EST100/EST200
Please review the Operator’s Manual that came packaged with your projector before attaching the upper
mounting bracket. The correct throw distance (the distance from the projector to the screen) must be
determined prior to mounting the projector.
Refer to the projectors User’s Manual to
determine the distance from the lens to
the front of the screen (X).
® Measure the distance from the front of
the lens to the center of the projector (Y).
¯ Measure the distance from the wall to the
face of the whiteboard/screen (Z).
° Add all measurements (X + Y + Z) to
determine projector placement on the
arm assembly. This measurement
will determine where the center of the
mount bracket will be located on the
arm assembly. Please make note of this
measurement.
Front Lens
Rear Lens
Calculations
X = Manufacturers recommended
throw distance
Z = Distance from wall to face of
whiteboard/screen
Front Lens Throw Distance =
(X + Y + Z)
Rear Lens Throw Distance =
(X - Y + Z)
Throw Distance Calculation
The EST100/EST200 can be also used as
a wall-mounted standard projector mount as
well as a short throw projector mount. Align
the projector facing the opposite direction
from the wall plate to project the image
across the room. Please take into account
the projectors throw capabilities prior to
mounting in the projector opposite direction.
Proceed to the “Projector Installation” section.
Projector Installation
Locate the mounting points on the bottom of the projector
(see arrows).
Proceed to the “Attaching the Mount Carriage” section.
Attaching the Projector to the Mount Carriage
This manual suits for next models
1
Table of contents
Other Premier Mounts Rack & Stand manuals
Premier Mounts
Premier Mounts PSD-TS User manual
Premier Mounts
Premier Mounts GB-AVSTOR4 User manual
Premier Mounts
Premier Mounts Universal Tabletop Stand PSD-TTS Guide
Premier Mounts
Premier Mounts SHLF-EQ User manual
Premier Mounts
Premier Mounts Cathedral Ceiling Adapter PP-TL User manual
Premier Mounts
Premier Mounts VPM User manual
Premier Mounts
Premier Mounts LMVSP User manual
Premier Mounts
Premier Mounts ECM-3763D User manual
Premier Mounts
Premier Mounts PTM User manual
Premier Mounts
Premier Mounts AST-2446-2 User manual
Premier Mounts
Premier Mounts AM225 User manual
Premier Mounts
Premier Mounts PP-HDFCP User manual
Premier Mounts
Premier Mounts MVWC-2X2 User manual
Premier Mounts
Premier Mounts Convergent A-A27 Series User manual
Premier Mounts
Premier Mounts GB-INWAVP User manual
Premier Mounts
Premier Mounts PBC-UM Series User manual
Premier Mounts
Premier Mounts PTM-B User manual
Premier Mounts
Premier Mounts AM100 User manual
Premier Mounts
Premier Mounts CTM-MS1 User manual
Premier Mounts
Premier Mounts SOAD User manual
Popular Rack & Stand manuals by other brands
Salamander
Salamander Acadia AC/W/L400/WH Assembly instructions
Fohhn
Fohhn VAT-09 Mounting instruction
ricoo
ricoo FS0522 quick start guide
AMSOIL
AMSOIL BMK-22 Installation and service instructions
Kargo Master
Kargo Master 48220 installation guide
Milestone AV Technologies
Milestone AV Technologies SIMPLICITY SLF2 installation instructions
