Preh POS 2000 User manual
User Manual and Technical Data
PREH
Preh Flat POS 2000
2
ENGLISH
Table of Contents
1 General 3
1.1 O er iew 3
1.2 Working en ironment 3
1.3 Contents of packaging 4
2 System Characteristics 5
2.1 System board 5
2.2 Hard disk 6
2.3 Diskette dri e 6
2.4 CD-ROM / DVD dri e (Option) 6
3 Controls and Connections 7
4 Opening the Housing 8
5 System Board 10
6 Installation 10
6.1 General 10
6.2 Cable installation 11
6.3 Switching on for the first time 12
6.4 Set-up Program 13
6.5 Booting the system 13
6.6 Installation of operating systems 13
6.7 Dri er installation 14
7 Technical Data 14
7.1 Electronics 14
7.2 ESD and EMC 15
7.3 Climatic parameters 15
7.4 Mechanical 15
7.5 Materials and surfaces 15
8 Care and Maintenance 16
9 Troubleshooting 16
9.1 General 16
9.2 Fault finding 16
9.3 Additional help 17
10 Additional Notices 17
11 Warranty 17
12 Declaration of Conformity 18
13 FCC Warning Statement 18
3
ENGLISH
1 General
1.1 O er iew
We congratulate you on the purchase of our Preh Flat POS 2000 compact PCs.
The Flat POS 2000 is a compact cash desk computer for individual custom
solutions at the Point-of-Sale. Its compact design and small dimensions make
the Flat POS 2000 ideal for use in the retail restaurant gastronomy and
hotel branches.
This compact PC has a standard motherboard (100 MHz FSB) with Ethernet
controller and sound-chip on board 512 kB 2nd level cache 3 5“ floppy
drive at least 6 0 GB hard disk and a great number of POS-specific inter-
faces.
As standard the Flat POS 2000 is delivered with an AMD® processor of at
least 500 MHz and at least 32 MB working memory.
Options for the Flat POS 2000 are Disk-on-ChipTM (DOC) and 768 MB SDRAM
(3x168 PIN SDRAM) (PC-100 conform). Further options include an integrated
CD-ROM or DVD drive. The PC is notable above all for its compact dimen-
sions of approx. 340mm x 260mm x 60mm. On the front side of this PC are a
recessed reset switch and a power LED. An external power supply is required.
1.2 Working en ironment
Thanks to its compact dimensions and low weight the Flat POS 2000 can be
used anywhere. However the Preh Flat POS 2000 should be treated with the
same care as any other quality electronic hardware.
Please therefore note the following conditions for the working environment:
• Do not operate the Flat POS 2000 in places where it may be subjected to
excessive humidity and/or dust.
• Do not subject the Flat POS 2000 to excessive heat or direct sunlight.
• Avoid heavy vibration or shocks.
• Do not operate the Flat POS 2000 in aggressive environments
(acid vapours...).
4
ENGLISH
• Ensure that the ventilation slots on the front and the fan grids at the rear
do not become obstructed.
• Do not subject the Flat POS 2000 to any strong magnetic fields.
Important notices:
• For the operation of the Flat POS 2000 use only the original power
supply included. If another power supply is used we do not accept any
responsibility and guarantees or warranties do not apply.
• Remember that the built-in hard disk is very sensitive to blows shocks
and vibration. Therefore your Flat POS 2000 should be handled with the
necessary care. We cannot guarantee the hard disk against or accept any
responsibility for damage that can be shown to result from inappropriate
handling.
• Correct operation with peripherals can only be guaranteed if these carry
the CE or FCC marking.
1.3 Contents of packaging
Please check before attempting to operate your Flat POS 2000 that all the
following are present and visibly free from damage:
1. Preh Flat POS 2000
2. Driver CD with peripheral drivers and Preh Programmer
3. Supply cable
4. Jumpers
5. Ferrite clamp
6. Power supply
7. Descriptions: User manual and technical data
manual for system board (IPC POS-566/566L)
5
ENGLISH

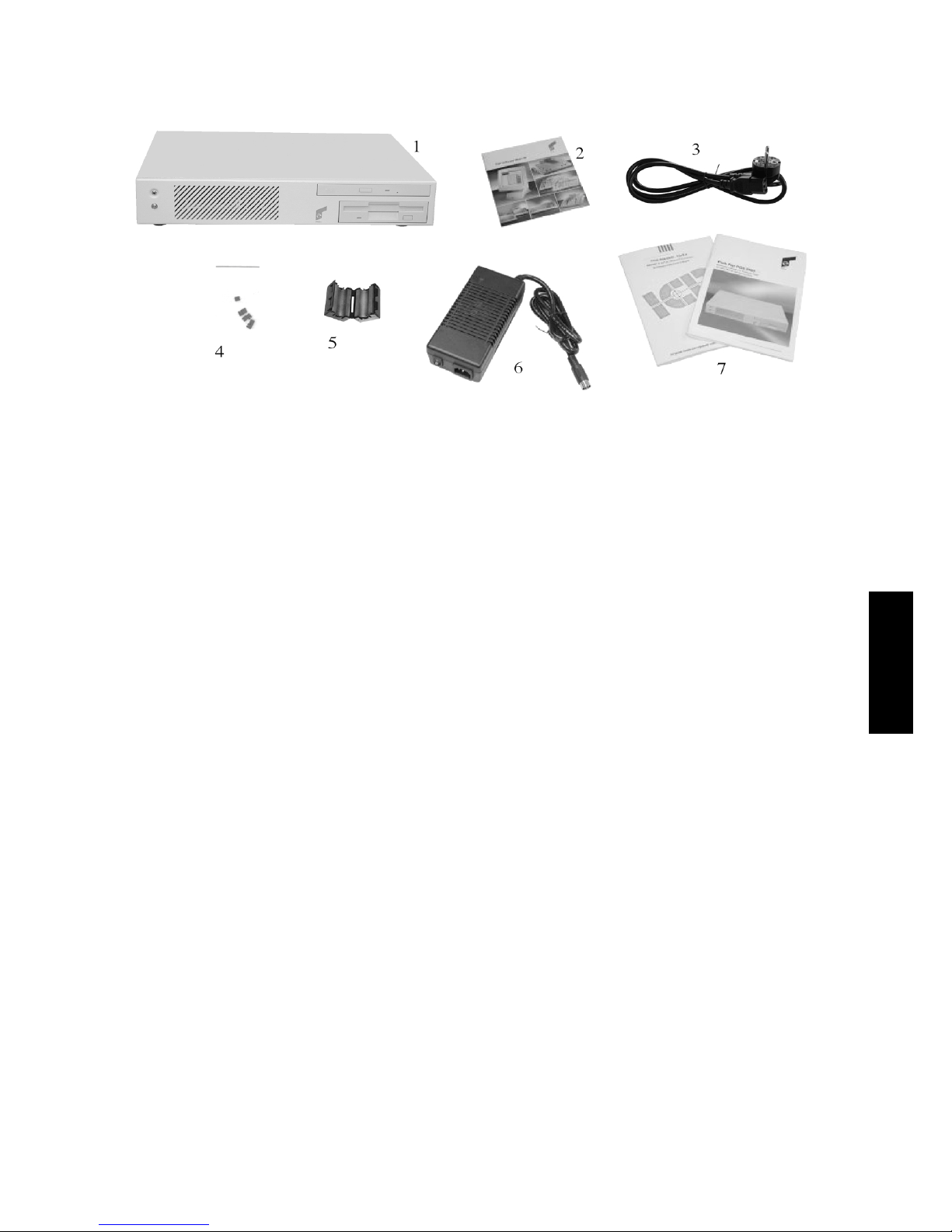

fig. 1: Contents of packaging
2 System Characteristics
The Preh Flat POS 2000 is a compact computer system based on a system
board with a 100 MHz front side bus (FSB) for AMD® K6® Pentium® or
Pentium® compatible processor.
2.1 System board
The integrated system board is suitable for the following processors:
• AMD® K6® / K6®-2 / K6®-3 up to 500 MHz
• Pentium® MMX up to 233 MHz
• IDT C6
• Cyrix 6x86MX and compatibles.
The processor is seated on a 321-pin ZIF-socket. The standard version of the
Preh Flat POS 2000 is fitted with a processor type AMD® K6®-2 (≥ 500 MHz).
On request the Preh Flat POS 2000 can be fitted with another type of
processor.
The chip-set is an Ali 5 with 100 MHz FSB. The system board is factory-fitted
with 512 KB second level cache memory.
The Board supports amongst others the following interfaces:
• two SPP/EPP/ECP parallel interfaces (of which one is brought out)
• four serial interfaces (three RS-232C one RS 232-C or RS-422/485)
• two USB interfaces (Universal Serial Bus)
6
ENGLISH
• one SVGA interface
• one PS/2 mouse interface
• one PS/2 keyboard interface
• one RJ 45 10/100 Mbps Ethernet Realtek RTL 8139 IEEE 802 interface
• one each of Line in Line out Mic. sound connections
• one 12 V output for Preh Touch or Screen Commander
• and one RJ 11 connection for cash desk drawer.
As working memory all 168 Pin SDRAM modules can be used that comply
with the PC-100 specification. Three memory bank slots (168 Pin) are avail-
able each of which can be fitted with up to 256MB of RAM. The PC is
delivered with at least one 32MB module fitted.
2.2 Hard disk
Since both the technology and capacity of hard disks are subject to continu-
ous change no precise data for the capacity of the factory fitted disk can be
given here (presently at least 6 0 GB).
However any normal 2.5" IDE hard disk can used. The BIOS can automati-
cally recognise the hard disk. Further details of the hard disk registration in
BIOS can be found in the accompanying motherboard description.
2.3 Diskette dri e
The Flat POS 2000 is factory-fitted with a 3.5“ diskette drive. Any normal
3.5“ HD diskettes can be used.
To remove diskettes from the drive press the eject button (fig. 2).
2.4 CD-ROM / DVD dri e (Option)
The Flat POS 2000 can optionally be factory-fitted with an integrated slim-
line CD-ROM or DVD drive. Here too continuous change means that no
precise details can be given in this case of speed (presently at least 24x
speed CD).
To open the CD-ROM or DVD drive press the CD eject button (fig. 2). The
drive will open and can carefully pull the CD tray out to the stop.
7
ENGLISH
Now place the CD or DVD label side up in the drive. Take care that the disk
clicks onto the spindle by exerting light and even pressure near the centre.
The CD-ROM tray can be closed by gentle hand-pressure until it clicks home.
If you have problems with the CD-ROM drive and it cannot be opened you
can use light pressure with a pointed object (e.g. paper clip) to operate the
emergency release (fig. 2).
3 Controls and Connections
Before working with the Flat POS 2000 you should make yourself familiar
with its controls and connections.
The following pictures show the controls and connections of the Preh Flat
POS 2000:

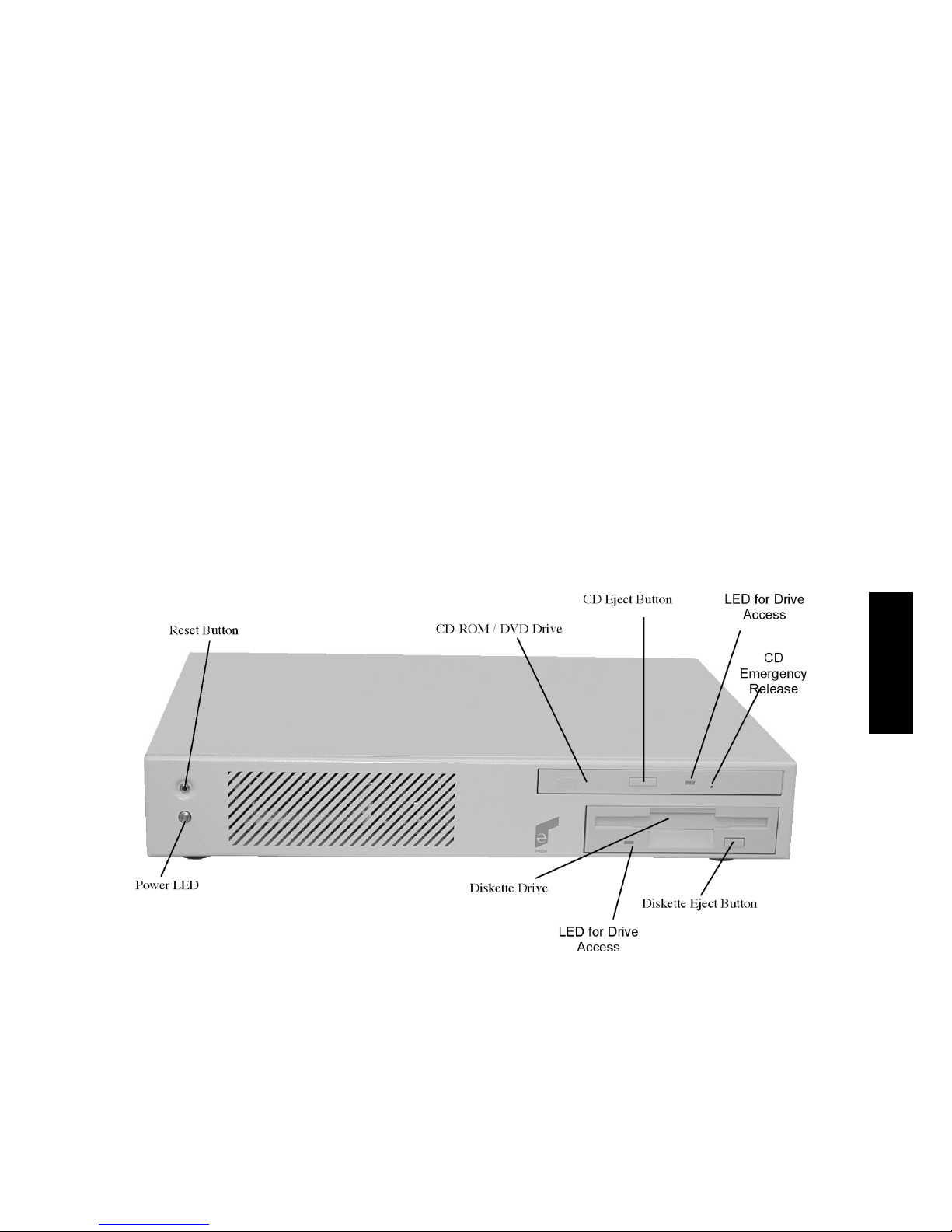

fig. 2: Controls (front view)
8
ENGLISH

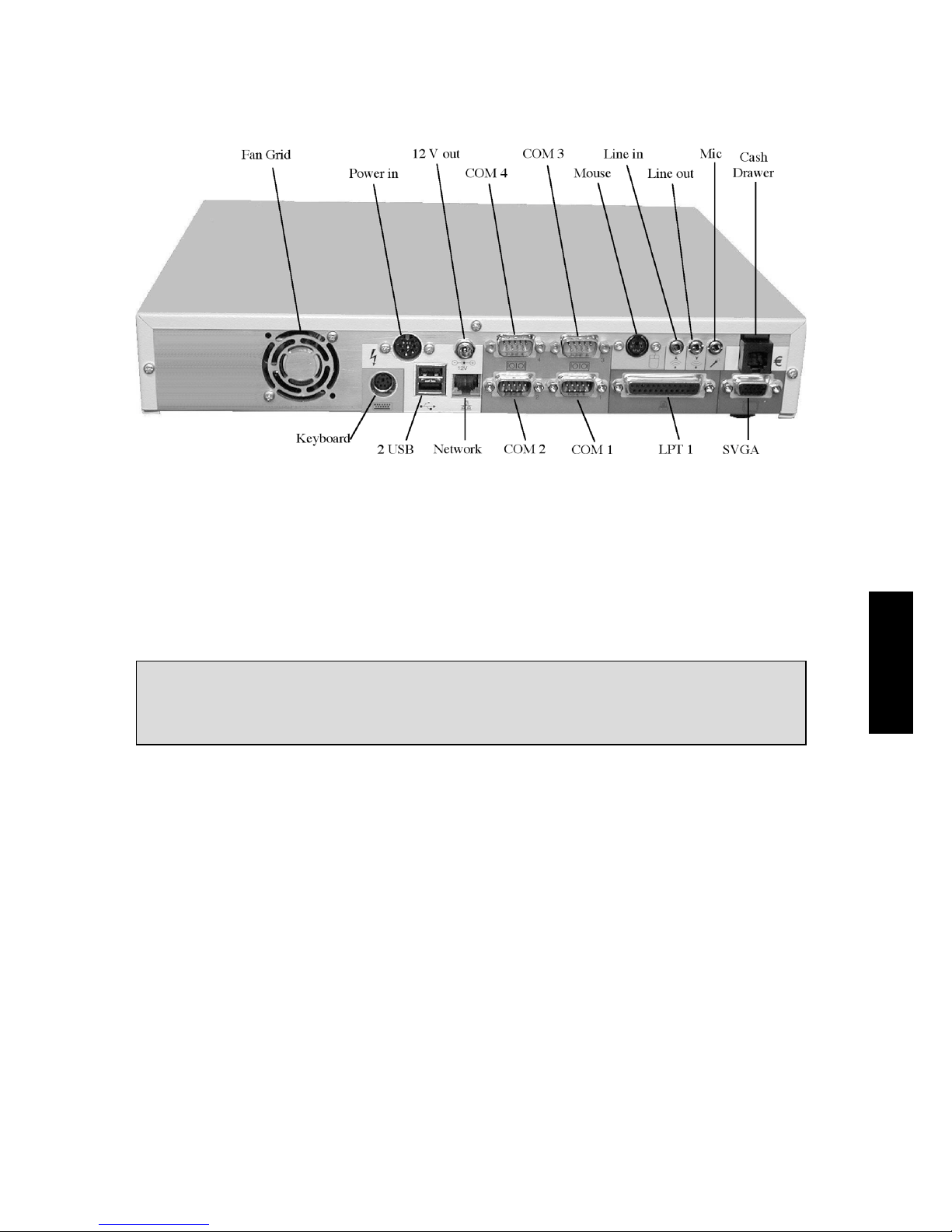

fig. 3: Connections (rear view)
4 Opening the Housing
In order to change any settings or make any extensions to the system board
you can open the housing of the Flat POS 2000.
Attention: Only open the housing after the mains plug has been
withdrawn. When working on the system board observe the
proper precautions against electrostatic discharge!
First lay the Flat POS 2000 with the upper side of the case on a soft surface.
Use a torx-head screwdriver to loosen the four fixing screws on the underside
of the case (see fig. 4).
9
ENGLISH

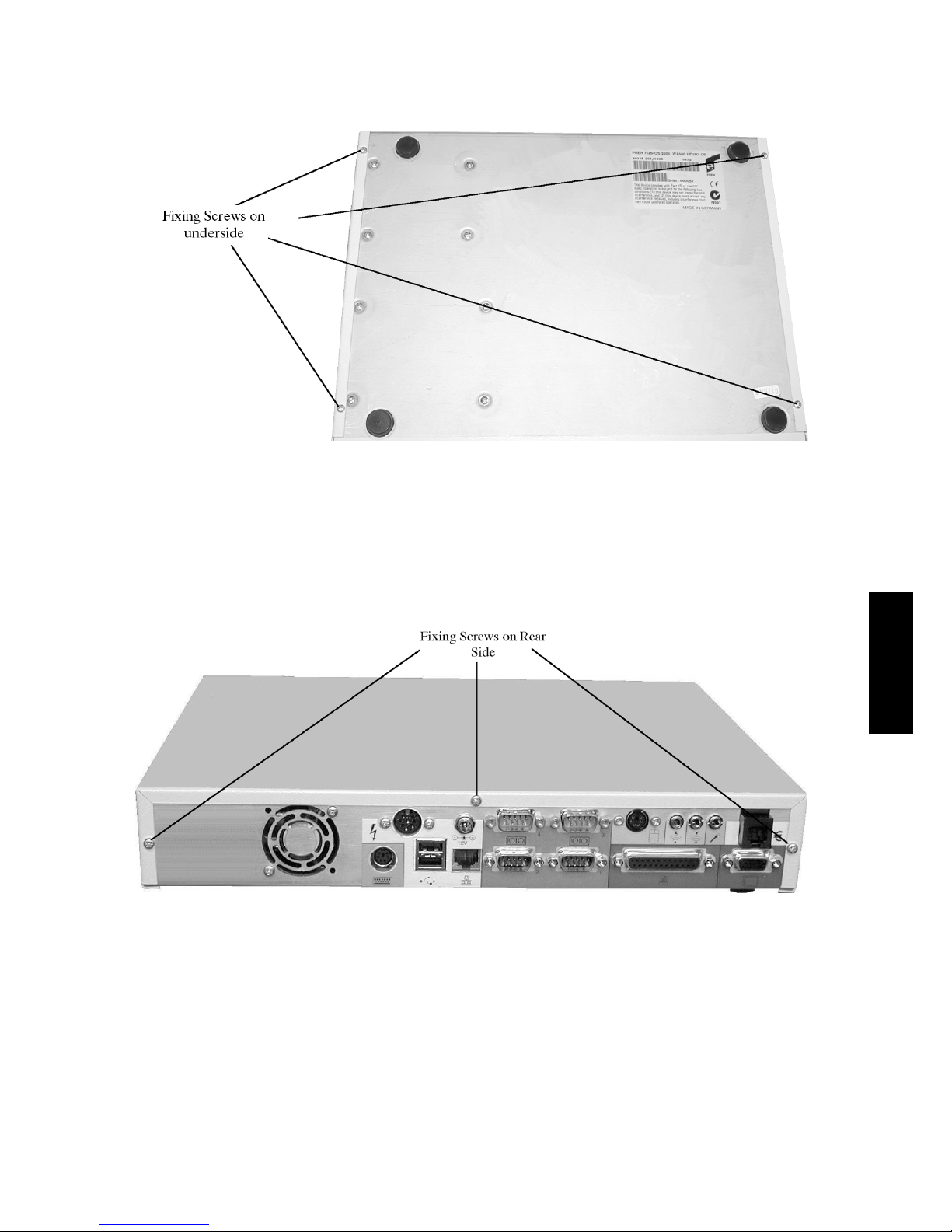

fig. 4: Fixing Screws on Underside
Place the Flat POS 2000 back on its feet. Use a torx-head screwdriver to
loosen the three fixing screws on the rear side of the case (see fig. 5).
fig. 5:Fixing Screws on Rear Side
10
ENGLISH
Now you can slide the cover carefully to the back tilt it upwards and remove
(see fig. 6). The system board is now open for access.

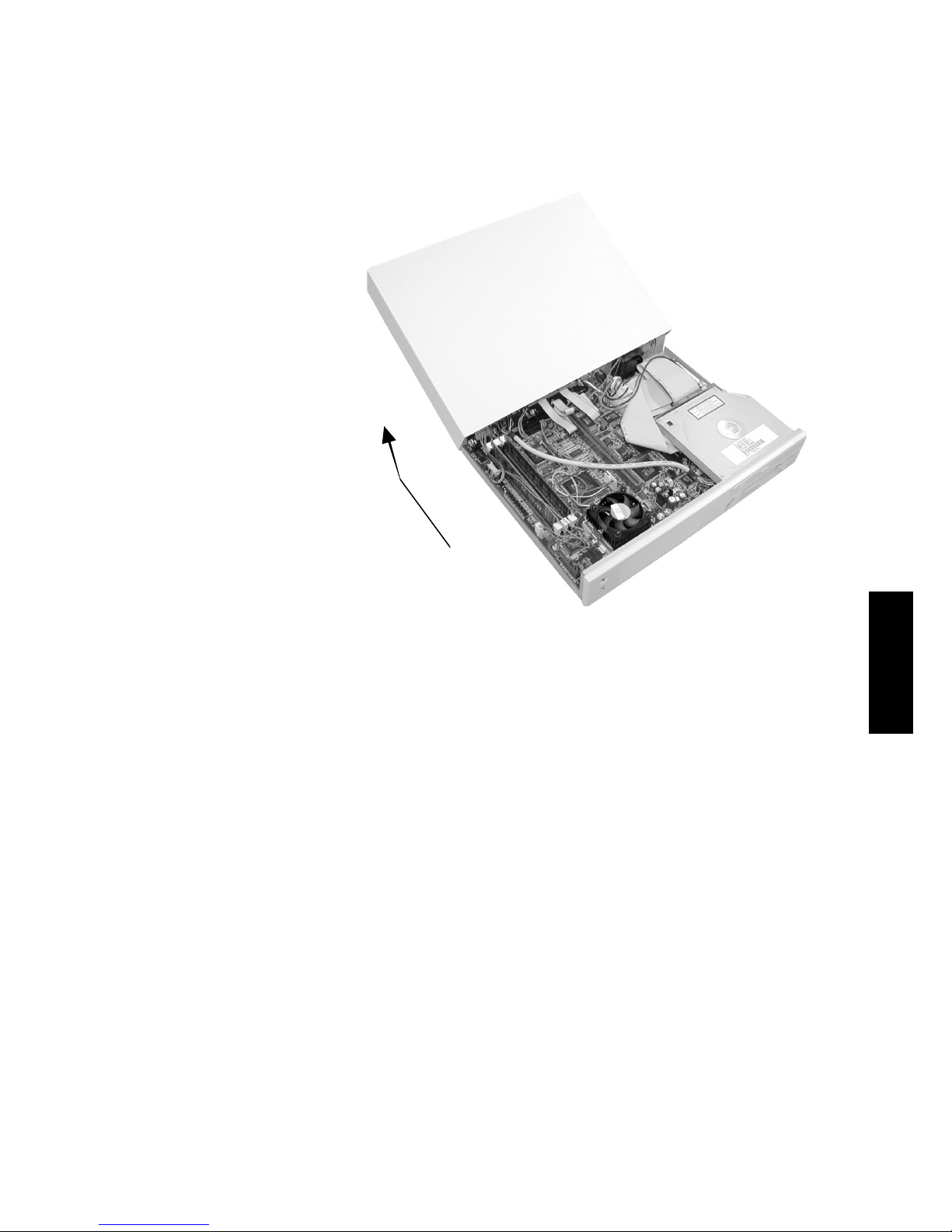

fig. 6: Opening the Housing
5 System Board
The positions of the most important hardware components pin allocations
and possible hardware settings via the appropriate jumpers are to be found
in the accompanying system board handbook ICP POS-566/566L.
6 Installation
6.1 General
To operate the Flat POS 2000 you will need in addition to the delivery
package a VGA or SVGA monitor and a keyboard with PS/2 connection.
A pointer device (e.g. mouse) is recommended but not essential. PS/2 or
serial pointers are suitable.
The positions of the connectors are to be found in fig. 3.
