Portos A-OK User manual
User's manual
of an A-OK
receiver
The operating frequency
of the receiver
is 433MHz
1. Connection scheme:
The receiver shall be connected to the Hirschmann plug socket (STAS 3) installed in
the motor. On the other side of the receiver, the power cord ended with the
Hirschmann plug (STAK 3) shall be connected as per the scheme.

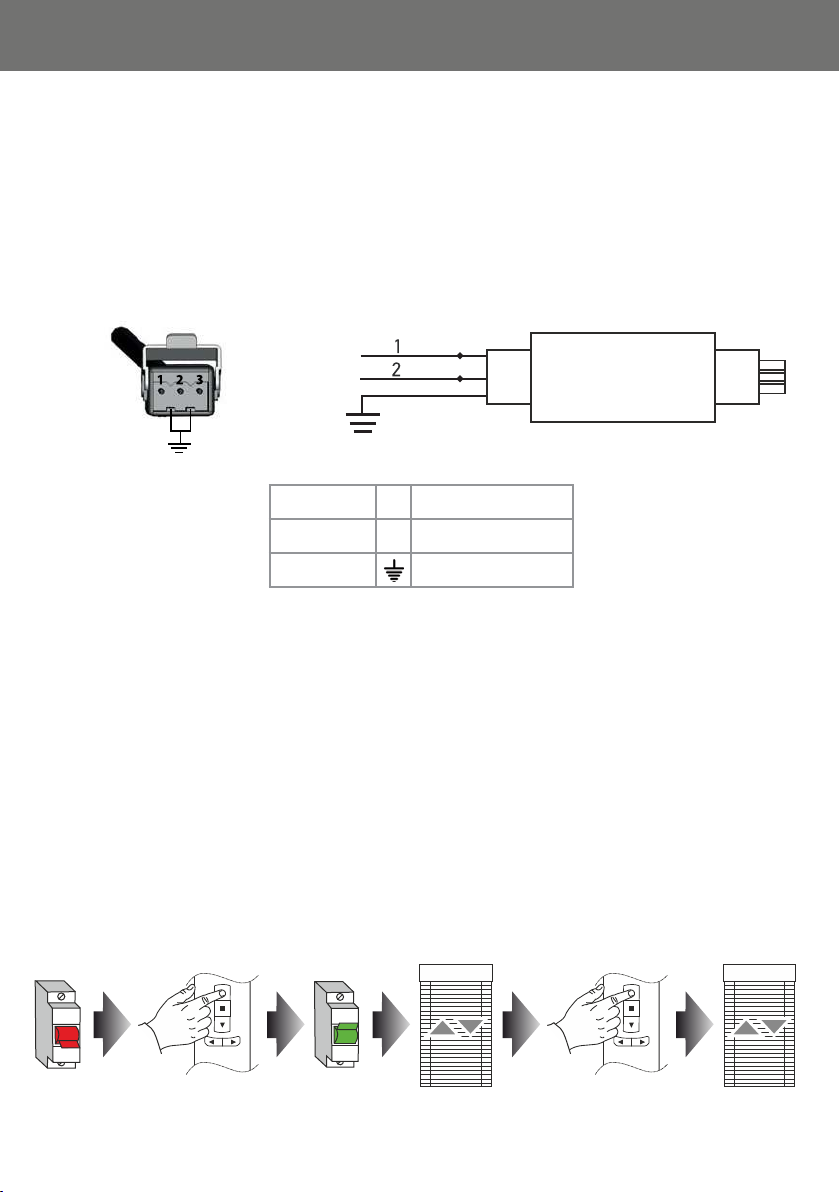

Connection scheme of the radio receiver:
2. Configuration of the first remote control:
1. The receiver must be switched off.
2. On the remote control, select the channel that is to be assigned to the receiver.
3. Press and hold the 'up' button for 4 seconds at the minimum, until the diode in the remote
control lights up permanently. Do not let go of the pressed button.
4. Holding the 'up' button pressed all the time, connect the receiver to power supply. The
UP/DOWN motor movement indicates successful activation of the configuration mode.
Let go of the pressed 'up' button.
5. Within several seconds, once again press the 'up' button. The receiver will be assigned
to the remote control, the UP/DOWN motor movement will confirm successful
performance of the operation.
OFF
min. 4 seconds
ON
The receiver connector
RECEIVER
Phase
Phase
Neutral
Protection
Black
Blue
Green and yellow
2
1
Neutral

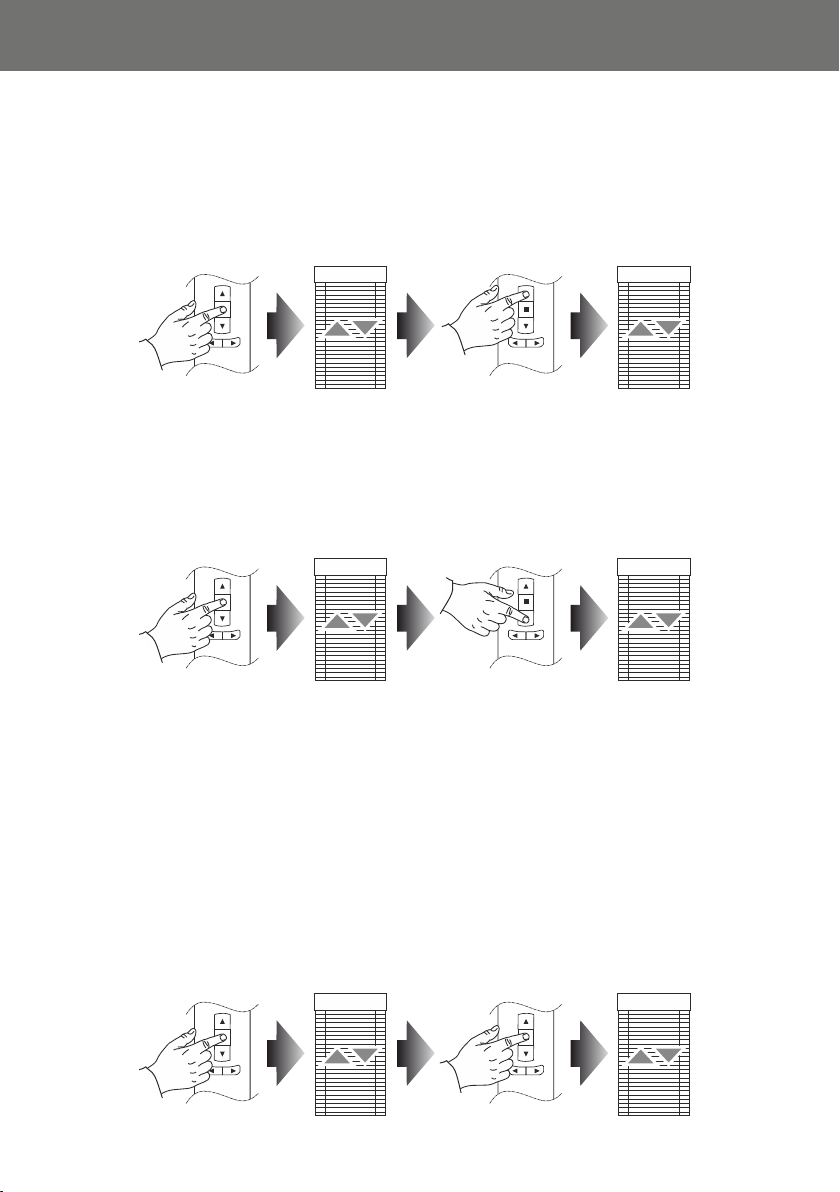

3. Configuration of another remote control/ channel duplication:
1. Press and hold the 'stop' button for 5 seconds on the already programmed remote
control - the UP/DOWN motor movement will confirm successful performance of the
operation.
2. On the new remote control/ another channel, press the 'up' button - the UP/DOWN
motor movement will confirm successful performance of the operation.
5 seconds
4. Change the operating directions:
1. Press and hold the 'stop' button for 5 seconds - the UP/DOWN motor movement will
confirm successful performance of the operation.
2. Press the 'down' button - the short UP/DOWN motor movement will confirm successful
performance of the operation.
5 seconds
5. Change the operating mode:
The receiver may operate in two modes.
Mode 1 - a short pressure of the direction button results in the movement until the end limit
position of the motor.
Mode 2 - a short pressure of the direction button results in the minimum movement of the
motor drive to adjust the angle of the louvers, whereas if the direction button is pressed
for a longer time, the motor moves until the end limit position.
1. Press and hold the 'stop' button for 5 seconds - the UP/DOWN motor movement will
confirm successful performance of the operation.
2. Press the 'down' button - the short UP/DOWN motor movement indicates successful
configuration.
5 seconds

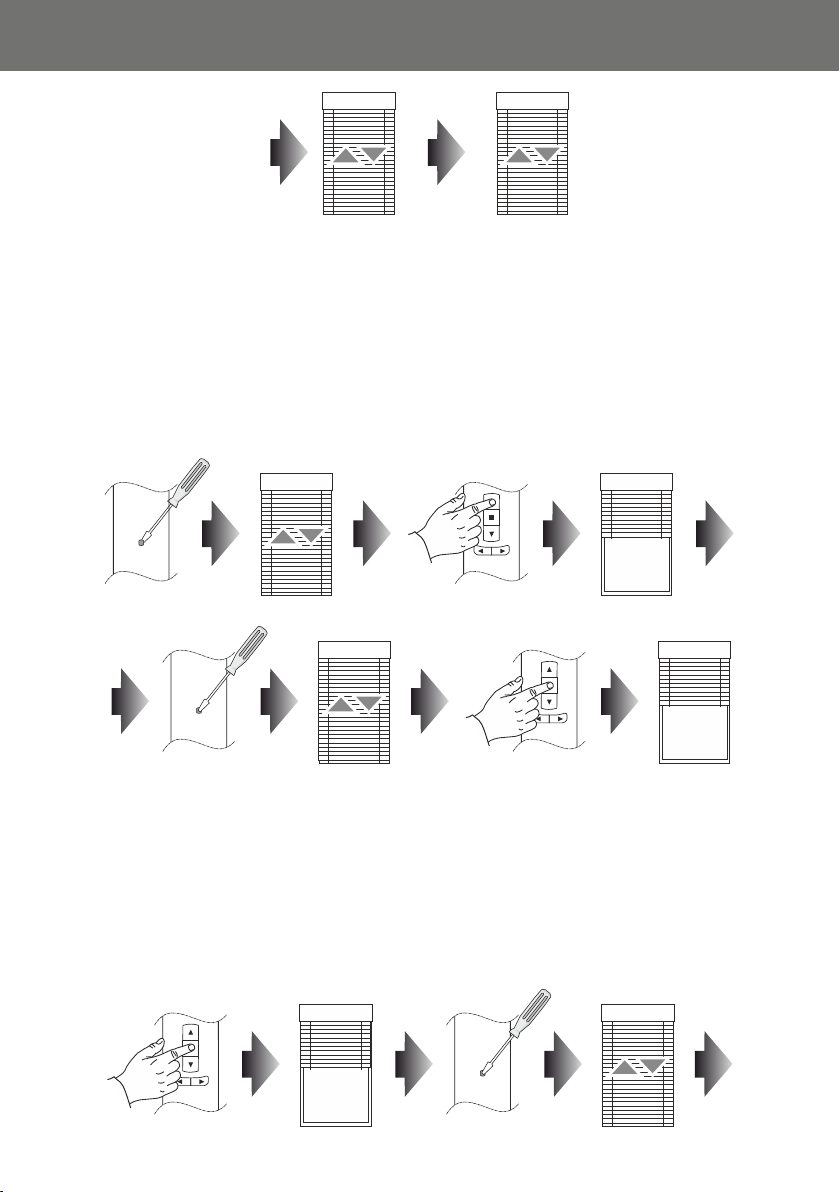

6. Resetting the programmed remote control:
1. Press and hold the 'stop' button for 5 seconds on the already programmed remote
control - the UP/DOWN motor movement will confirm successful performance of the
operation.
2. Press the configuration button at the back of the remote control.
5 seconds
PROG.

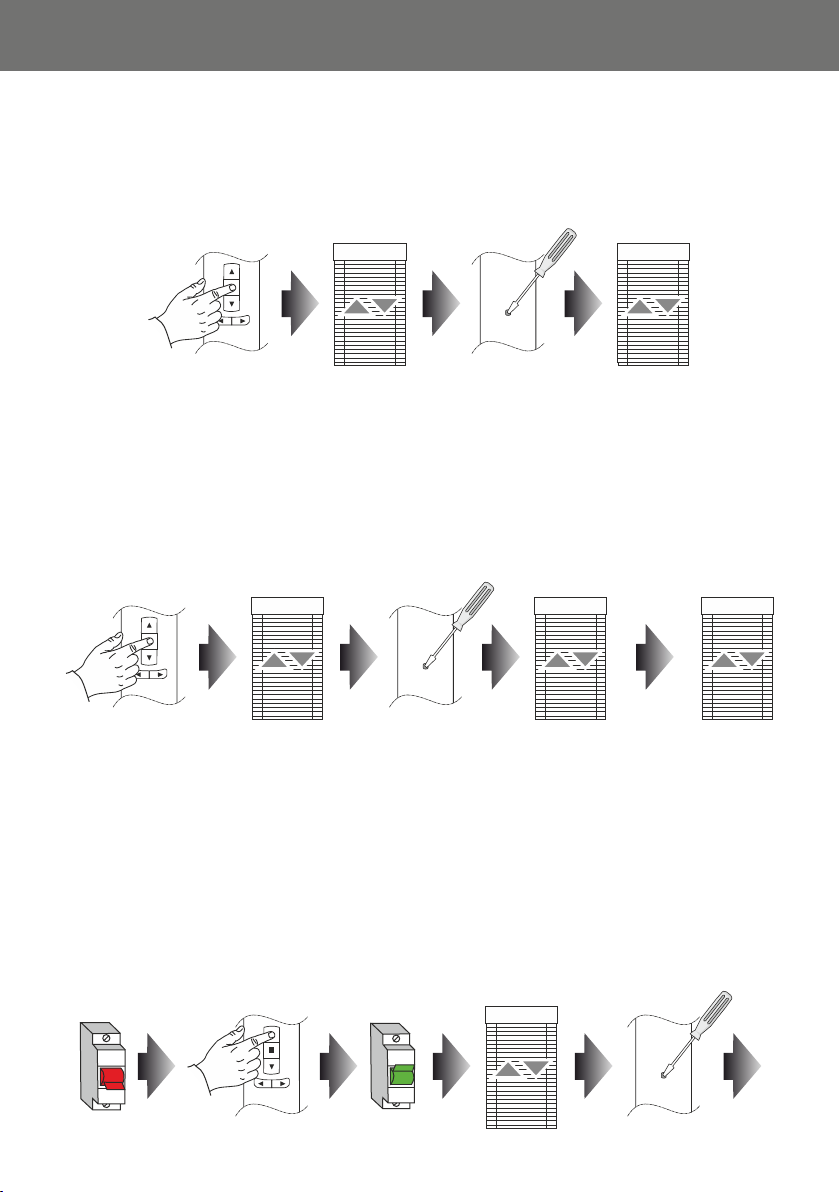

7. Motor resetting:
Method 1:
1. Press and hold the 'stop' button for 5 seconds on the already programmed remote control -
the UP/DOWN motor movement will confirm successful performance of the operation.
2. Press and hold the 'configuration' button at the back of the remote control for over 7
seconds - once the button is pressed, the motor will move up/down, next after 7 seconds
the double UP/DOWN motor movement will confirm successful configuration.
Method 2:
1. Switch off the power supply to the receiver.
2. Press and hold the 'up' button on any remote control for 4 seconds at the minimum, until
the diode in the remote control lights up permanently. Do not let go of the pressed button.
3. Holding the 'up' button pressed all the time, connect the receiver to power supply. The
UP/DOWN motor movement indicates successful activation of the configuration mode. Let
go of the pressed 'up' button.
4. Press and hold the 'configuration' button at the back of the remote control for over 7
seconds - once the button is pressed, the motor will move up/down, next after 7 seconds
the double UP/DOWN motor movement will confirm successful configuration.
5 seconds
PROG.
min.7 seconds 7 seconds
x2
OFF
min. 4 seconds
ON
PROG.
min.7 seconds
7 seconds
x2

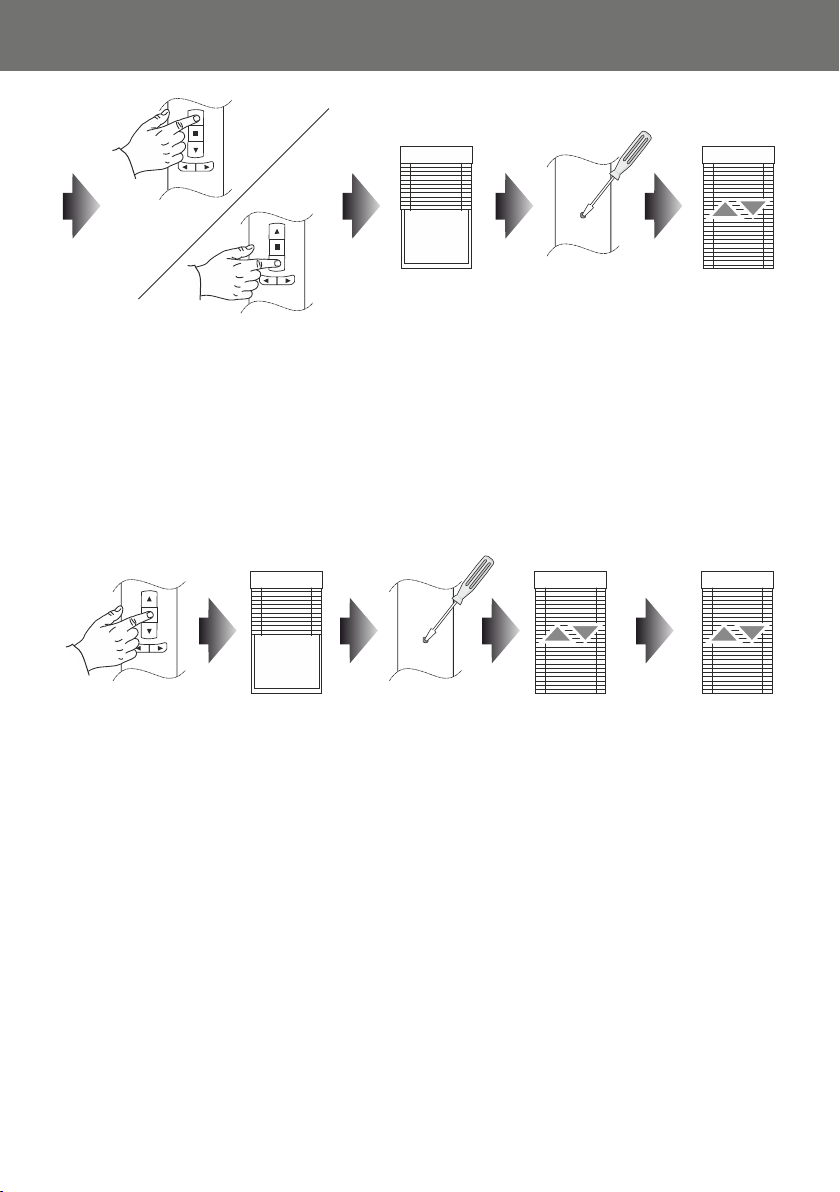

8. Setting the preferable position:
1. Press the 'configuration' button at the back of the remote control - the UP/DOWN motor
movement will confirm successful performance of the operation.
2. Using the 'up' and 'down' buttons, set the preferable position of the roller shutter.
3. Press the 'configuration' button at the back of the remote control, autocalibration
process will begin to precisely define the place of the preferable position.
4. To set the motor in the preferable position - press the 'stop' button when the roller shutter
does not move.
PROG.
PROG.
9. Changing the preferable position:
1. Press the 'stop' button so that the roller shutter moves to the preferable position.
2. Press the 'configuration' button at the back of the remote control - the UP/DOWN motor
movement will confirm successful performance of the operation.
3. Using the 'up' and 'down' buttons, set the new preferable position of the roller shutter.
4. Press the 'configuration' button at the back of the remote control, autocalibration
process will begin to precisely define the place of the preferable position.
PROG.
PROG.
10. Cancelling the preferable position:
1. Press the 'stop' button so that the roller shutter moves to the currently preferable position.
2. Press and hold the 'configuration' button at the back of the remote control for over 7
seconds - once the button is pressed, the motor will move up/down, next after 7 seconds
another UP/DOWN motor movement will confirm successful cancellation of the
preferable position.
PROG.
min.7 seconds 7 seconds
