Planet UIH-420 User manual

- 1 -

Introduction

UIH-420 is a Universal Serial Bus (USB) hub,

which is an USB cable concentrator and a

bridge between PC’s PCI interface and USB

devices. With UIH-420, there is no need to

concern about IRQ conflicts or system re-

source allocations any more.

UIH-420 supports USB 2.0 high speed of

480Mbps and USB 1.1 full speed (12Mbps)

and low speed (1.5Mbps). Through the four

type-A downstream ports, up to 127 USB de-

vices can be connected with just plug and play.

UIH-420 is the ideal way to make use of USB

2.0 technology.

 Package contents

 One 4 ports adapter (USB 2.0)

 One driver diskette

 One User’s Manual

 System Requirement

 Faster PC’s processor with a free PCI slot.

 Windows 98, SE, 2000, Me, XP.

 Features

 USB (Universal Serial Bus) 2.0 specifica-

tion compatibility.

 Compatible to all USB 1.1 peripheral de-

vices.

 Supports Intel UHCI (Universal Host Con-

- 2 -

troller Interface) and EHCI (Enhanced

Host Controller Interface) specifications.

 Real USB-port Plug & Play, and Hot-swap

functions.

 Provides four downstream host ports and

all can work with high-speed, full speed

and low speed data transfer rate.

 Compliant with 32Bit PCI Bus Rev2.2

standard.

 Specification

Downstream port: 4 USB 2.0 series-A ports

Data rate: High speed: 480Mbps

Full speed: 12Mbps

Low speed: 1.5Mbps

Cable length Max. 2.08m with 24/28

AWG USB cable

Max. 5m with 20/28 AWG

USB cable

Output Voltage

Per-port: DC+5V

Output Current

Per-port: 500mA

Dimensions(H*L) 62*120 mm

 Hardware Installation

Before installation

 Touch the exposed metal casing on your

computer's power supply before you taking

the card from its anti-static package. This

safely discharges any static electricity that

- 3 -

may have built up on your body.

 Handle the card by the PCB edge only.

Avoid touching the gold-plated PCI bus

connector or the electronic components.

1. Turn your computer off and disconnect the

power cord before installing the card.

2. Remove the cover of your computer.

(Please refer to your computer owners

manual for instructions on removing the

cover)

3. Check the height of rear panel for the card

with right bracket for your PC.

4. Push the host card firmly into a free PCI

slot and ensure the gold-plated connector

is seated evenly in the PCI slot.

5. Replace the screw in the bracket to avoid

the card falling out accidentally when plug

in the USB cable.

6. Put computer's cover on and apply power

cord back again.

- 4 -

 Install USB 2.0 driver of UIH-420

UIH-420 has three USB host controller engines

in the chip. Two of the Universal Host Control-

ler engines handle USB 1.1 transactions. One

of the Enhanced Host Controller engine han-

dles the USB 2.0 Hi-speed transactions. To

ensure UIH-420 works well with high speed

bandwidth, it is a must to install both drivers of

UHCI and EHCI completely.



Install driver in Windows 2000/ XP

1.Once UIH-420 physically installed and the

computer powers up, system will automati-

cally detect and load the drivers for "VIA

USB Universal Host Controller".

2.Next, Windows finds a new hardware of

"Enhanced Host Controller" and shows

the Find New Hardware Wizard, Click

"Next"

- 5 -

3. Windows prompts "Universal Serial Bus

Controller". Select "Search for the suit-

able driver for my device", and click

"Next".

4. You should now see a window to specify the

location of the driver. Check “Floppy disk

drives” and insert the EHCI driver diskette,

then click "Next".

- 6 -

5. Dialog showing that Windows found a driver

for this device. Click "Next" to continue.

6. When "Completing the found new hard-

ware wizard" with "VIA USB 2.0 Enhanced

Host Controller" dialog appears on the

screen, click "Finish".

7. Restart Windows and apply your USB de-

vices.

- 7 -

 Verify if PCI card is properly in-

stalled in Windows 2000/ XP

To confirm that the USB 2.0 Hi-speed PCI card

has been correctly installed, check your Device

Manager on the Windows System. You should

see an entry titled "Universal Serial Bus

Controller" click on the “+” sign for next sub-

entry should reveal the following added read-

ings:

VIA USB 2.0 Enhanced Host Controller

VIA USB Universal Host Controller

USB Root Hub

USB 2.0 Root Hub Device

- 8 -

 Install driver in Windows 98/

98SE/ ME

1. Once UIH-420 physically installed and the

computer powers up, system will auto-

matically detect and load the drivers for

"VIA Tech 3038 PCI to USB Universal

Host Controller". Then the system will

prompt you to reboot.

2. After system reboot, check Device Man-

ager on the Windows System. It will be

shown as below.

Locate the device with a yellow sign on it.

Double click mouse left button on the de-

vice.

- 9 -

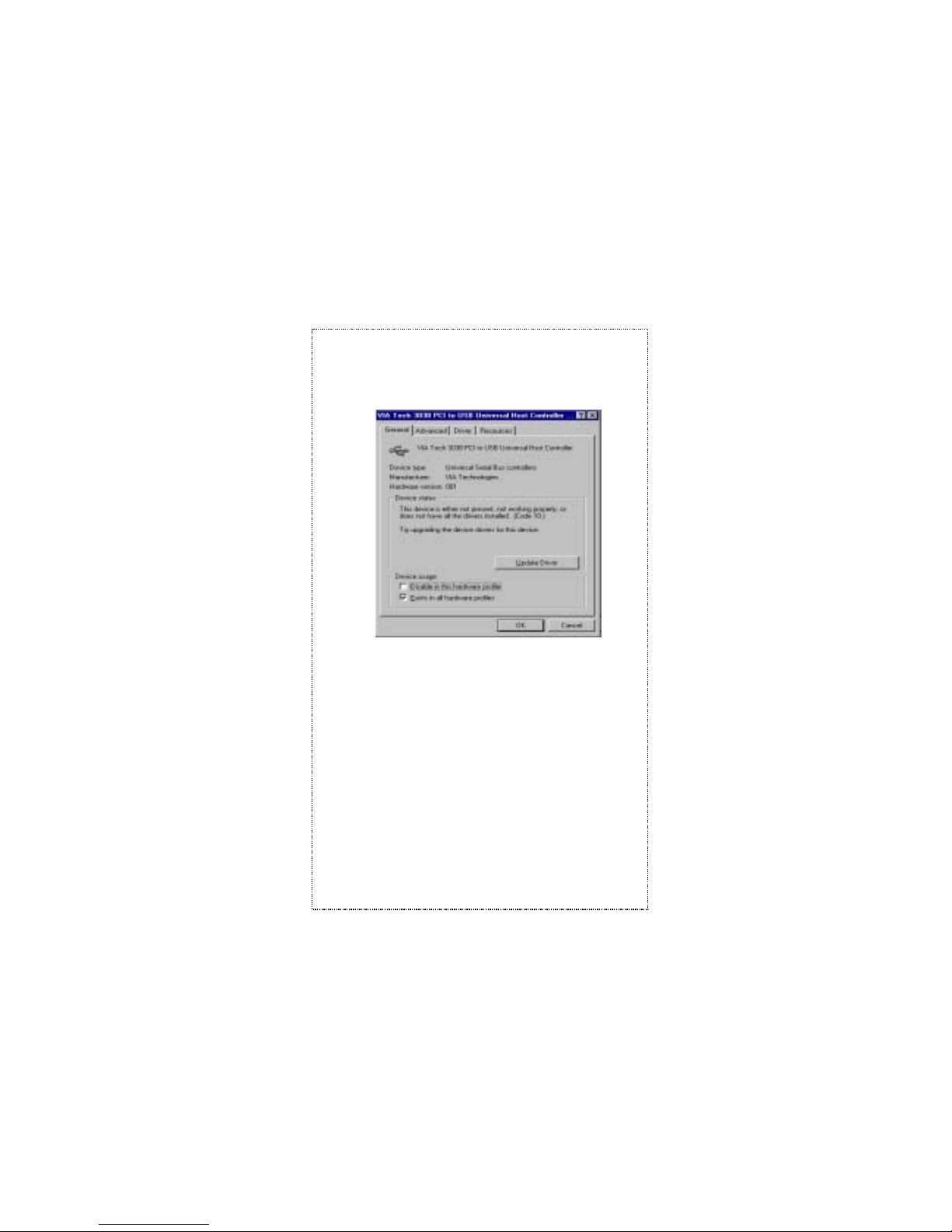

3. The properties page of device will be

shown as below. Click on Update Driver

button.

4. The Update Driver Wizard will be shown

as below. Select Automatic search for a

better driver. Insert driver diskette into

floppy. Then click Next.
