Pioneer XV-DV8 User manual
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2004
RRV2961
T – ZZR MAY 2004 Printed in Japan
DVD/CD RECEIVER
XV-DV8
¶This service manual should be used together with the following manual(s).
Model No. Order No. Remarks
XV-DV8/DLXJ/NC RRV2908
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Remarks
Power Requirement
Type
Model
XV-DV8 LFXJ AC110- 120V 3 -
Region No.
2
1234
1234
C
D
F
A
B
E
XV-DV8
1. CONTRAST OF MISCELLANEOUS PARTS
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Screws adjacent to mark on product are used for disassembly.
For the applying amount of lubricants or glue, follow the instructions in this manual.
(In the case of no amount instructions, apply as you think it appropriate.)
Reference Nos. indicate the pages and Nos. in the service manual for the base model.
NOTES:
7CONTRAST OF TABLE
XV-DV8/LFXJ and /DLXJ/NC are constructed the same except for the following:
<PCB ASSEMBLIES>
NSP COMPLEX ASSY XWM3237 XWM3238
P9- 7 PRIMARY ASSY XWZ3845 XWZ3859
<PACKING>
P7- 1 AC Power Cord ADG1154 ADG7098
P7-15 Packing Case XHD3424 XHD3420
(English/Trad-Chinese)
<EXTERIOR SECTION>
P9-14 Power Transformer(T1) ATS7355 ATS7354
P9-15 Fuse (FU 1) REK1029 REK1069
(5.0A/250V) (6.3A/125V)
P9-22 Rear Panel (MTL) XNC3275 XNC3278
P9-45 Caution Label VRW1872 VRW1961
Region Label Not used VRW1702 No. 1
<FRONT PANEL SECTION>
P11- 7 Display Window XAK3447 XAK3447
Ref.
No. Remarks
XV-DV8 XV-DV8
/DLXJ/NC /LFXJ
Part No.
Mark Symbol and Description
Notes : ÷The numbers in the remarks column correspond to the numbers on the “ EXPLODED VIEWS ”.
÷For PCB ASSEMBLIES, Refer to “CONTRAST OF PCB ASSEMBLIES” and “2. SCHEMATIC DIAGRAM”.
3
1234
1234
C
D
F
A
B
E
XV-DV8
Bonnet HTM
Rear Panel
PRIMARY Assy
Fan Cover
Speaker Label
VIDEO Jack Assy
FM/AM TUNER Module
No.1
Caution Label
÷EXTERIOR SECTIONS
EXPLODED VIEWS
CONTRAST OF PCB ASSEMBLIES
XWZ3859 and XWZ3845 are constructed the same except for the following :
PRIMARY ASSY
F
K
Mark Symbol and Description Part No. Remarks
XWZ3845 XWZ3859
T002 Stand by Transformer (T 2) ATT7080 ATT7079
AN01 1P AC INLET XKP3041 XKP3042
CN 02 5P-VH Connector B5P9-VH Not used
S0101,S0102 Voltage Selector AKX7017 Not used
4
1234
1234
C
D
F
A
B
E
XV-DV8
AN1
REK1069
(6.3A/125V)
ADG7098
M N
AMP TRADE ASSY
(XWZ3847)
M
PRIMARY ASSY
(XWZ3859 )
DSP TRADE ASSY
(XWZ3848)
N
CN5603
D1/4
CN5602
D1/4
CN8003
B1/2
CN8007
B1/2
CN3031
D4/4
CN3032
D4/4
CN8011
B1/2
: AUDIO DATA SIGNAL ROUTE
(AD)
: AUDIO SIGNAL ROUTE (Front L ch)
(FL)
(FL)
(FL)
(FL)
: AUDIO SIGNAL ROUTE (Surround L ch)
(SL)
(SL)
(SL)
(AD)
(AD)
(AD)
(SL)
: AUDIO SIGNAL ROUTE (Center ch)
(C)
(C)
(C)
(C)
: AUDIO SIGNAL ROUTE (Sub Woofer ch)
(SW)
(SW)
(SW)
(SW)
• NOTE FOR FUSE REPLACEMENT
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE.
REPLACE WITH SAME TYPE AND RATINGS OF FUSE.
CAUTION -
CN3011 CN3021
CN5621
CN5622
CN5613
CN5612
CN5623
CN3012 CN3022
CN3001
C
CN3002
C
CAUTION : FOR CONTINUED PROTECTION
AGAINST RISK OF FIRE.
REPLACE ONLY WITH SAME TYPE
NO. 491007 FOR IC25 MFD, BY
LITTELFUSE INC.
F
K
F
K

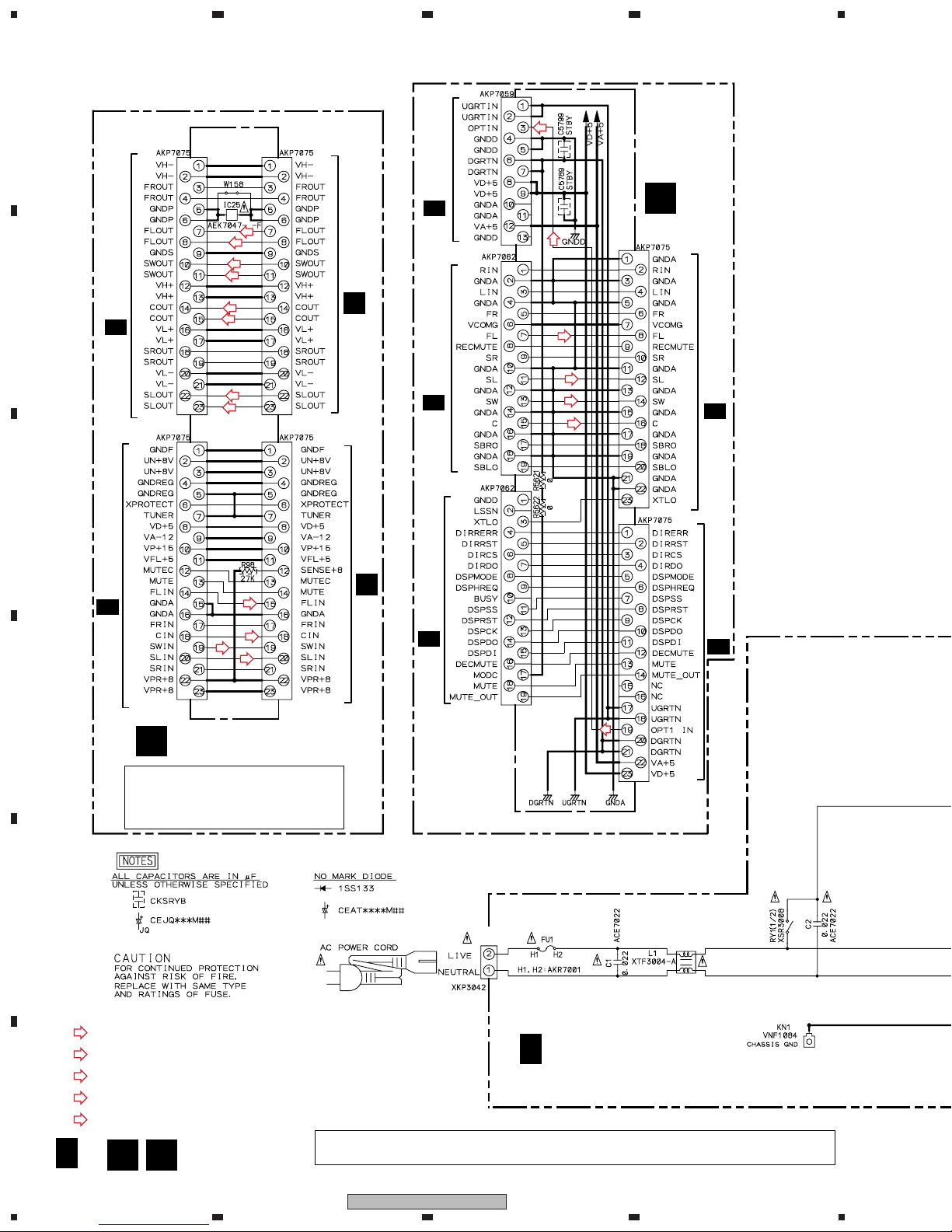

2.1 PRIMARY and VIDEO JACK ASSYS
2. SCHEMATIC DIAGRAM
5
1234
1234
C
D
F
A
B
E
XV-DV8
CN8852
JA8803
CN8001
JA8851
CN1
J52
STBY
ATS7354
ATT7079
O

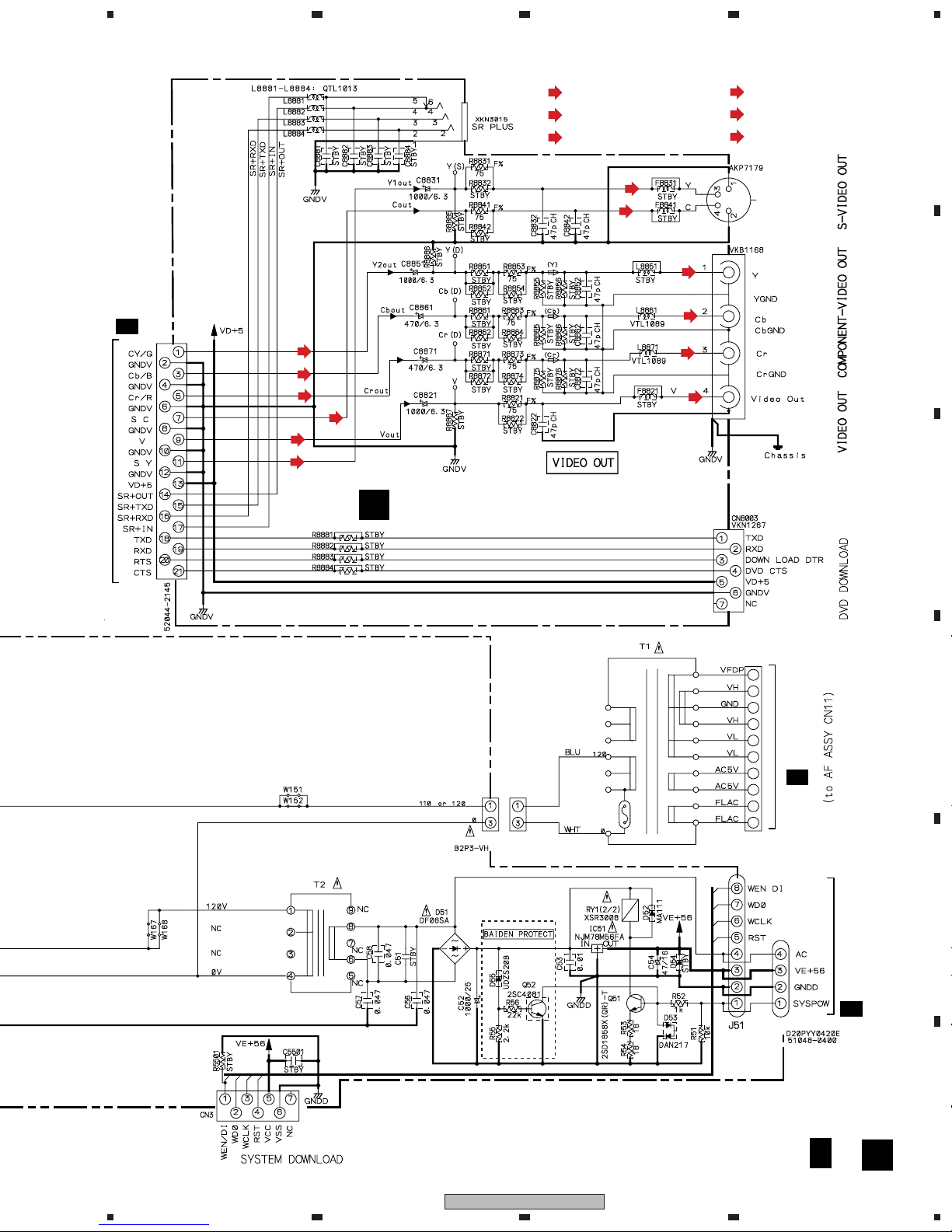

VIDEO JACK ASSY
(XWZ3849)
O
CN5103
D1/4
CN11
D4/4
CN52 or CN51
D4/4
: VIDEO SIGNAL ROUTE (Cb/B)
(Cb/B)
(CY/G)
(CY/G)
: VIDEO SIGNAL ROUTE (CY/GR)
(CY/G)
: VIDEO SIGNAL ROUTE (Cr/R)
(Cr/R)
(Cr/R)
(Cr/R)
(Cb/B)
(Cb/B)
: S VIDEO SIGNAL ROUTE (Y)
(Y)
(Y)
(Y)
(C)
(C)
(C/V)
(C/V)
: S VIDEO SIGNAL ROUTE (Y)
(C)
: S VIDEO SIGNAL ROUTE (C/V)
(C/V)
F
K
