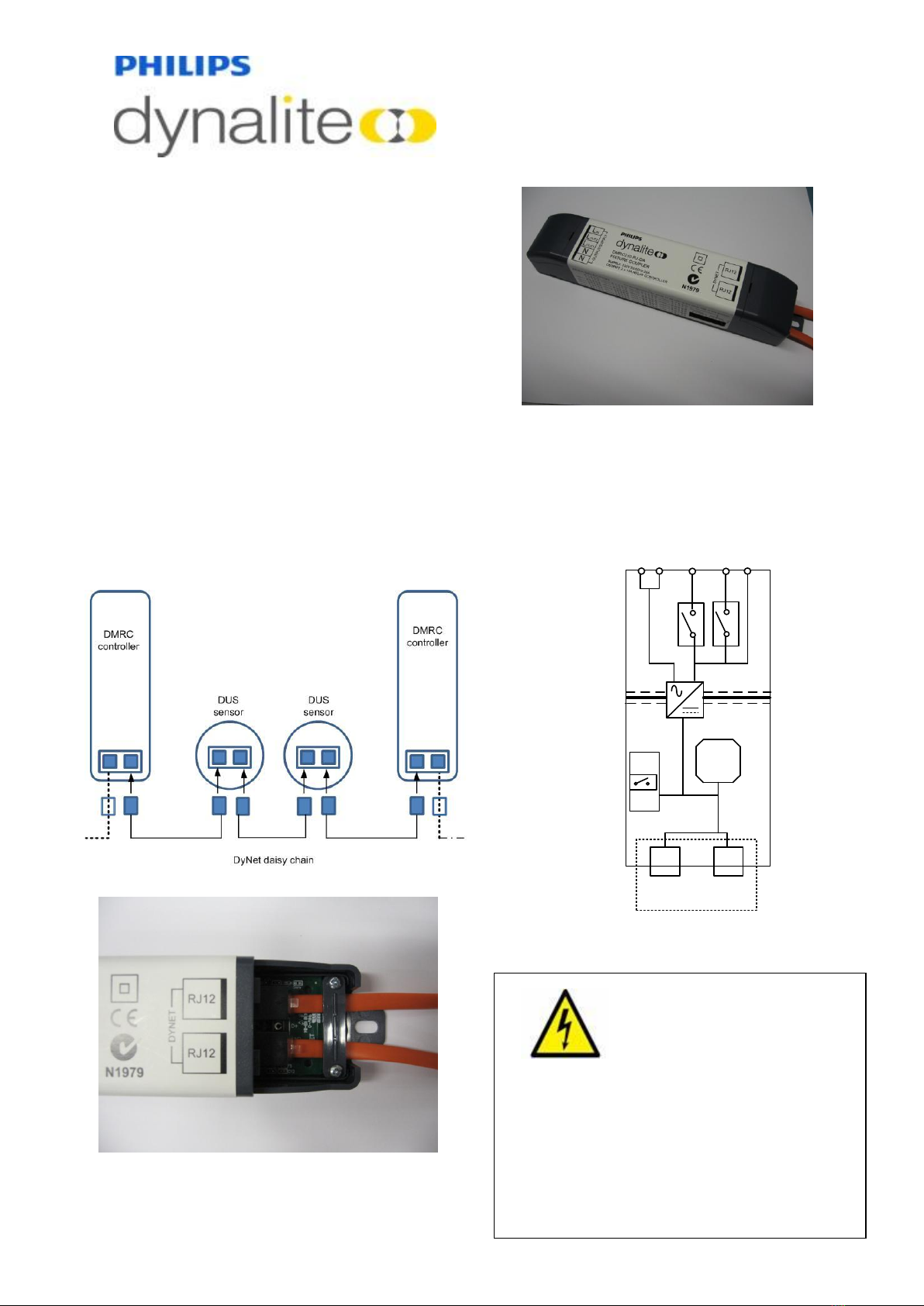

Philips Dynalite DMRC210-RJ-DA User manual

…………………………………………………....…………………………………………………………

DMRC210-RJ-DA

EcoSet Relay Controller

Installation Instructions

…………………………………………………....……………………………………………………

……

Connect Data Cable in a ‘Daisy Chain’

Serial Cable Termination

RJ12 connectors using flat cable recommended.

Double-adaptor (Y-splitter) is usable for spurs.

Electrical diagram

RJ12

DyNet

RS485

RJ12

µP

DIPswitch

Supply:

230V

1 Phase

20A

LIN

NCH1

out CH2

out

isolation barrier

(double-insulated)

Installation Overview

WARNING

Before installation or servicing,

disconnect power at circuit breakers or

remove fuses to avoid electrical shock

or damage to the unit. It is

recommended that an electrician

perform this installation.

To reduce the risk of fire or electric shock , do not expose this

device to rain or moisture.

Do not energise unless the front cover is in place. Network (DyNet)

wiring is SELV and must be double –insulated from mains in

accordance with the local wiring rules. Installation, programming

and maintenance must be carried out by qualified personnel.

No more than 60 DMRC210 units may be safely connected to a

single Dynet network without additional grounding precautions.

…………………………………………………....…………………………………………………………........

Mounting dimensions

Product specifications

…………………………………………………....…………………………………………………………

Supply

100-240V 50/60Hz Single Phase at 20A

Dynet DC Supply:

150mA@12VDC

Switched output

2 x switched output at 10A (inductive)

Switching Device

Relay, Tungsten Carbide pilot contact,

12A inductive, 120A surge

Control Inputs 1 x RS485 DyNet/2 X RJ12 connectors

File button configurations R7

Supply Terminals

Line, Neutral

1 x 4mm2 max conductor size

Output Terminals

CH1, CH2, Neutral

1 x 4mm2 max conductor size

Compliance CE, C-Tick

Operating Environment

0º to 50ºC ambient temp

0% to 90% RH non condensing

IP rating : 20 (all supplied lids closed)

Enclosure polycarbonate

Dimensions L 240mm x W 45mm x D 38mm

Weight Packed weight 0.19kg

Installation steps

1. Insert a screwdriver into the keyslot , and open the end lids.

2. Unscrew and remove the cable retainers on both sides of the controller box

3. Insert RJ12 DyNet connectors into sockets.

4. Fasten the cable clamp on the cable of the DyNet cable(s).

5. Remove at least 10 mm of insulation and fasten load power cables into pressure-pad screw terminals , CH1, CH2

6. Remove at least 10mm of insulation and fasten L and N mains cables into pressure pad screw terminals.

7. Fasten the cable clamp over the power leads.

8. Close end lids on both sides after terminations are complete.

9. Fix the housing to a fixed flat surface using two screw flanges and 5 mm screws. Allow no contact with other devices.

10. For indoor use only. Observe IP rating requirements in installation.

11. DIPswitches are set according to Truth Tables; see Channel 1 and Channel 2 tables.

…………………………………………………....…………………………………………………………

Recommended Cable

200m Unterminated Roll: DYNET-SFLAT6-CABLE

10m Patchlead: DYNET-SFLAT6-CABLE-10M

5m Patchlead: DYNET-SFLAT6-CABLE-5M

3m Patchlead: DYNET-SFLAT6-CABLE-3M

Reference:

Philips Dynalite EcoSet System Technical Guide

Channel 1

Channel 2

Area

Sw1

Sw2

Sw3

Sw4

Sw5

Area

Sw6

Sw7

Sw8

Sw9

Sw10

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

23.

24.

25.

26.

27.

28.

29.

30.

31.

Web: dynalite-online.com

E-Mail: info@ dynalite-online.com

Tel: 161-2 8336 9899

DMRC210-RJ-DA Installation Instructions Rev A Sept 2010

Dynalite, DyNet and associated logos are the registered trademarks

of Philips Dynalite. Not to be reproduced without permission.

Manufactured by WMGD Pty Ltd (ABN 33 097 246 921) Unit 6, 691

Gardeners Road, Mascot, NSW 2020, Australia
