Pegasus 67390W-8001 Assembly instructions
INSTALLATION AND CARE GUIDE
TWO-HANDLE LAVATORY FAUCET
Model#
67390W-8001
67390W-8004
SKU#
703453
703449
THANK YOU
Questions, problems, missing parts?
Before returning to the store, call Pegasus Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday
9 a.m. - 6 p.m., EST, Saturday
1-877-580-5682
WWW.HOMEDEPOT.COM/PEGASUS
We appreciate the trust and condence you have placed in Pegasus through the purchase of this lavatory faucet.
We strive to continually create quality products designed to enhance your home. Visit us online to see our full
line of products available for your home improvement needs. Thank you for choosing Pegasus!
8/2015 REV.01YOW
Phillips
screwdriver Basin
wrench
2
Table of Contents
Important Information..............................2
Warranty ...................................................2
Pre-Installation.........................................2
Planning Installation ..............................2
Package Contents..................................3
Installation................................................4
Care and Cleaning ....................................9
Troubleshooting........................................9
Service Parts
...........................................
10

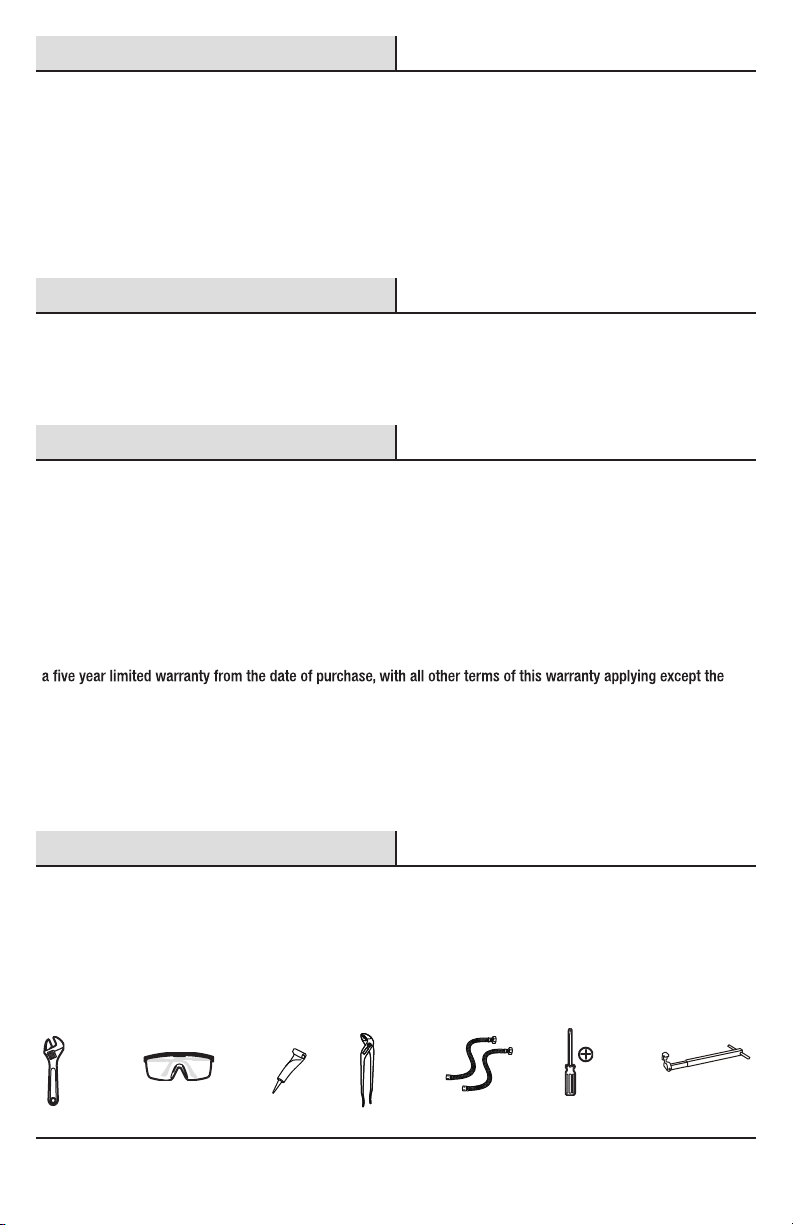

Important Information
□ Observe all local plumbing and building codes.
□ Cover the sink drain to avoid losing any parts.
□ Review the care and cleaning section included in this guide.
Pre-Installation
PLANNING INSTALLATION
Before beginning the installation of this product, ensure all parts are present. Compare parts with the Package
Contents list. If any part is missing or damaged, do not attempt to install the product. Contact customer service
for replacement parts.
TOOLS AND HARDWARE REQUIRED
Adjustable
wrench
Safety
goggles
Channel
lock pliers
(2) Supply
lines
SILICONE
Silicone
sealant
Tools and Hardware Required ...............2
Operation...................................................8
Warranty
LIMITED LIFETIME WARRANTY
Pegasus products are manufactured with superior quality standards and workmanship and are backed by our
limited lifetime warranty. Pegasus products are warranted to the original consumer purchaser to be free of
defects in materials or workmanship. We will replace FREE OF CHARGE any product or parts that prove defective.
Simply, return the product / part to any of The Home Depot retail locations or call 1-877-580-5682 to receive the
replacement item. Proof of purchase (original sales receipt) from the original consumer purchaser must be made
available for all Pegasus warranty claims.
This warranty excludes incidental/inconsequential damages and failures due to misuse, abuse or normal wear and
tear. This warranty excludes all industrial, commercial & business usage, whose purchasers are hereby, extended
duration of warranty.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations may not apply to you. This warranty gives you specic legal rights and you may also have other
rights that vary from state to state and province to province. Please see a store or contact 1-877-580-5682 for
more details.
3
Pre-Installation (continued)

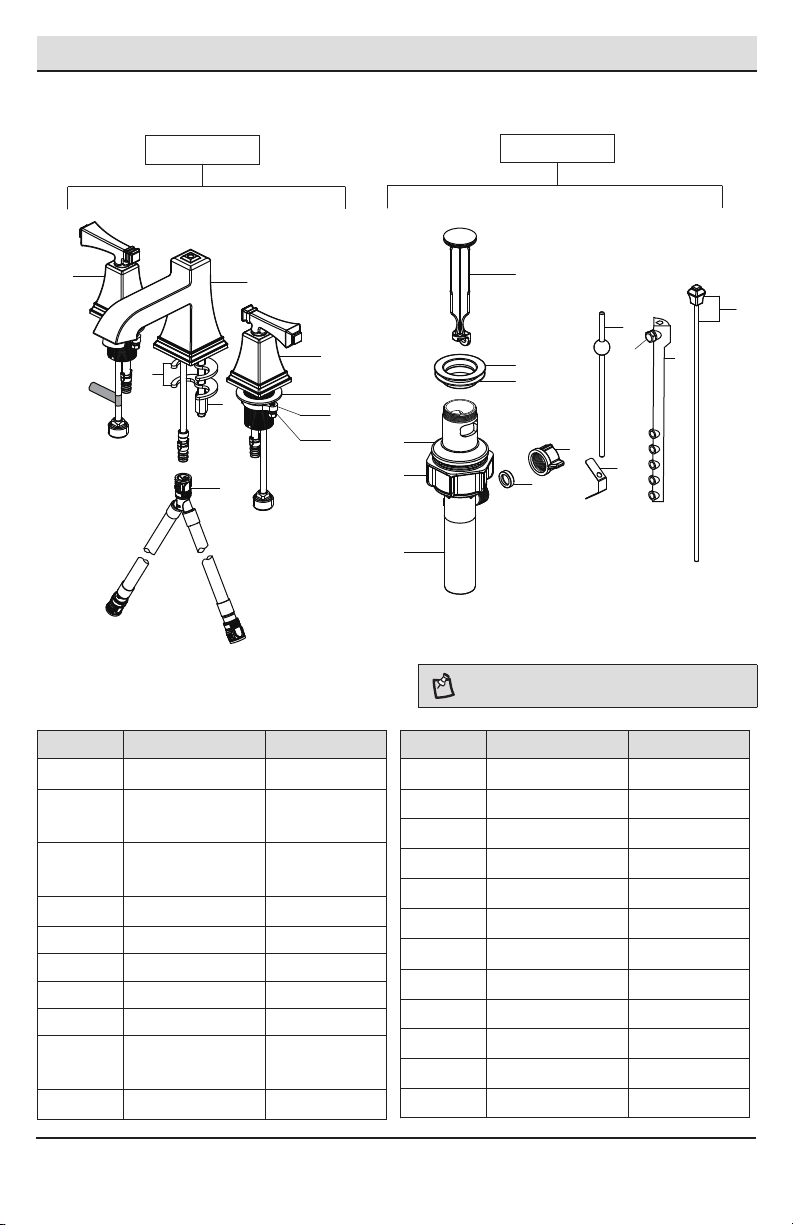

PACKAGE CONTENTS
WWW.HOMEDEPOT.COM/PEGASUS
Please contact 1-877-580-5682 for further assistance.
Part Description Quantity
A 1
BHandle assembly
- Hot 1
CHandle assembly
- Cold 1
IQuick connecting
hose 1
Faucet body
D 2
ENut 2
FScrew 4
Washer
G 2
HLock nut 1
Washer
Part Description Quantity
Faucet Assembly Drain Assembly
NOTE: *Items J - Q come pre-assembled.
J 1Pop up stopper
K 1Drain ange
L 1Rubber washer
N 1Lock nut
O 1Drain body
Q 1Ball nut
R 1Ball rod
S 1Spring clip
U 1Lift rod strap
V 1Lift rod
T 1Thumb screw
M 1Rubber washer
P 1Seal
J*
K*
L*
M*
N*
O*
S
T
R
U
V
P*
Q*
I
A
B
C
D
E
F
G
H
4

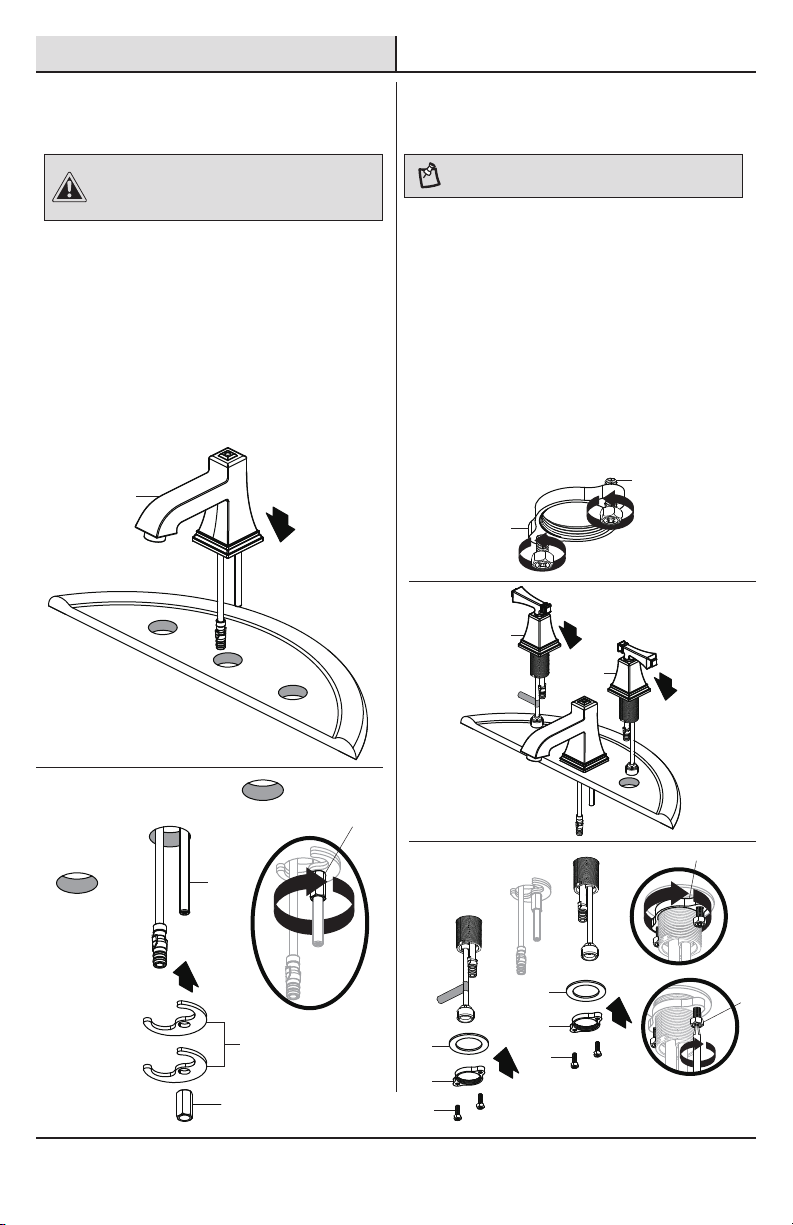

Installation
1 Installing the faucet assembly
CAUTION: Always turn off the water supply before
removing an existing faucet or replacing any part of a
faucet. Open the faucet handle to relieve water pressure
and ensure that the water is completely shut off.
□Place the faucet (A) through the mounting
holes in the sink.
2 Installing the faucet handles
□Remove the preassembled nuts (E) and washers
(D) from the hot and cold faucet handles (B and C).
□Insert the hot faucet handle (B) to the left of the
spout and cold faucet handle (C) to the right of
the spout.
NOTE: The hot water valve is identied with a label.
□Shut off the water supply. Remove the old
faucet.
□Clean the mounting surface. □Loosen the screws (F) on the nuts (E) until the
ends of the screws (F) are ush with the face of
the nuts (E).
□Attach the faucet handles (B and C) underneath
the sink using the washers (D) and nuts (E).
Securely tighten the screws (F) on the nuts (E).
□Secure the faucet (A) to the sink using the
washers (G) and lock nut (H) provided.
1
1
F
E
□Remove the preassembled lock nut (H) and
washers (G) from the new faucet (A).
A
1
H
G
2
A
3
H
2
2
B
C
F
4
E
5
E
D
F
E
D
F
3
3
WWW.HOMEDEPOT.COM/PEGASUS
Please contact 1-877-580-5682 for further assistance.
5
Installation (continued)

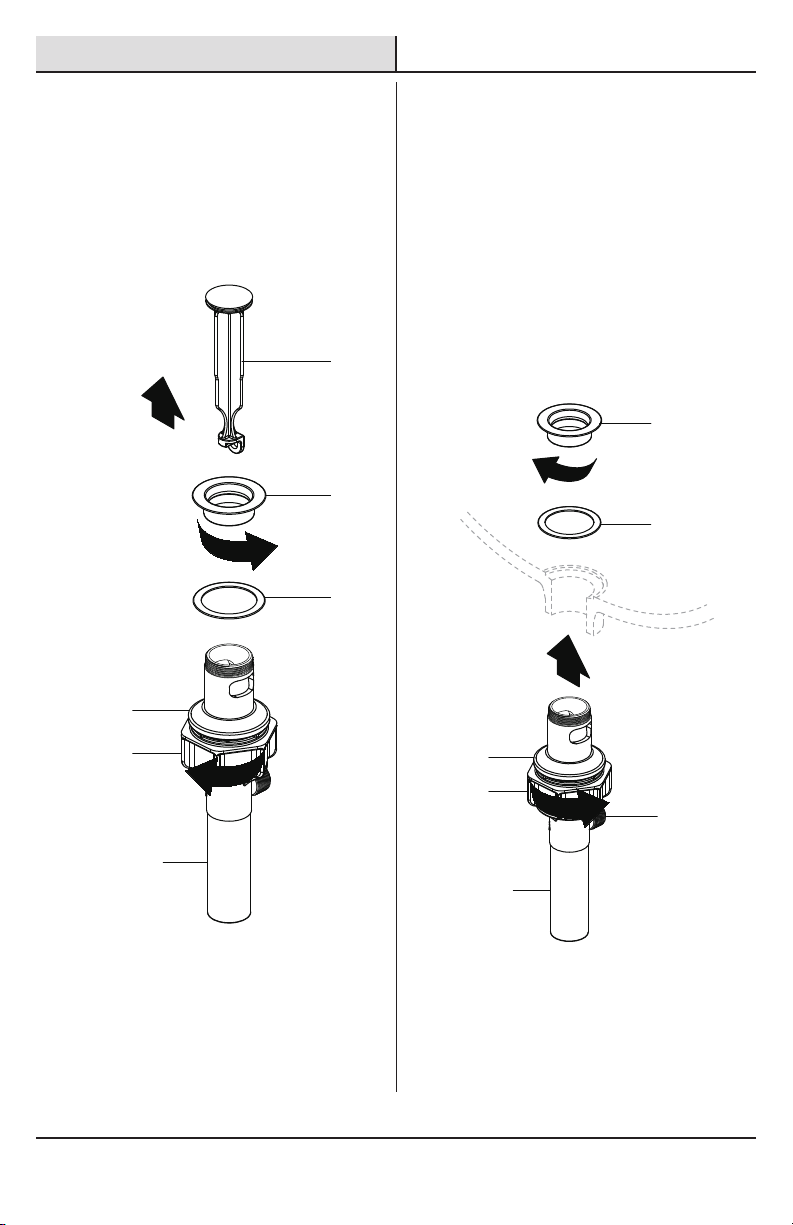

4 Installing the drain body
□Place the drain ange (K) into the drain hole
of the sink, make sure the rubber washer (L)
under the drain ange (K).
□From underneath the sink, screw the drain
body (O) onto the drain ange (K). Ensure that
the opening (1) for the ball rod on the drain
body (O) faces towards the rear of the sink.
3 Preparing the pop-up assembly
□Remove the pop up stopper (J), drain ange (K)
and rubber washer (L) from the drain body (O).
□Screw the lock nut (N) in a counter-clockwise
direction, and push the rubber washer (M)
down.
□ Screw the lock nut (N) in a clockwise direction,
and push the rubber washer (M) up to tighten
the drain body (O). Do not overtighten.
J
K
L
M
N
O
2
3
1
1
2
K
L
M
N
1
O
3
6
Installation (continued)

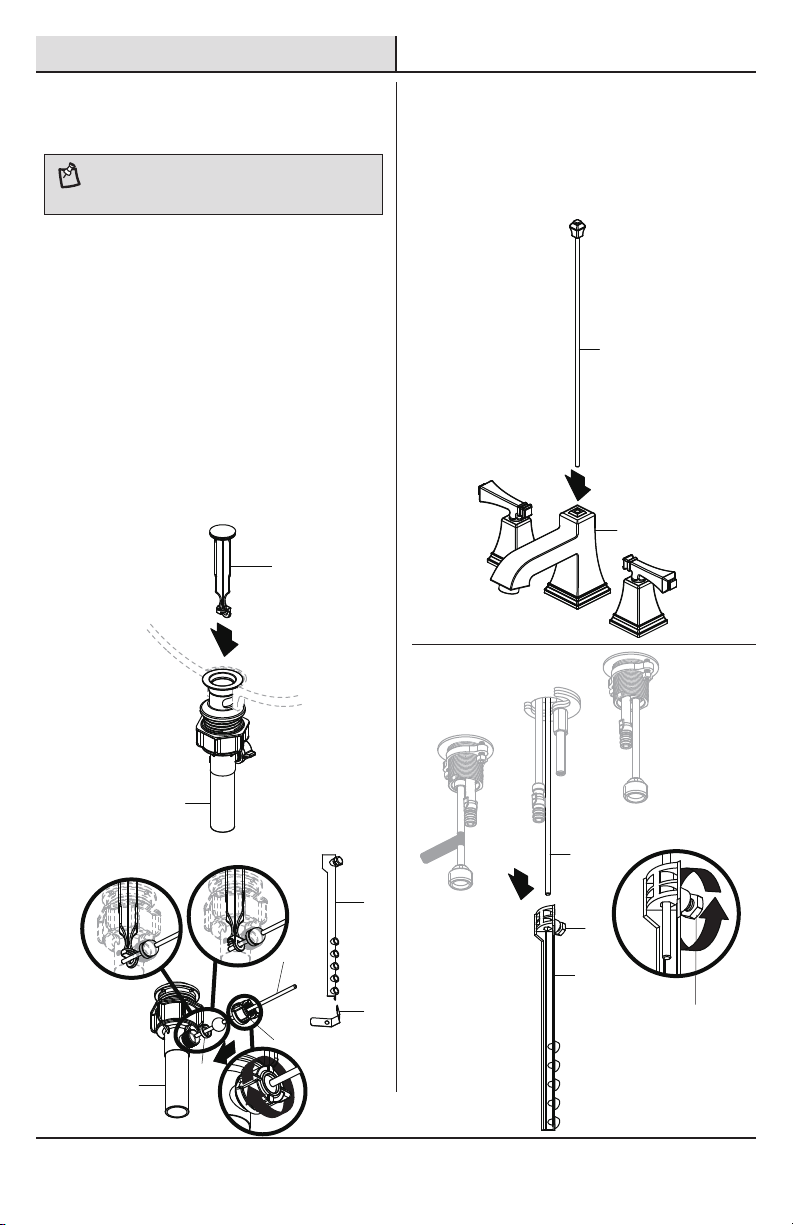

5 Installing the stopper and ball
rod
□Insert the stopper (J) into the drain hole in the
sink.
□Remove the lift rod strap (U) and spring clip (S)
from the ball rod (R).
□For easier removal and cleaning, rotate the
stopper (J) 90 degrees so that the ball rod (R)
does not go through the hole in the stopper (J).
See Insert 2.
6 Installing the lift rod
□Insert the lift rod (V) through the faucet (A) and
down into the lift rod strap (U). Tighten the
thumb screw (T).
□Secure the ball nut (Q) against the hole in the
drain body (O) and tighten the ball nut (Q) onto
the threaded end. Do not overtighten.
□Remove the ball nut (Q). Retain the seal (P) on the
ball rod (R). Insert the ball rod (R) into the drain
body (O) and through the hole of the stopper (J).
See Insert 1.
NOTE: In shallow cabinet installations, the ball rod (R) may
need to be shortened. Use a hack saw to cut the end of the
rod, away from the ball, to the desired length.
1
2
2
J
O
Insert 2 Insert 1
Q
P
R
S
U
O
3
V
A
1
3
T
U
V
T
2
7

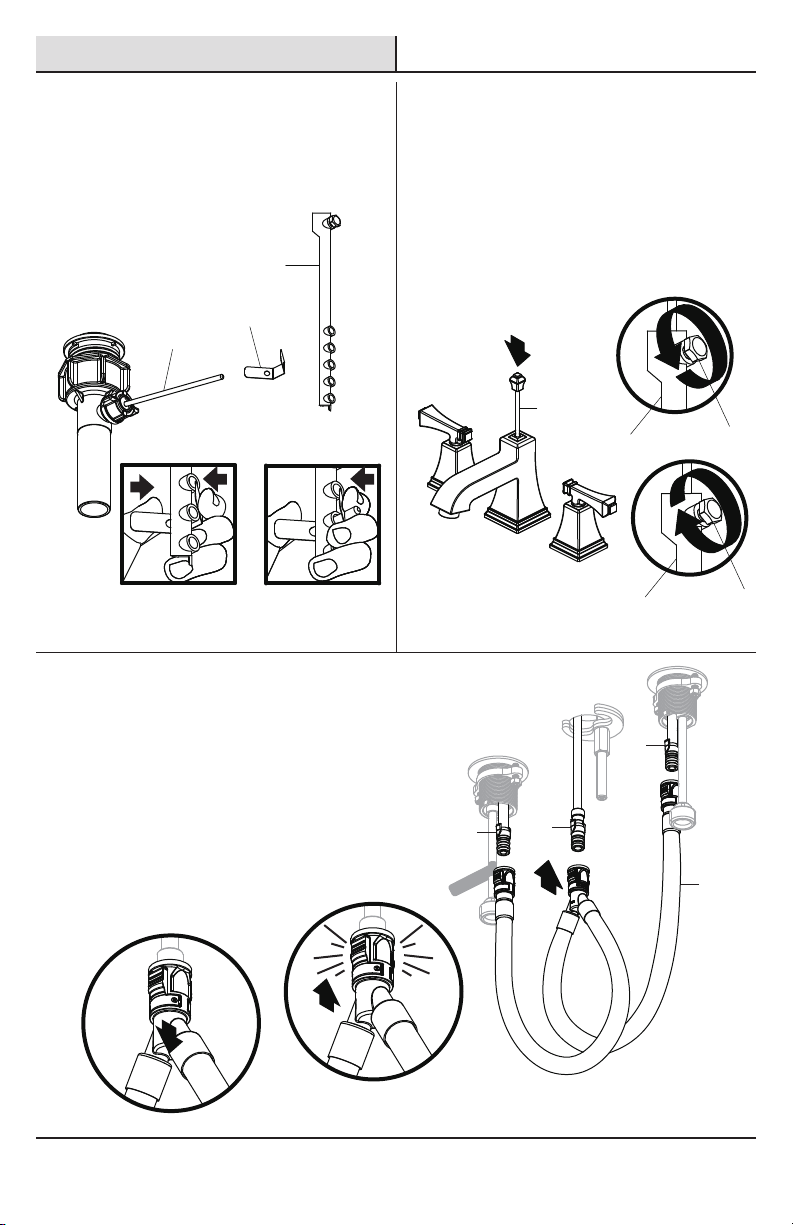

9 Attaching the quick connecting
hose
□Attach the quick connecting hose (I) connections
to the hot faucet handle (B) connection, faucet
body (A) connection, and cold faucet handle (C)
connection. Push until the connections snap
together.
□Pull down moderately to ensure the connection
has been made.
WWW.HOMEDEPOT.COM/PEGASUS
Please contact 1-877-580-5682 for further assistance.
7 Attaching the ball rod and strap
□Attach the ball rod (R) to the lift rod strap (U)
using the spring clip (S).
Installation (continued)
8 Adjusting the lift rod
□Loosen the thumb screw (T) on the lift rod
strap (U).
□Push down on the lift rod (V) until the drain
stopper is in the open position. Retighten
the thumb screw (T).
1
2
1
R
S
U
2
3
U T
1
UT
3
V
2
1
C
I
A
B
8
Installation (continued)
10
3
12

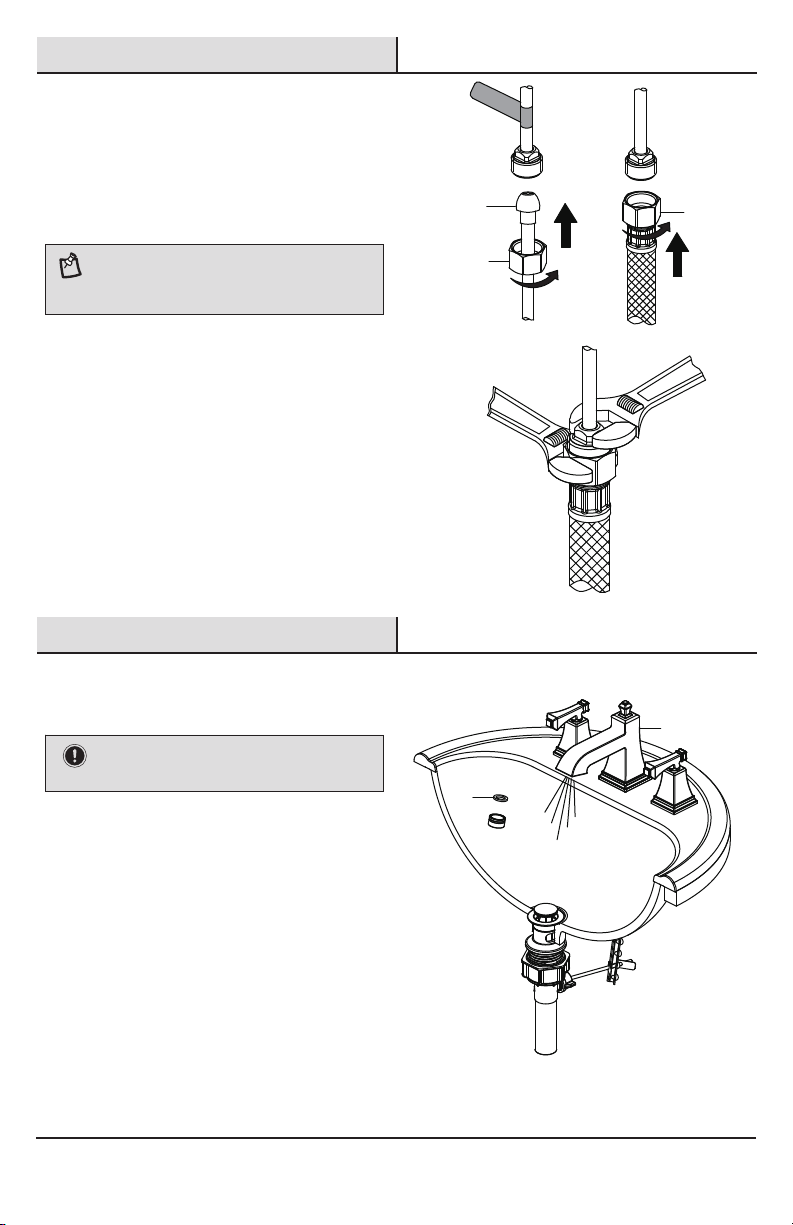

Making the water supply
connections
□Use 1/2 in. I.P.S. faucet connections (2), or use
supply line coupling nuts (3) (not included) with
a 3/8 in. O.D. ball-nose riser (1).
NOTE: Before tightening the faucet connector to the water
supply, apply a second wrench to the supply tube tting.
This will prevent the supply tube from moving or twisting
when tightening the faucet connector. Do not overtighten.
1 Flushing and checking for leaks
IMPORTANT: After installation is complete, remove the
aerator from the faucet (A) to ush the water lines. Do not
lose the gasket (1) in the aerator.
□Ensure the faucet (A) handles are in the off
position, and turn on the water supply and check
for leaks. If you discover any leaks, check your
connections to ensure they are installed properly.
□Remove the aerator and housing (if applicable).
Turn on the hot and cold handles to allow the
water to run for at least one minute. This
ushes away any debris that could cause
damage to internal parts.
□Turn off the water and reinstall the aerator and
housing (if applicable).
Operation
1
A
9
Operation (continued)

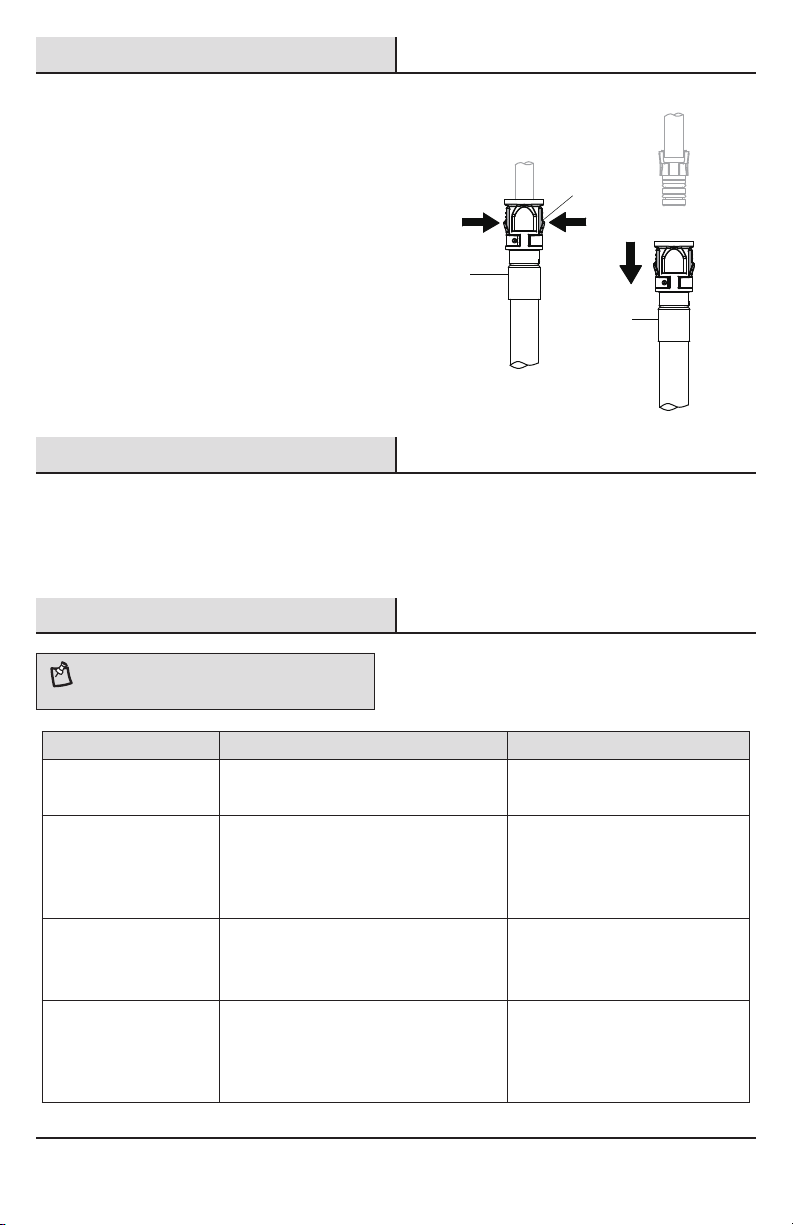

2Removing the quick connector
□If it is necessary to remove the quick connector
(1), squeeze the tabs (2) on the quick connector
and then pull down to disconnect.
WWW.HOMEDEPOT.COM/PEGASUS
Please contact 1-877-580-5682 for further assistance.
2
Squeeze
Pull
down
1
1
Care and Cleaning
□To clean, wipe down with a damp cloth and dry with a towel.
□Do not use abrasive cleaners, steel wool, or harsh chemicals when cleaning this faucet, or the warranty will
be voided.
Troubleshooting
Problem Possible Cause Solution
There are leaks from the
handle.
The bonnet nut has come loose and/or the
washer is dirty or damaged.
□Tighten the bonnet nut.
□Clean or replace the washer.
The aerator has an
irregular or reduced
water ow.
□This faucet features an easy
clean aerator. Gently rub your
ngers against the face of the
aerator to break away any debris
or build up.
The water will not shut off
completely.
The cartridge is dirty or broken. □Remove the handle to check
the cartridge.
□Clean or replace.
The aerator is dirty or mis-tted.
NOTE: Refer to the service parts section in this manual for
a detailed drawing showing the location of the parts listed
below.
There is leaking from the
sink drain at the base of
the sink.
The sink has a rough or irregular surface. □Apply additional silicone sealant
to the beveled side of the drain
ange.
□Retighten and test for leaks.
10

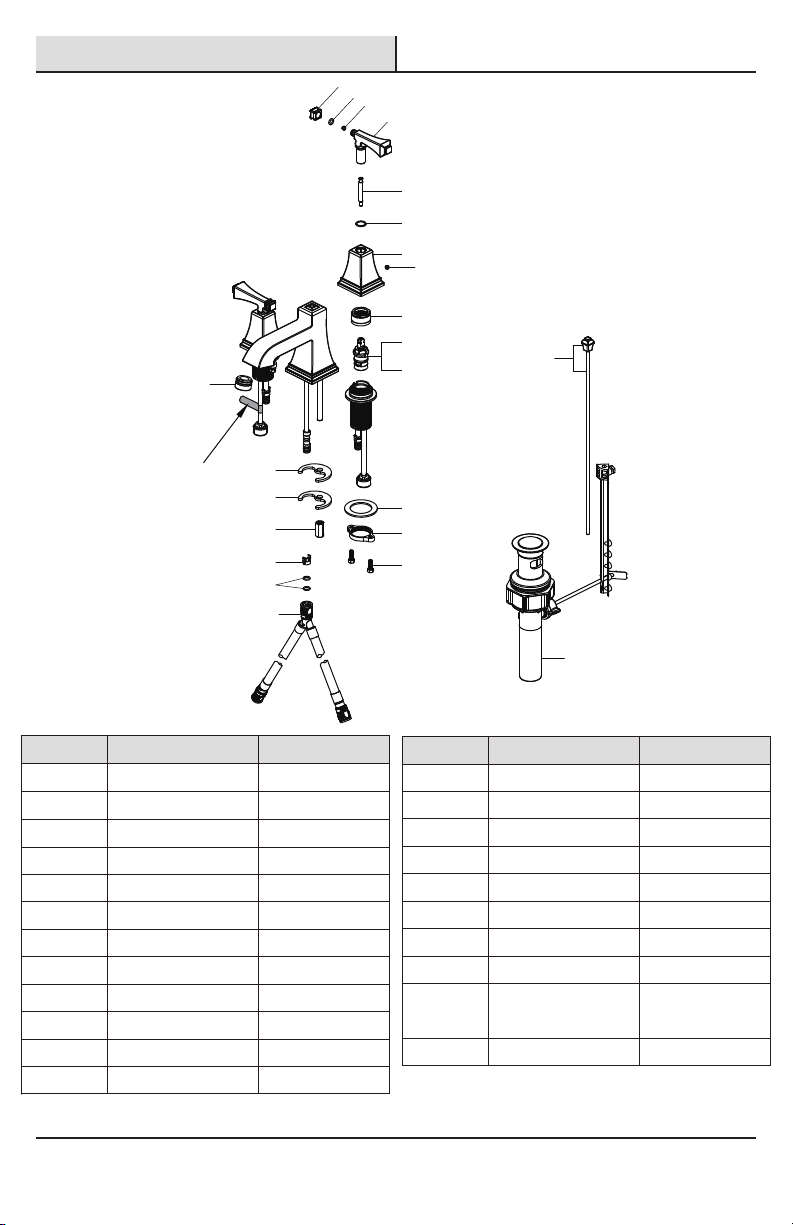

Service Parts
Part Description Part Number
1 RP80044*
3 Set screw RP50002
4
9
Handle RP13049*
10
11
Cartridge H RP20013
12
Washer RP64147
8
Nut RP56059
Bonnet nut RP70193
Cap
2 RP60022O-ring
13
Connector RP50030 Lock nut RP56026
Part Description Part Number
5
6Wearable ring RP64053
14
15
16
17
Aerator RP30192*
Rubber washer RP64045
Cartridge C RP20014
Metal washer RP64046
Screw RP50004
20 Quick connecting hose RP70430
*Specify Finish
Many replacement cartridges, aerators, and drain
assemblies can be purchased at your local The
Home Depot store or online at HOMEDEPOT.COM
Faucet ID tags can
be found on the
hot water inlet
21 Drain assembly
less lift rod RP40096*
22 Lift rod RP40073*
Handle seat RP17023*
7
Block RP70421
18
O-ring RP60002
19
21
20
1234
5
6
3
7
8
9
10
11
12
13
15
16
17
18
19
22
14
This manual suits for next models
3
Table of contents
Languages:
Other Pegasus Plumbing Product manuals
Pegasus
Pegasus 67070-4004 User manual
Pegasus
Pegasus 67122-8004 User manual
Pegasus
Pegasus LUXURY AT HAND 729070 User manual
Pegasus
Pegasus 67664W-6001 Assembly instructions
Pegasus
Pegasus 67589-0004 User manual
Pegasus
Pegasus LUXURY AT HAND 729071 User manual
Pegasus
Pegasus 67120-8004 User manual
Pegasus
Pegasus 67113W-8004 Assembly instructions
Pegasus
Pegasus 67110-7004 User manual
Pegasus
Pegasus 67106W-8004 Assembly instructions
Popular Plumbing Product manuals by other brands
Weka
Weka 506.2020.00E ASSEMBLY, USER AND MAINTENANCE INSTRUCTIONS
Kohler
Kohler K-6228 Installation and care guide
UBERHAUS DESIGN
UBERHAUS DESIGN 75175017 Operator's manual
American Standard
American Standard DetectLink 6072121 manual
Uponor
Uponor Contec TS Mounting instructions
Pfister
Pfister Selia 49-SL Quick installation guide
Kohler
Kohler Centerset K-15240 Homeowner's guide
Viega
Viega Prevista Dry 8522.33 Instructions for use
Sanela
Sanela Lema SLP 59RB Instructions for use
Elkay
Elkay EDF15AC Installation, care & use manual
Hans Grohe
Hans Grohe AXOR Citterio E 36702000 Instructions for use/assembly instructions
baliv
baliv WT-140 manual
