Paradyne COMSPHERE 3810 User manual

COMSPHERE

6700 SERIES NETWORK

MANAGEMENT SYSTEM

MULTIUSER FEATURE

USER’S GUIDE

Document No. 6700-A2-GB21-20

February 1998

Printed on recycled paper

A 6700-A2-GB21-20

February 1998

Printed in U.S.A.

Notice

This publication is protected by federal copyright law. No part of this publication may be copied or distributed,

transmitted, transcribed, stored in a retrieval system, or translated into any human or computer language in any form

or by any means, electronic, mechanical, magnetic, manual or otherwise, or disclosed to third parties without the

express written permission of Paradyne Corporation, 8545 126th Ave. N., Largo, FL 33773.

Paradyne Corporation makes no representation or warranties with respect to the contents hereof and specifically

disclaims any implied warranties of merchantability or fitness for a particular purpose. Further, Paradyne Corporation

reserves the right to revise this publication and to make changes from time to time in the contents hereof without

obligation of Paradyne Corporation to notify any person of such revision or changes.

Changes and enhancements to the product and to the information herein will be documented and issued as a new

release to this manual.

Warranty, Sales, and Service Information

Contact your local sales representative, service representative, or distributor directly for any help needed. For

additional information concerning warranty, sales, service, repair, installation, documentation, training, distributor

locations, or Paradyne worldwide office locations, use one of the following methods:

Via the Internet: Visit the Paradyne World Wide Web site at http://www.paradyne.com

Via Telephone: Call our automated call system to receive current information via fax or to speak with a

company representative.

— Within the U.S.A., call 1-800-870-2221

— Outside the U.S.A., call 1-727-530-2340

Trademarks

All products and services mentioned herein are the trademarks, service marks, registered trademarks or registered

service marks of their respective owners.

6700-A2-GB21-20 February 1998

Contents

About This Guide

Document Purpose and Intended Audience iii. . . . . . . . . . . . . . . . . . . . . . . . .

Document Summary iii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Product-Related Documents iv. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1Introduction

What is the Multiuser Feature? 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Feature List 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Sample Multiuser Network Topologies 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Multiuser Feature Package Contents 1-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2Installation

Hardware Requirements 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Supported Network Adapters 2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Software and Installation Requirements 2-4. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation Worksheet 2-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installing the Multiuser Feature 2-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Configuring the Multiuser Feature 2-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Index

iii

6700-A2-GB21-20 February 1998

About This Guide

Document Purpose and Intended Audience

This guide describes how to install and use the COMSPHERE 6700 Series

Network Management System (NMS) Multiuser feature.

It is assumed that you have a basic understanding of modems and their

operation, are knowledgeable about data communications, and are familiar with

Windows terminology and conventions. You or your LAN administrator should

also have knowledge of TCP/IP.

Document Summary

Section Description

Chapter 1

Introduction.

Provides an introduction to the multiuser

features and network topologies.

Chapter 2

Installation.

Presents hardware and software

requirements and installation steps.

Glossary Refer to

COMSPHERE 6700 Series Network

Management System User’s Guide,

Document

Number 6700-A2-GY31.

Index Lists key terms, acronyms, concepts, and sections in

alphabetical order.

About This Guide

iv 6700-A2-GB21-20

February 1998

Product-Related Documents

Document Number Document Title

3000-A2-GA31

COMSPHERE 3000 Series Carrier, Installation

Manual

3610-A2-GB46

COMSPHERE 3600 Series Data Service Units,

Models 3610 and 3611, User’s Guide

3610-A2-GB48

COMSPHERE 3600 Series Data Service Units,

Models 3610 and 3611, Time Division Multiplexer,

Multichannel Multipoint, and Digital Bridge Options

Supplement

3610-A2-GB49

COMSPHERE 3600 Series Data Service Units,

Models 3610 and 3611, Dial Backup Module Options

Supplement

3810-A2-GB30

COMSPHERE 3800 Series Modems, Models 3810,

3811, and 3820, User’s Guide

3910-A2-GN32

COMSPHERE 3900 Series Modems, Models 3910

and 3911, Point-to-Point/Multipoint, Installation and

Operation Manual

6700-A2-GB20

COMSPHERE 6700 Series Network Management

System SNMP Proxy Agent Feature User’s Guide

6700-A2-GB22

COMSPHERE 6700 Series Network Management

System Network Configuration Guide

6700-A2-GB23

COMSPHERE 6700 Series Network Management

System Remote Monitor Feature User’s Guide

6700-A2-GB41

COMSPHERE 6700 Series Network Management

System Security Manager Feature Supplement

6700-A2-GY31

COMSPHERE 6700 Series Network Management

System User’s Guide

Contact your sales or service representative to order additional product

documentation.

Paradyne documents are also available on the World Wide Web at:

http://www.paradyne.com

Select

Service & Support

→

Technical Manuals

About This Guide

iv 6700-A2-GB21-20

February 1998

Product-Related Documents

Document Number Document Title

3000-A2-GA31

COMSPHERE 3000 Series Carrier, Installation

Manual

3610-A2-GB46

COMSPHERE 3600 Series Data Service Units,

Models 3610 and 3611, User’s Guide

3610-A2-GB48

COMSPHERE 3600 Series Data Service Units,

Models 3610 and 3611, Time Division Multiplexer,

Multichannel Multipoint, and Digital Bridge Options

Supplement

3610-A2-GB49

COMSPHERE 3600 Series Data Service Units,

Models 3610 and 3611, Dial Backup Module Options

Supplement

3810-A2-GB30

COMSPHERE 3800 Series Modems, Models 3810,

3811, and 3820, User’s Guide

3910-A2-GN32

COMSPHERE 3900 Series Modems, Models 3910

and 3911, Point-to-Point/Multipoint, Installation and

Operation Manual

6700-A2-GB20

COMSPHERE 6700 Series Network Management

System SNMP Proxy Agent Feature User’s Guide

6700-A2-GB22

COMSPHERE 6700 Series Network Management

System Network Configuration Guide

6700-A2-GB23

COMSPHERE 6700 Series Network Management

System Remote Monitor Feature User’s Guide

6700-A2-GB41

COMSPHERE 6700 Series Network Management

System Security Manager Feature Supplement

6700-A2-GY31

COMSPHERE 6700 Series Network Management

System User’s Guide

Contact your sales or service representative to order additional product

documentation.

Paradyne documents are also available on the World Wide Web at:

http://www.paradyne.com

Select

Service & Support

→

Technical Manuals

1-1

6700-A2-GB21-20 February 1998

Introduction 1

What is the Multiuser Feature?

The COMSPHERE 6700 Multiuser feature gives you the ability to connect

multiple Windows workstations together to form a network of NMS users. With

this feature, each user’s workstation has a complete graphical interface that

interacts with the NMS as if it were a single user workstation.

The Multiuser feature consists of two separately orderable packages: Server and

Client.

You can install the Multiuser Server and Client packages on the COMSPHERE

6700 Series NMS at any time.

The Multiuser feature supports up to six simultaneous users. In addition, the

software provides statistical data and Platform/Network Performance Monitoring.

Feature List

In addition to all the features of the 6700 Series NMS, the Multiuser feature

provides the following capabilities:

Integrated TCP/IP, UDP/IP, and SNMP

Concurrent Ethernet, Token Ring, FDDI, SLIP, and PPP interfaces

Support for various network adapter vendors

User-definable configuration via the COMSPHERE 6700 Series NMS

Network Configuration feature

Seamless multiuser (up to 6 users) via LAN and/or RS-232 connections via

SLIP and/or PPP

RS-232 Gateway to LAN via SLIP and/or PPP allowing dial-up multiuser

Full graphical user interface features at all multiuser workstations

Platform/Network Performance Monitoring

Knowledge of more than one NMS server

User-selectable active NMS server

Introduction

1-2 6700-A2-GB21-20

February 1998

Sample Multiuser Network Topologies

When using the Multiuser feature, one workstation must be configured as the

NMS

server

where the NMS database resides and the control channels are

connected. The server is also the point of interface with all NMS devices.

All other networked workstations must be configured as an NMS

client

, which

executes only the user interface portion of the NMS.

Figures 1-1, 1-2, and 1-3 show some sample Multiuser feature network

topologies.

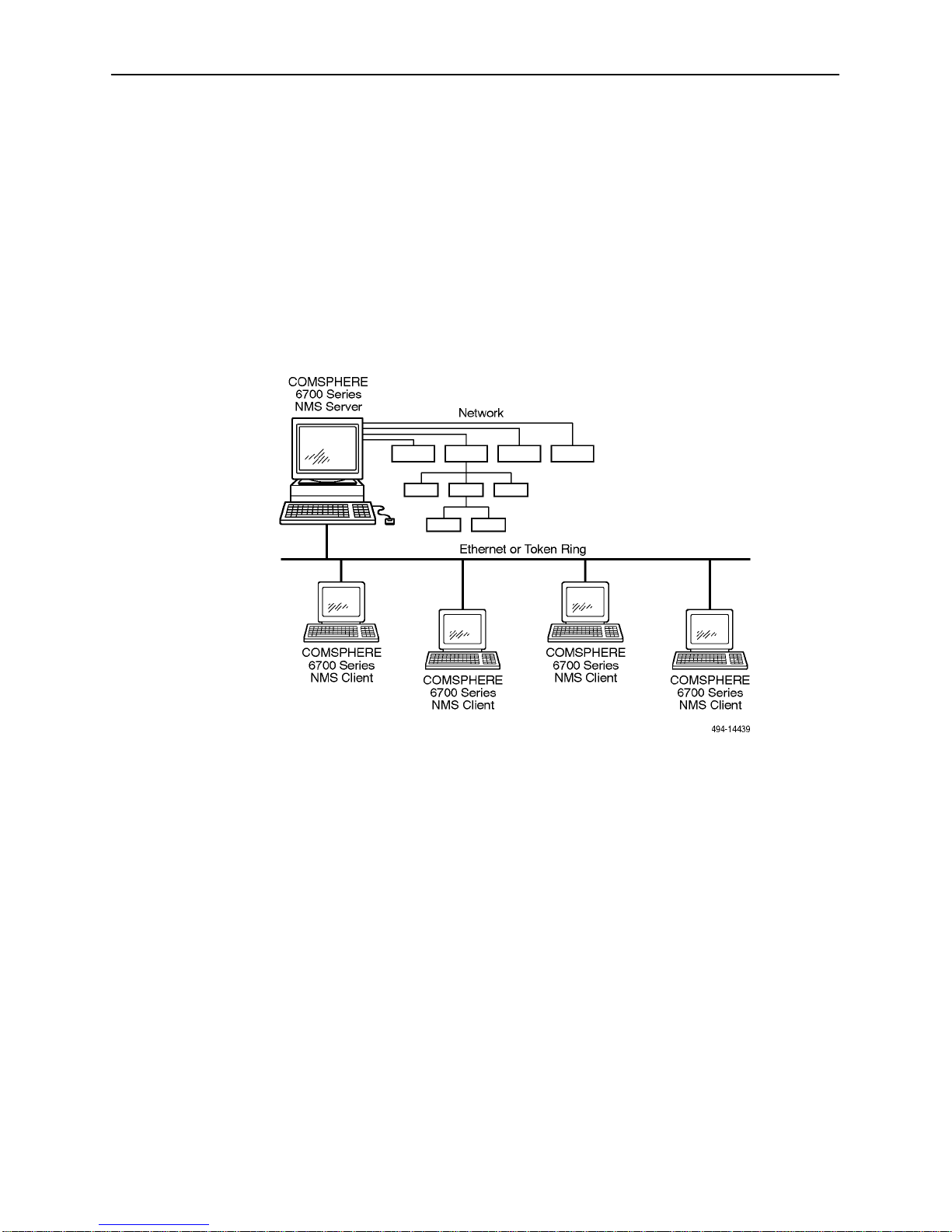

Figure 1-1. Multiuser LAN Network

Introduction

1-3

6700-A2-GB21-20 February 1998

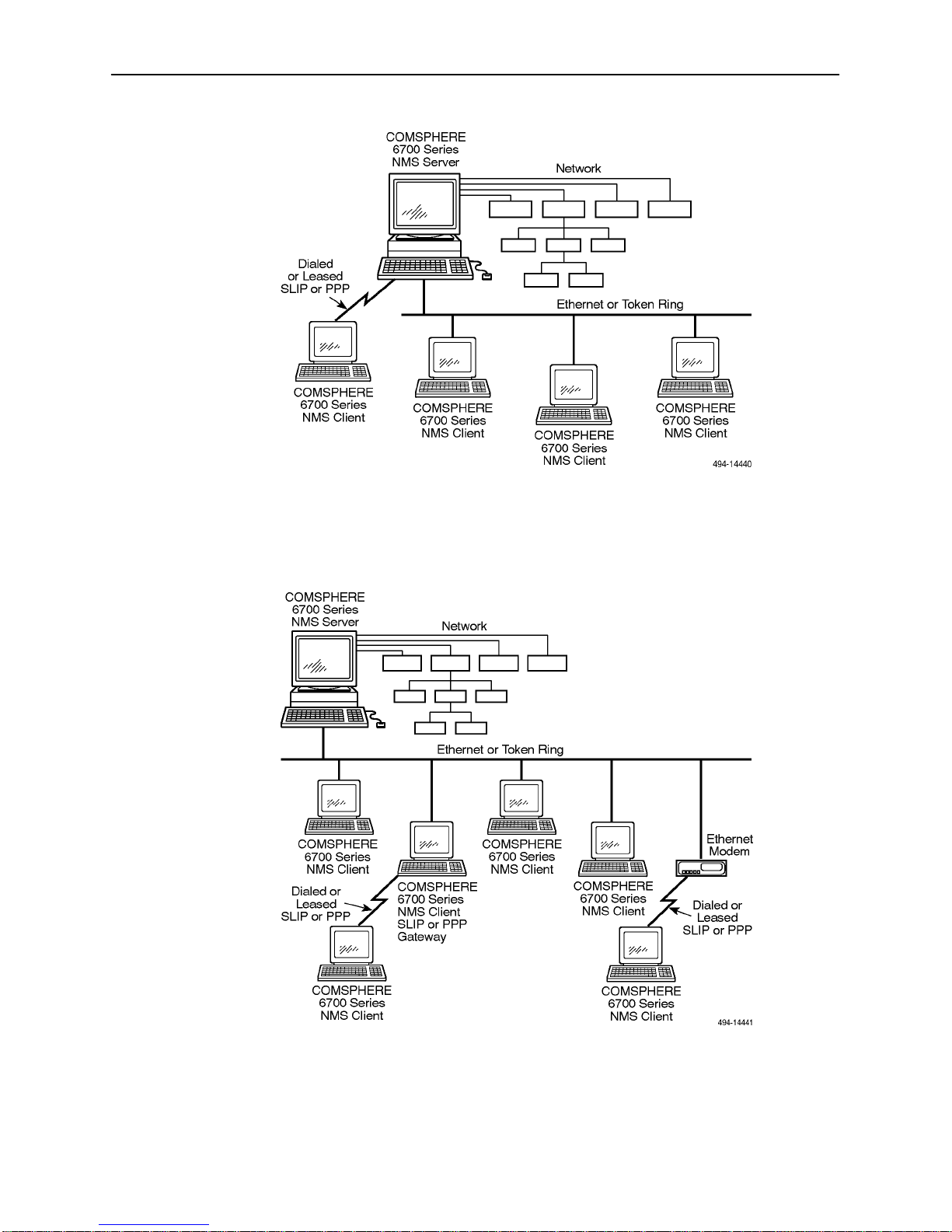

Figure 1-2. Multiuser Serial Network (Using SLIP and/or PPP)

Figure 1-3. Multiuser Serial Gateway or Ethernet Modem

(Using SLIP and/or PPP)

Introduction

1-4 6700-A2-GB21-20

February 1998

Multiuser Feature Package Contents

The Multiuser feature package includes the following:

Server:

Multiuser server software on one or more 3 1/2″disks

One

COMSPHERE 6700 Series Network Management System Multiuser

Feature User’s Guide

One

COMSPHERE 6700 Series Network Management System Network

Configuration Guide

Client:

Multiuser client software on one or more 3 1/2″disks

One

COMSPHERE 6700 Series Network Management System Multiuser

Feature User’s Guide

One

COMSPHERE 6700 Series Network Management System Network

Configuration Guide
