DGP2-640 Icon LCD Keypad 1

1.0 Introduction

Thank you for choosing Paradox Security Systems. Our advanced

technology security systems provide you with reliable security

protection and powerful features which are easy to use. The

DGP2-640 Icon LCD keypad provides easy access to the security

system’s functions and status at a glance.

1.1 Specifications

Power input: 12-16 Vdc, 80mA maximum

PGM current limit: 50mA

Number of inputs: 1

Number of zones: 1 standard zone, no tamper recognition

Locate deactivation: Anti-tamper switch

Compatibility: Any Digiplex control panel

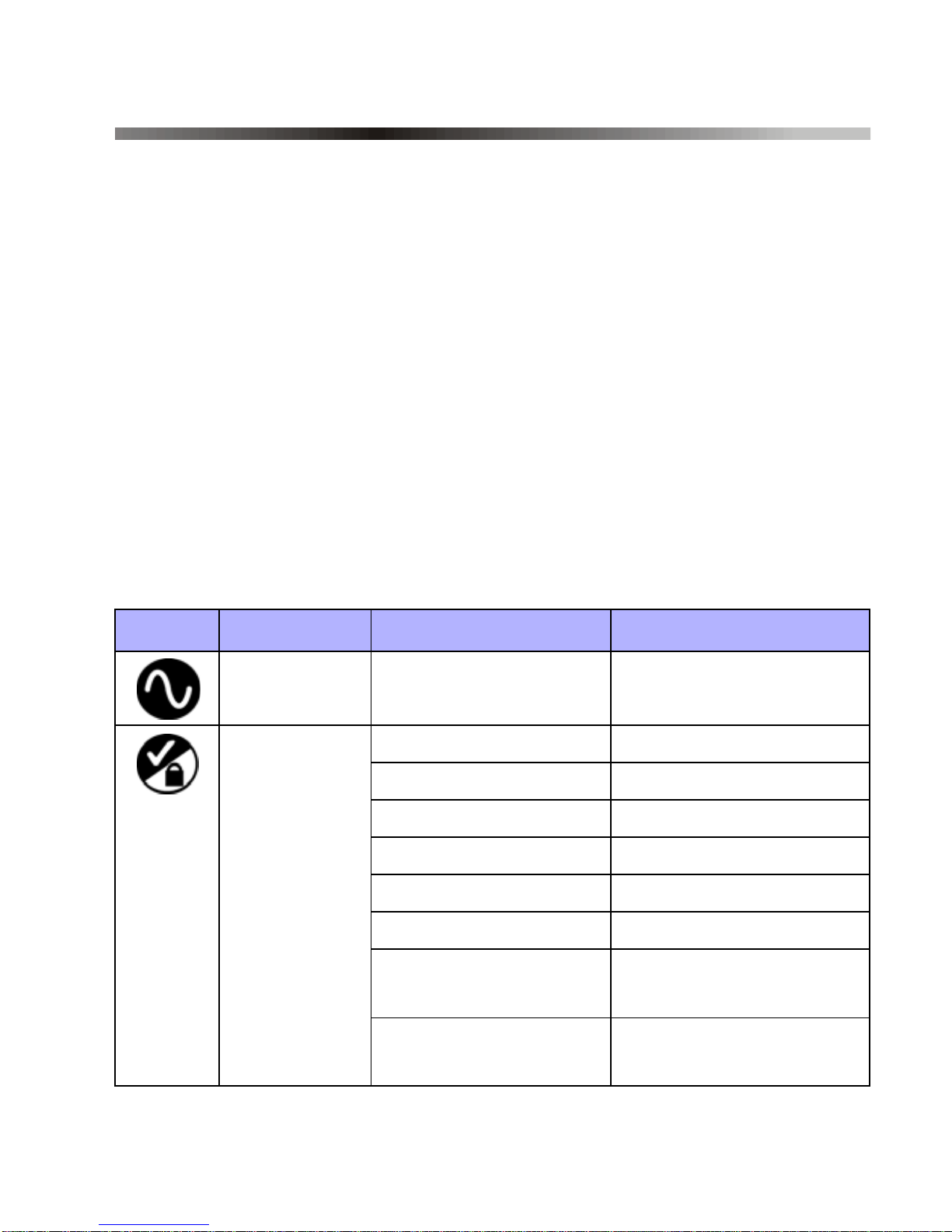

Table 1: LED Functionalities

LED Function Display Status

AC Light ON

OFF Power On

Power Off

Status Light Green ON All zones closed

Green OFF Zone(s) open

Green flash Exit delay

Red ON Area(s) armed

Red OFF Area(s) disarmed

Red flash System in alarm

Green and yellow

flash simultaneously Locate indication

Red and yellow

flash alternately Combus fault

DGP2640_EI00.fm Page 1 Thursday, April 7, 2005 12:05 PM

2 Reference & Installation Manual

2.0 Installation

2.1 Connecting the Keypad

The DGP2-640 is connected to the control panel’s combus in a star

and/or daisy chain configuration. The four-wire combus provides

power and two-way communication between the control panel and all

modules connected to it. Connect the four terminals labeled +, -, GRN

and YEL on the keypad to the corresponding terminals on the control

panel as shown in Figure 1 on page 3. Refer to the control panel’s

Reference & Installation Manual for the maximum allowable

installation distance from the control panel.

2.2 Connecting the Keypad Zone

Your keypad has one hardwired input terminal, allowing you to

connect one detector or door contact directly to it. For example, you

can wire a door contact located at the entry point of an establishment

directly to the input terminal of the entry point keypad, instead of

wiring the door contact all the way to the control panel.

Connect the device to the keypad's input terminal as shown in Figure

1 on page 3.

The keypad zone follows the control panel’s EOL definition.

In order to communicate its status to the control panel, the keypad's

input must be assigned to a zone in the control panel and the zone's

parameters must be defined.

The control panel does not recognize tampers originating

from the keypad zone.

For more information on zone assignment, please refer to your

control panel's Reference & Installation Manual. Please note that

even with the ATZ (zone doubling) feature enabled, the keypad

DGP2640_EI00.fm Page 2 Thursday, April 7, 2005 12:05 PM

DGP2-640 Icon LCD Keypad 3

supports only one detection device.

2.3 Programmable Output

Each keypad has one on-board PGM. A PGM is a programmable

output that switches to its opposite state (i.e. a normally open PGM

will close) when a specific event has occurred in the system (see

Programmable Output Options on page 11). Upon activation, the

PGM can provide 50mA to any device connected to it. If the current

drawn is to exceed the current limit, a relay should be connected to

the PGM as shown in Figure 1.

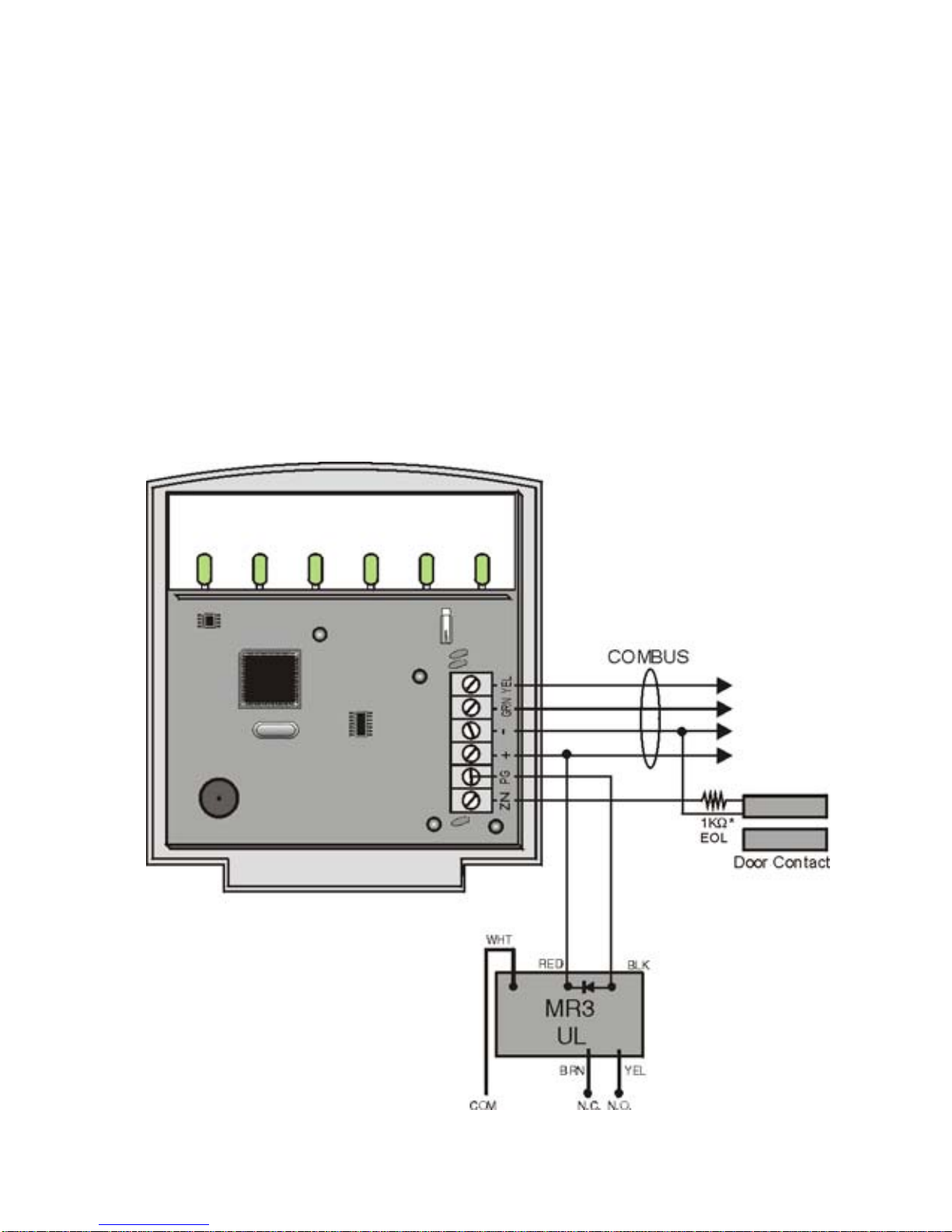

Figure 1: Connecting Keypads and Keypad Zones

A keypad’s input must be assigned

to a zone, keyswitch or virtual input

in the control panel. In addition, the

zone’s parameters must be

defined. For detailed instructions

please refer to the control panel’s

Reference and Installation Manual.

*The keypad zone follows the control

panel’s EOL definition. The zone speed is

set at 600mS and cannot be changed.

Note: The keypad’s anti-tamper switch

will communicate its status to the control

panel via the combus.

To other

keypads

and/or

modules.

DGP2640_EI00.fm Page 3 Thursday, April 7, 2005 12:05 PM

4 Reference & Installation Manual

3.0 Programming

To program the DGP2-640 keypad, enter Module Programming

Mode and then enter the desired section followed by the required

data. When programming the keypad, use the keypad’s

programming sheets (found in the Digiplex Modules’ Programming

Guide; also, refer to List of Sections on page 14) to keep track of

which sections were programmed and how. We strongly recommend

you read this entire manual before you begin programming.

The Icon keypad can also be programmed using the WinLoad

Installer Upload/Download Software. You can program control panels

and keypads remotely through a modem at 300 baud or on-site at

19.2k/38.4k baud with a 306 Adapter. For more information, refer to

the WinLoad instructions or visit our website at www.paradox.ca.

3.1 Entering Module Programming Mode

The keypad, like all other modules in the system, is programmed

through the control panel. To do so, you must first enter Module

Programming Mode:

1. From Normal Mode press and hold the [0] key.

2. Enter the [INSTALLER CODE](by default 000000).

3. Enter section [953] (DGP-848) / [4003] (DGP-NE96).

4. Enter the keypad’s 8-digit [SERIAL NUMBER].

5. Enter the 3-digit [SECTION] you want to program.

6. Enter the required [DATA].

The control panel will then redirect all programming to the selected

keypad. Every time the key is pressed it will revert to the

preceding step—unless entering in data, in which case it will erase

the current data entry. Please note that the serial number is located

on the keypad's PC board or enter section [000] (DGP-848) or

DGP2640_EI00.fm Page 4 Thursday, April 7, 2005 12:05 PM

DGP2-640 Icon LCD Keypad 5

[0000] (DGP-NE96) in Step 3 to view the keypad’s serial number.

When entering the serial number, the Sand Ticons on the right

side of the screen will illuminate and you can use the [S] and [T]

keys to scroll through the serial number.

3.2 Programming Methods

The following methods can be used when programming the keypad:

3.2.1 Feature Select Programming

Some sections are programmed by enabling or disabling

options. Within the sections, numbers from [1] to [8] represent

a specific keypad option. Press the key corresponding to the

desired option and the digit will appear in the display. This

means the option is enabled. Press the key again to remove

the digit from the display thereby disabling the option. Press

the key when options are set.

3.2.2 Decimal Programming

Some sections require that a decimal value be entered. In this

method, any digit from 000 to 255 can be entered.

3.3 Module Broadcast

The control panel’s Module Broadcast feature can be used to copy

the contents of one keypad to one or more keypads.

1. From Normal Mode press and hold the [0] key.

2. Enter the [INSTALLER CODE](default: 000000).

3. Enter section [954] (DGP-848) / [4004] (DGP-NE96).

4. Enter the [SERIAL #] of the source keypad. The source is the

programmed keypad whose data you want to copy to other

keypads. When entering the serial number, the Sand Ticons

on the right side of the screen will illuminate and you can use

the [S] and [T] keys to scroll through the serial number.

5. Enter the [SERIAL #] of the destination keypad(s). The

DGP2640_EI00.fm Page 5 Thursday, April 7, 2005 12:05 PM

6 Reference & Installation Manual

destination is the keypad(s) you want to program with the

source’s data. If you want to program more than one keypad

with the source’s data, enter the serial numbers of the keypads

one at a time.

6. Once you have entered the serial numbers of the keypad(s)

you want to program, press the key.

For more information, please see the control panel’s Programming

Guide.
