Paradox 1686V User manual

User Quick Reference Guide (1686V & 1686H)

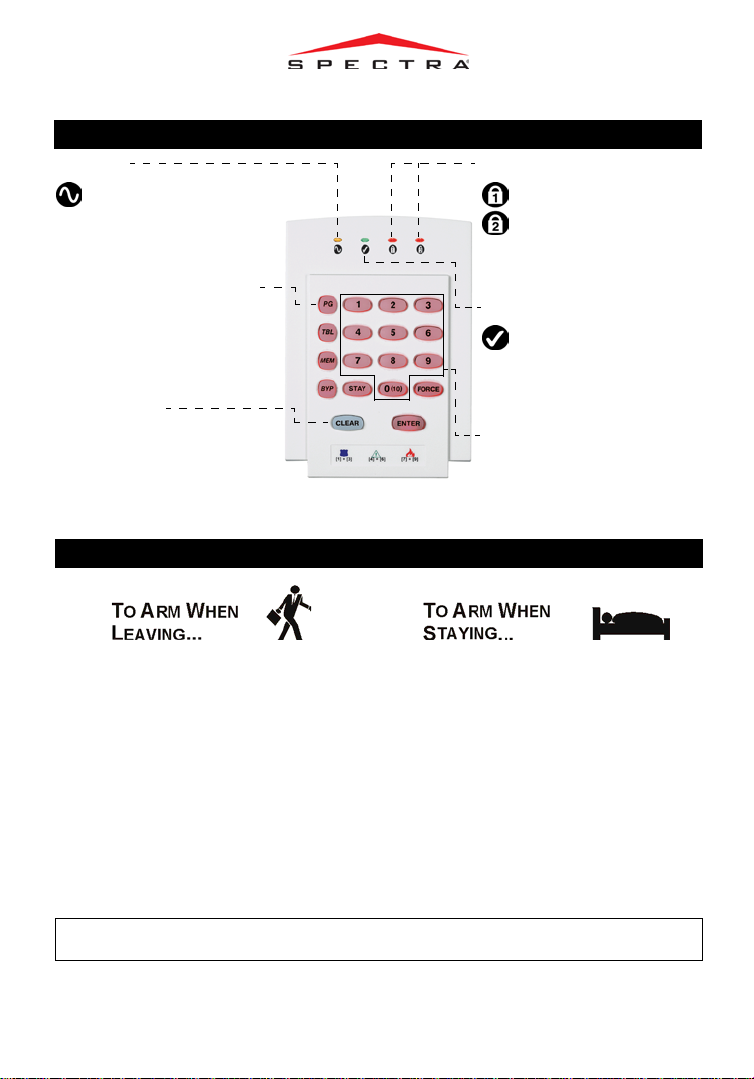

KEYPAD OVERVIEW

1686V LED Keypad

REGULAR:Arms entire partition when all

zones are closed.

Enter your [ACCESS CODE]* (or press and

hold the [ENTER]†key for 3 seconds).

FORCE:Arms entire partition without waiting

for all zones to close.

Press the [FORCE]key, and then enter your

[ACCESS CODE]* (or press and hold the

[FORCE]†key for 3 seconds).

TAY

Arms partition’s perimeter only, which

allows you to remain in the protected area.

Press the [STAY]key, and then enter your

[ACCESS CODE]* (or press and hold the

[STAY]†key for 3 seconds).

INSTANT:Stay arms partition, but an alarm

will occur instantly if a zone opens, including

entry delay zones.

After Stay arming, press and hold the

[STAY]†key for 3 seconds.

*If keys [1] and [2] flash, you must specify which partition you wish to arm or disarm by pressing the

corresponding key.

†Must be enabled by your installer.

HOW TO ARM AND DISARM

Disarming

Enter your [ACCESS CODE]*.

AC LIGHT

On = AC power on

Off = Power failure

READY LIGHT

On = All zones are closed

Off = Zone(s) open or armed

Flash = Exit Delay indicates

that the system will become

armed soon

ARM LIGHTS

On = Partition armed

Off = Partition disarmed

Flash = Partition Stay armed

Fast Flash = Partition in

alarm

Press and hold the [PG]key for 3

seconds to activate:

__________________________

(i.e. garage door, smoke reset, etc.)

Made a mistake?

Press the [CLEAR]key to re-enter

data, exit the current mode or

cancel an action.

A numeric key illuminates if its

corresponding zone is open.

Partition 1

Partition 2

1686EQ02.fm Page 1 Friday, March 21, 2003 10:48 AM

Press and hold one of the key combinations

listed below for 2 seconds to activate a

panic alarm.

When the [MEM]key is illuminated, an alarm

has occurred within your system. Press the

[MEM]key to view the breached zone(s).

The breached zone’s corresponding key will

be illuminated.

When the [TBL]key is illuminated, press it to view the Trouble Display ([TBL]key flashes).

Each key that is illuminated represents a separate trouble condition as shown below:

When the [BYP]key is illuminated, there are

bypassed zones currently in your system.

Method 1:

1. Press the [BYP]key.

2. Enter your [ACCESS CODE].

3. Press the keys corresponding to the

zones you wish to bypass, or press

[BYP]to recall the previously

bypassed zones.

4. Press [ENTER].

Method 2:

1. Press and hold the [BYP]†key for 3

seconds.

2. Go to step 3 in method 1.

Press and hold the numeric key

corresponding to the zone for 3 seconds to

enable or disable chiming for that zone*.

Press and hold the [CLEAR]key for 3

seconds to enable or disable keypad

muting*.

*A confirmation beep (BEEP-BEEP-BEEP-BEEP-

BEEP) signifies that the feature has been enabled,

and a rejection beep (BEEEEEEEEEEEEEP) sounds

when the feature is disabled.

PANIC ALARMS†

Panic Alarm

Type Key Combinations

Police

Medical

Fire

Press and hold [1] & [3]

Press and hold [4] & [6]

Press and hold [7] & [9]

ALARM MEMORY DISPLAY

TROUBLE DISPLAY

[1] Low/No battery [8] Clock loss (press [8] to reprogram HH:MM)

[2] Wireless transmitter low

battery

[9] Tamper/Zone wiring failure (press [9] to

view the zone)

[3] Power failure [10] Telephone line monitoring failure

[4] Bell/PGM2 disconnected [STAY]Fire zone trouble

[5] Bell current failure [BYP]Module loss

[6] Auxiliary current failure [MEM]Wireless transmitter supervision loss

[7] Communication failure [FORCE]Keypad fault

BYPASS PROGRAMMING CHIME PROGRAMMING

†Must be enabled by your installer.

1686EQ02.fm Page 2 Friday, March 21, 2003 10:48 AM
