Panasonic SB-AK230 User manual

ORDERNO. MD0502024C3

Speaker System

SB-AK230GT

Colour

(S)... Silver Type

SPECIFICATIONS

Specification

Type 2way, 2speaker system (Bass

reflex)

Speaker(s)

Woofer 16 cm conetype

Tweeter 6 cm conetype

Impedance 5

Input power (IEC) 100 W(Max)

Output sound pressure

level 81 dB/W(1.0m)

Cross over frequency 4 kHz

Frequencyrange 35 Hz - 28 kHz (-16 dB)

50 Hz - 26 kHz (-10 dB)

Dimensions(WxH xD) 220 x330 x201 mm

Mass 2.7kg

Notes :

1. Specificationsare subject tochangewithout notice.

2. Mass and dimensionsare approximate.

System : SC-AK230GT

-S

MusicCenter : SA-AK230GT-S

Front Speaker : SB-AK230GT-S

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

Unauthorized copying and distribution isaviolation of law.

1. Connection of the Speaker Cables

-Besure to connect speaker cables before connecting the AC

power supplycord.

-The load impedance of anyspeaker used with thisunitmust be 5 .

-Besure to connect the cablefrom the right speaker to the right

terminal and the cablefrom the left speaker to the left terminal.

1. Stripoff the outer covering, and twist the center conductor. Make

sure the bare ends of the wires are not unravelled. (Iftheyare,

twist them tight again.)

2. Insert the wire to the rear panel of the unitand close the lever.

Notes :

-To prevent damage to circuitry, never short-circuitpositive (+)and

negative (-) speaker wires.

-Besure to connect onlypositive (red) wires to positive (+)

terminalsand negative (black) wires to negative (-) terminals.

Placement

Speakers are designedidenticallysothat no left orright channel orientation is necessary.

Notes :

-Keep your speakers at least 10 mm awayfrom the system for

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

proper ventilation.

-These speakers do not have magneticshielding. Donot place them

near televisions, personal computers or other devices easily

influenced bymagnetism.

-You cannot take the front net off the speakers.

Connection

Use onlythe suppliedspeakers.

The combination of the mainunit and speakers provide the best sound.

Using otherspeakers candamage the unit and sound qualitywill be negativelyaffected.

Notes on speakeruse

-You can damage your speakers and shorten theiruseful life ifyou

playsound at high levelsover extended periods.

-Reduce the volume inthe following cases to avoiddamage.

-When playing distorted sound.

-When adjusting the sound quality.

2. Connection of the Speaker Wiring

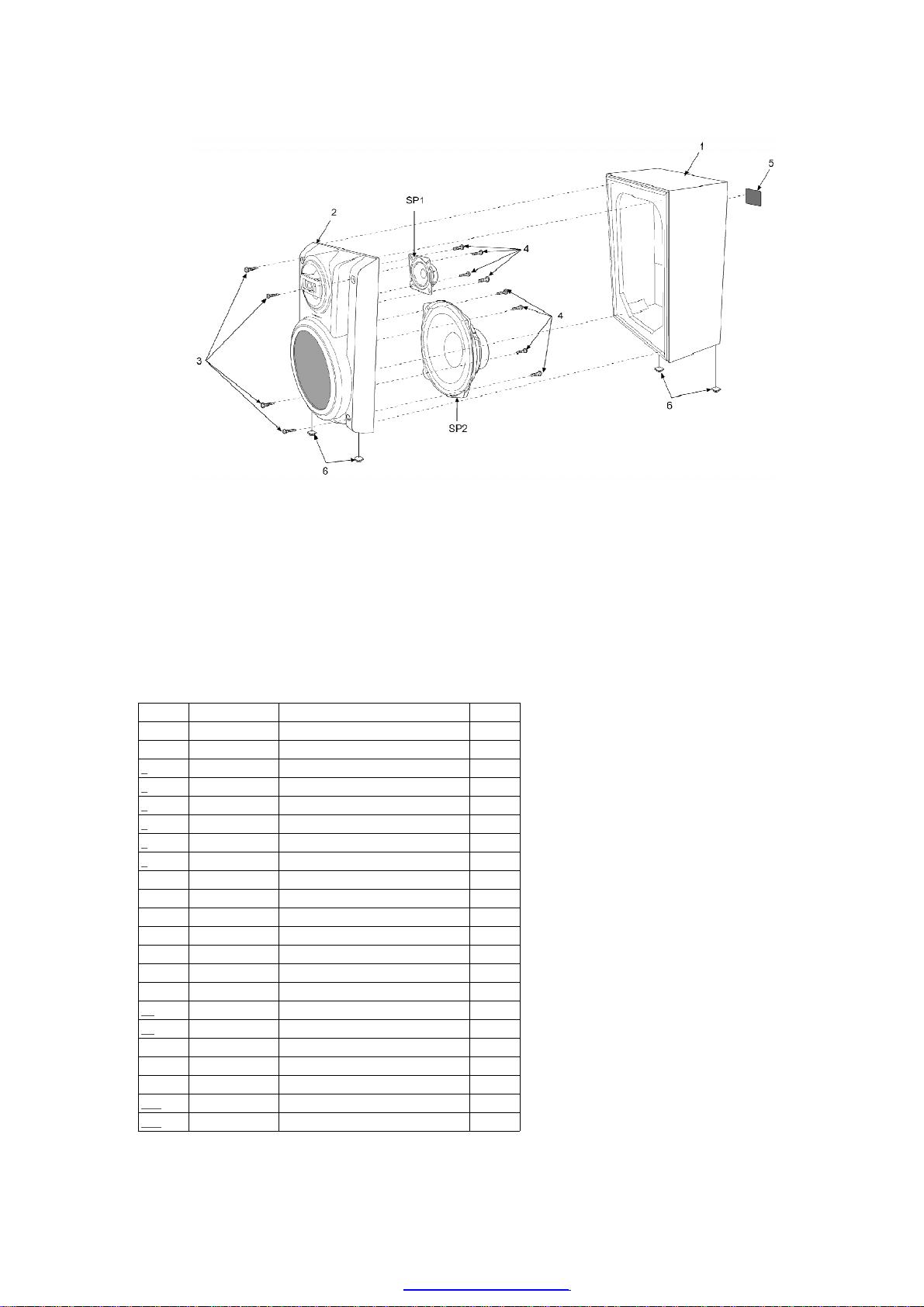

3. Cabinet Parts Location

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

4. Replacement Parts List

Notes :

-Important safetynotice :

When replacing anyof these components, be sure to use only

manufacturer’sspecified parts showninthe parts list.

-[M] markings inthe Remarks columns indicates parts supplied by

PAVCSG.

Ref. No. PartNo. PartName& Description Remarks

CABINETAND CHASSIS

1RYKX0297-S SPK CABINETASS’Y [M]

2RYBX0074-S FRONTPANEL ASS’Y [M]

3XTB4+16AFZ SCREW [M]

4XTB4+10JFJ SCREW [M]

5RGNX0264A-K SPEC SHEET [M]

6RKA0072-KJ LEG CUSHION [M]

CAPACITOR

C1 ECEA1HAY2R2 2.2uf50V [M]

PACKING MATERIALS

P1 RPNX0286 POLYFOAMSET [M]

P2 RPFX0108-2 MIRAMATBAG [M]

SPEAKERS

SP1 EAST6PH08A6 TWEETER [M]

SP2 EAST16PL41F6 WOOFER [M]

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

5. Packaging

FLE0502W/S

PDFcreated withpdfFactoryProtrialversion www.pdffactory.com
