Panasonic FZ-G2 Series User manual

Personal Computer

Model No. FZ-G2 Series

Connect to a network

Disclaimer

Computer specifications and manuals are subject to change without notice. Panasonic Corporation assumes no liability for damage incurred directly or

indirectly from errors, omissions or discrepancies between the computer and the manuals. Refer for the latest information about optional products to the

catalogs, etc.

Trademarks

lMicrosoft, Windows, and the Windows logo are registered trademarks or trademarks of Microsoft Corporation of the United States and/or other

countries.

lIntel, Intel Core and Intel vPro®are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries.

lNames of products, brands, etc., appearing in this manual are trademarks or registered trademarks of their respective own companies.

HS0321-0

20200083ZAP

Introduction

Illustrations and Terminology in this manual

lThis manual explains using the default setting.

lIn principle, this manual explains based on the following conditions:

lWhen the tablet and keyboard base have been installed

lWhen the keyboard and touchpad are used for operation

lSome illustrations are simplified to help your understanding and may look different from the actual unit.

lSome types of software are automatically updated, and differences may occur from descriptions in this manual.

lIf you do not sign in as an administrator, you cannot use some functions or cannot display some screens.

lThis manual explains operation procedures using the touchpad or mouse as typical examples. In addition, you can touch the display screen to

operate the computer.

When using the touch operation, please replace the terms as described below, and read the instructions.

Operation terms to be replaced:

lClick → Touch

lDouble-click → Double-touch

lRight-click → Touch and hold (Long touch)

Terms and illustrations in these instructions.

l≪Enter≫: This means to press the ≪Enter≫key.

l≪Fn≫+≪F7≫:

This means to press and hold ≪Fn≫key, and then press ≪F7≫key.

lThe display of the key may be different from this manual according to the keyboard used. (e.g. “Delete” instead of “Del”)

lClick - :

Click (Start) and then click (Power).

In these instructions, the names are referred as follows.

l“Windows 10 Pro” as “Windows” or “Windows 10”

Regarding Windows 10

Desktop mode and Tablet mode

Windows 10 offers the desktop mode in which operation is performed using the keyboard or touchpad, and also the tablet mode optimized for the touch

panel operation.

The mode can be switched by clicking (Notification), and then clicking (Tablet mode).

This manual explains operation procedures using the desktop mode as typical examples. When using the tablet mode, please replace the operation pro-

cedures as described below, and read the instructions.

lClick (Start) - [Windows System] → Click (All apps) - [Windows System]

lClick (Start) - (Settings) → Click (Settings)

NOTE

lIf some icons do not appear on the task tray, perform the following operations.

1. Touch and hold the task tray.

2. Select the item to display.

Screen Messages

Screen messages are explained in [English (United States)].

(Depending on the language preference, some screen messages in these instructions are different from the actual screen messages. For example,

[Flight mode] may be displayed instead of [Airplane mode] in some language preference)

Opening the Control Panel

1. Click (Start) - [Windows System] - [Control Panel].

Opening the Settings

1. Click (Start) - (Settings).

Latest Information on Windows 10

When Windows 10 is updated, the screen display or operation procedures may be changed.

For the latest information on Windows 10, see the following web page.

https://pc-dl.panasonic.co.jp/itn/addendum/

LAN

Connecting LAN

IMPORTANT

lDo not connect the telephone cable to the LAN port.

1. Turn off the computer.

lDo not use sleep or hibernation.

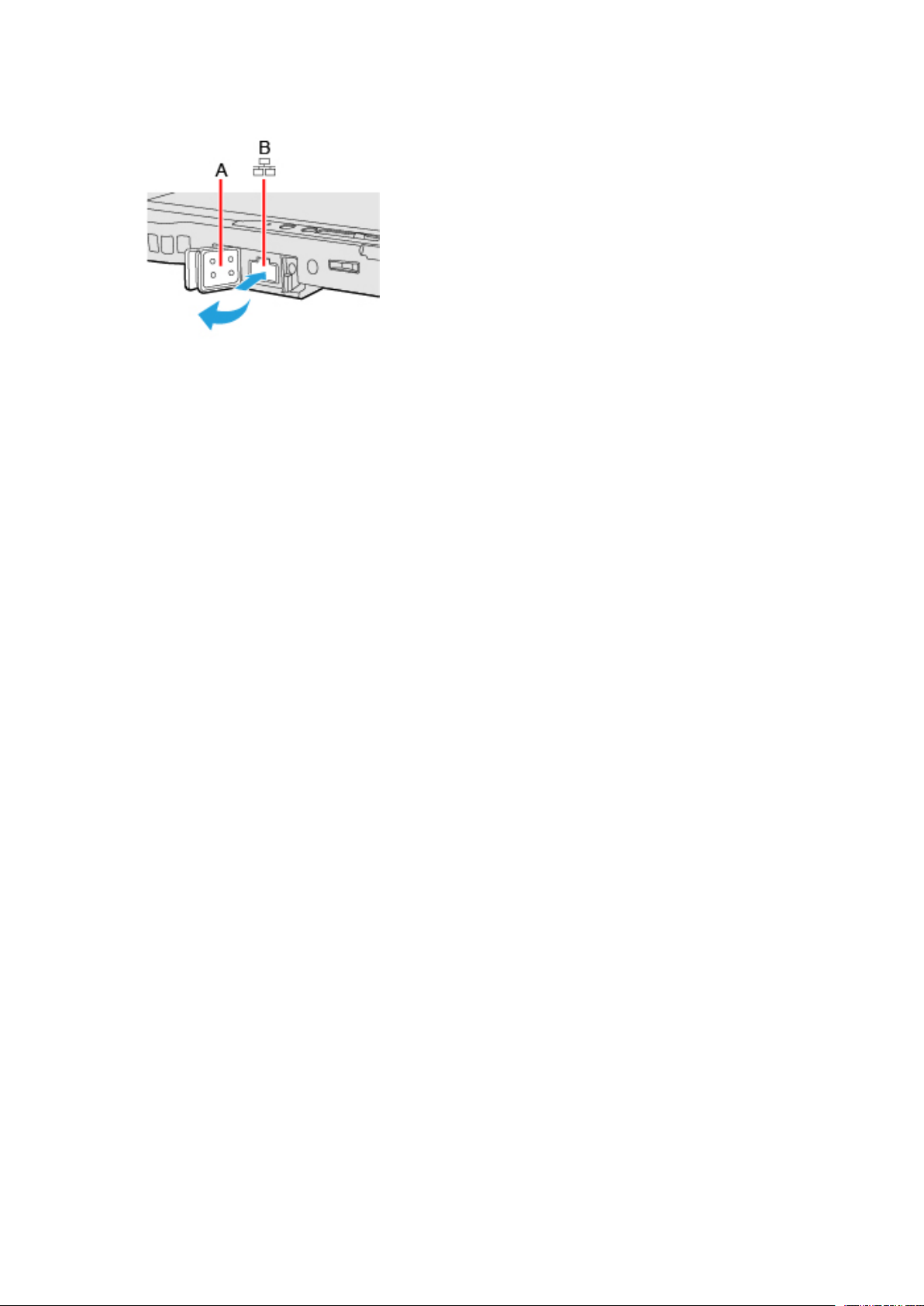

2. Slide the cover (A) to the arrow direction.

The cover is unlocked.

3. Open the cover (A).

4. Connect the LAN cable.

lConnect the LAN port (B) and the network system (server, HUB, etc.) using a LAN cable.

5. Turn on the computer.

1. Turn off the computer.

lDo not use sleep or hibernation.

2. Open the cover (A) and connect the LAN cable.

lConnect the LAN port (B) and the network system (server, HUB, etc.) using a LAN cable.

3. Turn on the computer.

Disabling/Enabling Wireless Communication

There are several ways of disabling and enabling wireless communication.

lSwitching the airplane mode using ≪Fn≫

lUsing airplane mode

lTurning wireless communication on/off quickly

lUsing Network & Internet settings

lSetting [Wireless Configuration] in the [Advanced] menu of the Setup Utility

NOTE

lFor further information about Wireless LAN.

Switching the airplane mode using ≪Fn≫

1. Press ≪Fn≫+≪F10≫.

Using airplane mode*1

1. Click (Start) - (Settings) - [Network & Internet] - [Airplane mode]

2. To disable wireless communications, set “Airplane mode”*1 to [On].

To enable wireless communications, set “Airplane mode”*1 to [Off], and then;

lset “Wi-Fi”*1 to [On] (for wireless LAN).

*1 : Screen messages are explained in [English (United States)].

(Depending on the language preference, some screen messages in these instructions are different from the actual screen messages. For example,

[Flight mode]/[WiFi] may be displayed instead of [Airplane mode]/[Wi-Fi] in some language preference.)

Turning wireless communication on/off quickly

Turning on/off the Wi-Fi

1. Click or on the task tray.

2. To turn off the Wi-Fi, click (Wi-Fi

The icon changes to , and then the icon on the task tray changes to .

To turn on the Wi-Fi, click . Then the icon changes to .

Turning on/off the airplane mode*2

1. Click or on the task tray.

2. To turn on the airplane mode, click

(Airplane mode).

The icon changes to , and then the icon on the task tray changes to .

To turn off the airplane mode, click . Then the icon changes to .

*2 : Screen messages are explained in [English (United States)].

(Depending on the language preference, some screen messages in these instructions are different from the actual screen messages. For

example, [Flight mode]/[WiFi] may be displayed instead of [Airplane mode]/[Wi-Fi] in some language preference.)

Using Network & Internet settings

1. Click or on the task tray.

2. Click [Network & Internet settings].

“Network & Internet” screen appears.

3. Click the menu “Wi-Fi”*3, “Cellular” or “Airplane mode”*3, and turn on/off each wireless function.

*3 : Screen messages are explained in [English (United States)].

(Depending on the language preference, some screen messages in these instructions are different from the actual screen messages. For

example, [Flight mode]/[WiFi] may be displayed instead of [Airplane mode]/[Wi-Fi] in some language preference.)

Wireless LAN

IM PORTANT

lDo not use wireless LAN on airplanes, in hospitals, or in other locations where wireless LAN signals may affect devices.

Follow the instructions of airline companies and hospitals. If you use the computer in these locations, turn off the wireless LAN.

lTo avoid unauthorized access to the computer through wireless LAN.

We recommend you to make security settings such as encryption before using wireless LAN.

Otherwise the disk data such as the shared files can be exposed to the risk of unauthorized access.

NOTE

lCommunication is established through the wireless LAN antenna (A). Do not block the antenna area with your hand or

body.

lThe transmission rate will be lower when a microwave oven is used near by.

lTo use wireless LAN, set [Wireless LAN] to [Enabled] (default) in the sub-menu of [Wireless Configuration] in the

[Advanced] menu of the Setup Utility.

Using the Wireless LAN Function

Before using a wireless LAN, turn the wireless LAN communication on.

Turning on/off the wireless LAN communication

1. To enable the wireless communication ( Disabling/Enabling Wireless Communication).

Setting the wireless LAN access point

Preparation

Follow the instruction manual of the wireless LAN access point to make settings for the access point to recognize the computer.

1. Click on the task tray.

2. Turn the wireless LAN on.

3. Select an access point, and click [Connect].

4. Input the key you set for the access point to recognize the computer, and click [Next].

Wait for the computer to connect to the wireless LAN access point.

When the icon on the task tray is changed to , the wireless LAN setting is complete.

NOTE

lThe settings depend on the network environment. For further information, ask the system administrator or the person in

charge of the network.

lIf you use the stealth type wireless LAN access point which restricts automatic detection of the wireless LAN access

point, take the following procedure.

If you do not perform the procedure below, you may not be able to access the wireless LAN access point automatically or

the wireless LAN access point may not be displayed.

1. Click on the task tray.

2. Turn the wireless LAN on.

3. Click [Hidden Network].

4. Click [Connect], enter the necessary information such as the network name (SSID), and click [Next].

For further information, ask the system administrator or the person in charge of the network.

Enabling/Disabling the Wireless LAN Standard IEEE802.11a (802.11a)

1. Click (Start) - (Panasonic PC Settings Utility) - (Settings) - (Network).

2. Click [Enabled] or [Disabled] for the wireless LAN IEEE802.11a.

NOTE

lIn some countries, communication using IEEE802.11a (5 GHz wireless LAN) standard is restricted by law.

lThis computer is set to enable IEEE802.11a (5 GHz wireless LAN) as the factory default.

lIf IEEE802.11a is enabled or disabled while the computer is connected to an IEEE802.11b/g access point, the connection

will be temporarily interrupted.

Troubleshooting (Advanced)

Refer to the following instructions when a problem occurs. If the remedies indicated in the chart do not solve the problem, contact Panasonic Technical

Support.

For a software problem, refer to the instruction manual of the software.

Network

Cannot connect to a network. lSet the device ([LAN] /[LAN (2nd)] /[Wireless LAN]) to [Enabled] in the [Advanced] menu of the

Setup Utility.

Cannot check the computer’s MAC

address.

lFollow the steps below.

1. Click (Start) - (Settings).

2. Click [Network & Internet] - [Status] - [View hardware and connection properties].

Properties of each device appears.

Write down the 12-digit address (alphanumeric) that appears for “Physical address

(MAC):” rows of each devices.

The names of each of the devices are as follows.

Device Connection name

Wired LAN Ethernet

Wired LAN (2nd) Ethernet 2

Wireless LAN Wi-Fi

*The content displayed will vary depending on the device and model.

3. Click to close the window.

Wireless Communication (only for model with wireless LAN)

Cannot connect to a network. lSet the device ([Wireless LAN] of [Wireless Configuration]) to [Enabled] in the [Advanced] menu

of the Setup Utility ( Wireless Configuration).

lConfirm the airplane mode is Off.

To turn off the airplane mode ( Using airplane mode).

lRestart the computer.

Access point is not detected. lShorten the distance between the computer and the access point, and try the detection again.

lConfirm the following settings:

l[Wireless LAN] in the [Advanced] menu of the Setup Utility

lConfirm that [Wireless LAN] of [Wireless Configuration] is set to [Enabled].

lCheck the channel being used by the access point.
