Panasonic 2SB0710A User manual

Transistors

Publication date: October 2008 SJC00413AED 1

This product complies with the RoHS Directive (EU 2002/95/EC).

2SB0710A

Silicon PNP epitaxial planar type

For general ampliﬁcation

Complementary to 2SD0602A

Features

Large collector current IC

Mini type package, allowing downsizing of the equipment and automatic

insertion through the tape packing

Absolute Maximum Ratings Ta= 25°C

Parameter Symbol Rating Unit

Collector-base voltage (Emitter open) VCBO -60 V

Collector-emitter voltage (Base open) VCEO -50 V

Emitter-base voltage (Collector open) VEBO -5V

Collector current IC-0.5 A

Peak collector current ICP -1A

Collector power dissipation PC200 mW

Junction temperature Tj150 °C

Storage temperature Tstg -55 to +150 °C

Electrical Characteristics Ta= 25°C±3°C

Parameter Symbol Conditions Min Typ Max Unit

Collector-base voltage (Emitter open) VCBO IC= -10 mA, IE= 0 -60 V

Collector-emitter voltage (Base open) VCEO IC= -10 mA, IB= 0 -50 V

Emitter-base voltage (Collector open) VEBO IE= -10 mA, IC= 0 -5V

Collector-base cutoff current (Emitter open) ICBO VCB = -20 V, IE= 0 -0.1 mA

Forward current transfer ratio *1hFE1 *2VCE = -10 V, IC= -150 mA 85 340 

hFE2 VCE = -10 V, IC= -500 mA 40 

Collector-emitter saturation voltage *1VCE(sat) IC= -300 mA, IB= -30 mA -0.35 -0.60 V

Base-emitter saturation voltage *1VBE(sat) IC= -300 mA, IB= -30 mA -1.1 -1.5 V

Transition frequency fTVCB = -10 V, IE= 50 mA, f = 200 MHz 200 MHz

Collector output capacitance

(Common base, input open circuited) Cob VCB = -10 V, IE= 0, f = 1 MHz 6 15 pF

Note) 1. Measuring methods are based on JAPANESE INDUSTRIAL STANDARD JIS C 7030 measuring methods for transistors.

2. *1: Pulse measurement

*2: Rank classiﬁcation

Rank Q R S No-rank

hFE1 85 to 170 120 to 240 170 to 340 85 to 340

Marking symbol DQ DR DS D

Product of no-rank is not classiﬁed and have no indication for rank.

Package

Code

Mini3-G1

Pin Name

1: Base

2: Emitter

3: Collector

Marking Symbol: D

2SB0710A

2SJC00413AED

This product complies with the RoHS Directive (EU 2002/95/EC).

040 80 120 160

160

240

2SB0710A_ PC-Ta

Collector power dissipation PC(mW)

Ambient temperature Ta(°C)

0−4−8−12

−200

−400

−600

−800

2SB0710A_ IC-VCE

Collector current IC(mA)

Collector-emitter voltage VCE (V)

Ta =25°C

IB=−10 mA

−9 mA

−8 mA

−7 mA

−6 mA

−5 mA

−4 mA

−3 mA

−2 mA

−1 mA

0−8−4

−200

−600

−800

−400

2SB0710A_ IC-IB

Collector current IC(mA)

Base current IB(mA)

VCE =−10 V

Ta =25°C

−1−10 −102−103

−10−2

−10−1

−10

−1

2SB0710A_ VCE(sat)-IC

Collector-emitter saturation voltage VCE(sat) (V)

Collector current IC(mA)

IC / IB =10

Ta =75°C

25°C

−25°C

−1−10 −102−103

−10−2

−10−1

−10

−1

2SB0710A_ VBE(sat)-IC

Base-emitter saturation voltage VBE(sat) (V)

Collector current IC(mA)

IC / IB =10

Ta =−25°C

25°C

75°C

−10 −102−103

100

200

300

400

2SB0710A_ hFE-IC

Forward current transfer ratio hFE

Collector current IC(mA)

VCE =−10 V

Ta =75°C

25°C

−25°C

110 102

160

240

2SB0710A_ fT-IE

Transition frequency fT(MHz)

Emitter current IE(mA)

VCE =−10 V

Ta =25°C

−1−10 −102

2SB0710A_ Cob-VCB

Collector output capacitance

(Common base, input open circuited) Cob (pF)

Collector-base voltage VCB (V)

IE =0

f=1 MHz

Ta =25°C

110 103

102

−40

−80

−120

2SB0710A_ VCER-RBE

Collector-emitter voltage

(Resistor between B and E) VCER (V)

Base-emitter resistance RBE (kΩ)

IC =−2 mA

Ta =25°C

PCTaICVCE ICIB

VCE(sat) ICVBE(sat) IChFE IC

fTIECob VCB VCER RBE

2SB0710A

SJC00413AED 3

This product complies with the RoHS Directive (EU 2002/95/EC).

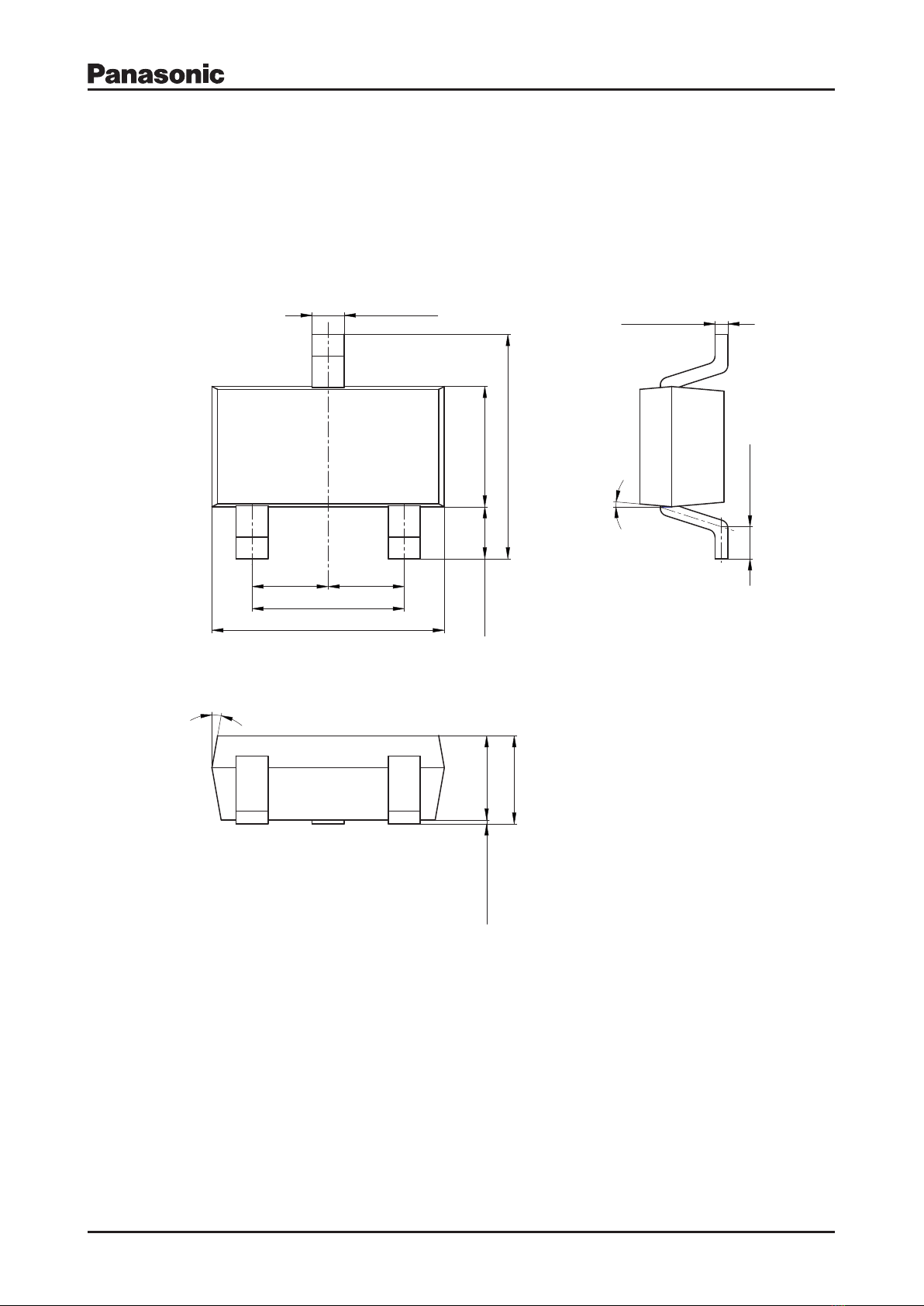

Mini3-G1 Unit: mm

(0.95)

1.9 ±0.1

0.40

1.50

2.8

2.90

5°

0.4 ±0.2

0.16

10°

1.1

0 to 0.1 (0.65)

+0.10

−0.05

+0.25

−0.05

+0.2

−0.3

+0.20

−0.05

+0.2

−0.1

+0.3

−0.1

+0.10

−0.05

Request for your special attention and precautions in using the technical information and

semiconductors described in this book

(1)If any of the products or technical information described in this book is to be exported or provided to non-residents, the laws and

regulations of the exporting country, especially, those with regard to security export control, must be observed.

(2)The technical information described in this book is intended only to show the main characteristics and application circuit examples

of the products. No license is granted in and to any intellectual property right or other right owned by Panasonic Corporation or any

other company. Therefore, no responsibility is assumed by our company as to the infringement upon any such right owned by any

other company which may arise as a result of the use of technical information described in this book.

(3)The products described in this book are intended to be used for standard applications or general electronic equipment (such as office

equipment, communications equipment, measuring instruments and household appliances).

Consult our sales staff in advance for information on the following applications:

–Special applications (such as for airplanes, aerospace, automobiles, traffic control equipment, combustion equipment, life support

systems and safety devices) in which exceptional quality and reliability are required, or if the failure or malfunction of the prod-

ucts may directly jeopardize life or harm the human body.

–Any applications other than the standard applications intended.

(4)The products and product specifications described in this book are subject to change without notice for modification and/or im-

provement. At the final stage of your design, purchasing, or use of the products, therefore, ask for the most up-to-date Product

Standards in advance to make sure that the latest specifications satisfy your requirements.

(5)When designing your equipment, comply with the range of absolute maximum rating and the guaranteed operating conditions

(operating power supply voltage and operating environment etc.). Especially, please be careful not to exceed the range of absolute

maximum rating on the transient state, such as power-on, power-off and mode-switching. Otherwise, we will not be liable for any

defect which may arise later in your equipment.

 Even when the products are used within the guaranteed values, take into the consideration of incidence of break down and failure

mode, possible to occur to semiconductor products. Measures on the systems such as redundant design, arresting the spread of fire

or preventing glitch are recommended in order to prevent physical injury, fire, social damages, for example, by using the products.

(6)Comply with the instructions for use in order to prevent breakdown and characteristics change due to external factors (ESD, EOS,

thermal stress and mechanical stress) at the time of handling, mounting or at customer's process. When using products for which

damp-proof packing is required, satisfy the conditions, such as shelf life and the elapsed time since first opening the packages.

(7)This book may be not reprinted or reproduced whether wholly or partially, without the prior written permission of our company.
